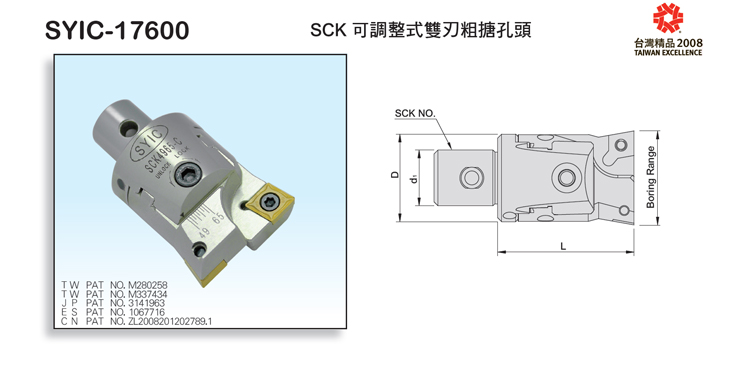

Product Name : Roughing Twin Adjustment Boring Head
Product Introduction
  • Suitable for rough boring, heavy duty and interrupted working process.
  • Both inserts can move simultaneously. Time-saving and easy to operate.
  • The insert seats contact the boring head with three surfaces. Rigidity is improved a lot.
  • Applicable for SYIC's SCK tool holers; exchangeable with CK series as well.
  • Suitable for big table feed (F) with high efficiency.
  • Decreasing the production cost and extending insert use life.



MODEL NO.TYPEASSEMBLE TOOL HOLDERBoring Ranged1LDINSERTWEIGHT (KGS)
MIN.MAX.
SYIC - 17602 SCK2430 - C SCK2 24 30 14 34 22 CC..0602 0.19
SYIC - 17604 SCK2940 - C SCK2 29 40 14 42 27 CC..09T3 0.19
SYIC - 17606 SCK3950 - C SCK3 39 50 18 45 32 CC..09T3 0.19
SYIC - 17608 SCK4965 - C SCK4 49 65 22 56 42 CC..1204 0.1
SYIC - 17612 SCK6382 - C SCK5 63 82 28 66 54 CC..1204 0.2
SYIC - 17614 SCK80102 - C SCK6 80 102 36 86 68 CC..1204 2.3
SYIC - 17616 SCK100125 - C SCK7 100 125 46 100 85 CC..1204 4
SYIC - 17618 SCK125160 - C SCK7 125 160 46 100 110 CC..1204 6.16
SYIC - 17620 SCK160220 - C SCK7 160 220 46 100 145 CC..1204 8.1

ACCESSORIES

INSERTSCREWWRENCH
CC..0602 M2.5-6.0-3.5-60 T8
CC..09T3 M4-10-5.7-60 T15
CC..1204 M5-11-7.5-60 T20

Inserts are optional accessories. Needs to be purchased additionally.
