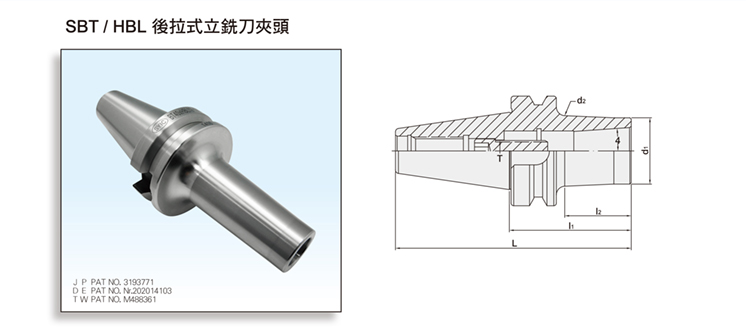

Product Name : SBT/HBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.



MODEL NO.TYPE - I1Ll2d1d2T
25.275.12.070 SBT30 x HBL12 - 70 118.4 47 31.75 34.9 M10 x 1.5P
25.275.12.100 SBT30 x HBL12 - 100 148.4 77 31.75 37.6 M10 x 1.5P
25.275.20.080 SBT30 x HBL20 - 80 128.4 56 38.1 42.1 M12 x 1.75P
25.275.20.100 SBT30 x HBL20 - 100 148.4 76 38.1 43.9 M12 x 1.75P
26.275.12.070 SBT40 x HBL12 - 70 135.4 33 31.75 33.7 M10 x 1.5P
26.275.12.100 SBT40 x HBL12 - 100 165.4 63 31.75 36.4 M10 x 1.5P
26.275.20.070 SBT40 x HBL20 - 70 135.4 38 38.1 40.5 M12 x 1.75P
26.275.20.100 SBT40 x HBL20 - 100 165.4 68 38.1 43.1 M12 x 1.75P
26.275.25.080 SBT40 x HBL25 - 80 145.4 50 44.45 47.9 M16 x 2.0P
26.275.25.100 SBT40 x HBL25 - 100 165.4 70 44.45 49.7 M16 x 2.0P
27.275.12.070 SBT50 x HBL12 - 70 171.8 22 31.75 32.8 M10 x 1.5P
27.275.12.100 SBT50 x HBL12 - 100 201.8 52 31.75 35.4 M10 x 1.5P
27.275.20.070 SBT50 x HBL20 - 70 171.8 22 38.1 39.1 M12 x 1.75P
27.275.20.100 SBT50 x HBL20 - 100 201.8 52 38.1 41.8 M12 x 1.75P
27.275.25.070 SBT50 x HBL25 - 70 171.8 22 44.45 45.5 M16 x 2.0P
27.275.25.100 SBT50 x HBL25 - 100 201.8 54 44.45 48.4 M16 x 2.0P
