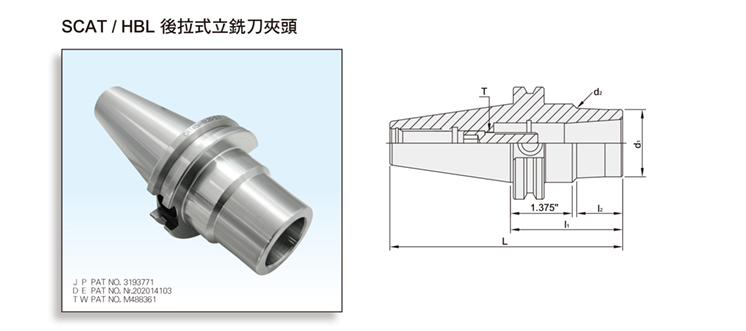

Product Name : SCAT/HBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.
MODEL NO.TYPELl2d1d2T
43.275.12.250 SCAT40 x HBL12 - 2.5" 5.187 0.89 1.25 1.29 M10 x 1.5P
43.275.12.400 SCAT40 x HBL12 - 4" 6.687 2.46 1.25 1.43 M10 x 1.5P
43.275.20.250 SCAT40 x HBL20 - 2.5" 5.187 1.02 1.5 1.56 M12 x 1.75P
43.275.20.400 SCAT40 x HBL20 - 4" 6.687 2.59 1.5 1.69 M12 x 1.75P
43.275.25.325 SCAT40 x HBL25 - 3.25" 5.937 1.81 1.75 1.874 M16 x 2.0P
43.275.25.400 SCAT40 x HBL25 - 4" 6.687 2.529 1.75 1.936 M16 x 2.0P
44.275.12.250 SCAT50 x HBL12 - 2.5" 6.5 1.12 1.25 1.3 M10 x 1.5P
44.275.12.450 SCAT50 x HBL12 - 4.5" 8.5 2.75 1.25 1.46 M10 x 1.5P
44.275.20.250 SCAT50 x HBL20 - 2.5" 6.5 0.93 1.5 1.55 M12 x 1.75P
44.275.20.450 SCAT50 x HBL20 - 4.5" 8.5 2.93 1.5 1.72 M12 x 1.75P
44.275.25.275 SCAT50 x HBL25 - 2.75" 6.75 1.316 1.75 1.831 M16 x 2.0P
44.275.25.450 SCAT50 x HBL25 - 4.5" 8.5 3.066 1.75 1.983 M16 x 2.0P
