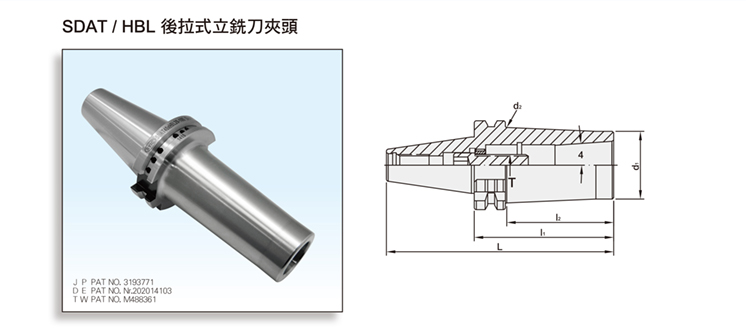

Product Name : SDAT/HBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.
MODEL NO.TYPE - I1LI2d1d2T
66.275.12.070 SDAT40 x HBL12 - 70 138.4 41.34 31.75 34.49 M10 x 1.5P
66.275.12.100 SDAT40 x HBL12 - 100 168.4 71.34 31.75 37.11 M10 x 1.5P
66.275.20.070 SDAT40 x HBL20 - 70 138.4 46.12 38.1 41.25 M12 x 1.75P
66.275.20.100 SDAT40 x HBL20 - 100 168.4 78.03 38.1 44.04 M12 x 1.75P
66.275.25.080 SDAT40 x HBL25 - 80 148.4 58.03 44.45 48.6 M16 x 2.0P
66.275.25.100 SDAT40 x HBL25 - 100 168.4 80.1 44.45 49.5 M16 x 2.0P
67.275.12.070 SDAT50 x HBL12 - 70 171.75 41.34 31.75 34.49 M10 x 1.5P
67.275.12.100 SDAT50 x HBL12 - 100 201.75 71.34 31.75 37.11 M10 x 1.5P
67.275.20.070 SDAT50 x HBL20 - 70 171.75 41.34 38.1 40.84 M12 x 1.75P
67.275.20.100 SDAT50 x HBL20 - 100 201.75 71.34 38.1 43.47 M12 x 1.75P
67.275.25.070 SDAT50 x HBL25 - 70 171.75 46.1 44.45 47.6 M16 x 2.0P
67.275.25.100 SDAT50 x HBL25 - 100 201.75 76.1 44.45 50.2 M16 x 2.0P
