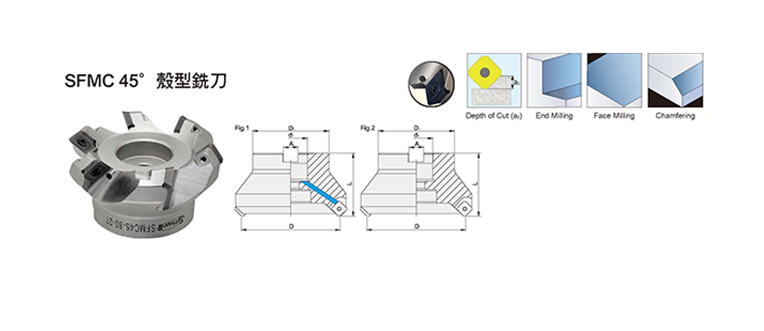

Product Name : SFMC45° Face Milling Cutter
Product Introduction

ACCESSORIES:

INSERTINSERT SCREWWRENCH
SE..13T3 M3.5-10-5.5-60 T15
  • Inserts are optional accessories. Needs to be purchased additionally.
MODEL NO.TYPEDD1d1LAap max.TEETHINSERTFig
154.661.22.040 SFMC45-40-22 40 40 22 40 10.4 6 3 SE..13T3 1
154.661.22.050 SFMC45-40-22 50 48 22 40 10.4 6 5 SE..13T3 1
154.661.22.063 SFMC45-63-22 63 48 22 40 10.4 6 5 SE..13T3 1
154.661.27.080 SFMC45-80-27 80 62 27 50 12.4 6 6 SE..13T3 1
154.661.32.100 SFMC45-100-32 100 78 32 50 14.4 6 7 SE..13T3 1
154.661.40.125 SFMC45-125-40 125 89 4 63 16.4 6 8 SE..13T3 1
154.661.40.160 SFMC45-160-40 160 98 40 63 16.4 6 10 SE..13T3 1
154.661.68.063 SFMC45-63-25.4 63 50 25.4 40 9.5 6 5 SE..13T3 1
154.661.72.080 SFMC45-80-31.75 80 62 31.75 50 12.7 6 6 SE..13T3 1
154.661.72.100 SFMC45-100-31.75 100 78 31.75 50 12.7 6 7 SE..13T3 1
154.661.77.125 SFMC45-125-38.1 125 80 38.1 63 15.9 6 8 SE..13T3 1
154.652.86.125 SFM45-125-50.8 125 80 50.8 63 19.45 6 8 SE..13T3 2
154.652.84.200 SFM45-200-47.625 200 138 47.625 63 25.4 6 12 SE..13T3 2
