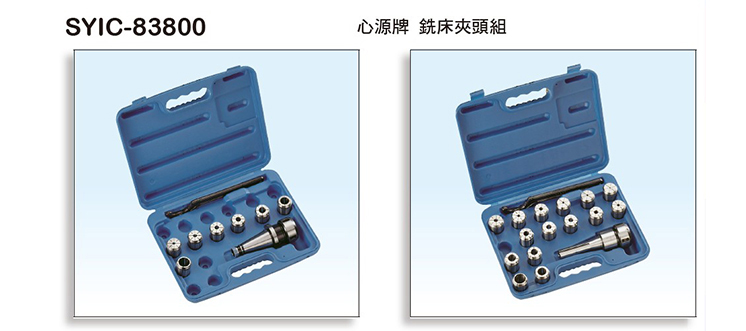

Product Name : SHIN-YAIN Milling Chuck Set
Product Introduction
  • Complete sets use SYOZ collet.
  • Packed with plastic box, Wooden box package is different price.
  • Please indicate the collet chuck measurements in inch or metric system and 7pcs/set or 15pcs/set.
  • Please specify the draw bar's size when making an order.
  • NT50 packed by wooden box.
  • Concentric end mill extending 25mm with concentricity at 0.02mm.
  • Interior device with upper contracting to keep cutter never be shrunk.
  • Enclosed one Spanner and Plastic case or wooden case for every set.
  • The body Screw is Ground.



MODEL NO.TYPECOLLETTYPPERWEIGHT (KGS)
SYIC - 83802 MTB2 x EOC25 x 7M x SYOZ 3/8" - 16
M10 x 1.5P
6, 8, 10, 12,
16, 20, 25mm
3.4
SYIC - 83803 MTB3 x EOC25 x 7M x SYOZ 1/2" - 12
M12 x 1.75P
6, 8, 10, 12,
16, 20, 25mm
3.8
SYIC - 83804 MTB4 x EOC25 x 7M x SYOZ 5/8" - 11
M16 x 2.0P
6, 8, 10, 12,
16, 20, 25mm
4
SYIC - 83808 R 8 x EOC25 x 7M x SYOZ 7/16" - 20 6, 8, 10, 12,
16, 20, 25mm
3.7
SYIC - 83830 NT30 x EOC25 x 7M x SYOZ 1/2" - 12
M12 x 1.75P
6, 8, 10, 12,
16, 20, 25mm
3.5
SYIC - 83840 NT40 x EOC25 x 7M x SYOZ 5/8" - 11
M16 x 2.0P
6, 8, 10, 12,
16, 20, 25mm
3.8
SYIC - 83850 NT50 x EOC25 x 7M x SYOZ 1" - 8
M24 x 3.0P
6, 8, 10, 12,
16, 20, 25mm
6.2
SYIC - 83812 MTB2 x EOC25 x 7I x SYOZ 3/8" - 16
M10 x 1.5P
1/4", 5/16",3/8",
1/2",5/8", 3/4", 1"
3.5
SYIC - 83813 MTB3 x EOC25 x 7I x SYOZ 1/2" - 12
M12 x 1.75P
1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 3.55
SYIC - 83814 MTB4 x EOC25 x 7I x SYOZ 5/8" - 11
M16 x 2.0P
1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 3.7
SYIC - 83818 R 8 x EOC25 x 7I x SYOZ 7/16" - 20 1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 3.9
SYIC - 83831 NT30 x EOC25 x 7I x SYOZ 1/2" - 12
M12 x 1.75P ,U. S. A. 1/2" - 13
1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 3.6
SYIC - 83841 NT40 x EOC25 x 7I x SYOZ 5/8" - 11
M16 x 2.0P
1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 4
SYIC - 83849 NT50 x EOC25 x 7I x SYOZ 1" - 8
M24 x 3.0P
1/4", 5/16",3/8", 1/2",5/8", 3/4", 1" 6.8
SYIC - 83851 MTB2 x EOC25 x 15M x SYOZ 3/8" - 16
M10 x 1.5P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
4.9
SYIC - 83852 MTB3 x EOC25 x 15M x SYOZ 1/2" - 12
M12 x 1.75P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
5.2
SYIC - 83853 MTB4 x EOC25 x 15M x SYOZ 5/8" - 11
M16 x 2.0P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
5.7
SYIC - 83854 R8 x EOC25 x 15M x SYOZ 7/16" - 20 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
5.3
SYIC - 83855 NT30 x EOC25 x 15M x SYOZ 1/2" - 12
M12 x 1.75P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
5
SYIC - 83856 NT40 x EOC25 x 15M x SYOZ 5/8" - 11
M16 x 2.0P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
5.4
SYIC - 83857 NT50 x EOC25 x 15M x SYOZ 1" - 8
M24 x 3.0P
3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 16, 18, 20, 25mm
7.6
SYIC - 83871 MTB2 x EOC25 x 15I x SYOZ 3/8" - 16
M10 x 1.5P
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4",
13/16", 7/8", 15/16", 1"
4.9
SYIC - 83872 MTB3 x EOC25 x 15I x SYOZ 1/2" - 12
M12 x 1.75P
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
5.2
SYIC - 83873 MTB4 x EOC25 x 15I x SYOZ 5/8" - 11
M16 x 2.0P
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
5.7
SYIC - 83874 R8 x EOC25 x 15I x SYOZ 7/16" - 20 1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
5.3
SYIC - 83875 NT30 x EOC25 x 15I x SYOZ 1/2" - 12
M12 x 1.75P ,U. S. A. 1/2" - 13
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
5
SYIC - 83876 NT40 x EOC25 x 15I x SYOZ 5/8" - 11
M16 x 2.0P
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
5.4
SYIC - 83877 NT50 x EOC25 x 15I x SYOZ 1" - 8
M24 x 3.0P
1/8", 3/16", 1/4", 5/16", 3/8", 7/16",
1/2", 9/16", 5/8", 11/16", 3/4", 13/16",
7/8", 15/16", 1"
7.6
