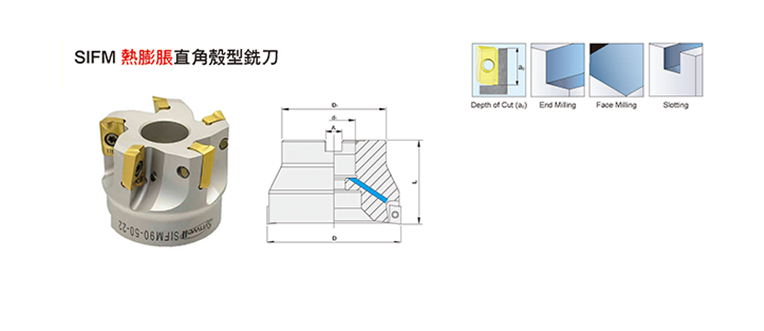

Product Name : SIFM Shrink Fit Square Shoulder Milling Cutter
Product Introduction

ACCESSORIES:

INSERTINSERT SCREWWRENCH
AP..1604 M4-10-5.7-60 T15
  • Inserts are optional accessories. Needs to be purchased additionally.
MODEL NO.TYPEDD1d1LAap max.TEETHINSERT
154.630.22.050 SIFM90-50-22 50 45 22 40 10.4 16 5 AP..1604
154.630.22.063 SIFM90-63-22 63 48 22 40 10.4 16 5 AP..1604
154.630.27.080 SIFM90-80-27 80 62 27 50 12.4 16 6 AP..1604
154.630.32.100 SIFM90-100-32 100 78 32 50 14.4 16 7 AP..1604
154.630.40.125 SIFM90-125-40 125 89 40 63 16.4 16 8 AP..1604
154.630.68.050 SIFM90-50-25.4 50 48.5 25.4 40 9.5 16 5 AP..1604
154.630.68.063 SIFM90-63-25.4 63 50 25.4 40 9.5 16 5 AP..1604
154.630.72.080 SIFM90-80-31.75 80 62 31.75 50 12.7 16 6 AP..1604
154.630.72.100 SIFM90-100-31.75 100 78 31.75 50 12.7 16 7 AP..1604
154.630.77.125 SIFM90-125-38.1 125 80 38.1 63 15.9 16 8 AP..1604
