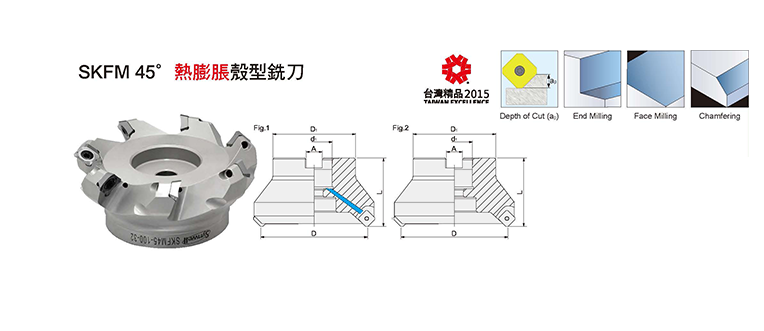

Product Name : SKFM45° Shrink Fit Face Milling Cutter
Product Introduction

ACCESSORIES:

INSERTINSERT SCREWWRENCH
SE..1204 M5-11-7.0-55 T20
  • Inserts are optional accessories. Needs to be purchased additionally.
MODEL NO.TYPEDD1d1LAap max.TEETHINSERTFig
154.628.22.040 SKFM45-40-22 40 40 22 40 10.4 6 4 SE..1204 1
154.628.22.050 SKFM45-50-22 50 48 22 40 10.4 6 4 SE..1204 1
154.628.22.050-5T SKFM45-50-22-5T 50 48 22 40 10.4 6 5 SE..1204 1
154.628.22.063 SKFM45-63-22 63 48 22 40 10.4 6 5 SE..1204 1
154.628.27.080 SKFM45-80-27 80 62 27 50 12.4 6 6 SE..1204 1
154.628.32.100 SKFM45-100-32 100 78 32 50 14.4 6 7 SE..1204 1
154.628.40.125 SKFM45-125-40 125 89 40 63 16.4 6 8 SE..1204 1
154.628.40.160 SKFM45-160-40 160 89 40 63 16.4 6 10 SE..1204 1
154.628.68.080 SKFM45-80-25.4 80 50 25.4 50 9.5 6 6 SE..1204 1
154.628.72.100 SKFM45-100-31.75 100 78 31.75 50 12.7 6 7 SE..1204 1
154.628.77.125 SKFM45-125-38.1 125 80 38.1 63 15.9 6 8 SE..1204 1
154.628.86.160 SKFM45-160-50.8 160 98 50.8 63 19.45 6 10 SE..1204 2
154.628.84.200 SKFM45-200-47.625 200 128.75 47.625 63 25.4 6 12 SE..1204 2
