Product Name : SLC Collet
Product Introduction
  • Steel: SUP-9
  • HRC: 46°
  • Surface Roughness: Rz2.5 (Ra 0.6)
  • Precision: 5μ (4D length)

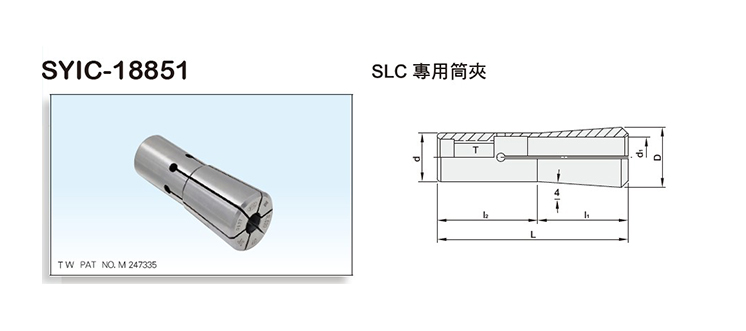

MODEL NO.TYPEd1DdLl1l2TWEIGHT (KGS)
SYIC - 18851 SLC - 6 3, 4, 5, 6 10 8 36 24 12 M6 x 1.0P 0.02
SYIC - 18852 SLC - 12 3, 4, 5, 6, 8, 10, 12 18 14.5 57 25.45 31.55 M10 x 1.5P 0.04
SYIC - 18853 SLC - 20 3, 4, 5, 6, 8, 10, 12, 16, 18, 20 27 21 70 35 35 M12 x 1.75P 0.12
SYIC - 18855 SLC - 25 6,8,10,12,16,18,20,25 32.4 25 80 43.5 34.5 M16 x 1.5P 0.16
