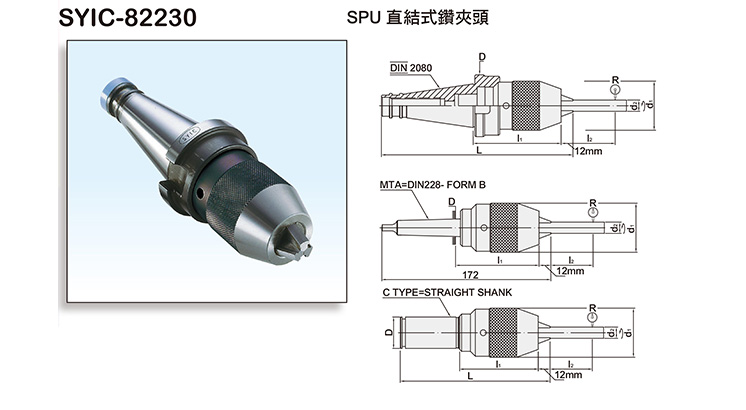

Product Name : SPU Drill Chuck Integrated Type
Product Introduction

This product adds multi safety design, able to provide for Machine Center, in full automatic operation controlled by computer, and unmanned management process, it can be progressed safely and smoothly.



MODEL NO.TYPEl1l2LDd1d2RWEIGHT (KGS)
SYIC - 82229 C20 x SPU8 - 61 61 55 121 20 37 10 0.05 1.15
SYIC - 82230 C20 x SPU13 - 81 81 55 141 20 50 10 0.05 1.2
SYIC - 82231 C25 x SPU13 - 81 81 55 160 25 50 10 0.05 1.3
SYIC - 82232 C32 x SPU13 - 81 81 55 162 32 50 10 0.05 1.5
SYIC - 82233 MTA3 x SPU13 - 81 81 55 162 50 50 10 0.05 1.3
SYIC - 82234 MTA4 x SPU13 - 81 81 55 206 50 50 10 0.05 1.65
SYIC - 82236 NT30 x SPU13 - 110 110 55 190.4 49 50 5 0.05 1.5
SYIC - 82237 NT40 x SPU13 - 90 90 55 195.4 63 50 10 0.05 1.9
SYIC - 82238 NT50 x SPU13 - 80 80 75 218.8 97.5 50 13 0.05 3.8
SYIC - 82239 R8 x SPU13 - 81 81 55 184 50 50 10 0.05 1.42
SYIC - 82245 NT30 x SPU 8 - 80 80 55 160.4 49 37 5 0.05 1.3
SYIC - 82246 NT40 x SPU8 - 80 80 55 185.4 63 37 5 0.05 1.48
SYIC - 82247 NT40 x SPU16 - 100 100 75 205.4 63 57 13 0.05 2.28
SYIC - 82248 NT50 x SPU16 - 100 100 75 238.8 97.5 57 13 0.05 4.2
