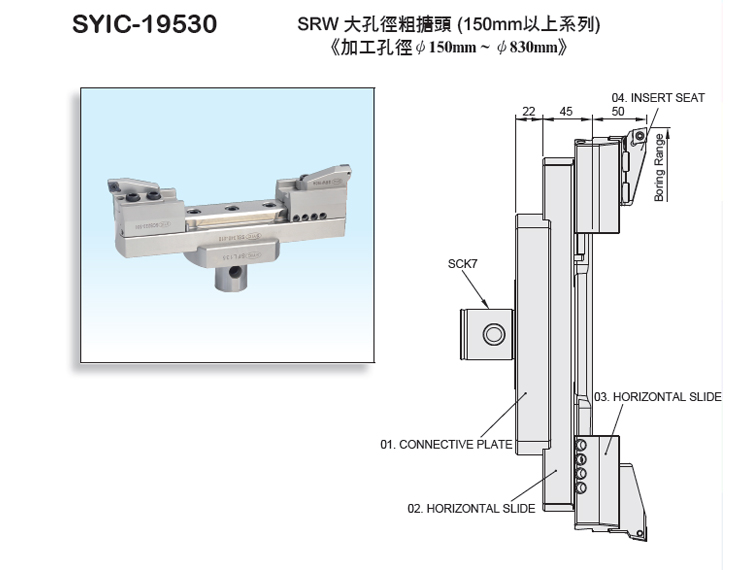

Product Name : SRW Roughing Boring Head For Over 150mm Series
Product Introduction
MODEL NO.TYPEBORING RANGE01.
CONNECTIVE PLATE
02.
HORIZONTAL SLIDE
03.
HORIZONTAL SLIDE
04.
INSERT SEAT
WEIGHT (KGS)
MIN.MAX.
SYIC - 19532 SRW 150A 150 200 SFL135 SSL150 - 200 SCB150 - 200 SRW150A 7.24
SYIC - 19534 SRW 200A 200 270 SFL135 SSL200 - 270 SCB220 - 550 SRW150A 8.85
SYIC - 19536 SRW 270A 270 340 SFL135 SSL270 - 340 SCB220 - 550 SRW150A 10.3
SYIC - 19538 SRW 340A 340 410 SFL135 SSL340 - 410 SCB220 - 550 SRW150A 11.8
SYIC - 19540 SRW 410A 410 480 SFL135 SSL410 - 480 SCB220 - 550 SRW150A 13.2
SYIC - 19542 SRW 480A 480 550 SFL135 SSL480 - 550 SCB220 - 550 SRW150A 14.7
SYIC - 19544 SRW 550A 550 620 SFL220 SSL550 - 620 SCB220 - 550 SRW150A 18.6
SYIC - 19546 SRW 620A 620 690 SFL220 SSL620 - 690 SCB220 - 550 SRW150A 20.1
SYIC - 19548 SRW 690A 690 760 SFL220 SSL690 - 760 SCB220 - 550 SRW150A 21.5
SYIC - 19550 SRW 760A 760 830 SFL220 SSL760 - 830 SCB220 - 550 SRW150A 22.9

Spare parts can be purchased individually.



ACCESSORIES

ININSERTSERTSCREWWRENCH
CC..1204 M5-11-7.5-60 T20

Inserts are optional accessories. Needs to be purchased additionally.
