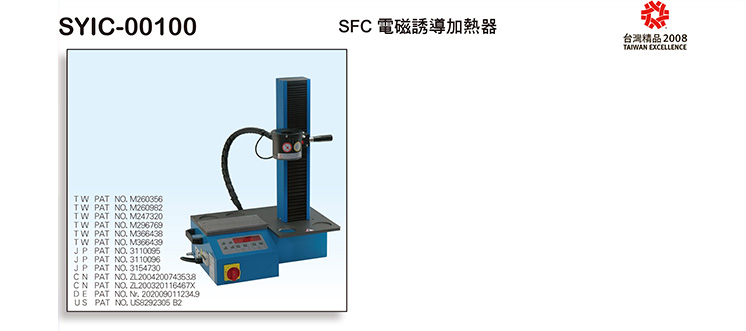

Product Name : Shrink-Fit Machine
Product Introduction
  • Heating time: 3~18 sec. (depends on the diameter and shape of tool holder)
  • Automatic cooling: 3~5 min.
  • Used for HSS or general throw-away cutting tools (more than ψ8mm)
  • Can heat small diameter tool holder (less than ψ4mm)
  • Advantages: better manufacturing rigidity& longer tool life



  • Adjust the Turntable Positioning Device and move the Sliding Jaws for tool positioning.
  • Sliding Jaws are magnetism-separated.
  • Easy-operated and time-saving. Removes the complicated steps of exchanging Induction Rings.

Height plus seat

MODEL NO.SPINDLE TYPE
SYIC - 00170 Ø84 x 101

Clamp for cutting tool

MODEL NO.SPINDLE TYPE
SYIC - 00175 Ø3 ~ Ø12

Tool holder transfer stand

MODEL NO.SPINDLE TYPEFig
SYIC - 00151 BT 30 2
SYIC - 00152 BT 40 1
SYIC - 00153 BT 50 1
SYIC - 00155 HSK 25 3
SYIC - 00156 HSK 32 3
SYIC - 00157 HSK 40 2
SYIC - 00158 HSK 50 2
SYIC - 00159 HSK 63 1
SYIC - 00160 HSK 80 1
MODEL NO.TYPEMaximum Consumption electric powerFuseSIZESuitable Cutter MaterialDiameter range of cutterWEIGHT (KGS)
SYIC - 00100 - B 220V 3phase 9000W 25A 650 x 410 x 820 Tungsten steel Ø 3 ~ Ø 32 40
SYIC - 00101 - B 380V 3phase 10000W 16A 650 x 410 x 820 Tungsten steel Ø 3 ~ Ø 32 40
SYIC - 00102 - B 415V 3phase 10000W 16A 650 x 410 x 820 Tungsten steel Ø 3 ~ Ø 32 40
SYIC - 00103 - B 440V 3phase 10000W 16A 650 x 410 x 820 Tungsten steel Ø 3 ~ Ø 32 40
