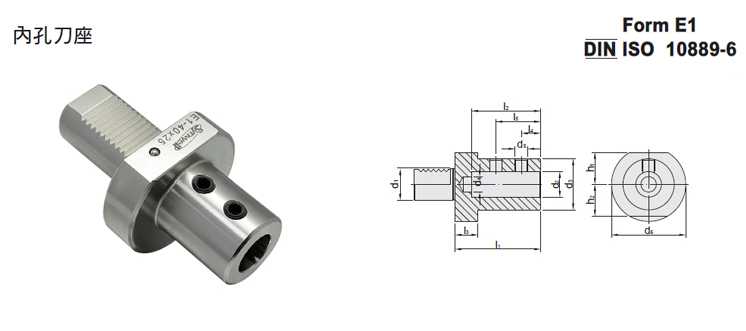

Product Name : Side Lock Holder
Product Introduction
  • Tolerance of internal hole: H5.
  • Applicable for High Speed Drill.
  • With center coolant.



MODEL NO.TYPE d1 x d2d1d2d3d4d5d6h1h2l1l2l3l4l5
150.E1.30.20 30 x 20 30 20 40 12 M10x1 68 28 30 67 54 22 15 35
150.E1.30.25 30 x 25 30 25 45 17 M12x1 68 28 30 71 59 22 17 40
150.E1.30.32 30 x 32 30 32 52 24 M12x1 68 28 30 75 63 22 17 44
150.E1.30.40 30 x 40 30 40 65 24 M16x1 68 28 30 90 73 22 22 50
150.E1.40.18 40 x 18 40 18 40 12 M10x1 83 32.5 - 67 54 22 15 35
150.E1.40.20 40 x 20 40 20 40 12 M10x1 83 32.5 - 67 54 22 15 35
150.E1.40.25 40 x 25 40 25 45 17 M12x1 83 32.5 - 75 59 22 17 40
150.E1.40.32 40 x 32 40 32 52 24 M12x1 83 32.5 - 75 63 22 17 44
150.E1.40.40 40 x 40 40 40 65 32 M16x1 83 32.5 - 90 73 22 22 50
150.E1.40.50 40 x 50 40 50 83 32 M16x1 83 32.5 - 100 83 22 24 60
150.E1.50.20 50 x 20 50 20 40 12 M10x1 98 35 - 67 54 30 15 35
150.E1.50.25 50 x 25 50 25 45 17 M12x1 98 35 - 80 59 30 17 40
150.E1.50.32 50 x 32 50 32 52 24 M12x1 98 35 - 80 63 30 17 44
150.E1.50.40 50 x 40 50 40 65 32 M16x1 98 35 - 90 73 30 22 50
150.E1.50.50 50 x 50 50 50 75 42 M16x1 98 35 - 100 83 30 24 60
