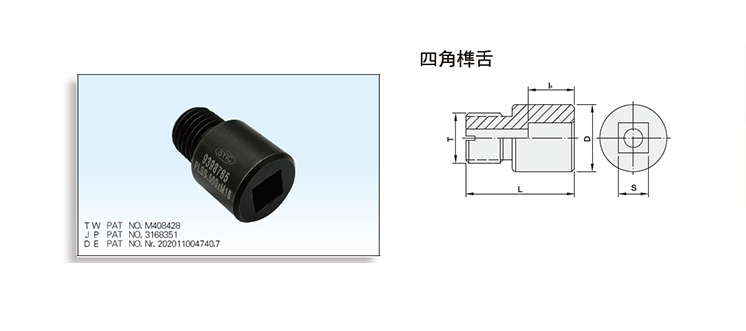

Product Name : Square Shank Adapter
Product Introduction
    Adapts ER Chucks into PowerLOC Milling Holders:
  • PowerLOC Square Shank Adapters turn our standard collet chucks into milling holders capable of performing heavier milling jobs than you ever thought possible.
  • We’re Making a Better Connection Between the Cutting Tool and Spindle.

ER High Speed Precision Nut

MODEL NO.TYPELl1DSTWEIGHT (KGS)
SYIC - 9398765 PLSS1/2" x M16 35 15 21.5 9.652 M16 x 2.0P 0.03
SYIC - 9397764 PLSS3/4" x M16 35 15 21.5 14.288 M16 x 2.0P 0.04
SYIC - 9396764 PLSS1/2" x M20 40 15 29 9.652 M20 x 2.0P 0.12
SYIC - 9396763 PLSS3/4" x M20 40 15 29 14.288 M20 x 2.0P 0.12
SYIC - 9396762 PLSS1" x M20 40 15 29 19.05 M20 x 2.0P 0.12
SYIC - 9396766 PLSS1-1/4" x M24 40 15 34 19.38 M24 x 2.0P 0.18
