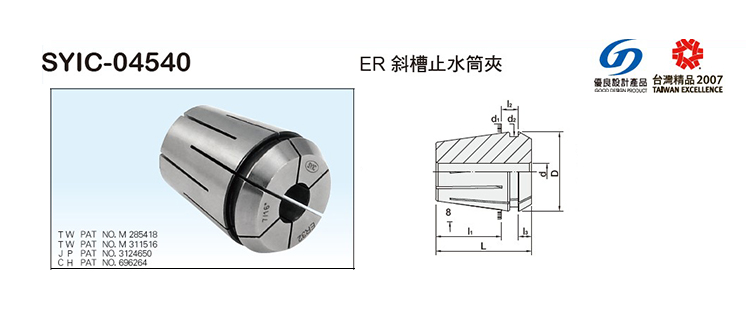

Product Name : Steel Sealed Collet
Product Introduction
  • Surface roughness: Ra<0.25μm.
  • Used for coolant-through cutting tools.
  • Water pressure up to 70 kgf/cm2(1000PSI).
  • Only for tool shank with h6 tolerance and no flexible chucking range.
MODEL NO.TYPEdDd1LI1I2I3WEIGHT (KGS)
SYIC - 04542 ER11 3, 3.5, 4, 4.5, 5,
5.5, 6, 6.5, 7
11.5 11 18 11.7 3.8 2.5 0.02
SYIC - 04543 ER16 3, 3.5, 4, 4.5, 5, 5.5, 6,
6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
17 16 27.5 20.8 6.25 4 0.03
SYIC - 04544 ER20 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5,
7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5,11, 11.5,
12, 12.5, 13
21 20 31.5 23.9 6.36 4.8 0.04
SYIC - 04545 ER25 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5,
7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5,11, 11.5, 12, 12.5,
13, 13.5, 14, 14.5, 15, 15.5, 16
26 25 34 25.9 6.66 5 0.06
SYIC - 04546 ER32 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5,
7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5,11, 11.5, 12, 12.5,
13, 13.5, 14, 14.5, 15, 15.5, 16, 16.5,17, 17.5, 18,
18.5, 19, 19.5, 20
33 32 40 30.9 7.16 5.5 0.1
SYIC - 04547 ER40 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5,
7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5,11, 11.5, 12, 12.5, 13, 13.5,
14, 14.5, 15, 15.5, 16, 16.5,17, 17.5,
18, 18.5, 19, 19.5, 20, 20.5, 21,
21.5, 22, 22.5,23, 23.5, 24, 24.5, 25, 25.5, 26
41 40 46 34.9 7.66 7 0.25
