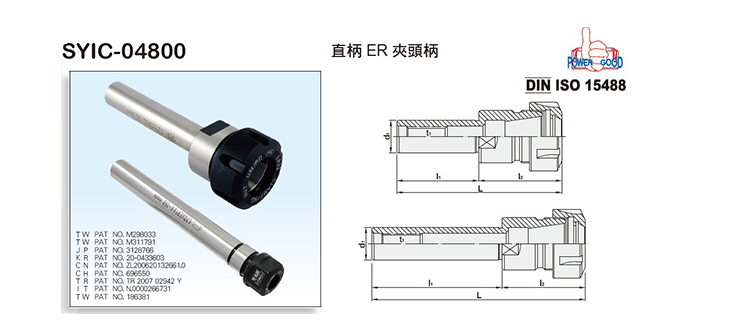

Product Name : Straight Shank Collet Chuck
Product Introduction
  • Steel: SNCM - 21.
  • HRC: 56°.
  • Each body has been locked with a nut as attachment, but without collets.
  • For complete set, please refer to SYIC-05000.
MODEL NO.TYPELl1l2ERd1t1WEIGHT (KGS)
SYIC - 04851 C16 x ER11A - 140 156.6 140 16.6 11 16 M6 x 1.0P 0.23
SYIC - 04802 C16 x ER16A - 50 90 50 40 16 16 M10 x 1.5P 0.15
SYIC - 04803 C16 x ER16A - 100 140 100 40 16 16 M10 x 1.5P 0.2
SYIC - 04804 C16 x ER16A - 150 190 150 40 16 16 M10 x 1.5P 0.28
SYIC - 04806 C20 x ER16A - 50 90 50 40 16 20 M12 x 1.75P 0.25
SYIC - 04807 C20 x ER16A - 100 140 100 40 16 20 M12 x 1.75P 0.35
SYIC - 04808 C20 x ER16A - 150 190 150 40 16 20 M12 x 1.75P 0.4
SYIC - 04810 C20 x ER20A - 60 100.5 60 40.5 20 20 M12 x 1.75P 0.35
SYIC - 04811 C20 x ER20A - 120 160.5 120 40.5 20 20 M12 x 1.75P 0.4
SYIC - 04812 C20 x ER20A - 180 220.5 180 40.5 20 20 M12 x 1.75P 0.5
SYIC - 04814 C20 x ER25 - 50 101 50 51 25 20 M12 x 1.75P 0.35
SYIC - 04815 C20 x ER25 - 100 151 100 51 25 20 M12 x 1.75P 0.4
SYIC - 04817 C20 x ER32 - 50 101.5 50 51.5 32 20 M12 x 1.75P 0.45
SYIC - 04818 C20 x ER32 - 100 151.5 100 51.5 32 20 M10 x 1.5P 0.42
SYIC - 04819 - 150 C25 x ER16A - 150 176.6 150 26.6 16 25 M10 x 1.5P 0.55
SYIC - 04820 C25 x ER25 - 50 101 50 51 25 25 M16 x 2.0P 0.4
SYIC - 04821 C25 x ER25 - 100 151 100 51 25 25 M16 x 2.0P 0.5
SYIC - 04823 C25 x ER32 - 50 101.5 50 51.5 32 25 M16 x 2.0P 0.6
SYIC - 04823 - 100 C25 x ER32 - 100 151.5 100 51.5 32 25 M16 x 2.0P 0.8
SYIC - 04825 C25 x ER40 - 50 115 50 65 40 25 M16 x 2.0P 2.1
SYIC - 04820 - C32 C32 x ER25 - 50 101 50 50 25 32 M16 x 2.0P 1
SYIC - 04827 C32 x ER32 - 60 111.5 60 51.5 32 32 M16 x 2.0P 1.15
SYIC - 04827 - 100 C32 x ER32 - 100 151.5 100 51.5 32 32 M16 x 2.0P 1.4
SYIC - 04829 C32 x ER40 - 50 115 50 65 40 32 M16 x 2.0P 2
