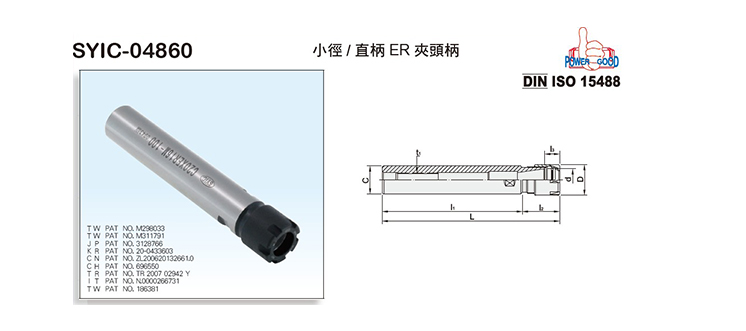

Product Name : Straight Shank Collet Chuck
Product Introduction
  • Steel: SNCM - 21.
  • HRC: Shank 56°, hole 44°~46°.
  • Each body has been locked with a nut as attachment, but without a spanner and collets.
  • For Spanner, please see SYIC-04600.
  • For ER collet, please see SYIC-04200.
  • For ER TAP collet, please see SYIC-05320.
  • Not including stop screw, please purchase separately.
MODEL NO.TYPE (C x d - I1)Ll2l3Dt1WEIGHT (KGS)
SYIC - 04860 C8 x ER8M - 55 79 24 6 12 - 0.05
SYIC - 04861 - 100 C10 x ER8M- 100 116.2 16.2 6 12 - 0.11
SYIC - 04861 - 150 C10 x ER8M - 150 166.2 16.2 6 12 - 0.12
SYIC - 04861 C10 x ER8M - 180 197 16.2 6 12 - 0.15
SYIC - 04862 C12 x ER8M - 55 72 16.2 6 12 - 0.2
SYIC - 04862 - 120 C12 x ER8M - 120 136.2 16.2 6 12 - 0.3
SYIC - 04863 C12 x ER11M - 80 96.6 16.6 6.6 16 M5 x 0.8P 0.23
SYIC - 04864 C16 x ER11M - 50 66.6 16.6 6.6 16 M5 x 0.8P 0.25
SYIC - 04865 C16 x ER11M - 100 116.6 16.6 6.6 16 M5 x 0.8P 0.23
SYIC - 04866 C16 x ER11M - 140 156.6 16.6 6.6 16 M5 x 0.8P 0.35
SYIC - 04867 C12 x ER16M - 80 117 36.6 10.6 22 M5 x 0.8P 0.38
SYIC - 04868 - 60 C20 x ER16M - 60 86.6 26.6 10.6 22 M10 x 1.5P 0.4
SYIC - 04868 C20 x ER16M - 100 125 26.6 10.6 22 M10 x 1.5P 0.42
SYIC - 04869 C20 x ER16M - 140 165 26.6 10.6 22 M10 x 1.5P 0.35
SYIC - 04870 C20 x ER16M - 160 185 26.6 10.6 22 M10 x 1.5P 0.38
SYIC - 04873 C20 x ER20M - 60 100 40 11.5 28 M12 x 1.75P 0.4
SYIC - 04875 C20 x ER20M - 100 140 40 11.5 28 M12 x 1.75P 0.45
SYIC - 04877 C20 x ER20M - 120 160 40 11.5 28 M12 x 1.75P 0.5
SYIC - 04879 C20 x ER20M - 150 190 40 11.5 28 M12 x 1.75P 0.55
SYIC - 04881 C20 x ER20M - 180 220 40 11.5 28 M12 x 1.75P 0.6
SYIC - 04883 C22 x ER20M - 140 180 40 11.5 28 M12 x 1.75P 0.38
SYIC - 04885 C25 x ER20M - 140 168 28 11.5 28 M12 x 1.75P 0.15
SYIC - 04887 C20 x ER25M - 100 150 50 12 35 M12 x 1.75P 0.2
