Product Name : Straight Shank ER Tapper(For CNC Lathe)
Product Introduction
  • Used with ER Rigid Tap Collet or ER Collet to hold taps.
  • The body is made of SCM-21 steel. Tightening screw is precisely ground.
  • Flexible design. Can avoid any tap breakage resulting from overdoing, spindle's counterclockwise turning and turret moving.
  • Good floating assembly, can be automatic to correct deviation of repeated position in workpiece.
  • SYIC-05225, SYIC-05235 and SYIC-05245 are designed to tighten the tool holder and ER tapper by inside thread. There are metric type and inch type for the inside thread. Please inform us which type you need when making an order

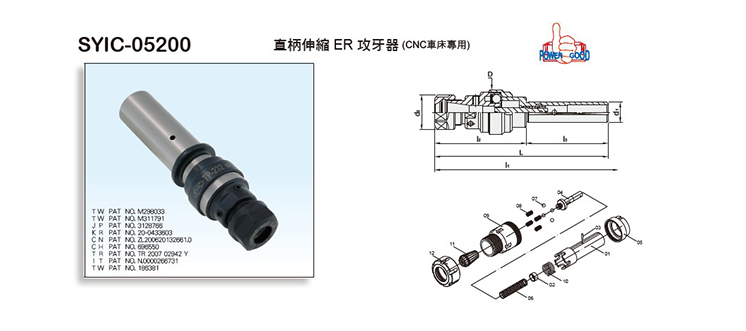

NO.NAME OF EACH PARTNO.NAME OF EACH PART
1 Body 7 Steel ball (4 pcs)
2 Key ring 8 Little spring (4 pcs)
3 Fix key 9 ER tapper chuck
4 Conjunction spindle 10 side lock screw
5 Steel ball cover 11 ER nut
6 Big spring 12 ER tap collet
  • ER32 Tapping Collet see SYIC - 05320
    NOTE:
  • If the processing material is harder, the M/min becomes slower relatively.
  • Before using the Straight Shank ER Tapper, please decide spindle running speed of Lathe Machine; otherwise, it will make the Shank and Tap break or split because of too fast or too slow speed.

MODEL NO.TYPEDd1d2Ll1l2l3COLLETCAPACITYWEIGHT (KGS)
SYIC - 05205 TP - 20 44 20 34 159 172 79 80 ER20 M3 ~ M16 0.5
SYIC - 05206 TP - 225 44 25 34 159 172 79 80 ER20 M3 ~ M16 0.7
SYIC - 05207 TP - 232 44 32 34 159 172 79 80 ER20 M3 ~ M16 0.9
SYIC - 05208 STP - 20 37 20 34 155 172 79 80 ER20 M3 ~ M16 1
SYIC - 05215 TP - 32 56 32 50 174.5 190 94.5 80 ER32 M3 ~ M27 1.6
SYIC - 05225 TPM - 320 44 MT3 34 165 178 79 86 ER20 M3 ~ M16 1.4
SYIC - 05235 TPM - 420 44 MT4 34 165 178 79 86 ER20 M3 ~ M16 1.6
SYIC - 05245 TPM - 432 56 MT4 50 203.5 216.5 94.5 109 ER32 M3 ~ M27 1.8
