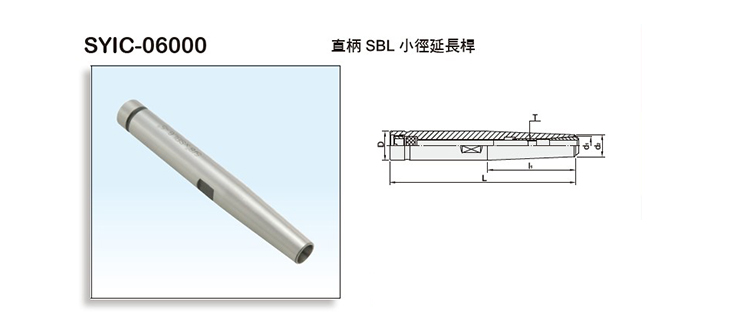

Product Name : Straight Shank SBL Collet Chuck
Product Introduction
  • Steel: SNCM-21.
  • HRC: 44°~48°.
  • Spanner is supplied with SYIC-06000 Straight Shank SBL Collet Chuck.
  • For collets, please refer to SYIC-18851 SLC Collet.
MODEL NO.TYPELl1Dd1d2TWEIGHT (KGS)
SYIC - 06002 C12 x SBL6 - 120 120 - 12 9.93 12 M6 x 1.0P 0.16
SYIC - 06004 C12 x SBL6 - 150 150 - 12 9.93 12 M6 x 1.0P 0.18
SYIC - 06008 C16 x SBL6 - 120 120 48 16 9.93 12 M6 x 1.0P 0.21
SYIC - 06010 C16 x SBL6 - 150 150 48 16 9.93 12 M6 x 1.0P 0.22
SYIC - 06012 C16 x SBL6 - 200 200 48 16 9.93 12 M6 x 1.0P 0.24
SYIC - 06014 C20 x SBL6 - 120 120 76.5 20 9.93 12 M6 x 1.0P 0.36
SYIC - 06016 C20 x SBL6 - 150 150 86 20 9.93 12 M6 x 1.0P 0.23
SYIC - 06018 C20 x SBL6 - 200 200 76.5 20 9.93 12 M6 x 1.0P 0.25
SYIC - 06020 C25 x SBL6 - 120 120 60 25 9.93 14 M6 x 1.0P 0.33
SYIC - 06022 C25 x SBL6 - 150 150 60 25 9.93 14 M6 x 1.0P 0.34
SYIC - 06024 C25 x SBL6 - 200 200 60 25 9.93 14 M6 x 1.0P 0.36
SYIC - 06026 C25 x SBL12 - 120 120 50 25 18 22 M10 x 1.5P 0.34
SYIC - 06028 C25 x SBL12 - 150 150 50 25 18 22 M10 x 1.5P 0.35
SYIC - 06030 C25 x SBL12 - 200 200 50 25 18 22 M10 x 1.5P 0.37
SYIC - 06032 1/2" x SBL6 - 5" 127 48 12.7 9.93 12 M6 x 1.0P 0.16
SYIC - 06034 1/2" x SBL6 - 6" 152.4 48 12.7 9.93 12 M6 x 1.1P 0.18
SYIC - 06038 5/8" x SBL6 - 5" 127 48 15.875 9.93 12 M6 x 1.2P 0.21
SYIC - 06040 5/8" x SBL6 - 6" 152.4 48 15.875 9.93 12 M6 x 1.3P 0.22
SYIC - 06042 5/8" x SBL6 - 8" 203.2 48 15.875 9.93 12 M6 x 1.4P 0.24
SYIC - 06044 3/4" x SBL6 - 5" 127 96 19.05 9.93 12 M6 x 1.5P 0.22
SYIC - 06046 3/4" x SBL6 - 6" 152.4 96 19.05 9.93 12 M6 x 1.0P 0.23
SYIC - 06048 3/4" x SBL6 - 8" 203.2 96 19.05 9.93 12 M6 x 1.1P 0.25
SYIC - 06050 1" x SBL6 - 5" 127 60 25.4 9.93 14 M6 x 1.2P 0.33
SYIC - 06052 1" x SBL6 - 6" 152.4 60 25.4 9.93 14 M6 x 1.3P 0.34
SYIC - 06054 1" x SBL6 - 8" 203.2 60 25.4 9.93 14 M6 x 1.4P 0.36
YIC - 06058 1" x SBL12 - 5" 127 56 25.4 18 22 M10 x 1.5P 0.34
SYIC - 06060 1" x SBL12 - 6" 152.4 56 25.4 18 22 M10 x 1.5P 0.35
SYIC - 06062 1" x SBL12 - 8" 203.2 56 25.4 18 22 M10 x 1.5P 0.37
