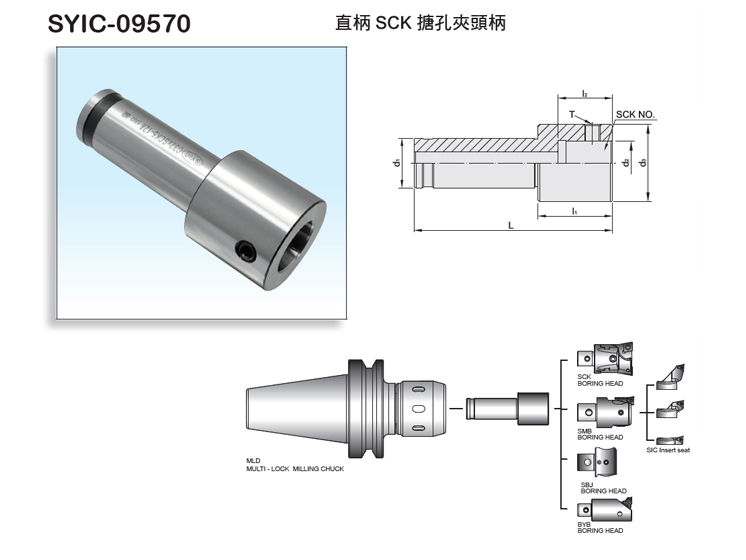

Product Name : Straight Shank SCK Boring Head Shank
Product Introduction
  • Shank tolerance: h6.
  • Internal hole tolerance: H6.
  • Used with MLD Milling Chuck and suitable for high rigidity processing.
  • Suitable for combining with SCK Rough and Finish Boring Head series.



MODEL NO.TYPE - l1SCK NO.Ll2d1d2d3TWEIGHT (KGS)
SYIC - 09572 C32 x SCK1 - 77 SCK1 157 18 32 11 19 M4 x 0.7P 0.7
SYIC - 09574 C32 x SCK2 - 72.5 SCK2 152.5 18.5 32 14 24 M5 x 0.8P 0.7
SYIC - 09576 C32 x SCK3 - 69 SCK3 149 24 32 18 31 M6 x 1.0P 0.8
SYIC - 09578 C32 x SCK4 - 58 SCK4 138 28 32 22 39 M8 x 1.25P 0.9
SYIC - 09580 C32 x SCK5 - 48 SCK5 128 35 32 28 50 M10 x 1.5P 0.9
SYIC - 09582 C32 x SCK6 - 59 SCK6 139 42 32 36 63 M12 x 1.75P 1.5
SYIC - 09586 C42 x SCK1 - 77 SCK1 157 18 42 11 19 M4 x 0.7P 1
SYIC - 09588 C42 x SCK2 - 72.5 SCK2 152.5 18.5 42 14 24 M5 x 0.8P 1
SYIC - 09590 C42 x SCK3 - 69 SCK3 149 24 42 18 31 M6 x 1.0P 1.1
SYIC - 09592 C42 x SCK4 - 58 SCK4 138 28 42 22 39 M8 x 1.25P 1.2
SYIC - 09594 C42 x SCK5 - 48 SCK5 128 35 42 28 50 M10 x 1.5P 1.3
SYIC - 09596 C42 x SCK6 - 59 SCK6 139 42 42 36 63 M12 x 1.75P 1.8
