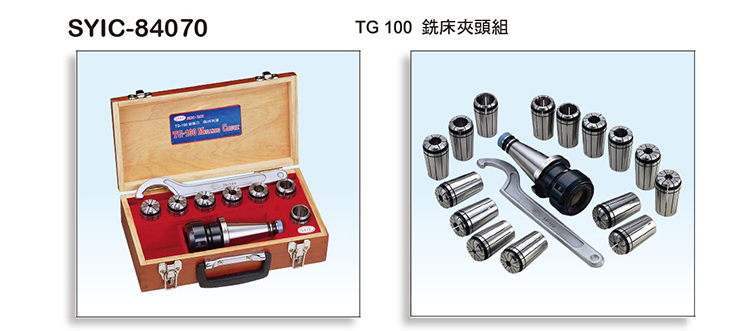

Product Name : TG 100 Milling Chuck Set
Product Introduction
  • Please inform if the collet chuck measurements are in inch or metric system and 7 pcs/set or 15 pcs/set.
  • Please inform the draw bar's size when making an order.
  • Concetric end mill extending 25mm with concentricity at 0.01mm.
  • T thread of nut and TG collet make cutting tools be clamped tightly.
  • Enclosed one Spanner, Shank, wooden box and full set collets.
  • The body Screw is ground.



MODEL NO.TYPECOLLETDRAW BARWEIGHT (KGS)
SYIC - 84072 MTB3 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 1/2" - 12 or M12 x 1.75P 3.95
SYIC - 84073 MTB4 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 5/8" - 11 or M16 x 2.0P 4.1
SYIC - 84074 R8 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 7/16" - 20 4.3
SYIC - 84075 NT30 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 1/2" - 12 or M12 x 1.75P 4
SYIC - 84076 NT40 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 5/8" - 11 or M16 x 2.0P 4.4
SYIC - 84077 NT50 x TG100 x 7M 6, 8, 10,12, 16, 20,25mm 1" - 8 or M24 x 3.0P 6.8
SYIC - 84079 MTB3 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 1/2" - 12 or M12 x 1.75P 3.95
SYIC - 84080 MTB4 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 5/8" - 11 or M16 x 2.0P 4.1
SYIC - 84081 R8 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 7/16" - 20 4.3
SYIC - 84082 NT30 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 1/2" - 12 or M12 x 1.75P 4
SYIC - 84083 NT40 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 5/8" - 11 or M16 x 2.0P 4.4
SYIC - 84084 NT50 x TG100 x 7I 1/4", 5/16", 3/8",1/2", 5/8",3/4", 1" 1" - 8 or M24 x 3.0P 6.8
SYIC - 84086 MTB3 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
1/2" - 12 or M12 x 1.75P 5.75
SYIC - 84087 MTB4 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
5/8" - 11 or M16 x 2.0P 5.9
SYIC - 84088 R8 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
7/16" - 20 6.1
SYIC - 84089 NT30 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
1/2" - 12 or M12 x 1.75P 5.8
SYIC - 84090 NT40 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
5/8" - 11 or M16 x 2.0P 6.2
SYIC - 84091 NT50 x TG100 x 15M 3, 4, 5, 6, 7,8, 9, 10, 11,
12, 13, 16,18, 20, 25mm
1" - 8 or M24 x 3.0P 9
SYIC - 84093 MTB3 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
1/2" - 12 or M12 x 1.75P 5.75
SYIC - 84094 MTB4 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
5/8" - 11 or M16 x 2.0P 5.9
SYIC - 84095 R8 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
7/16" - 20 6.1
SYIC - 84096 NT30 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
1/2" - 12 or M12 x 1.75P 5.8
SYIC - 84097 NT40 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
5/8" - 11 or M16 x 2.0P 6.2
SYIC - 84098 NT50 x TG100 x 15I 1/8", 3/16", 1/4",5/16", 3/8",7/16", 1/2",9/16",
5/8",11/16", 3/4",13/16", 7/8",15/16", 1"
1" - 8 or M24 x 3.0P 9
