Product Name : TG Collet Chuck
Product Introduction
TAPERDRAW BAR
MTB 2 3/8" - 16 or M10 x 1.5P
MTB 3 1/2" - 12 or M12 x 1.75P
MTB 4 5/8" - 11 or M16 x 2.0P
MTB 5 1" - 8 or M24 x 3.0P
NT 30 1/2" - 12 or M12 x 1.75P USA 1/2" - 13
NT 40 5/8" - 11 or M16 x 2.0P
NT 50 1" - 8 or M24 x 3.0P
  • Particular square design good for clamping capacity.
  • This shank includes clamping nut and spanner, but without collet.
  • Please inform the draw bar size when making an order.

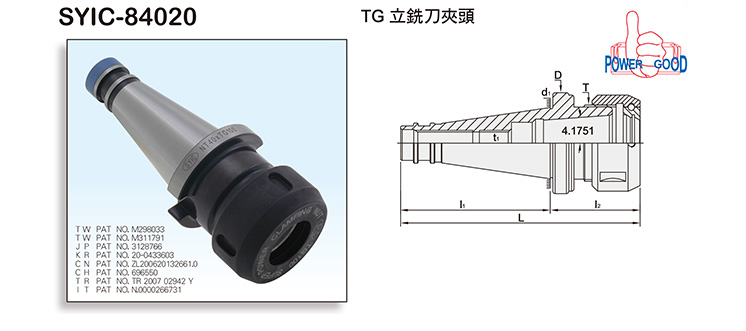

MODEL NO.TYPELl1l2Dd1t1TSIZE RANGEWEIGHT (KGS)
SYIC - 84024 MTB3 x TG75 136 81 55 40 23.825 M12 x 1.75P TW 1-1/2" - 12 3.0 ~ 16 0.95
SYIC - 84025 MTB4 x TG75 159.5 102.5 57 40 31.267 M16 x 2.0P TW 1-1/2" - 12 3.0 ~ 16 1.2
SYIC - 84026 R8 x TG75 154 101 70 40 31.75 M12 x 1.75P TW 1-1/2" - 12 3.0 ~ 16 1.1
SYIC - 84027 NT30 x TG75 123.4 68.4 55 49 31.75 M12 x 1.75P TW 1-1/2" - 12 3.0 ~ 16 0.9
SYIC - 84028 NT40 x TG75 162 93.4 68.6 63 44.45 M16 x 2.0P TW 1-1/2" - 12 3.0 ~ 16 1.2
SYIC - 84033 MTB3 x TG100 161 81 80 49 23.825 M12 x 1.75P TW 1-7/8" - 12 3.0 ~ 25 1.05
SYIC - 84034 MTB4 x TG100 182.5 102.5 80 49 31.267 M16 x 2.0P TW 1-7/8" - 12 3.0 ~ 25 1.3
SYIC - 84035 R8 x TG100 181 101 80 49 31.75 M12 x 1.75P TW 1-7/8" - 12 3.0 ~ 25 1.2
SYIC - 84036 NT30 x TG100 148.4 68.4 80 49 31.75 M12 x 1.75P TW 1-7/8" - 12 3.0 ~ 25 1
SYIC - 84037 NT40 x TG100 163.4 93.4 70 63 44.45 M16 x 2.0P TW 1-7/8" - 12 3.0 ~ 25 1.3
SYIC - 84038 NT50 x TG100 206.8 126.8 80 97.5 69.85 M24 x 2.0P TW 1-7/8" - 12 3.0 ~ 25 3.15
SYIC - 84043 MTB4 x TG150 197.5 102.5 95 67 31.267 M16 x 2.0P TW 2-5/8" - 12 4.0 ~ 38 2.9
SYIC - 84045 MTB5 x TG150 223.5 128.5 95 67 44.399 M24 x 2.0P TW 2-5/8" - 12 4.0 ~ 38 3.5
SYIC - 84047 NT40 x TG150 191.8 93.4 98.36 63 44.45 M24 x 2.0P TW 2-5/8" - 12 4.0 ~ 38 2.9
SYIC - 84049 NT50 x TG150 206.8 126.8 80 97.5 69.85 M24 x 2.0P TW 2-5/8" - 12 4.0 ~ 38 4.75
