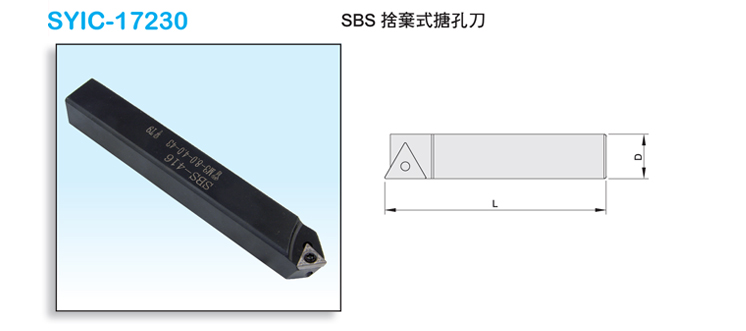

Product Name : Throw Away Boring Cutter
Product Introduction
  • Suitable for bsa, bsb rough boring bar and ABH fine boring head shank.



MODEL NO.TYPEDLANGLEINSERTSTORQUE (N.m)WEIGHT (KGS)
SYIC - 17230 SBS - 308 8 55 30 TP..0902 1.2 0.04
SYIC - 17231 SBS - 310 10 65 30 TP..0902 1.2 0.06
SYIC - 17232 SBS - 313 13 80 30 TP..1103 1.4 0.11
SYIC - 17233 SBS - 316 16 120 30 TP..1103 1.4 0.24
SYIC - 17234 SBS - 319 19 140 30 TP..1603 3 0.4
SYIC - 17235 SBS - 325 25 150 30 TP..1603 3 0.74
SYIC - 17236 SBS - 408 8 55 45 TP..0902 1.2 0.04
SYIC - 17237 SBS - 410 10 65 45 TP..0902 1.2 0.06
SYIC - 17238 SBS - 413 13 80 45 TP..1103 1.4 0.11
SYIC - 17239 SBS - 416 16 120 45 TP..1103 1.4 0.24
SYIC - 17240 SBS - 419 19 140 45 TP..1603 3 0.4
SYIC - 17241 SBS - 425 25 150 45 TP..1603 3 0.74
SYIC - 17242 SBS - 908 8 55 90 TP..0902 1.2 0.04
SYIC - 17243 SBS - 910 10 65 90 TP..0902 1.2 0.06
SYIC - 17244 SBS - 913 13 80 90 TP..1103 1.4 0.11
SYIC - 17245 SBS - 916 16 120 90 TP..1103 1.4 0.24
SYIC - 17246 SBS - 919 19 140 90 TP..1603 3 0.4
SYIC - 17247 SBS - 925 25 150 90 TP..1603 3 0.74

ACCESSORIES

INSERTSCREWWRENCH
TP..0902 M2.5-6.0-3.5-60 T8
TP..1103 M3-8.0-4.0-43 T9
TP..1603 M4-10-5.0-43 T15

Inserts are optional accessories. Needs to be purchased additionally.
