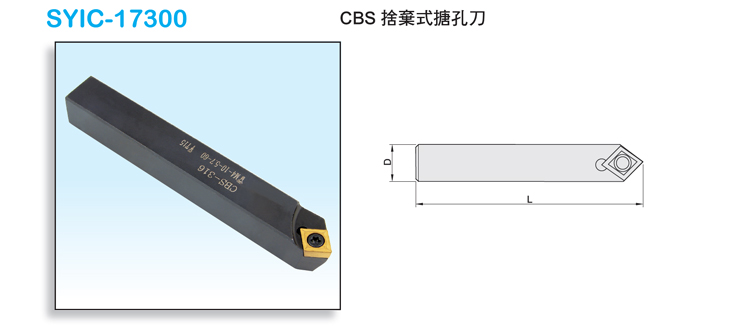

Product Name : Throw Away Boring Cutter
Product Introduction
  • Suitable for BSA, BSB rough boring bar & ABH fine boring head shank.
  • Please inform the material of inserts when ordering.
  • SBS is fit for fine & medium processing.



MODEL NO.TYPEDLANGLEINSERTSTORQUE (N.m)WEIGHT (KGS)
SYIC - 17301 CBS - 308 8 55 30 CC..0602 1.4 0.04
SYIC - 17302 CBS - 310 10 65 30 CC..0602 1.4 0.06
SYIC - 17303 CBS - 313 13 80 30 CC..09T3 2.0 0.12
SYIC - 17304 CBS - 316 16 120 30 CC..09T3 2.0 0.27
SYIC - 17305 CBS - 319 19 140 30 CC..1204 3.0 0.41
SYIC - 17306 CBS - 408 8 55 45 CC..0602 1.4 0.04
SYIC - 17307 CBS - 410 10 65 45 CC..09T3 1.4 0.06
SYIC - 17308 CBS - 413 13 80 45 CC..09T3 2.0 0.12
SYIC - 17309 CBS - 416 16 120 45 CC..1204 2.0 0.27
SYIC - 17310 CBS - 419 19 140 45 CC..1204 3.0 0.41
SYIC - 17311 CBS - 908 8 55 90 CC..0602 1.4 0.04
SYIC - 17312 CBS - 910 10 65 90 CC..0602 1.4 0.06
SYIC - 17313 CBS - 913 13 80 90 CC..09T3 2.0 0.12
SYIC - 17314 CBS - 916 16 120 90 CC..09T3 2.0 0.27
SYIC - 17315 CBS - 919 19 140 90 CC..1204 3.0 0.41
INSERTSCREWWRENCH
CC..0602 M2.5-6.0-3.5-60 T8
CC..09T3 M4-10-5.7-60 T15
CC..1204 M5-11-7.5-60 T20
