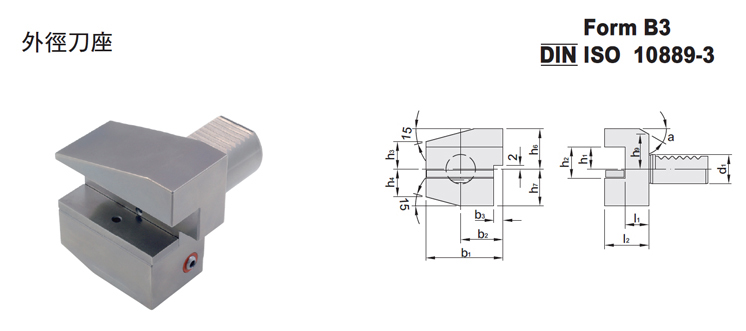

Product Name : Turning Tool Holder
Product Introduction
  • Radial-right handed.
  • Short tool holder.
  • Turning insert downwards.
  • With coolant hole.



MODEL NO.TYPE d1 x h1 x l2d1b1b2b3h1h2h3h4h6h7h9l1l2a
150.B3.30.20.40 30 x 20 x 40 30 70 35 10 20 29 26 22 38 35 30 22 40 25
150.B3.30.20.60 30 x 20 x 60 30 70 35 10 20 29 26 22 38 35 30 42 60 25
150.B3.40.25.44 40 x 25 x 44 40 85 42.5 12.5 25 34 35 30 48 42.5 - 22 44 -
150.B3.50.32.55 50 x 32 x 55 50 100 50 16 32 41 42 35 60 42.5 - 30 55 -
