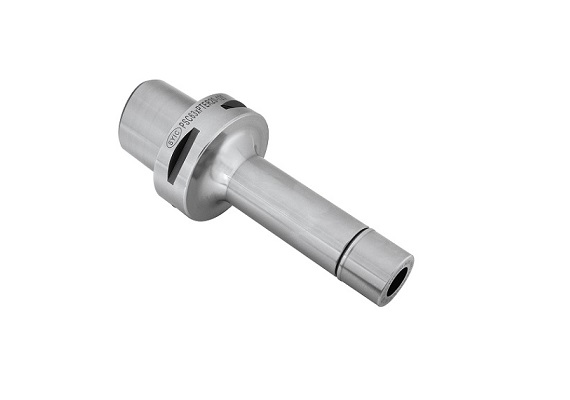

PTER Collet Chuck
Product Name : PTER Collet Chuck
Product Description

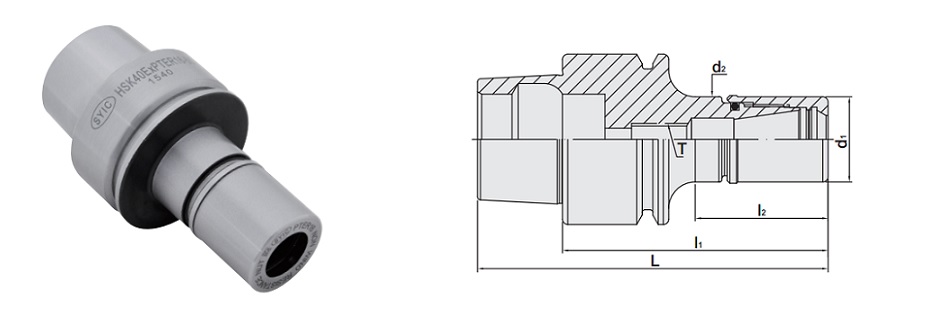

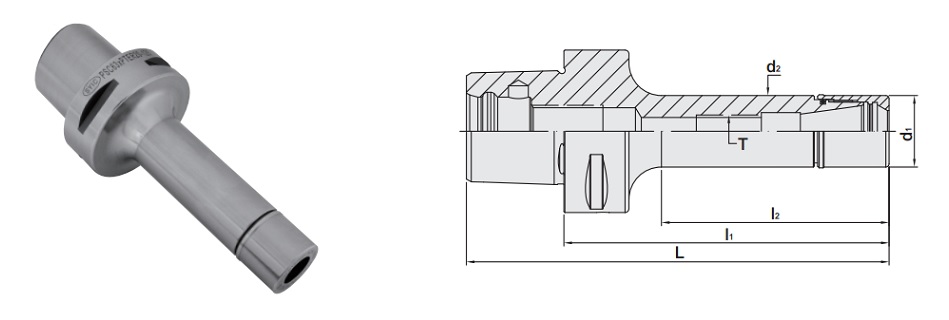

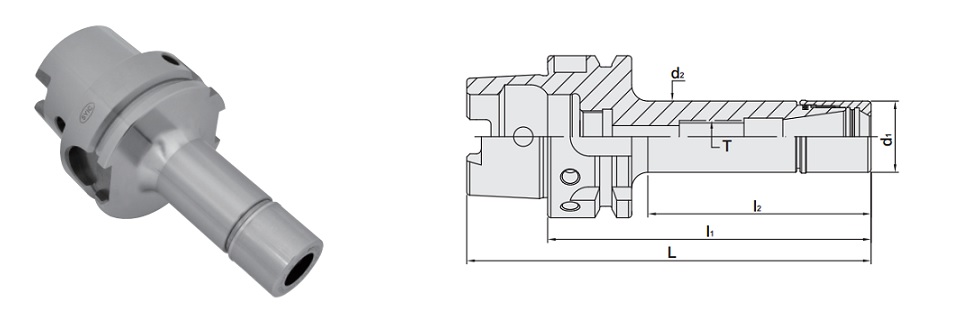

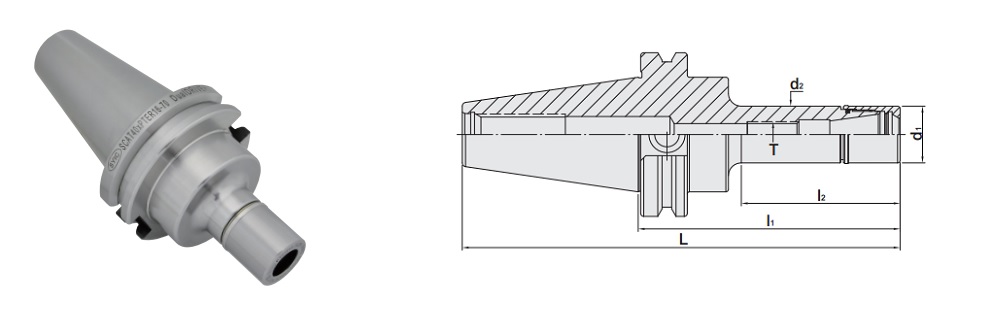

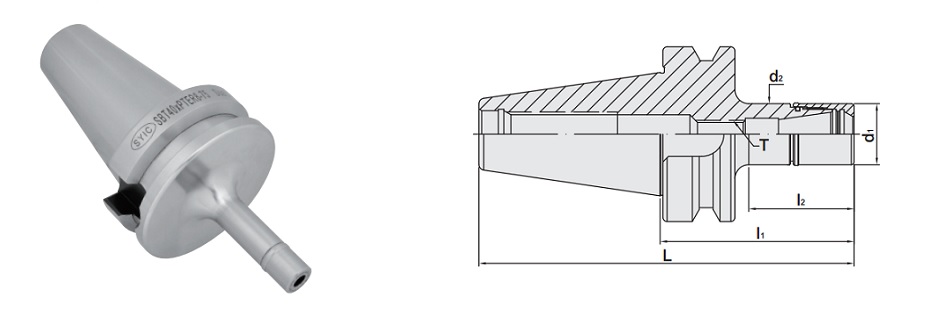

proimages/taper_icon/BT_SBT-icon..jpg proimages/taper_icon/CAT_SCAT-icon..jpg proimages/taper_icon/DAT_SDAT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg
  • System runout accuracy is 3μm at 4D.
  • Mini type of clamping nut, decreasing interference.
  • PN collet well covered in PTER collet chuck and the two straight parts above and below the thread of tool holder improve the runout accuracy and machining stability.
  • Used with PN collets. Runout accuracy: 3μm and 5μm two options to choose from.
  • The front part of the tool holder has an O-ring to achieve anti-dust and waterproof.

proimages/picture_of_product_feature/PTER_feature_picture1.jpg          proimages/picture_of_product_feature/PTER_feature_picture2.jpg
series:

BT/PTER COLLET CHUCK

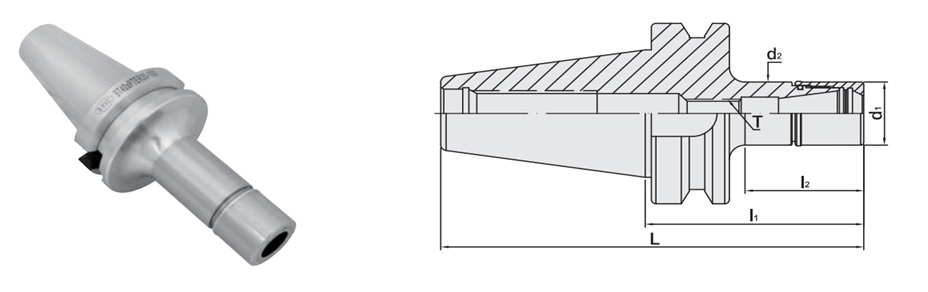

proimages/figure_for_specification/BT-PTER_figure.jpg

MODEL NO.TYPELl1l2d1d2TSIZE
RANGE
WEIGHT
(KGS)
15732 BT30 x PTER11 - 70 118.4 70 43 16 16 M6 x 1.0P 3 ~ 7 0.43
15732-100 BT30 x PTER11 - 100 148.4 100 73 16 16 M6 x 1.0P 3 ~ 7 0.47
15732-120 BT30 x PTER11 - 120 168.4 120 93 16 16 M6 x 1.0P 3 ~ 7 0.49
15734 BT30 x PTER16 - 70 118.4 70 43 22 22 M10 x 1.5P 3 ~ 10 0.46
15734-100 BT30 x PTER16 - 100 148.4 100 73 22 22 M10 x 1.5P 3 ~ 10 0.53
15734-120 BT30 x PTER16 - 120 168.4 120 93 22 22 M10 x 1.5P 3 ~ 10 0.58
15736 BT30 x PTER20 - 70 118.4 70 45 28 28 M12 x 1.75P 3 ~ 13 0.51
15736-100 BT30 x PTER20 - 100 148.4 100 75 28 28 M12 x 1.75P 3 ~ 13 0.63
15736-120 BT30 x PTER20 - 120 168.4 120 95 28 28 M12 x 1.75P 3 ~ 13 0.72
15736-150 BT30 x PTER20 - 150 198.4 150 125 28 28 M12 x 1.75P 3 ~ 13 0.84
15742 BT40 x PTER11 - 70 135.4 70 38 16 16 M6 x 1.0P 3 ~ 7 0.98
15742-100 BT40 x PTER11 - 100 165.4 100 63 16 16 M6 x 1.0P 3 ~ 7 1.03
15742-125 BT40 x PTER11 - 125 190.4 125 83 16 16 M6 x 1.0P 3 ~ 7 1.08
15742-150 BT40 x PTER11 - 150 215.4 150 108 16 16 M6 x 1.0P 3 ~ 7 1.11
15744 BT40 x PTER16 - 70 135.4 70 38 22 22 M10 x 1.5P 3 ~ 10 1.02
15744-100 BT40 x PTER16 - 100 165.4 100 63 22 22 M10 x 1.5P 3 ~ 10 1.10
15744-125 BT40 x PTER16 - 125 190.4 125 88 22 22 M10 x 1.5P 3 ~ 10 1.16
15744-150 BT40 x PTER16 - 150 215.4 150 113 22 22 M10 x 1.5P 3 ~ 10 1.22
15746 BT40 x PTER20 - 70 135.4 70 38 28 28 M12 x 1.75P 3 ~ 13 1.06
15746-100 BT40 x PTER20 - 100 165.4 100 63 28 28 M12 x 1.75P 3 ~ 13 1.25
15746-125 BT40 x PTER20 - 125 190.4 125 88 28 28 M12 x 1.75P 3 ~ 13 1.27
15746-150 BT40 x PTER20 - 150 215.4 150 113 28 28 M12 x 1.75P 3 ~ 13 1.36
15752 BT50 x PTER11 - 70 171.8 70 27 16 16 M6 x 1.0P 3 ~ 7 3.48
15752-90 BT50 x PTER11 - 90 191.8 90 42 16 16 M6 x 1.0P 3 ~ 7 3.52
15752-105 BT50 x PTER11 - 105 206.8 105 57 16 16 M6 x 1.0P 3 ~ 7 3.53
15752-135 BT50 x PTER11 - 135 236.8 135 73.5 16 16 M6 x 1.0P 3 ~ 7 3.63
15752-165 BT50 x PTER11 - 165 266.8 165 103.5 16 16 M6 x 1.0P 3 ~ 7 3.67
15754 BT50 x PTER16 - 70 171.8 70 27 22 22 M10 x 1.5P 3 ~ 10 3.53
15754-90 BT50 x PTER16 - 90 191.8 90 47 22 22 M10 x 1.5P 3 ~ 10 3.54
15754-105 BT50 x PTER16 - 105 206.8 105 59 22 22 M10 x 1.5P 3 ~ 10 3.56
15754-135 BT50 x PTER16 - 135 236.8 135 87 22 22 M10 x 1.5P 3 ~ 10 3.62
15754-165 BT50 x PTER16 - 165 266.8 165 117 22 22 M10 x 1.5P 3 ~ 10 3.68
15756 BT50 x PTER20 - 70 171.8 70 29 28 28 M12 x 1.75P 3 ~ 13 3.57
15756-90 BT50 x PTER20 - 90 191.8 90 47 28 28 M12 x 1.75P 3 ~ 13 3.62
15756-105 BT50 x PTER20 - 105 206.8 105 57 28 28 M12 x 1.75P 3 ~ 13 3.66
15756-135 BT50 x PTER20 - 135 236.8 135 87 28 28 M12 x 1.75P 3 ~ 13 3.82
15756-165 BT50 x PTER20 - 165 266.8 165 117 28 28 M12 x 1.75P 3 ~ 13 3.92
