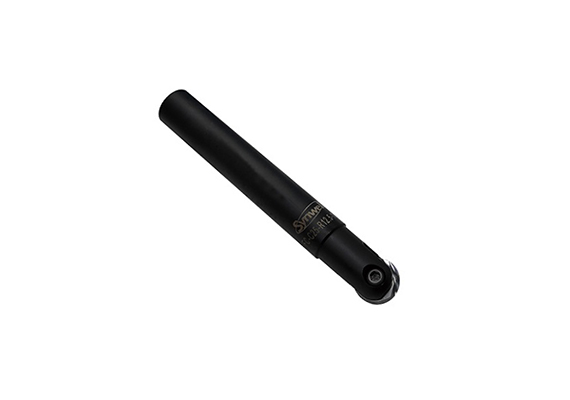

BFC球頭精銑刀
series
BFC球頭精銑刀
| MODEL NO. | TYPE | D | D1 | L | l1 | ɵ | Fig. | INSERT |
|---|---|---|---|---|---|---|---|---|
| 5154-035-0810-140 | BFC-C10-R4-140L | 8 | 10 | 140 | 30 | - | 2 | P3204-D08 |
| 5154-035-1010-130 | BFC-C10-R5-130L | 10 | 10 | 130 | 30 | - | 1 | P3204-D10 |
| 5154-035-1012-150 | BFC-C12-R5-150L | 10 | 12 | 150 | 35 | - | 2 | P3204-D10 |
| 5154-035-1212-130 | BFC-C12-R6-130L | 12 | 12 | 130 | 32 | - | 1 | P3204-D12 |
| 5154-035-1216-160 | BFC-C16-R6-160L | 12 | 16 | 160 | 58 | - | 2 | P3204-D12 |
| 5154-035-1616-150 | BFC-C16-R8-150L | 16 | 16 | 150 | 36 | - | 1 | P3204-D16 |
| 5154-035-1620-200 | BFC-C20-R8-200L | 16 | 20 | 200 | 65 | 3 | 2 | P3204-D16 |
| 5154-035-2020-160 | BFC-C20-R10-160L | 20 | 20 | 160 | 45 | - | 1 | P3204-D20 |
| 5154-035-2025-250 | BFC-C25-R10-250L | 20 | 25 | 250 | 76 | 3 | 2 | P3204-D20 |
| 5154-035-2525-180 | BFC-C25-R12.5-180L | 25 | 25 | 180 | 45 | - | 1 | P3204-D25 |
| 5154-035-2532-250 | BFC-C32-R12.5-250L | 25 | 32 | 250 | 98 | 3 | 2 | P3204-D25 |
零配件：
| INSERT | INSERT SCREW | WRENCH |
|---|---|---|
| P3204-D08 | BFC-4R | T8 |
| P3204-D10 | BFC-5R | T15 |
| P3204-D12 | BFC-6R | T20 |
| P3204-D16 | BFC-8R | T20 |
| P3204-D20 | BFC-10R | T20 |
| P3204-D25 | BFC-12.5R | T30 |
