HSK & PSC 給水管

series

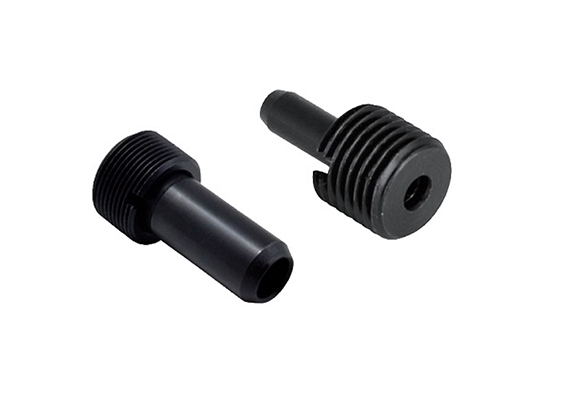

HSK給水管
proimages/Products/Accessories/HSK_and_PSC_coolant_supply_unit/HSK_Coolant_Supply_Unit-figure.jpg

MODEL NO.	TYPE	L	l1	d1	T	WEIGHT (KGS)
5316-2032	HSK32A - CP	26	5.5	6	M10 x 1.0P	0.01
5316-2040	HSK40A - CP	29.3	7.5	8	M12 x 1.0P	0.01
5316-2050	HSK50A - CP	33	9.5	10	M16 x 1.0P	0.02
5316-2063	HSK63A - CP	36.6	11.5	12	M18 x 1.0P	0.02
5316-2080	HSK80A - CP	40	13.5	14	M20 x 1.5P	0.04
5316-2100	HSK100A - CP	44	15.5	16	M24 x 1.5P	0.06

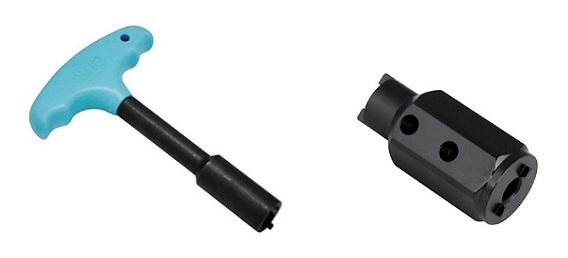

扳手
proimages/Products/Accessories/HSK_and_PSC_coolant_supply_unit/Key_for_HSK_Coolant_Supply_Unit-figure.jpg

MODEL NO.	TYPE	L	d	WEIGHT (KGS)
5280-070-032	HSK32A - CPW	90	φ10mm	0.10
5280-071-040	HSK40A - CPW	90	φ13.5mm	0.12
5280-072-050	HSK50A - CPW	95	φ15.5mm	0.14
5280-073-063	HSK63A-CPW, PSC32	100	φ17.5mm	0.16
5280-074-080	HSK80A - CPW	110	φ19.5mm	0.12
5280-075-100	HSK100A-CPW, PSC40	125	φ23.5mm	0.32
5280-501-026-00	PSC50-M26	80	φ26mm	0.40
5280-501-030-00	PSC63/PSC80-M30	100	φ30mm	0.50
5280-501-034-00	PSC100-M34	125	φ34mm	0.70

PSC給水管
proimages/Products/Accessories/HSK_and_PSC_coolant_supply_unit/PSC_Coolant_Supply_Unit-figure.jpg

MODEL NO.	TYPE	L	l1	d1	T	WEIGHT (KGS)
5316-1032	PSC32	22.4	10	4.95	M12 x 1.5P	0.07
5316-1040	PSC40	25.8	12	5.95	M14 x 1.5P	0.01
5316-1050	PSC50	28.35	14	7	M16 x 1.5P	0.015
5316-1063	PSC63	31	15	8	M20 x 2.0P	0.027
5316-1080	PSC80	31.3	15	10	M20 x 2.0P	0.026

給水管扳手
proimages/Products/Accessories/HSK_and_PSC_coolant_supply_unit/Key_for_PSC_Coolant_Supply_Unit-figure.jpg

MODEL NO.	TYPE	L	l1	d	WEIGHT (KGS)
5280-501-032	PSC32	40	14	10	0.03
5280-501-040	PSC40	45	17	12	0.051
5280-501-050	PSC50	50	19	14	0.071
5280-501-063	PSC63	60	25	17.5	0.16
5280-501-080	PSC80	60	29	17.5	0.22

series

HSK給水管安裝與拆卸
