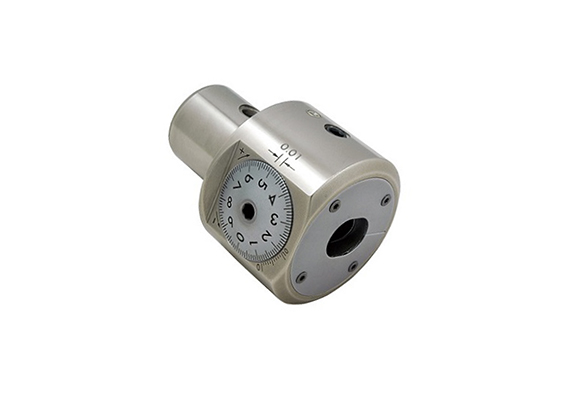

SBJ高精密搪孔頭
series
SBJ高精密搪孔頭

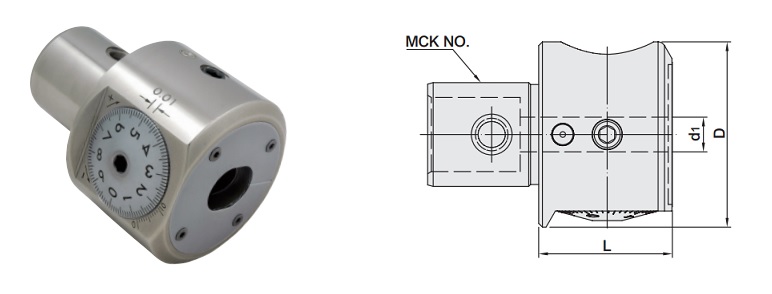

| MODEL NO. | TYPE | MCK NO. | BORING RANGE | L | D | d1 | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|
| 5158-647-010 | SBJ10 | MCK4 | 8 ~ 21 | 28.5 | 39 | 10 | 0.25 |
| 5158-647-012 | SBJ12 | MCK5 | 8 ~ 26 | 36 | 50 | 12 | 0.50 |
| 5158-647-016 | SBJ16 | MCK6 | 8 ~ 50 | 45 | 63.5 | 16 | 1.00 |
series
