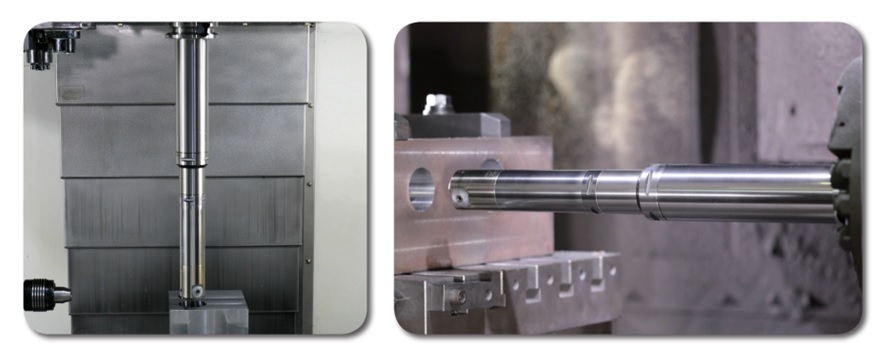

抑震搪孔頭系列

series

PSC/PMB-DP抑震精密微調搪頭

MODEL NO.	TYPE	BORING AND PROCESSING AT FRONT			BORING AND PROCESSING AT BACK
MODEL NO.	TYPE	BORING RANGE	L	l1	BORING RANGE	l2	l3	d1
5140-S24-032-115	PSC32 x PMB32DP - 115	32 ~ 42	115	110	-	90	25	16
		41 ~ 51	115	110	46 ~ 51	90	25	16
		50 ~ 60	115	110	50 ~ 60	90	25	16
5141-S24-041-125	PSC40 x PMB41DP - 125	41 ~ 54	125	121	-	96	29	20
		50 ~ 63	125	121	53 ~ 63	96	29	20
		61 ~ 74	125	121	61 ~ 74	96	29	20
5142-S24-053-150	PSC50 x PMB53DP - 150	53 ~ 70	150	146	62 ~ 70	116	34	25.5
		65 ~ 82	150	146	65 ~ 82	116	34	25.5
		78 ~ 95	150	146	78 ~ 95	116	34	25.5
5143-S24-068-190	PSC63 x PMB68DP - 190	68 ~ 100	190	186.2	80 ~ 100	114.8	45.2	32.5
		94 ~ 126	190	186.2	94 ~ 126	114.8	45.2	32.5
		118 ~ 150	190	186.2	118 ~ 150	114.8	45.2	32.5
5143-S24-100-190	PSC63 x PMB100DP - 190	100 ~ 153	190	186.2	112 ~ 153	114.8	45.2	45.5
		126 ~ 179	190	186.2	126 ~ 179	114.8	45.2	45.5
		150 ~ 203	190	186.2	150 ~ 203	114.8	45.2	45.5

SRBH-LA抑震雙刃搪孔頭

MODEL NO.	TYPE	MCK NO.	BORING RANGE	L	D	d1	INSERT	WEIGHT (KGS)
405-008-025	SRBH25LA - 90	MCK2	25 ~ 35	90	24	14	CC..0602	0.22
405-008-032	SRBH32LA - 100	MCK3	32 ~ 45	100	31	18	CC..0602 / TC..1102	0.39
405-008-040	SRBH40LA - 110	MCK4	40 ~ 55	110	39	22	CC..09T3 / TC..16T3	0.71
405-008-052	SRBH52LA - 140	MCK5	52 ~ 75	140	50	28	CC..09T3 / TC..16T3	1.27
405-008-068	SRBH68LA - 175	MCK6	68 ~ 100	175	64	36	CC..1204 / TC..16T3	6.20

零配件：

SCBH抑震精密微調搪頭

MODEL NO.	TYPE	MCK NO.	BORING RANGE	L	D	d1	INSERT	WEIGHT (KGS)
405-009-020	SCBH20 - 90	MCK1	20 ~ 26	90	19	11	TP..08	0.22
405-009-025	SCBH25 - 90	MCK2	25 ~ 33	90	24	14	TP..08	0.39
405-009-032	SCBH32 - 100	MCK3	32 ~ 42	100	31	18	TP..08	0.71
405-009-040	SCBH40 - 110	MCK4	40 ~ 55	110	39	22	TP..08	1.27
405-009-052	SCBH52 - 140	MCK5	52 ~ 75	140	50	28	TP..08	2.72
405-009-068	SCBH68 - 175	MCK6	68 ~ 102	175	64	39	TP..08 / TP..09 / TC..11	5.70

零配件：

SLBK抑震延長桿

MODEL NO.	TYPE	MCK NO.	L	l1	d1	d2	WEIGHT (KGS)
405-006-002-000	SLBK2 - 2 - 75	MCK2	75	18	14	24	0.33
405-006-003-000	SLBK3 - 3 - 100	MCK3	100	22	18	31	0.62
405-006-004-000	SLBK4 - 4 - 110	MCK4	110	26	22	39	1.11
405-006-005-000	SLBK5 - 5 - 130	MCK5	130	32	28	50	2.30
405-006-006-000	SLBK6 - 6 - 170	MCK6	170	42	36	64	5.10

BT/SLBK抑震搪孔刀柄

MODEL NO.	TYPE	l1	l2	l3	d1	d2	d3	Fig	WEIGHT (KGS)
401-011-808-002-150	BT40xSLBK2-150	150	110	18	14	24	39	1	1.45
401-011-808-002-175	BT40xSLBK2-175	175	135	18	14	24	39	1	1.51
401-011-808-002-200	BT40xSLBK2-200	200	160	18	14	24	39	1	1.56
401-011-808-003-200	BT40xSLBK3-200	200	160	22	18	31	50	1	2.21
401-011-808-003-230	BT40xSLBK3-230	230	190	22	18	31	50	1	2.34
401-011-808-003-260	BT40xSLBK3-260	260	220	22	18	31	50	1	2.47
401-011-808-004-235	BT40xSLBK4-235	235	200	26	22	39	50	1	3.12
401-011-808-004-275	BT40xSLBK4-275	275	240	26	22	39	50	1	3.42
401-011-808-004-315	BT40xSLBK4-315	315	280	26	22	39	50	1	3.71
401-011-808-005-310	BT40xSLBK5-310	310	280	32	28	50	-	2	6.30
401-011-808-006-295	BT40xSLBK6-295	295	270	42	36	64	-	2	8.71
401-012-808-002-160	BT50xSLBK2-160	160	110	18	14	24	39	1	4.09
401-012-808-002-185	BT50xSLBK2-185	185	135	18	14	24	39	1	4.15
401-012-808-002-210	BT50xSLBK2-210	210	160	18	14	24	39	1	4.21
401-012-808-003-220	BT50xSLBK3-220	220	160	22	18	31	50	1	4.97
401-012-808-003-250	BT50xSLBK3-250	250	190	22	18	31	50	1	5.15
401-012-808-003-280	BT50xSLBK3-280	280	220	22	18	31	50	1	5.33
401-012-808-004-260	BT50xSLBK4-260	260	205	26	22	39	64	1	6.00
401-012-808-004-300	BT50xSLBK4-300	300	245	26	22	39	64	1	6.24
401-012-808-004-340	BT50xSLBK4-340	340	285	26	22	39	64	1	6.48
401-012-808-005-310	BT50xSLBK5-310	310	265	32	28	50	64	1	8.74
401-012-808-005-355	BT50xSLBK5-355	355	310	32	28	50	64	1	9.39
401-012-808-005-400	BT50xSLBK5-400	400	355	32	28	50	64	1	10.04
401-012-808-006-375	BT50xSLBK6-375	375	330	42	36	64	-	2	14.28
401-012-808-006-440	BT50xSLBK6-440	440	395	42	36	64	-	2	15.11
401-012-808-006-505	BT50xSLBK6-505	505	460	42	36	64	-	2	15.96

series

寂靜抑震系列
