SMG防脫刀刀桿
series
SBT/SMG防脫刀刀桿
| MODEL NO. | TYPE | L | l1 | l2 | d1 | d2 | T | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|
| 5026-626-025-100 | SBT40xSMG25-100 | 165.4 | 100 | 57.9 | 25 | 60 | M16x1.5P | 2.40 |
| 5026-626-032-095 | SBT40xSMG32-95 | 160.4 | 95 | 71.3 | 32 | 71 | M16x1.5P | 2.70 |
| 5026-626-032-105 | SBT40xSMG32-105 | 170.4 | 105 | 71.3 | 32 | 71 | M16x1.5P | 2.70 |
| 5026-626-032-135 | SBT40xSMG32-135 | 200.4 | 135 | 71.3 | 32 | 71 | M16x1.5P | 3.00 |
| 5027-626-025-100 | SBT50xSMG25-100 | 201.8 | 100 | 57.9 | 25 | 60 | M16x1.5P | 4.80 |
| 5027-626-025-130 | SBT50xSMG25-130 | 231.8 | 130 | 57.9 | 25 | 60 | M16x1.5P | 5.70 |
| 5027-626-032-105 | SBT50xSMG32-105 | 206.8 | 105 | 71.3 | 32 | 71 | M16x1.5P | 5.00 |
| 5027-626-032-135 | SBT50xSMG32-135 | 236.8 | 135 | 71.3 | 32 | 71 | M16x1.5P | 5.20 |
| 5027-626-032-165 | SBT50xSMG32-165 | 266.8 | 165 | 71.3 | 32 | 71 | M16x1.5P | 6.70 |
HSK/SMG防脫刀刀桿
| MODEL NO. | TYPE | L | l1 | l2 | d1 | d2 | T | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|
| 5073-626-025-105 | HSK63AxSMG25-105 | 137 | 105 | 57.9 | 25 | 60 | M16x1.5P | 1.85 |
| 5073-626-032-120 | HSK63AxSMG32-120 | 152 | 120 | 71.3 | 32 | 71 | M16x1.5P | 1.80 |
| 5075-626-025-115 | HSK100AxSMG25-115 | 165 | 115 | 57.9 | 25 | 60 | M16x1.5P | 3.30 |
| 5075-626-032-120 | HSK100AxSMG32-120 | 170 | 120 | 71.3 | 32 | 71 | M16x1.5P | 3.40 |
SMG防脫刀筒夾
| TYPE | D | d2 | L | l1 |
|---|---|---|---|---|
| SMG25 | 25 | 32.7 | 60 | 55 |
| SMG32 | 32 | 42.7 | 64.6 | 59.6 |
| SMG25 | SMG32 | ||
|---|---|---|---|
| MODEL NO. | SIZE | MODEL NO. | SIZE |
| 5253-626-025-012 | 12 | 5253-626-032-012 | 12 |
| 5253-626-025-016 | 16 | 5253-626-032-016 | 16 |
| 5253-626-025-020 | 20 | 5253-626-032-020 | 20 |
| 5253-626-032-025 | 25 | ||
背隙消除螺絲
| MODEL NO. | TYPE |
|---|---|
| 5296-46-025-08-00 | M16x1.5P-25 |
定位片
| MODEL NO. | TYPE |
|---|---|
| 5296-46-025-07-00 | EM-25 |
| 5296-46-032-07-00 | EM-32 |
series
series

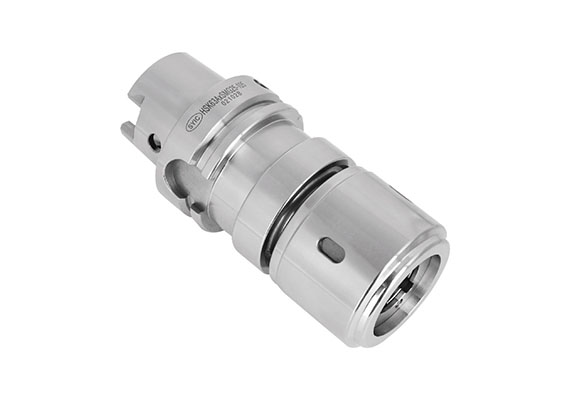

SMG防脫刀刀桿
