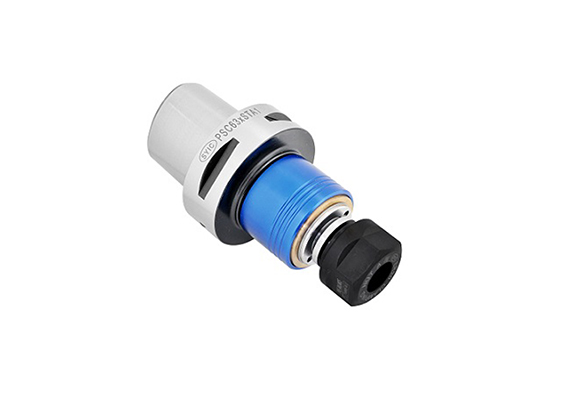

STA同步補償攻牙刀桿

series

BT/STA同步補償攻牙刀桿

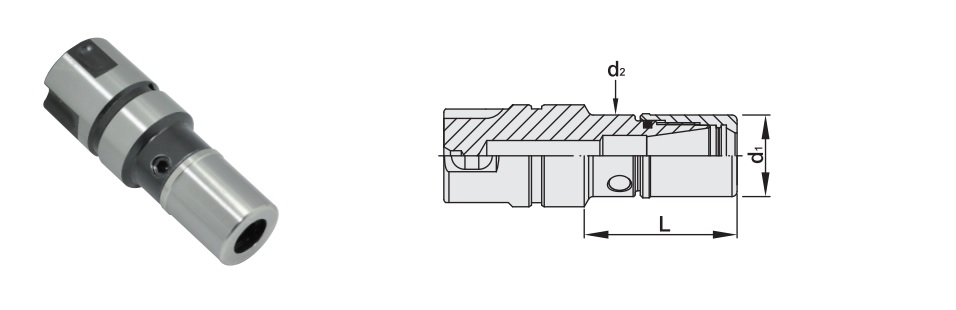

proimages/Products/Tool_holders/Tapping_chuck/STA/BT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
						COMBINATION
						BODY	TAP ADAPTER
10.795.08T.090	BT30 x STA8T - 90	90	30	12	42	BT30 x STA1	STA1 - PTER8 - 30	0.68
10.795.08T.130	BT30 x STA8T - 130	130	70	12	42	BT30 x STA1	STA1 - PTER8 - 70	0.74
10.795.08T.160	BT30 x STA8T - 160	160	100	12	42	BT30 x STA1	STA1 - PTER8 - 100	0.79
10.795.11T.090	BT30 x STA11T - 90	90	30	16	42	BT30 x STA1	STA1 - PTER11 - 30	1.13
10.795.11T.130	BT30 x STA11T - 130	130	70	16	42	BT30 x STA1	STA1 - PTER11 - 70	1.19
10.795.11T.160	BT30 x STA11T - 160	160	100	16	42	BT30 x STA1	STA1 - PTER11 - 100	1.23
10.795.16T.090	BT30 x STA16T - 90	90	30	22	42	BT30 x STA1	STA1 - PTER16 - 30	1.14
10.795.16T.130	BT30 x STA16T - 130	130	70	22	42	BT30 x STA1	STA1 - PTER16 - 70	1.2
10.795.16T.160	BT30 x STA16T - 160	160	100	22	42	BT30 x STA1	STA1 - PTER16 - 100	1.24
10.795.20T.090	BT30 x STA20T - 90	90	30	28	42	BT30 x STA1	STA1 - PTER20 - 30	1.11
10.795.20T.130	BT30 x STA20T - 130	130	70	28	42	BT30 x STA1	STA1 - PTER20 - 70	1.38
10.795.20T.160	BT30 x STA20T - 160	160	100	28	42	BT30 x STA1	STA1 - PTER20 - 100	1.54
11.795.08T.100	BT40 x STA8T - 100	100	30	12	42	BT40 x STA1	STA1 - PTER8 - 30	1.3
11.795.08T.140	BT40 x STA8T - 140	140	70	12	42	BT40 x STA1	STA1 - PTER8 - 70	1.36
11.795.08T.170	BT40 x STA8T - 170	170	100	12	42	BT40 x STA1	STA1 - PTER8 - 100	1.41
11.795.11T.100	BT40 x STA11T - 100	100	30	16	42	BT40 x STA1	STA1 - PTER11 - 30	1.75
11.795.11T.140	BT40 x STA11T - 140	140	70	16	42	BT40 x STA1	STA1 - PTER11 - 70	1.81
11.795.11T.170	BT40 x STA11T - 170	170	100	16	42	BT40 x STA1	STA1 - PTER11 - 100	1.85
11.795.16T.100	BT40 x STA16T - 100	100	30	22	42	BT40 x STA1	STA1 - PTER16 - 30	1.76
11.795.16T.140	BT40 x STA16T - 140	140	70	22	42	BT40 x STA1	STA1 - PTER16 - 70	1.82
11.795.16T.170	BT40 x STA16T - 170	170	100	22	42	BT40 x STA1	STA1 - PTER16 - 100	1.86
11.795.20T.100	BT40 x STA20T - 100	100	30	28	42	BT40 x STA1	STA1 - PTER20 - 30	1.73
11.795.20T.140	BT40 x STA20T - 140	140	70	28	42	BT40 x STA1	STA1 - PTER20 - 70	2
11.795.20T.170	BT40 x STA20T - 170	170	100	28	42	BT40 x STA1	STA1 - PTER20 - 100	2.16
11.795.25T.115	BT40 x STA25T - 115	115	30	35	58	BT40 x STA2	STA2 - PTER25 - 30	2.03
11.795.25T.155	BT40 x STA25T - 155	155	70	35	58	BT40 x STA2	STA2 - PTER25 - 70	2.3
11.795.25T.185	BT40 x STA25T - 185	185	100	35	58	BT40 x STA2	STA2 - PTER25 - 100	2.46
12.795.08T.110	BT50 x STA8T - 110	110	30	12	42	BT50 x STA1	STA1 - PTER8 - 30	3.8
12.795.08T.150	BT50 x STA8T - 150	150	70	12	42	BT50 x STA1	STA1 - PTER8 - 70	3.86
12.795.08T.180	BT50 x STA8T - 180	180	100	12	42	BT50 x STA1	STA1 - PTER8 - 100	3.91
12.795.11T.110	BT50 x STA11T - 110	110	30	16	42	BT50 x STA1	STA1 - PTER11 - 30	4.25
12.795.11T.150	BT50 x STA11T - 150	150	70	16	42	BT50 x STA1	STA1 - PTER11 - 70	4.31
12.795.11T.180	BT50 x STA11T - 180	180	100	16	42	BT50 x STA1	STA1 - PTER11 - 100	4.35
12.795.16T.110	BT50 x STA16T - 110	110	30	22	42	BT50 x STA1	STA1 - PTER16 - 30	4.26
12.795.16T.150	BT50 x STA16T - 150	150	70	22	42	BT50 x STA1	STA1 - PTER16 - 70	4.32
12.795.16T.180	BT50 x STA16T - 180	180	100	22	42	BT50 x STA1	STA1 - PTER16 - 100	4.36
12.795.20T.110	BT50 x STA20T - 110	110	30	28	42	BT50 x STA1	STA1 - PTER20 - 30	4.23
12.795.20T.150	BT50 x STA20T - 150	150	70	28	42	BT50 x STA1	STA1 - PTER20 - 70	4.5
12.795.20T.180	BT50 x STA20T - 180	180	100	28	42	BT50 x STA1	STA1 - PTER20 - 100	4.66
12.795.25T.125	BT50 x STA25T - 125	125	30	35	58	BT50 x STA2	STA2 - PTER25 - 30	4.53
12.795.25T.165	BT50 x STA25T - 165	165	70	35	58	BT50 x STA2	STA2 - PTER25 - 70	4.8
12.795.25T.195	BT50 x STA25T - 195	195	100	35	58	BT50 x STA2	STA2 - PTER25 - 100	4.96

BT/STA同步補償攻牙刀桿

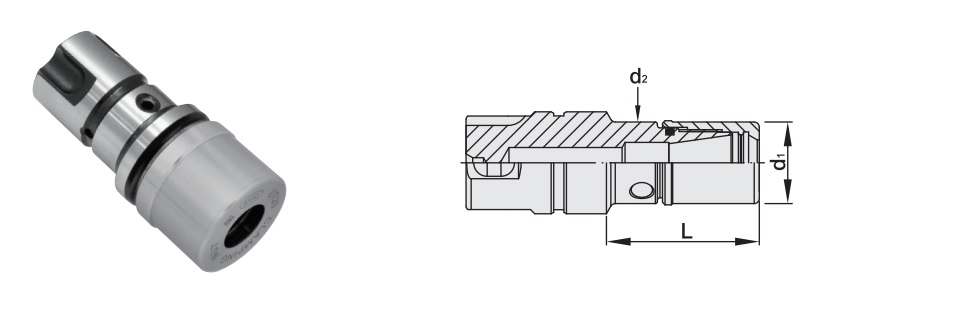

proimages/Products/Tool_holders/Tapping_chuck/STA/BT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5010-796-016-090	BT30xSTA16U-90	90	30	30	42	BT30 x STA1	STA1 - UT16 - 30	0.71
5010-796-016-130	BT30xSTA16U-130	130	70	30	42	BT30 x STA1	STA1 - UT16 - 70	0.86
5010-796-016-160	BT30xSTA16U-160	160	100	30	42	BT30 x STA1	STA1 - UT16 - 100	1.06
5011-796-016-100	BT40xSTA16U-100	100	30	30	42	BT40 x STA1	STA1 - UT16 - 30	1.33
5011-796-016-140	BT40xSTA16U-140	140	70	30	42	BT40 x STA1	STA1 - UT16 - 70	1.48
5011-796-016-170	BT40xSTA16U-170	170	100	30	42	BT40 x STA1	STA1 - UT16 - 100	1.68
5011-796-020-115	BT40xSTA20U-115	115	30	35	58	BT40 x STA2	STA2 - UT20 - 30	1.78
5011-796-020-155	BT40xSTA20U-155	155	70	35	58	BT40 x STA2	STA2 - UT20 - 70	1.98
5011-796-020-185	BT40xSTA20U-185	185	100	35	58	BT40 x STA2	STA2 - UT20 - 100	2.11
5011-796-025-120	BT40xSTA25U-120	120	35	42	58	BT40 x STA2	STA2 - UT25 - 35	1.78
5011-796-025-170	BT40xSTA25U-170	170	85	42	58	BT40 x STA2	STA2 - UT25 - 85	2.13
5011-796-025-200	BT40xSTA25U-200	200	115	42	58	BT40 x STA2	STA2 - UT25 - 115	2.38
5011-796-032-135	BT40xSTA32U-135	135	50	48	58	BT40 x STA2	STA2 - UT32 - 50	1.83
5011-796-032-170	BT40xSTA32U-170	170	85	48	58	BT40 x STA2	STA2 - UT32 - 85	2.08
5011-796-032-200	BT40xSTA32U-200	200	115	48	58	BT40 x STA2	STA2 - UT32 - 115	2.28
5012-796-016-110	BT50xSTA16U-110	110	30	30	42	BT50 x STA1	STA1 - UT16 - 30	3.83
5012-796-016-150	BT50xSTA16U-150	150	70	30	42	BT50 x STA1	STA1 - UT16 - 70	3.98
5012-796-016-180	BT50xSTA16U-180	180	100	30	42	BT50 x STA1	STA1 - UT16 - 100	4.18
5012-796-020-125	BT50xSTA20U-125	125	30	35	58	BT50 x STA2	STA2 - UT20 - 30	4.28
5012-796-020-165	BT50xSTA20U-165	165	70	35	58	BT50 x STA2	STA2 - UT20 - 70	4.48
5012-796-020-195	BT50xSTA20U-195	195	100	35	58	BT50 x STA2	STA2 - UT20 - 100	4.61
5012-796-025-130	BT50xSTA25U-130	130	35	42	58	BT50 x STA2	STA2 - UT25 - 35	4.28
5012-796-025-180	BT50xSTA25U-180	180	85	42	58	BT50 x STA2	STA2 - UT25 - 85	4.63
5012-796-025-210	BT50xSTA25U-210	210	115	42	58	BT50 x STA2	STA2 - UT25 - 115	4.88
5012-796-032-145	BT50xSTA32U-145	145	50	48	58	BT50 x STA2	STA2 - UT32 - 50	4.33
5012-796-032-180	BT50xSTA32U-180	180	85	48	58	BT50 x STA2	STA2 - UT32 - 85	4.58
5012-796-032-210	BT50xSTA32U-210	210	115	48	58	BT50 x STA2	STA2 - UT32 - 115	4.78

BT/STA同步補償攻牙刀桿

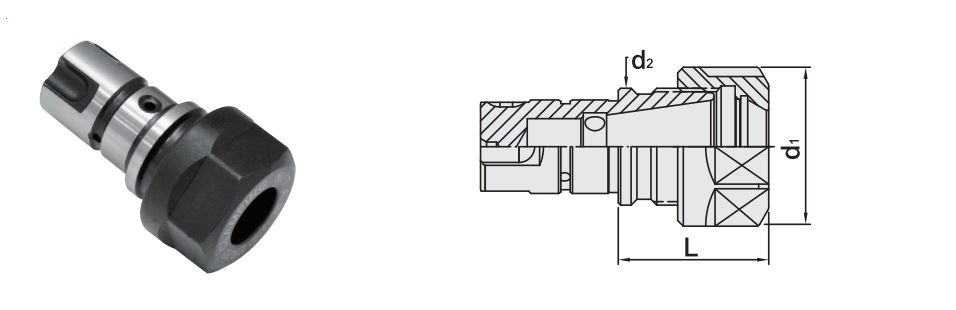

proimages/Products/Tool_holders/Tapping_chuck/STA/BT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5010-S22-011-130	BT30xSTA11E-130	130	70	19	42	BT30 x STA1	STA1 - ER11A - 70	0.92
5010-S22-016-085	BT30xSTA16E-85	85	25	28	42	BT30 x STA1	STA1 - ER16A - 25	0.66
5010-S22-016-130	BT30xSTA16E-130	130	70	28	42	BT30 x STA1	STA1 - ER16A - 70	0.86
5010-S22-016-210	BT30xSTA16E-210	210	150	28	42	BT30 x STA1	STA1 - ER16A - 150	1.19
5010-S22-020-094	BT30xSTA20E-94	94	34	34	42	BT30 x STA1	STA1 - ER20A - 34	0.70
5010-S22-020-130	BT30xSTA20E-130	130	70	34	42	BT30 x STA1	STA1 - ER20A - 70	0.86
5011-S22-011-140	BT40xSTA11E-140	140	70	19	42	BT40 x STA1	STA1 - ER11A - 70	1.54
5011-S22-016-095	BT40xSTA16E-95	95	25	28	42	BT40 x STA1	STA1 - ER16A - 25	1.28
5011-S22-016-140	BT40xSTA16E-140	140	70	28	42	BT40 x STA1	STA1 - ER16A - 70	1.48
5011-S22-016-220	BT40xSTA16E-220	220	150	28	42	BT40 x STA1	STA1 - ER16A - 150	1.81
5011-S22-020-104	BT40xSTA20E-104	104	34	34	42	BT40 x STA1	STA1 - ER20A - 34	1.32
5011-S22-020-140	BT40xSTA20E-140	140	70	34	42	BT40 x STA1	STA1 - ER20A - 70	1.48
5011-S22-032-125	BT40xSTA32E-125	125	40	50	58	BT40 x STA2	STA2 - ER32 - 40	1.92
5011-S22-032-155	BT40xSTA32E-155	155	70	50	58	BT40 x STA2	STA2 - ER32 - 70	2.15
5012-S22-011-150	BT50xSTA11E-150	150	70	19	42	BT50 x STA1	STA1 - ER11A - 70	1.54
5012-S22-016-105	BT50xSTA16E-105	105	25	28	42	BT50 x STA1	STA1 - ER16A - 25	3.78
5012-S22-016-150	BT50xSTA16E-150	150	70	28	42	BT50 x STA1	STA1 - ER16A - 70	3.98
5012-S22-016-230	BT50xSTA16E-230	230	150	28	42	BT50 x STA1	STA1 - ER16A - 150	4.31
5012-S22-020-114	BT50xSTA20E-114	114	34	34	42	BT50 x STA1	STA1 - ER20A - 34	3.82
5012-S22-020-150	BT50xSTA20E-150	150	70	34	42	BT50 x STA1	STA1 - ER20A - 70	3.98
5012-S22-032-135	BT50xSTA32E-135	135	40	50	58	BT50 x STA2	STA2 - ER32 - 40	4.42
5012-S22-032-165	BT50xSTA32E-165	165	70	50	58	BT50 x STA2	STA2 - ER32 - 70	4.65

CAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/CAT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
31.795.08T.100	CAT40 x STA8T - 100	100	30	12	42	CAT40 x STA1	STA1 - PTER8 - 30	1.24
31.795.08T.140	CAT40 x STA8T - 140	140	70	12	42	CAT40 x STA1	STA1 - PTER8 - 70	1.30
31.795.08T.170	CAT40 x STA8T - 170	170	100	12	42	CAT40 x STA1	STA1 - PTER8 - 100	1.35
31.795.11T.100	CAT40 x STA11T - 100	100	30	16	42	CAT40 x STA1	STA1 - PTER11 - 30	1.69
31.795.11T.140	CAT40 x STA11T - 140	140	70	16	42	CAT40 x STA1	STA1 - PTER11 - 70	1.75
31.795.11T.170	CAT40 x STA11T - 170	170	100	16	42	CAT40 x STA1	STA1 - PTER11 - 100	1.79
31.795.16T.100	CAT40 x STA16T - 100	100	30	22	42	CAT40 x STA1	STA1 - PTER16 - 30	1.70
31.795.16T.140	CAT40 x STA16T - 140	140	70	22	42	CAT40 x STA1	STA1 - PTER16 - 70	1.76
31.795.16T.170	CAT40 x STA16T - 170	170	100	22	42	CAT40 x STA1	STA1 - PTER16 - 100	1.80
31.795.20T.100	CAT40 x STA20T - 100	100	30	28	42	CAT40 x STA1	STA1 - PTER20 - 30	1.67
31.795.20T.140	CAT40 x STA20T - 140	140	70	28	42	CAT40 x STA1	STA1 - PTER20 - 70	1.94
31.795.20T.170	CAT40 x STA20T - 170	170	100	28	42	CAT40 x STA1	STA1 - PTER20 - 100	2.10
31.795.25T.120	CAT40 x STA25T - 120	120	30	35	58	CAT40 x STA2	STA2 - PTER25 - 30	2.00
31.795.25T.160	CAT40 x STA25T - 160	160	70	35	58	CAT40 x STA2	STA2 - PTER25 - 70	2.27
31.795.25T.190	CAT40 x STA25T - 190	190	100	35	58	CAT40 x STA2	STA2 - PTER25 - 100	2.43
32.795.08T.100	CAT50 x STA8T - 100	100	30	12	42	CAT50 x STA1	STA1 - PTER8 - 30	3.24
32.795.08T.140	CAT50 x STA8T - 140	140	70	12	42	CAT50 x STA1	STA1 - PTER8 - 70	3.30
32.795.08T.170	CAT50 x STA8T - 170	170	100	12	42	CAT50 x STA1	STA1 - PTER8 - 100	3.35
32.795.11T.100	CAT50 x STA11T - 100	100	30	16	42	CAT50 x STA1	STA1 - PTER11 - 30	3.69
32.795.11T.140	CAT50 x STA11T - 140	140	70	16	42	CAT50 x STA1	STA1 - PTER11 - 70	3.75
32.795.11T.170	CAT50 x STA11T - 170	170	100	16	42	CAT50 x STA1	STA1 - PTER11 - 100	3.79
32.795.16T.100	CAT50 x STA16T - 100	100	30	22	42	CAT50 x STA1	STA1 - PTER16 - 30	3.70
32.795.16T.140	CAT50 x STA16T - 140	140	70	22	42	CAT50 x STA1	STA1 - PTER16 - 70	3.76
32.795.16T.170	CAT50 x STA16T - 170	170	100	22	42	CAT50 x STA1	STA1 - PTER16 - 100	3.80
32.795.20T.100	CAT50 x STA20T - 100	100	30	28	42	CAT50 x STA1	STA1 - PTER20 - 30	3.67
32.795.20T.140	CAT50 x STA20T - 140	140	70	28	42	CAT50 x STA1	STA1 - PTER20 - 70	3.94
32.795.20T.170	CAT50 x STA20T - 170	170	100	28	42	CAT50 x STA1	STA1 - PTER20 - 100	4.10
32.795.25T.125	CAT50 x STA25T - 125	125	30	35	58	CAT50 x STA2	STA2 - PTER25 - 30	4.08
32.795.25T.165	CAT50 x STA25T - 165	165	70	35	58	CAT50 x STA2	STA2 - PTER25 - 70	4.35
32.795.25T.195	CAT50 x STA25T - 195	195	100	35	58	CAT50 x STA2	STA2 - PTER25 - 100	4.51

CAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/CAT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5031-796-016-100	CAT40xSTA16U-100	100	30	30	42	CAT40 x STA1	STA1 - UT16 - 30	1.27
5031-796-016-140	CAT40xSTA16U-140	140	70	30	42	CAT40 x STA1	STA1 - UT16 - 70	1.42
5031-796-016-170	CAT40xSTA16U-170	170	100	30	42	CAT40 x STA1	STA1 - UT16 - 100	1.62
5031-796-020-120	CAT40xSTA20U-120	120	30	35	58	CAT40 x STA2	STA2 - UT20 - 30	1.75
5031-796-020-160	CAT40xSTA20U-160	160	70	35	58	CAT40 x STA2	STA2 - UT20 - 70	1.95
5031-796-020-190	CAT40xSTA20U-190	190	100	35	58	CAT40 x STA2	STA2 - UT20 - 100	2.08
5031-796-025-125	CAT40xSTA25U-125	125	35	42	58	CAT40 x STA2	STA2 - UT25 - 35	1.75
5031-796-025-175	CAT40xSTA25U-175	175	85	42	58	CAT40 x STA2	STA2 - UT25 - 85	2.10
5031-796-025-205	CAT40xSTA25U-205	205	115	42	58	CAT40 x STA2	STA2 - UT25 - 115	2.35
5031-796-032-140	CAT40xSTA32U-140	140	50	48	58	CAT40 x STA2	STA2 - UT32 - 50	1.80
5031-796-032-175	CAT40xSTA32U-175	175	85	48	58	CAT40 x STA2	STA2 - UT32 - 85	2.05
5031-796-032-205	CAT40xSTA32U-205	205	115	48	58	CAT40 x STA2	STA2 - UT32 - 115	2.25
5032-796-016-100	CAT50xSTA16U-100	100	30	30	42	CAT50 x STA1	STA1 - UT16 - 30	3.27
5032-796-016-140	CAT50xSTA16U-140	140	70	30	42	CAT50 x STA1	STA1 - UT16 - 70	3.42
5032-796-016-170	CAT50xSTA16U-170	170	100	30	42	CAT50 x STA1	STA1 - UT16 - 100	3.62
5032-796-020-125	CAT50xSTA20U-125	125	30	35	58	CAT50 x STA2	STA2 - UT20 - 30	3.83
5032-796-020-165	CAT50xSTA20U-165	165	70	35	58	CAT50 x STA2	STA2 - UT20 - 70	4.03
5032-796-020-195	CAT50xSTA20U-195	195	100	35	58	CAT50 x STA2	STA2 - UT20 - 100	4.16
5032-796-025-130	CAT50xSTA25U-130	130	35	42	58	CAT50 x STA2	STA2 - UT25 - 35	3.83
5032-796-025-180	CAT50xSTA25U-180	180	85	42	58	CAT50 x STA2	STA2 - UT25 - 85	4.18
5032-796-025-210	CAT50xSTA25U-210	210	115	42	58	CAT50 x STA2	STA2 - UT25 - 115	4.43
5032-796-032-145	CAT50xSTA32U-145	145	50	48	58	CAT50 x STA2	STA2 - UT32 - 50	3.88
5032-796-032-180	CAT50xSTA32U-180	180	85	48	58	CAT50 x STA2	STA2 - UT32 - 85	4.13
5032-796-032-210	CAT50xSTA32U-210	210	115	48	58	CAT50 x STA2	STA2 - UT32 - 115	4.33

CAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/CAT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5031-S22-011-140	CAT40xSTA11E-140	140	70	19	42	CAT40 x STA1	STA1 - ER11A - 70	1.48
5031-S22-016-095	CAT40xSTA16E-95	95	25	28	42	CAT40 x STA1	STA1 - ER16A - 25	1.22
5031-S22-016-140	CAT40xSTA16E-140	140	70	28	42	CAT40 x STA1	STA1 - ER16A - 70	1.42
5031-S22-016-220	CAT40xSTA16E-220	220	150	28	42	CAT40 x STA1	STA1 - ER16A - 150	1.75
5031-S22-020-104	CAT40xSTA20E-104	104	34	34	42	CAT40 x STA1	STA1 - ER20A - 34	1.26
5031-S22-020-140	CAT40xSTA20E-140	140	70	34	42	CAT40 x STA1	STA1 - ER20A - 70	1.42
5031-S22-032-130	CAT40xSTA32E-130	130	40	50	58	CAT40 x STA2	STA2 - ER32 - 40	1.89
5031-S22-032-160	CAT40xSTA32E-160	160	70	50	58	CAT40 x STA2	STA2 - ER32 - 70	2.12
5032-S22-011-140	CAT50xSTA11E-140	140	70	19	42	CAT50 x STA1	STA1 - ER11A - 70	3.48
5032-S22-016-095	CAT50xSTA16E-95	95	25	28	42	CAT50 x STA1	STA1 - ER16A - 25	3.22
5032-S22-016-140	CAT50xSTA16E-140	140	70	28	42	CAT50 x STA1	STA1 - ER16A - 70	3.42
5032-S22-016-220	CAT50xSTA16E-220	220	150	28	42	CAT50 x STA1	STA1 - ER16A - 150	3.75
5032-S22-020-104	CAT50xSTA20E-104	104	34	34	42	CAT50 x STA1	STA1 - ER20A - 34	3.26
5032-S22-020-140	CAT50xSTA20E-140	140	70	34	42	CAT50 x STA1	STA1 - ER20A - 70	3.42
5032-S22-032-135	CAT50xSTA32E-135	135	40	50	58	CAT50 x STA2	STA2 - ER32 - 40	3.97
5032-S22-032-165	CAT50xSTA32E-165	165	70	50	58	CAT50 x STA2	STA2 - ER32 - 70	4.20

DAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/DAT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
51.795.08T.090	DAT40 x STA8T - 90	90	30	12	42	DAT40 x STA1	STA1 - PTER8 - 30	1.13
51.795.08T.130	DAT40 x STA8T - 130	130	70	12	42	DAT40 x STA1	STA1 - PTER8 - 70	1.19
51.795.08T.160	DAT40 x STA8T - 160	160	100	12	42	DAT40 x STA1	STA1 - PTER8 - 100	1.24
51.795.11T.090	DAT40 x STA11T - 90	90	30	16	42	DAT40 x STA1	STA1 - PTER11 - 30	1.58
51.795.11T.130	DAT40 x STA11T - 130	130	70	16	42	DAT40 x STA1	STA1 - PTER11 - 70	1.64
51.795.11T.160	DAT40 x STA11T - 160	160	100	16	42	DAT40 x STA1	STA1 - PTER11 - 100	1.68
51.795.16T.090	DAT40 x STA16T - 90	90	30	22	42	DAT40 x STA1	STA1 - PTER16 - 30	1.59
51.795.16T.130	DAT40 x STA16T - 130	130	70	22	42	DAT40 x STA1	STA1 - PTER16 - 70	1.65
51.795.16T.160	DAT40 x STA16T - 160	160	100	22	42	DAT40 x STA1	STA1 - PTER16 - 100	1.69
51.795.20T.090	DAT40 x STA20T - 90	90	30	28	42	DAT40 x STA1	STA1 - PTER20 - 30	1.56
51.795.20T.130	DAT40 x STA20T - 130	130	70	28	42	DAT40 x STA1	STA1 - PTER20 - 70	1.83
51.795.20T.160	DAT40 x STA20T - 160	160	100	28	42	DAT40 x STA1	STA1 - PTER20 - 100	1.99
51.795.25T.120	DAT40 x STA25T - 120	120	30	35	58	DAT40 x STA2	STA2 - PTER25 - 30	2.05
51.795.25T.160	DAT40 x STA25T - 160	160	70	35	58	DAT40 x STA2	STA2 - PTER25 - 70	2.32
51.795.25T.190	DAT40 x STA25T - 190	190	100	35	58	DAT40 x STA2	STA2 - PTER25 - 100	2.48
52.795.08T.090	DAT50 x STA8T - 90	90	30	12	42	DAT50 x STA1	STA1 - PTER8 - 30	2.85
52.795.08T.130	DAT50 x STA8T - 130	130	70	12	42	DAT50 x STA1	STA1 - PTER8 - 70	2.91
52.795.08T.160	DAT50 x STA8T - 160	160	100	12	42	DAT50 x STA1	STA1 - PTER8 - 100	2.96
52.795.11T.090	DAT50 x STA11T - 90	90	30	16	42	DAT50 x STA1	STA1 - PTER11 - 30	3.30
52.795.11T.130	DAT50 x STA11T - 130	130	70	16	42	DAT50 x STA1	STA1 - PTER11 - 70	3.36
52.795.11T.160	DAT50 x STA11T - 160	160	100	16	42	DAT50 x STA1	STA1 - PTER11 - 100	3.40
52.795.16T.090	DAT50 x STA16T - 90	90	30	22	42	DAT50 x STA1	STA1 - PTER16 - 30	3.31
52.795.16T.130	DAT50 x STA16T - 130	130	70	22	42	DAT50 x STA1	STA1 - PTER16 - 70	3.37
52.795.16T.160	DAT50 x STA16T - 160	160	100	22	42	DAT50 x STA1	STA1 - PTER16 - 100	3.41
52.795.20T.090	DAT50 x STA20T - 90	90	30	28	42	DAT50 x STA1	STA1 - PTER20 - 30	3.28
52.795.20T.130	DAT50 x STA20T - 130	130	70	28	42	DAT50 x STA1	STA1 - PTER20 - 70	3.55
52.795.20T.160	DAT50 x STA20T - 160	160	100	28	42	DAT50 x STA1	STA1 - PTER20 - 100	3.71
52.795.25T.110	DAT50 x STA25T - 110	110	30	35	58	DAT50 x STA2	STA2 - PTER25 - 30	3.66
52.795.25T.150	DAT50 x STA25T - 150	150	70	35	58	DAT50 x STA2	STA2 - PTER25 - 70	3.93
52.795.25T.180	DAT50 x STA25T - 180	180	100	35	58	DAT50 x STA2	STA2 - PTER25 - 100	4.09

DAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/DAT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5051-796-016-090	DAT40xSTA16U-90	90	30	30	42	DAT40 x STA1	STA1 - UT16 - 30	1.16
5051-796-016-130	DAT40xSTA16U-130	130	70	30	42	DAT40 x STA1	STA1 - UT16 - 70	1.31
5051-796-016-160	DAT40xSTA16U-160	160	100	30	42	DAT40 x STA1	STA1 - UT16 - 100	1.51
5051-796-020-120	DAT40xSTA20U-120	120	30	35	58	DAT40 x STA2	STA2 - UT20 - 30	1.80
5051-796-020-160	DAT40xSTA20U-160	160	70	35	58	DAT40 x STA2	STA2 - UT20 - 70	2.00
5051-796-020-190	DAT40xSTA20U-190	190	100	35	58	DAT40 x STA2	STA2 - UT20 - 100	2.13
5051-796-025-125	DAT40xSTA25U-125	125	35	42	58	DAT40 x STA2	STA2 - UT25 - 35	1.80
5051-796-025-175	DAT40xSTA25U-175	175	85	42	58	DAT40 x STA2	STA2 - UT25 - 85	2.15
5051-796-025-205	DAT40xSTA25U-205	205	115	42	58	DAT40 x STA2	STA2 - UT25 - 115	2.40
5051-796-032-140	DAT40xSTA32U-140	140	50	48	58	DAT40 x STA2	STA2 - UT32 - 50	1.85
5051-796-032-175	DAT40xSTA32U-175	175	85	48	58	DAT40 x STA2	STA2 - UT32 - 85	2.10
5051-796-032-205	DAT40xSTA32U-205	205	115	48	58	DAT40 x STA2	STA2 - UT32 - 115	2.30
5052-796-016-090	DAT50xSTA16U-90	90	30	30	42	DAT50 x STA1	STA1 - UT16 - 30	2.88
5052-796-016-130	DAT50xSTA16U-130	130	70	30	42	DAT50 x STA1	STA1 - UT16 - 70	3.03
5052-796-016-160	DAT50xSTA16U-160	160	100	30	42	DAT50 x STA1	STA1 - UT16 - 100	3.23
5052-796-020-110	DAT50xSTA20U-110	110	30	35	58	DAT50 x STA2	STA2 - UT20 - 30	3.41
5052-796-020-150	DAT50xSTA20U-150	150	70	35	58	DAT50 x STA2	STA2 - UT20 - 70	3.61
5052-796-020-180	DAT50xSTA20U-180	180	100	35	58	DAT50 x STA2	STA2 - UT20 - 100	3.74
5052-796-025-115	DAT50xSTA25U-115	115	35	42	58	DAT50 x STA2	STA2 - UT25 - 35	3.41
5052-796-025-165	DAT50xSTA25U-165	165	85	42	58	DAT50 x STA2	STA2 - UT25 - 85	3.76
5052-796-025-195	DAT50xSTA25U-195	195	115	42	58	DAT50 x STA2	STA2 - UT25 - 115	4.01
5052-796-032-130	DAT50xSTA32U-130	130	50	48	58	DAT50 x STA2	STA2 - UT32 - 50	3.46
5052-796-032-165	DAT50xSTA32U-165	165	85	48	58	DAT50 x STA2	STA2 - UT32 - 85	3.71
5052-796-032-195	DAT50xSTA32U-195	195	115	48	58	DAT50 x STA2	STA2 - UT32 - 115	3.91

DAT/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/DAT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5051-S22-011-130	DAT40xSTA11E-130	130	70	19	42	DAT40 x STA1	STA1 - ER11A - 70	1.37
5051-S22-016-085	DAT40xSTA16E-85	85	25	28	42	DAT40 x STA1	STA1 - ER16A - 25	1.11
5051-S22-016-130	DAT40xSTA16E-130	130	70	28	42	DAT40 x STA1	STA1 - ER16A - 70	1.31
5051-S22-016-210	DAT40xSTA16E-210	210	150	28	42	DAT40 x STA1	STA1 - ER16A - 150	2.13
5051-S22-020-094	DAT40xSTA20E-94	94	34	34	42	DAT40 x STA1	STA1 - ER20A - 34	1.64
5051-S22-020-130	DAT40xSTA20E-130	130	70	34	42	DAT40 x STA1	STA1 - ER20A - 70	1.80
5051-S22-032-130	DAT40xSTA32E-130	130	40	50	58	DAT40 x STA2	STA2 - ER32 - 40	1.94
5051-S22-032-160	DAT40xSTA32E-160	160	70	50	58	DAT40 x STA2	STA2 - ER32 - 70	2.17
5052-S22-011-130	DAT50xSTA11E-130	130	70	19	42	DAT50 x STA1	STA1 - ER11A - 70	1.86
5052-S22-016-085	DAT50xSTA16E-85	85	25	28	42	DAT50 x STA1	STA1 - ER16A - 25	1.60
5052-S22-016-130	DAT50xSTA16E-130	130	70	28	42	DAT50 x STA1	STA1 - ER16A - 70	1.80
5052-S22-016-210	DAT50xSTA16E-210	210	150	28	42	DAT50 x STA1	STA1 - ER16A - 150	2.13
5052-S22-020-094	DAT50xSTA20E-94	94	34	34	42	DAT50 x STA1	STA1 - ER20A - 34	2.87
5052-S22-020-130	DAT50xSTA20E-130	130	70	34	42	DAT50 x STA1	STA1 - ER20A - 70	3.03
5052-S22-032-120	DAT50xSTA32E-120	120	40	50	58	DAT50 x STA2	STA2 - ER32 - 40	3.17
5052-S22-032-150	DAT50xSTA32E-150	150	70	50	58	DAT50 x STA2	STA2 - ER32 - 70	3.78

SBT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SBT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
25.795.08T.090	SBT30 x STA8T - 90	90	30	12	42	SBT30 x STA1	STA1 - PTER8 - 30	0.68
25.795.08T.130	SBT30 x STA8T - 130	130	70	12	42	SBT30 x STA1	STA1 - PTER8 - 70	0.74
25.795.08T.160	SBT30 x STA8T - 160	160	100	12	42	SBT30 x STA1	STA1 - PTER8 - 100	0.79
25.795.11T.090	SBT30 x STA11T - 90	90	30	16	42	SBT30 x STA1	STA1 - PTER11 - 30	1.13
25.795.11T.130	SBT30 x STA11T - 130	130	70	16	42	SBT30 x STA1	STA1 - PTER11 - 70	1.19
25.795.11T.160	SBT30 x STA11T - 160	160	100	16	42	SBT30 x STA1	STA1 - PTER11 - 100	1.23
25.795.16T.090	SBT30 x STA16T - 90	90	30	22	42	SBT30 x STA1	STA1 - PTER16 - 30	1.14
25.795.16T.130	SBT30 x STA16T - 130	130	70	22	42	SBT30 x STA1	STA1 - PTER16 - 70	1.20
25.795.16T.160	SBT30 x STA16T - 160	160	100	22	42	SBT30 x STA1	STA1 - PTER16 - 100	1.24
25.795.20T.090	SBT30 x STA20T - 90	90	30	28	42	SBT30 x STA1	STA1 - PTER20 - 30	1.11
25.795.20T.130	SBT30 x STA20T - 130	130	70	28	42	SBT30 x STA1	STA1 - PTER20 - 70	1.38
25.795.20T.160	SBT30 x STA20T - 160	160	100	28	42	SBT30 x STA1	STA1 - PTER20 - 100	1.54
26.795.08T.100	SBT40 x STA8T - 100	100	30	12	42	SBT40 x STA1	STA1 - PTER8 - 30	1.30
26.795.08T.140	SBT40 x STA8T - 140	140	70	12	42	SBT40 x STA1	STA1 - PTER8 - 70	1.36
26.795.08T.170	SBT40 x STA8T - 170	170	100	12	42	SBT40 x STA1	STA1 - PTER8 - 100	1.41
26.795.11T.100	SBT40 x STA11T - 100	100	30	16	42	SBT40 x STA1	STA1 - PTER11 - 30	1.75
26.795.11T.140	SBT40 x STA11T - 140	140	70	16	42	SBT40 x STA1	STA1 - PTER11 - 70	1.81
26.795.11T.170	SBT40 x STA11T - 170	170	100	16	42	SBT40 x STA1	STA1 - PTER11 - 100	1.85
26.795.16T.100	SBT40 x STA16T - 100	100	30	22	42	SBT40 x STA1	STA1 - PTER16 - 30	1.76
26.795.16T.140	SBT40 x STA16T - 140	140	70	22	42	SBT40 x STA1	STA1 - PTER16 - 70	1.82
26.795.16T.170	SBT40 x STA16T - 170	170	100	22	42	SBT40 x STA1	STA1 - PTER16 - 100	1.86
26.795.20T.100	SBT40 x STA20T - 100	100	30	28	42	SBT40 x STA1	STA1 - PTER20 - 30	1.73
26.795.20T.140	SBT40 x STA20T - 140	140	70	28	42	SBT40 x STA1	STA1 - PTER20 - 70	2.00
26.795.20T.170	SBT40 x STA20T - 170	170	100	28	42	SBT40 x STA1	STA1 - PTER20 - 100	2.16
26.795.25T.115	SBT40 x STA25T - 115	115	30	35	58	SBT40 x STA2	STA2 - PTER25 - 30	2.03
26.795.25T.155	SBT40 x STA25T - 155	155	70	35	58	SBT40 x STA2	STA2 - PTER25 - 70	2.30
26.795.25T.185	SBT40 x STA25T - 185	185	100	35	58	SBT40 x STA2	STA2 - PTER25 - 100	2.46
27.795.08T.110	SBT50 x STA8T - 110	110	30	12	42	SBT50 x STA1	STA1 - PTER8 - 30	3.80
27.795.08T.150	SBT50 x STA8T - 150	150	70	12	42	SBT50 x STA1	STA1 - PTER8 - 70	3.86
27.795.08T.180	SBT50 x STA8T - 180	180	100	12	42	SBT50 x STA1	STA1 - PTER8 - 100	3.91
27.795.11T.110	SBT50 x STA11T - 110	110	30	16	42	SBT50 x STA1	STA1 - PTER11 - 30	4.25
27.795.11T.150	SBT50 x STA11T - 150	150	70	16	42	SBT50 x STA1	STA1 - PTER11 - 70	4.31
27.795.11T.180	SBT50 x STA11T - 180	180	100	16	42	SBT50 x STA1	STA1 - PTER11 - 100	4.35
27.795.16T.110	SBT50 x STA16T - 110	110	30	22	42	SBT50 x STA1	STA1 - PTER16 - 30	4.26
27.795.16T.150	SBT50 x STA16T - 150	150	70	22	42	SBT50 x STA1	STA1 - PTER16 - 70	4.32
27.795.16T.180	SBT50 x STA16T - 180	180	100	22	42	SBT50 x STA1	STA1 - PTER16 - 100	4.36
27.795.20T.110	SBT50 x STA20T - 110	110	30	28	42	SBT50 x STA1	STA1 - PTER20 - 30	4.23
27.795.20T.150	SBT50 x STA20T - 150	150	70	28	42	SBT50 x STA1	STA1 - PTER20 - 70	4.50
27.795.20T.180	SBT50 x STA20T - 180	180	100	28	42	SBT50 x STA1	STA1 - PTER20 - 100	4.66
27.795.25T.125	SBT50 x STA25T - 125	125	30	35	58	SBT50 x STA2	STA2 - PTER25 - 30	4.53
27.795.25T.165	SBT50 x STA25T - 165	165	70	35	58	SBT50 x STA2	STA2 - PTER25 - 70	4.80
27.795.25T.195	SBT50 x STA25T - 195	195	100	35	58	SBT50 x STA2	STA2 - PTER25 - 100	4.96

SBT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SBT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5025-796-016-090	SBT30xSTA16U-90	90	30	30	42	SBT30 x STA1	STA1 - UT16 - 30	0.71
5025-796-016-130	SBT30xSTA16U-130	130	70	30	42	SBT30 x STA1	STA1 - UT16 - 70	0.86
5025-796-016-160	SBT30xSTA16U-160	160	100	30	42	SBT30 x STA1	STA1 - UT16 - 100	1.06
5026-796-016-100	SBT40xSTA16U-100	100	30	30	42	SBT40 x STA1	STA1 - UT16 - 30	1.33
5026-796-016-140	SBT40xSTA16U-140	140	70	30	42	SBT40 x STA1	STA1 - UT16 - 70	1.48
5026-796-016-170	SBT40xSTA16U-170	170	100	30	42	SBT40 x STA1	STA1 - UT16 - 100	1.68
5026-796-020-115	SBT40xSTA20U-115	115	30	35	58	SBT40 x STA2	STA2 - UT20 - 30	1.78
5026-796-020-155	SBT40xSTA20U-155	155	70	35	58	SBT40 x STA2	STA2 - UT20 - 70	1.98
5026-796-020-185	SBT40xSTA20U-185	185	100	35	58	SBT40 x STA2	STA2 - UT20 - 100	2.11
5026-796-025-120	SBT40xSTA25U-120	120	35	42	58	SBT40 x STA2	STA2 - UT25 - 35	1.78
5026-796-025-170	SBT40xSTA25U-170	170	85	42	58	SBT40 x STA2	STA2 - UT25 - 85	2.13
5026-796-025-200	SBT40xSTA25U-200	200	115	42	58	SBT40 x STA2	STA2 - UT25 - 115	2.38
5026-796-032-135	SBT40xSTA32U-135	135	50	48	58	SBT40 x STA2	STA2 - UT32 - 50	1.83
5026-796-032-170	SBT40xSTA32U-170	170	85	48	58	SBT40 x STA2	STA2 - UT32 - 85	2.08
5026-796-032-200	SBT40xSTA32U-200	200	115	48	58	SBT40 x STA2	STA2 - UT32 - 115	2.28
5027-796-016-110	SBT50xSTA16U-110	110	30	30	42	SBT50 x STA1	STA1 - UT16 - 30	3.83
5027-796-016-150	SBT50xSTA16U-150	150	70	30	42	SBT50 x STA1	STA1 - UT16 - 70	3.98
5027-796-016-180	SBT50xSTA16U-180	180	100	30	42	SBT50 x STA1	STA1 - UT16 - 100	4.18
5027-796-020-125	SBT50xSTA20U-125	125	30	35	58	SBT50 x STA2	STA2 - UT20 - 30	4.28
5027-796-020-165	SBT50xSTA20U-165	165	70	35	58	SBT50 x STA2	STA2 - UT20 - 70	4.48
5027-796-020-195	SBT50xSTA20U-195	195	100	35	58	SBT50 x STA2	STA2 - UT20 - 100	4.61
5027-796-025-130	SBT50xSTA25U-130	130	35	42	58	SBT50 x STA2	STA2 - UT25 - 35	4.28
5027-796-025-180	SBT50xSTA25U-180	180	85	42	58	SBT50 x STA2	STA2 - UT25 - 85	4.63
5027-796-025-210	SBT50xSTA25U-210	210	115	42	58	SBT50 x STA2	STA2 - UT25 - 115	4.88
5027-796-032-145	SBT50xSTA32U-145	145	50	48	58	SBT50 x STA2	STA2 - UT32 - 50	4.33
5027-796-032-180	SBT50xSTA32U-180	180	85	48	58	SBT50 x STA2	STA2 - UT32 - 85	4.58
5027-796-032-210	SBT50xSTA32U-210	210	115	48	58	SBT50 x STA2	STA2 - UT32 - 115	4.78

SBT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SBT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5025-S22-011-130	SBT30xSTA11E-130	130	70	19	42	SBT30 x STA1	STA1 - ER11A - 70	0.92
5025-S22-016-085	SBT30xSTA16E-85	85	25	28	42	SBT30 x STA1	STA1 - ER16A - 25	0.66
5025-S22-016-130	SBT30xSTA16E-130	130	70	28	42	SBT30 x STA1	STA1 - ER16A - 70	0.86
5025-S22-016-210	SBT30xSTA16E-210	210	150	28	42	SBT30 x STA1	STA1 - ER16A - 150	1.19
5025-S22-020-094	SBT30xSTA20E-94	94	34	34	42	SBT30 x STA1	STA1 - ER20A - 34	0.70
5025-S22-020-130	SBT30xSTA20E-130	130	70	34	42	SBT30 x STA1	STA1 - ER20A - 70	0.86
5026-S22-011-140	SBT40xSTA11E-140	140	70	19	42	SBT40 x STA1	STA1 - ER11A - 70	1.54
5026-S22-016-095	SBT40xSTA16E-95	95	25	28	42	SBT40 x STA1	STA1 - ER16A - 25	1.28
5026-S22-016-140	SBT40xSTA16E-140	140	70	28	42	SBT40 x STA1	STA1 - ER16A - 70	1.48
5026-S22-016-220	SBT40xSTA16E-220	220	150	28	42	SBT40 x STA1	STA1 - ER16A - 150	1.81
5026-S22-020-104	SBT40xSTA20E-104	104	34	34	42	SBT40 x STA1	STA1 - ER20A - 34	1.32
5026-S22-020-140	SBT40xSTA20E-140	140	70	34	42	SBT40 x STA1	STA1 - ER20A - 70	1.48
5026-S22-032-125	SBT40xSTA32E-125	125	40	50	58	SBT40 x STA2	STA2 - ER32 - 40	1.92
5026-S22-032-155	SBT40xSTA32E-155	155	70	50	58	SBT40 x STA2	STA2 - ER32 - 70	2.15
5027-S22-011-150	SBT50xSTA11E-150	150	70	19	42	SBT50 x STA1	STA1 - ER11A - 70	1.54
5027-S22-016-105	SBT50xSTA16E-105	105	25	28	42	SBT50 x STA1	STA1 - ER16A - 25	3.78
5027-S22-016-150	SBT50xSTA16E-150	150	70	28	42	SBT50 x STA1	STA1 - ER16A - 70	3.98
5027-S22-016-230	SBT50xSTA16E-230	230	150	28	42	SBT50 x STA1	STA1 - ER16A - 150	4.31
5027-S22-020-114	SBT50xSTA20E-114	114	34	34	42	SBT50 x STA1	STA1 - ER20A - 34	3.82
5027-S22-020-150	SBT50xSTA20E-150	150	70	34	42	SBT50 x STA1	STA1 - ER20A - 70	3.98
5027-S22-032-135	SBT50xSTA32E-135	135	40	50	58	SBT50 x STA2	STA2 - ER32 - 40	4.42
5027-S22-032-165	SBT50xSTA32E-165	165	70	50	58	SBT50 x STA2	STA2 - ER32 - 70	4.65

SCAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SCAT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
43.795.08T.100	SCAT40 x STA8T - 100	100	30	12	42	SCAT40 x STA1	STA1 - PTER8 - 30	1.24
43.795.08T.140	SCAT40 x STA8T - 140	140	70	12	42	SCAT40 x STA1	STA1 - PTER8 - 70	1.30
43.795.08T.170	SCAT40 x STA8T - 170	170	100	12	42	SCAT40 x STA1	STA1 - PTER8 - 100	1.35
43.795.11T.100	SCAT40 x STA11T - 100	100	30	16	42	SCAT40 x STA1	STA1 - PTER11 - 30	1.69
43.795.11T.140	SCAT40 x STA11T - 140	140	70	16	42	SCAT40 x STA1	STA1 - PTER11 - 70	1.75
43.795.11T.170	SCAT40 x STA11T - 170	170	100	16	42	SCAT40 x STA1	STA1 - PTER11 - 100	1.79
43.795.16T.100	SCAT40 x STA16T - 100	100	30	22	42	SCAT40 x STA1	STA1 - PTER16 - 30	1.70
43.795.16T.140	SCAT40 x STA16T - 140	140	70	22	42	SCAT40 x STA1	STA1 - PTER16 - 70	1.76
43.795.16T.170	SCAT40 x STA16T - 170	170	100	22	42	SCAT40 x STA1	STA1 - PTER16 - 100	1.80
43.795.20T.100	SCAT40 x STA20T - 100	100	30	28	42	SCAT40 x STA1	STA1 - PTER20 - 30	1.67
43.795.20T.140	SCAT40 x STA20T - 140	140	70	28	42	SCAT40 x STA1	STA1 - PTER20 - 70	1.94
43.795.20T.170	SCAT40 x STA20T - 170	170	100	28	42	SCAT40 x STA1	STA1 - PTER20 - 100	2.10
43.795.25T.120	SCAT40 x STA25T - 120	120	30	35	58	SCAT40 x STA2	STA2 - PTER25 - 30	2.00
43.795.25T.160	SCAT40 x STA25T - 160	160	70	35	58	SCAT40 x STA2	STA2 - PTER25 - 70	2.27
43.795.25T.190	SCAT40 x STA25T - 190	190	100	35	58	SCAT40 x STA2	STA2 - PTER25 - 100	2.43
44.795.08T.100	SCAT50 x STA8T - 100	100	30	12	42	SCAT50 x STA1	STA1 - PTER8 - 30	3.24
44.795.08T.140	SCAT50 x STA8T - 140	140	70	12	42	SCAT50 x STA1	STA1 - PTER8 - 70	3.30
44.795.08T.170	SCAT50 x STA8T - 170	170	100	12	42	SCAT50 x STA1	STA1 - PTER8 - 100	3.35
44.795.11T.100	SCAT50 x STA11T - 100	100	30	16	42	SCAT50 x STA1	STA1 - PTER11 - 30	3.69
44.795.11T.140	SCAT50 x STA11T - 140	140	70	16	42	SCAT50 x STA1	STA1 - PTER11 - 70	3.75
44.795.11T.170	SCAT50 x STA11T - 170	170	100	16	42	SCAT50 x STA1	STA1 - PTER11 - 100	3.79
44.795.16T.100	SCAT50 x STA16T - 100	100	30	22	42	SCAT50 x STA1	STA1 - PTER16 - 30	3.70
44.795.16T.140	SCAT50 x STA16T - 140	140	70	22	42	SCAT50 x STA1	STA1 - PTER16 - 70	3.76
44.795.16T.170	SCAT50 x STA16T - 170	170	100	22	42	SCAT50 x STA1	STA1 - PTER16 - 100	3.80
44.795.20T.100	SCAT50 x STA20T - 100	100	30	28	42	SCAT50 x STA1	STA1 - PTER20 - 30	3.67
44.795.20T.140	SCAT50 x STA20T - 140	140	70	28	42	SCAT50 x STA1	STA1 - PTER20 - 70	3.94
44.795.20T.170	SCAT50 x STA20T - 170	170	100	28	42	SCAT50 x STA1	STA1 - PTER20 - 100	4.10
44.795.25T.125	SCAT50 x STA25T - 125	125	30	35	58	SCAT50 x STA2	STA2 - PTER25 - 30	4.08
44.795.25T.165	SCAT50 x STA25T - 165	165	70	35	58	SCAT50 x STA2	STA2 - PTER25 - 70	4.35
44.795.25T.195	SCAT50 x STA25T - 195	195	100	35	58	SCAT50 x STA2	STA2 - PTER25 - 100	4.51

SCAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SCAT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5043-796-016-100	SCAT40xSTA16U-100	100	30	30	42	SCAT40 x STA1	STA1 - UT16 - 30	1.27
5043-796-016-140	SCAT40xSTA16U-140	140	70	30	42	SCAT40 x STA1	STA1 - UT16 - 70	1.42
5043-796-016-170	SCAT40xSTA16U-170	170	100	30	42	SCAT40 x STA1	STA1 - UT16 - 100	1.62
5043-796-020-120	SCAT40xSTA20U-120	120	30	35	58	SCAT40 x STA2	STA2 - UT20 - 30	1.75
5043-796-020-160	SCAT40xSTA20U-160	160	70	35	58	SCAT40 x STA2	STA2 - UT20 - 70	1.95
5043-796-020-190	SCAT40xSTA20U-190	190	100	35	58	SCAT40 x STA2	STA2 - UT20 - 100	2.08
5043-796-025-125	SCAT40xSTA25U-125	125	35	42	58	SCAT40 x STA2	STA2 - UT25 - 35	1.75
5043-796-025-175	SCAT40xSTA25U-175	175	85	42	58	SCAT40 x STA2	STA2 - UT25 - 85	2.10
5043-796-025-205	SCAT40xSTA25U-205	205	115	42	58	SCAT40 x STA2	STA2 - UT25 - 115	2.35
5043-796-032-140	SCAT40xSTA32U-140	140	50	48	58	SCAT40 x STA2	STA2 - UT32 - 50	1.80
5043-796-032-175	SCAT40xSTA32U-175	175	85	48	58	SCAT40 x STA2	STA2 - UT32 - 85	2.05
5043-796-032-205	SCAT40xSTA32U-205	205	115	48	58	SCAT40 x STA2	STA2 - UT32 - 115	2.25
5044-796-016-100	SCAT50xSTA16U-100	100	30	30	42	SCAT50 x STA1	STA1 - UT16 - 30	3.27
5044-796-016-140	SCAT50xSTA16U-140	140	70	30	42	SCAT50 x STA1	STA1 - UT16 - 70	3.42
5044-796-016-170	SCAT50xSTA16U-170	170	100	30	42	SCAT50 x STA1	STA1 - UT16 - 100	3.62
5044-796-020-125	SCAT50xSTA20U-125	125	30	35	58	SCAT50 x STA2	STA2 - UT20 - 30	3.83
5044-796-020-165	SCAT50xSTA20U-165	165	70	35	58	SCAT50 x STA2	STA2 - UT20 - 70	4.03
5044-796-020-195	SCAT50xSTA20U-195	195	100	35	58	SCAT50 x STA2	STA2 - UT20 - 100	4.16
5044-796-025-130	SCAT50xSTA25U-130	130	35	42	58	SCAT50 x STA2	STA2 - UT25 - 35	3.83
5044-796-025-180	SCAT50xSTA25U-180	180	85	42	58	SCAT50 x STA2	STA2 - UT25 - 85	4.18
5044-796-025-210	SCAT50xSTA25U-210	210	115	42	58	SCAT50 x STA2	STA2 - UT25 - 115	4.43
5044-796-032-145	SCAT50xSTA32U-145	145	50	48	58	SCAT50 x STA2	STA2 - UT32 - 50	3.88
5044-796-032-180	SCAT50xSTA32U-180	180	85	48	58	SCAT50 x STA2	STA2 - UT32 - 85	4.13
5044-796-032-210	SCAT50xSTA32U-210	210	115	48	58	SCAT50 x STA2	STA2 - UT32 - 115	4.33

SCAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SCAT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5043-S22-011-140	SCAT40xSTA11E-140	140	70	19	42	SCAT40 x STA1	STA1 - ER11A - 70	1.48
5043-S22-016-095	SCAT40xSTA16E-95	95	25	28	42	SCAT40 x STA1	STA1 - ER16A - 25	1.22
5043-S22-016-140	SCAT40xSTA16E-140	140	70	28	42	SCAT40 x STA1	STA1 - ER16A - 70	1.42
5043-S22-016-220	SCAT40xSTA16E-220	220	150	28	42	SCAT40 x STA1	STA1 - ER16A - 150	1.75
5043-S22-020-104	SCAT40xSTA20E-104	104	34	34	42	SCAT40 x STA1	STA1 - ER20A - 34	1.26
5043-S22-020-140	SCAT40xSTA20E-140	140	70	34	42	SCAT40 x STA1	STA1 - ER20A - 70	1.42
5043-S22-032-130	SCAT40xSTA32E-130	130	40	50	58	SCAT40 x STA2	STA2 - ER32 - 40	1.89
5043-S22-032-160	SCAT40xSTA32E-160	160	70	50	58	SCAT40 x STA2	STA2 - ER32 - 70	2.12
5044-S22-011-140	SCAT50xSTA11E-140	140	70	19	42	SCAT50 x STA1	STA1 - ER11A - 70	3.48
5044-S22-016-095	SCAT50xSTA16E-95	95	25	28	42	SCAT50 x STA1	STA1 - ER16A - 25	3.22
5044-S22-016-140	SCAT50xSTA16E-140	140	70	28	42	SCAT50 x STA1	STA1 - ER16A - 70	3.42
5044-S22-016-220	SCAT50xSTA16E-220	220	150	28	42	SCAT50 x STA1	STA1 - ER16A - 150	3.75
5044-S22-020-104	SCAT50xSTA20E-104	104	34	34	42	SCAT50 x STA1	STA1 - ER20A - 34	3.26
5044-S22-020-140	SCAT50xSTA20E-140	140	70	34	42	SCAT50 x STA1	STA1 - ER20A - 70	3.42
5044-S22-032-135	SCAT50xSTA32E-135	135	40	50	58	SCAT50 x STA2	STA2 - ER32 - 40	3.97
5044-S22-032-165	SCAT50xSTA32E-165	165	70	50	58	SCAT50 x STA2	STA2 - ER32 - 70	4.20

SDAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SDAT-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
66.795.08T.090	SDAT40 x STA8T - 90	90	30	12	42	SDAT40 x STA1	STA1 - PTER8 - 30	1.13
66.795.08T.130	SDAT40 x STA8T - 130	130	70	12	42	SDAT40 x STA1	STA1 - PTER8 - 70	1.19
66.795.08T.160	SDAT40 x STA8T - 160	160	100	12	42	SDAT40 x STA1	STA1 - PTER8 - 100	1.24
66.795.11T.090	SDAT40 x STA11T - 90	90	30	16	42	SDAT40 x STA1	STA1 - PTER11 - 30	1.58
66.795.11T.130	SDAT40 x STA11T - 130	130	70	16	42	SDAT40 x STA1	STA1 - PTER11 - 70	1.64
66.795.11T.160	SDAT40 x STA11T - 160	160	100	16	42	SDAT40 x STA1	STA1 - PTER11 - 100	1.68
66.795.16T.090	SDAT40 x STA16T - 90	90	30	22	42	SDAT40 x STA1	STA1 - PTER16 - 30	1.59
66.795.16T.130	SDAT40 x STA16T - 130	130	70	22	42	SDAT40 x STA1	STA1 - PTER16 - 70	1.65
66.795.16T.160	SDAT40 x STA16T - 160	160	100	22	42	SDAT40 x STA1	STA1 - PTER16 - 100	1.69
66.795.20T.090	SDAT40 x STA20T - 90	90	30	28	42	SDAT40 x STA1	STA1 - PTER20 - 30	1.56
66.795.20T.130	SDAT40 x STA20T - 130	130	70	28	42	SDAT40 x STA1	STA1 - PTER20 - 70	1.83
66.795.20T.160	SDAT40 x STA20T - 160	160	100	28	42	SDAT40 x STA1	STA1 - PTER20 - 100	1.99
66.795.25T.120	SDAT40 x STA25T - 120	120	30	35	58	SDAT40 x STA2	STA2 - PTER25 - 30	2.05
66.795.25T.160	SDAT40 x STA25T - 160	160	70	35	58	SDAT40 x STA2	STA2 - PTER25 - 70	2.32
66.795.25T.190	SDAT40 x STA25T - 190	190	100	35	58	SDAT40 x STA2	STA2 - PTER25 - 100	2.48
67.795.08T.090	SDAT50 x STA8T - 90	90	30	12	42	SDAT50 x STA1	STA1 - PTER8 - 30	2.85
67.795.08T.130	SDAT50 x STA8T - 130	130	70	12	42	SDAT50 x STA1	STA1 - PTER8 - 70	2.91
67.795.08T.160	SDAT50 x STA8T - 160	160	100	12	42	SDAT50 x STA1	STA1 - PTER8 - 100	2.96
67.795.11T.090	SDAT50 x STA11T - 90	90	30	16	42	SDAT50 x STA1	STA1 - PTER11 - 30	3.30
67.795.11T.130	SDAT50 x STA11T - 130	130	70	16	42	SDAT50 x STA1	STA1 - PTER11 - 70	3.36
67.795.11T.160	SDAT50 x STA11T - 160	160	100	16	42	SDAT50 x STA1	STA1 - PTER11 - 100	3.40
67.795.16T.090	SDAT50 x STA16T - 90	90	30	22	42	SDAT50 x STA1	STA1 - PTER16 - 30	3.31
67.795.16T.130	SDAT50 x STA16T - 130	130	70	22	42	SDAT50 x STA1	STA1 - PTER16 - 70	3.37
67.795.16T.160	SDAT50 x STA16T - 160	160	100	22	42	SDAT50 x STA1	STA1 - PTER16 - 100	3.41
67.795.20T.090	SDAT50 x STA20T - 90	90	30	28	42	SDAT50 x STA1	STA1 - PTER20 - 30	3.28
67.795.20T.130	SDAT50 x STA20T - 130	130	70	28	42	SDAT50 x STA1	STA1 - PTER20 - 70	3.55
67.795.20T.160	SDAT50 x STA20T - 160	160	100	28	42	SDAT50 x STA1	STA1 - PTER20 - 100	3.71
67.795.25T.110	SDAT50 x STA25T - 110	110	30	35	58	SDAT50 x STA2	STA2 - PTER25 - 30	3.66
67.795.25T.150	SDAT50 x STA25T - 150	150	70	35	58	SDAT50 x STA2	STA2 - PTER25 - 70	3.93
67.795.25T.180	SDAT50 x STA25T - 180	180	100	35	58	SDAT50 x STA2	STA2 - PTER25 - 100	4.09

SDAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SDAT-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5066-796-016-090	SDAT40xSTA16U-90	90	30	30	42	SDAT40 x STA1	STA1 - UT16 - 30	1.16
5066-796-016-130	SDAT40xSTA16U-130	130	70	30	42	SDAT40 x STA1	STA1 - UT16 - 70	1.31
5066-796-016-160	SDAT40xSTA16U-160	160	100	30	42	SDAT40 x STA1	STA1 - UT16 - 100	1.51
5066-796-020-120	SDAT40xSTA20U-120	120	30	35	58	SDAT40 x STA2	STA2 - UT20 - 30	1.80
5066-796-020-160	SDAT40xSTA20U-160	160	70	35	58	SDAT40 x STA2	STA2 - UT20 - 70	2.00
5066-796-020-190	SDAT40xSTA20U-190	190	100	35	58	SDAT40 x STA2	STA2 - UT20 - 100	2.13
5066-796-025-125	SDAT40xSTA25U-125	125	35	42	58	SDAT40 x STA2	STA2 - UT25 - 35	1.80
5066-796-025-175	SDAT40xSTA25U-175	175	85	42	58	SDAT40 x STA2	STA2 - UT25 - 85	2.15
5066-796-025-205	SDAT40xSTA25U-205	205	115	42	58	SDAT40 x STA2	STA2 - UT25 - 115	2.40
5066-796-032-140	SDAT40xSTA32U-140	140	50	48	58	SDAT40 x STA2	STA2 - UT32 - 50	1.85
5066-796-032-175	SDAT40xSTA32U-175	175	85	48	58	SDAT40 x STA2	STA2 - UT32 - 85	2.10
5066-796-032-205	SDAT40xSTA32U-205	205	115	48	58	SDAT40 x STA2	STA2 - UT32 - 115	2.30
5067-796-016-090	SDAT50xSTA16U-90	90	30	30	42	SDAT50 x STA1	STA1 - UT16 - 30	2.88
5067-796-016-130	SDAT50xSTA16U-130	130	70	30	42	SDAT50 x STA1	STA1 - UT16 - 70	3.03
5067-796-016-160	SDAT50xSTA16U-160	160	100	30	42	SDAT50 x STA1	STA1 - UT16 - 100	3.23
5067-796-020-110	SDAT50xSTA20U-110	110	30	35	58	SDAT50 x STA2	STA2 - UT20 - 30	3.41
5067-796-020-150	SDAT50xSTA20U-150	150	70	35	58	SDAT50 x STA2	STA2 - UT20 - 70	3.61
5067-796-020-180	SDAT50xSTA20U-180	180	100	35	58	SDAT50 x STA2	STA2 - UT20 - 100	3.74
5067-796-025-115	SDAT50xSTA25U-115	115	35	42	58	SDAT50 x STA2	STA2 - UT25 - 35	3.41
5067-796-025-165	SDAT50xSTA25U-165	165	85	42	58	SDAT50 x STA2	STA2 - UT25 - 85	3.76
5067-796-025-195	SDAT50xSTA25U-195	195	115	42	58	SDAT50 x STA2	STA2 - UT25 - 115	4.01
5067-796-032-130	SDAT50xSTA32U-130	130	50	48	58	SDAT50 x STA2	STA2 - UT32 - 50	3.46
5067-796-032-165	SDAT50xSTA32U-165	165	85	48	58	SDAT50 x STA2	STA2 - UT32 - 85	3.71
5067-796-032-195	SDAT50xSTA32U-195	195	115	48	58	SDAT50 x STA2	STA2 - UT32 - 115	3.91

SDAT/STA法蘭加厚型同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/SDAT-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5066-S22-011-130	SDAT40xSTA11E-130	130	70	19	42	SDAT40 x STA1	STA1 - ER11A - 70	1.37
5066-S22-016-085	SDAT40xSTA16E-85	85	25	28	42	SDAT40 x STA1	STA1 - ER16A - 25	1.11
5066-S22-016-130	SDAT40xSTA16E-130	130	70	28	42	SDAT40 x STA1	STA1 - ER16A - 70	1.31
5066-S22-016-210	SDAT40xSTA16E-210	210	150	28	42	SDAT40 x STA1	STA1 - ER16A - 150	2.13
5066-S22-020-094	SDAT40xSTA20E-94	94	34	34	42	SDAT40 x STA1	STA1 - ER20A - 34	1.64
5066-S22-020-130	SDAT40xSTA20E-130	130	70	34	42	SDAT40 x STA1	STA1 - ER20A - 70	1.80
5066-S22-032-130	SDAT40xSTA32E-130	130	40	50	58	SDAT40 x STA2	STA2 - ER32 - 40	1.94
5066-S22-032-160	SDAT40xSTA32E-160	160	70	50	58	SDAT40 x STA2	STA2 - ER32 - 70	2.17
5067-S22-011-130	SDAT50xSTA11E-130	130	70	19	42	SDAT50 x STA1	STA1 - ER11A - 70	1.86
5067-S22-016-085	SDAT50xSTA16E-85	85	25	28	42	SDAT50 x STA1	STA1 - ER16A - 25	1.60
5067-S22-016-130	SDAT50xSTA16E-130	130	70	28	42	SDAT50 x STA1	STA1 - ER16A - 70	1.80
5067-S22-016-210	SDAT50xSTA16E-210	210	150	28	42	SDAT50 x STA1	STA1 - ER16A - 150	2.13
5067-S22-020-094	SDAT50xSTA20E-94	94	34	34	42	SDAT50 x STA1	STA1 - ER20A - 34	2.87
5067-S22-020-130	SDAT50xSTA20E-130	130	70	34	42	SDAT50 x STA1	STA1 - ER20A - 70	3.03
5067-S22-032-120	SDAT50xSTA32E-120	120	40	50	58	SDAT50 x STA2	STA2 - ER32 - 40	3.17
5067-S22-032-150	SDAT50xSTA32E-150	150	70	50	58	SDAT50 x STA2	STA2 - ER32 - 70	3.78

HSK-A/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/HSK-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
71.795.08T.100	HSK40A x STA8T - 100	100	30	12	42	HSK40A x STA1	STA1 - PTER8 - 30	1.22
71.795.08T.140	HSK40A x STA8T - 140	140	70	12	42	HSK40A x STA1	STA1 - PTER8 - 70	1.28
71.795.08T.170	HSK40A x STA8T - 170	170	100	12	42	HSK40A x STA1	STA1 - PTER8 - 100	1.33
71.795.11T.100	HSK40A x STA11T - 100	100	30	16	42	HSK40A x STA1	STA1 - PTER11 - 30	1.67
71.795.11T.140	HSK40A x STA11T - 140	140	70	16	42	HSK40A x STA1	STA1 - PTER11 - 70	1.73
71.795.11T.170	HSK40A x STA11T - 170	170	100	16	42	HSK40A x STA1	STA1 - PTER11 - 100	1.77
71.795.16T.100	HSK40A x STA16T - 100	100	30	22	42	HSK40A x STA1	STA1 - PTER16 - 30	1.68
71.795.16T.140	HSK40A x STA16T - 140	140	70	22	42	HSK40A x STA1	STA1 - PTER16 - 70	1.74
71.795.16T.170	HSK40A x STA16T - 170	170	100	22	42	HSK40A x STA1	STA1 - PTER16 - 100	1.78
71.795.20T.100	HSK40A x STA20T - 100	100	30	28	42	HSK40A x STA1	STA1 - PTER20 - 30	1.65
71.795.20T.140	HSK40A x STA20T - 140	140	70	28	42	HSK40A x STA1	STA1 - PTER20 - 70	1.92
71.795.20T.170	HSK40A x STA20T - 170	170	100	28	42	HSK40A x STA1	STA1 - PTER20 - 100	2.08
72.795.08T.100	HSK50A x STA8T - 100	100	30	12	42	HSK50A x STA1	STA1 - PTER8 - 30	1.43
72.795.08T.140	HSK50A x STA8T - 140	140	70	12	42	HSK50A x STA1	STA1 - PTER8 - 70	1.49
72.795.08T.170	HSK50A x STA8T - 170	170	100	12	42	HSK50A x STA1	STA1 - PTER8 - 100	1.54
72.795.11T.100	HSK50A x STA11T - 100	100	30	16	42	HSK50A x STA1	STA1 - PTER11 - 30	1.88
72.795.11T.140	HSK50A x STA11T - 140	140	70	16	42	HSK50A x STA1	STA1 - PTER11 - 70	1.94
72.795.11T.170	HSK50A x STA11T - 170	170	100	16	42	HSK50A x STA1	STA1 - PTER11 - 100	1.98
72.795.16T.100	HSK50A x STA16T - 100	100	30	22	42	HSK50A x STA1	STA1 - PTER16 - 30	1.89
72.795.16T.140	HSK50A x STA16T - 140	140	70	22	42	HSK50A x STA1	STA1 - PTER16 - 70	1.95
72.795.16T.170	HSK50A x STA16T - 170	170	100	22	42	HSK50A x STA1	STA1 - PTER16 - 100	1.99
72.795.20T.100	HSK50A x STA20T - 100	100	30	28	42	HSK50A x STA1	STA1 - PTER20 - 30	1.86
72.795.20T.140	HSK50A x STA20T - 140	140	70	28	42	HSK50A x STA1	STA1 - PTER20 - 70	2.13
72.795.20T.170	HSK50A x STA20T - 170	170	100	28	42	HSK50A x STA1	STA1 - PTER20 - 100	2.29
73.795.08T.110	HSK63A x STA8T - 110	110	30	12	42	HSK63A x STA1	STA1 - PTER8 - 30	1.43
73.795.08T.150	HSK63A x STA8T - 150	150	70	12	42	HSK63A x STA1	STA1 - PTER8 - 70	1.49
73.795.08T.180	HSK63A x STA8T - 180	180	100	12	42	HSK63A x STA1	STA1 - PTER8 - 100	1.54
73.795.11T.110	HSK63A x STA11T - 110	110	30	16	42	HSK63A x STA1	STA1 - PTER11 - 30	1.88
73.795.11T.150	HSK63A x STA11T - 150	150	70	16	42	HSK63A x STA1	STA1 - PTER11 - 70	1.94
73.795.11T.180	HSK63A x STA11T - 180	180	100	16	42	HSK63A x STA1	STA1 - PTER11 - 100	1.98
73.795.16T.110	HSK63A x STA16T - 110	110	30	22	42	HSK63A x STA1	STA1 - PTER16 - 30	1.89
73.795.16T.150	HSK63A x STA16T - 150	150	70	22	42	HSK63A x STA1	STA1 - PTER16 - 70	1.95
73.795.16T.180	HSK63A x STA16T - 180	180	100	22	42	HSK63A x STA1	STA1 - PTER16 - 100	1.99
73.795.20T.110	HSK63A x STA20T - 110	110	30	28	42	HSK63A x STA1	STA1 - PTER20 - 30	1.86
73.795.20T.150	HSK63A x STA20T - 150	150	70	28	42	HSK63A x STA1	STA1 - PTER20 - 70	2.13
73.795.20T.180	HSK63A x STA20T - 180	180	100	28	42	HSK63A x STA1	STA1 - PTER20 - 100	2.29
74.795.08T.110	HSK80A x STA8T - 110	110	30	12	42	HSK80A x STA1	STA1 - PTER8 - 30	2.10
74.795.08T.150	HSK80A x STA8T - 150	150	70	12	42	HSK80A x STA1	STA1 - PTER8 - 70	2.16
74.795.08T.180	HSK80A x STA8T - 180	180	100	12	42	HSK80A x STA1	STA1 - PTER8 - 100	2.21
74.795.11T.110	HSK80A x STA11T - 110	110	30	16	42	HSK80A x STA1	STA1 - PTER11 - 30	2.55
74.795.11T.150	HSK80A x STA11T - 150	150	70	16	42	HSK80A x STA1	STA1 - PTER11 - 70	2.61
74.795.11T.180	HSK80A x STA11T - 180	180	100	16	42	HSK80A x STA1	STA1 - PTER11 - 100	2.65
74.795.16T.110	HSK80A x STA16T - 110	110	30	22	42	HSK80A x STA1	STA1 - PTER16 - 30	2.56
74.795.16T.150	HSK80A x STA16T - 150	150	70	22	42	HSK80A x STA1	STA1 - PTER16 - 70	2.62
74.795.16T.180	HSK80A x STA16T - 180	180	100	22	42	HSK80A x STA1	STA1 - PTER16 - 100	2.66
74.795.20T.110	HSK80A x STA20T - 110	110	30	28	42	HSK80A x STA1	STA1 - PTER20 - 30	2.53
74.795.20T.150	HSK80A x STA20T - 150	150	70	28	42	HSK80A x STA1	STA1 - PTER20 - 70	2.80
74.795.20T.180	HSK80A x STA20T - 180	180	100	28	42	HSK80A x STA1	STA1 - PTER20 - 100	2.96
74.795.25T.125	HSK80A x STA25T - 125	125	30	35	58	HSK80A x STA2	STA2 - PTER25 - 30	3.35
74.795.25T.165	HSK80A x STA25T - 165	165	70	35	58	HSK80A x STA2	STA2 - PTER25 - 70	3.62
74.795.25T.195	HSK80A x STA25T - 195	195	100	35	58	HSK80A x STA2	STA2 - PTER25 - 100	3.78
75.795.08T.110	HSK100A x STA8T - 110	110	30	12	42	HSK100A x STA1	STA1 - PTER8 - 30	2.90
75.795.08T.150	HSK100A x STA8T - 150	150	70	12	42	HSK100A x STA1	STA1 - PTER8 - 70	2.96
75.795.08T.180	HSK100A x STA8T - 180	180	100	12	42	HSK100A x STA1	STA1 - PTER8 - 100	3.01
75.795.11T.110	HSK100A x STA11T - 110	110	30	16	42	HSK100A x STA1	STA1 - PTER11 - 30	3.35
75.795.11T.150	HSK100A x STA11T - 150	150	70	16	42	HSK100A x STA1	STA1 - PTER11 - 70	3.41
75.795.11T.180	HSK100A x STA11T - 180	180	100	16	42	HSK100A x STA1	STA1 - PTER11 - 100	3.45
75.795.16T.110	HSK100A x STA16T - 110	110	30	22	42	HSK100A x STA1	STA1 - PTER16 - 30	3.36
75.795.16T.150	HSK100A x STA16T - 150	150	70	22	42	HSK100A x STA1	STA1 - PTER16 - 70	3.42
75.795.16T.180	HSK100A x STA16T - 180	180	100	22	42	HSK100A x STA1	STA1 - PTER16 - 100	3.46
75.795.20T.110	HSK100A x STA20T - 110	110	30	28	42	HSK100A x STA1	STA1 - PTER20 - 30	3.33
75.795.20T.150	HSK100A x STA20T - 150	150	70	28	42	HSK100A x STA1	STA1 - PTER20 - 70	3.60
75.795.20T.180	HSK100A x STA20T - 180	180	100	28	42	HSK100A x STA1	STA1 - PTER20 - 100	3.76
75.795.25T.125	HSK100A x STA25T - 125	125	30	35	58	HSK100A x STA2	STA2 - PTER25 - 30	4.15
75.795.25T.165	HSK100A x STA25T - 165	165	70	35	58	HSK100A x STA2	STA2 - PTER25 - 70	4.42
75.795.25T.195	HSK100A x STA25T - 195	195	100	35	58	HSK100A x STA2	STA2 - PTER25 - 100	4.58

HSK-A/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/HSK-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5071-796-016-100	HSK40AxSTA16U-100	100	30	30	42	HSK40A x STA1	STA1 - UT16 - 30	1.25
5071-796-016-140	HSK40AxSTA16U-140	140	70	30	42	HSK40A x STA1	STA1 - UT16 - 70	1.40
5071-796-016-170	HSK40AxSTA16U-170	170	100	30	42	HSK40A x STA1	STA1 - UT16 - 100	1.60
5072-796-016-100	HSK50AxSTA16U-100	100	30	30	42	HSK50A x STA1	STA1 - UT16 - 30	1.46
5072-796-016-140	HSK50AxSTA16U-140	140	70	30	42	HSK50A x STA1	STA1 - UT16 - 70	1.61
5072-796-016-170	HSK50AxSTA16U-170	170	100	30	42	HSK50A x STA1	STA1 - UT16 - 100	1.81
5073-796-016-110	HSK63AxSTA16U-110	110	30	30	42	HSK63A x STA1	STA1 - UT16 - 30	1.75
5073-796-016-150	HSK63AxSTA16U-150	150	70	30	42	HSK63A x STA1	STA1 - UT16 - 70	1.90
5073-796-016-180	HSK63AxSTA16U-180	180	100	30	42	HSK63A x STA1	STA1 - UT16 - 100	2.10
5074-796-016-110	HSK80AxSTA16U-110	110	30	30	42	HSK80A x STA1	STA1 - UT16 - 30	2.13
5074-796-016-150	HSK80AxSTA16U-150	150	70	30	42	HSK80A x STA1	STA1 - UT16 - 70	2.28
5074-796-016-180	HSK80AxSTA16U-180	180	100	30	42	HSK80A x STA1	STA1 - UT16 - 100	2.48
5074-796-020-125	HSK80AxSTA20U-125	125	30	35	58	HSK80A x STA2	STA2 - UT20 - 30	3.10
5074-796-020-165	HSK80AxSTA20U-165	165	70	35	58	HSK80A x STA2	STA2 - UT20 - 70	3.30
5074-796-020-195	HSK80AxSTA20U-195	195	100	35	58	HSK80A x STA2	STA2 - UT20 - 100	3.43
5074-796-025-130	HSK80AxSTA25U-130	130	35	42	58	HSK80A x STA2	STA2 - UT25 - 35	3.10
5074-796-025-180	HSK80AxSTA25U-180	180	85	42	58	HSK80A x STA2	STA2 - UT25 - 85	3.45
5074-796-025-210	HSK80AxSTA25U-210	210	115	42	58	HSK80A x STA2	STA2 - UT25 - 115	3.70
5074-796-032-145	HSK80AxSTA32U-145	145	50	48	58	HSK80A x STA2	STA2 - UT32 - 50	3.15
5074-796-032-180	HSK80AxSTA32U-180	180	85	48	58	HSK80A x STA2	STA2 - UT32 - 85	3.40
5074-796-032-210	HSK80AxSTA32U-210	210	115	48	58	HSK80A x STA2	STA2 - UT32 - 115	3.60
5075-796-016-110	HSK100AxSTA16U-110	110	30	30	42	HSK100A x STA1	STA1 - UT16 - 30	2.93
5075-796-016-150	HSK100AxSTA16U-150	150	70	30	42	HSK100A x STA1	STA1 - UT16 - 70	3.08
5075-796-016-180	HSK100AxSTA16U-180	180	100	30	42	HSK100A x STA1	STA1 - UT16 - 100	3.28
5075-796-020-125	HSK100AxSTA20U-125	125	30	35	58	HSK100A x STA2	STA2 - UT20 - 30	3.90
5075-796-020-165	HSK100AxSTA20U-165	165	70	35	58	HSK100A x STA2	STA2 - UT20 - 70	4.10
5075-796-020-195	HSK100AxSTA20U-195	195	100	35	58	HSK100A x STA2	STA2 - UT20 - 100	4.23
5075-796-025-130	HSK100AxSTA25U-130	130	35	42	58	HSK100A x STA2	STA2 - UT25 - 35	3.90
5075-796-025-180	HSK100AxSTA25U-180	180	85	42	58	HSK100A x STA2	STA2 - UT25 - 85	4.25
5075-796-025-210	HSK100AxSTA25U-210	210	115	42	58	HSK100A x STA2	STA2 - UT25 - 115	4.50
5075-796-032-145	HSK100AxSTA32U-145	145	50	48	58	HSK100A x STA2	STA2 - UT32 - 50	3.95
5075-796-032-180	HSK100AxSTA32U-180	180	85	48	58	HSK100A x STA2	STA2 - UT32 - 85	4.20
5075-796-032-210	HSK100AxSTA32U-210	210	115	48	58	HSK100A x STA2	STA2 - UT32 - 115	4.40

HSK-A/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/HSK-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5071-S22-011-140	HSK40AxSTA11E-140	140	70	19	42	HSK40A x STA1	STA1 - ER11A - 70	1.46
5071-S22-016-095	HSK40AxSTA16E-95	95	25	28	42	HSK40A x STA1	STA1 - ER16A - 25	1.20
5071-S22-016-140	HSK40AxSTA16E-140	140	70	28	42	HSK40A x STA1	STA1 - ER16A - 70	1.40
5071-S22-016-220	HSK40AxSTA16E-220	220	150	28	42	HSK40A x STA1	STA1 - ER16A - 150	1.73
5071-S22-020-104	HSK40AxSTA20E-104	104	34	34	42	HSK40A x STA1	STA1 - ER20A - 34	1.24
5071-S22-020-140	HSK40AxSTA20E-140	140	70	34	42	HSK40A x STA1	STA1 - ER20A - 70	1.40
5072-S22-011-140	HSK50AxSTA11E-140	140	70	19	42	HSK50A x STA1	STA1 - ER11A - 70	1.67
5072-S22-016-095	HSK50AxSTA16E-95	95	25	28	42	HSK50A x STA1	STA1 - ER16A - 25	1.41
5072-S22-016-140	HSK50AxSTA16E-140	140	70	28	42	HSK50A x STA1	STA1 - ER16A - 70	1.61
5072-S22-016-220	HSK50AxSTA16E-220	220	150	28	42	HSK50A x STA1	STA1 - ER16A - 150	1.94
5072-S22-020-104	HSK50AxSTA20E-104	104	34	34	42	HSK50A x STA1	STA1 - ER20A - 34	1.45
5072-S22-020-140	HSK50AxSTA20E-140	140	70	34	42	HSK50A x STA1	STA1 - ER20A - 70	1.61
5073-S22-011-150	HSK63AxSTA11E-150	150	70	19	42	HSK63A x STA1	STA1 - ER11A - 70	1.96
5073-S22-016-105	HSK63AxSTA16E-105	105	25	28	42	HSK63A x STA1	STA1 - ER16A - 25	1.70
5073-S22-016-150	HSK63AxSTA16E-150	150	70	28	42	HSK63A x STA1	STA1 - ER16A - 70	1.90
5073-S22-016-230	HSK63AxSTA16E-230	230	150	28	42	HSK63A x STA1	STA1 - ER16A - 150	2.23
5073-S22-020-114	HSK63AxSTA20E-114	114	34	34	42	HSK63A x STA1	STA1 - ER20A - 34	1.74
5073-S22-020-150	HSK63AxSTA20E-150	150	70	34	42	HSK63A x STA1	STA1 - ER20A - 70	1.90
5074-S22-011-150	HSK80AxSTA11E-150	150	70	19	42	HSK80A x STA1	STA1 - ER11A - 70	2.34
5074-S22-016-105	HSK80AxSTA16E-105	105	25	28	42	HSK80A x STA1	STA1 - ER16A - 25	2.08
5074-S22-016-150	HSK80AxSTA16E-150	150	70	28	42	HSK80A x STA1	STA1 - ER16A - 70	2.28
5074-S22-016-230	HSK80AxSTA16E-230	230	150	28	42	HSK80A x STA1	STA1 - ER16A - 150	2.61
5074-S22-020-114	HSK80AxSTA20E-114	114	34	34	42	HSK80A x STA1	STA1 - ER20A - 34	2.12
5074-S22-020-150	HSK80AxSTA20E-150	150	70	34	42	HSK80A x STA1	STA1 - ER20A - 70	2.28
5074-S22-032-135	HSK80AxSTA32E-135	135	40	50	58	HSK80A x STA2	STA2 - ER32 - 40	3.24
5074-S22-032-165	HSK80AxSTA32E-165	165	70	50	58	HSK80A x STA2	STA2 - ER32 - 70	3.47
5075-S22-011-150	HSK100AxSTA11E-150	150	70	19	42	HSK100A x STA1	STA1 - ER11A - 70	3.14
5075-S22-016-105	HSK100AxSTA16E-105	105	25	28	42	HSK100A x STA1	STA1 - ER16A - 25	2.88
5075-S22-016-150	HSK100AxSTA16E-150	150	70	28	42	HSK100A x STA1	STA1 - ER16A - 70	3.08
5075-S22-016-230	HSK100AxSTA16E-230	230	150	28	42	HSK100A x STA1	STA1 - ER16A - 150	3.41
5075-S22-020-114	HSK100AxSTA20E-114	114	34	34	42	HSK100A x STA1	STA1 - ER20A - 34	2.92
5075-S22-020-150	HSK100AxSTA20E-150	150	70	34	42	HSK100A x STA1	STA1 - ER20A - 70	3.08
5075-S22-032-135	HSK100AxSTA32E-135	135	40	50	58	HSK100A x STA2	STA2 - ER32 - 40	4.04
5075-S22-032-165	HSK100AxSTA32E-165	165	70	50	58	HSK100A x STA2	STA2 - ER32 - 70	4.27

PSC/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/PSC-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
142.795.08T.110	PSC50 x STA8T - 110	110	30	12	42	PSC50 x STA1	STA1 - PTER8 - 30	1.55
142.795.08T.150	PSC50 x STA8T - 150	150	70	12	42	PSC50 x STA1	STA1 - PTER8 - 70	1.61
142.795.08T.180	PSC50 x STA8T - 180	180	100	12	42	PSC50 x STA1	STA1 - PTER8 - 100	1.66
142.795.11T.110	PSC50 x STA11T - 110	110	30	16	42	PSC50 x STA1	STA1 - PTER11 - 30	2.00
142.795.11T.150	PSC50 x STA11T - 150	150	70	16	42	PSC50 x STA1	STA1 - PTER11 - 70	2.06
142.795.11T.180	PSC50 x STA11T - 180	180	100	16	42	PSC50 x STA1	STA1 - PTER11 - 100	2.10
142.795.16T.110	PSC50 x STA16T - 110	110	30	22	42	PSC50 x STA1	STA1 - PTER16 - 30	2.01
142.795.16T.150	PSC50 x STA16T - 150	150	70	22	42	PSC50 x STA1	STA1 - PTER16 - 70	2.07
142.795.16T.180	PSC50 x STA16T - 180	180	100	22	42	PSC50 x STA1	STA1 - PTER16 - 100	2.11
142.795.20T.110	PSC50 x STA20T - 110	110	30	28	42	PSC50 x STA1	STA1 - PTER20 - 30	1.98
142.795.20T.150	PSC50 x STA20T - 150	150	70	28	42	PSC50 x STA1	STA1 - PTER20 - 70	2.25
142.795.20T.180	PSC50 x STA20T - 180	180	100	28	42	PSC50 x STA1	STA1 - PTER20 - 100	2.41
143.795.08T.090	PSC63 x STA8T - 90	90	30	12	42	PSC63 x STA1	STA1 - PTER8 - 30	1.67
143.795.08T.130	PSC63 x STA8T - 130	130	70	12	42	PSC63 x STA1	STA1 - PTER8 - 70	1.73
143.795.08T.160	PSC63 x STA8T - 160	160	100	12	42	PSC63 x STA1	STA1 - PTER8 - 100	1.78
143.795.11T.090	PSC63 x STA11T - 90	90	30	16	42	PSC63 x STA1	STA1 - PTER11 - 30	2.12
143.795.11T.130	PSC63 x STA11T - 130	130	70	16	42	PSC63 x STA1	STA1 - PTER11 - 70	2.18
143.795.11T.160	PSC63 x STA11T - 160	160	100	16	42	PSC63 x STA1	STA1 - PTER11 - 100	2.22
143.795.16T.090	PSC63 x STA16T - 90	90	30	22	42	PSC63 x STA1	STA1 - PTER16 - 30	2.13
143.795.16T.130	PSC63 x STA16T - 130	130	70	22	42	PSC63 x STA1	STA1 - PTER16 - 70	2.19
143.795.16T.160	PSC63 x STA16T - 160	160	100	22	42	PSC63 x STA1	STA1 - PTER16 - 100	2.23
143.795.20T.090	PSC63 x STA20T - 90	90	30	28	42	PSC63 x STA1	STA1 - PTER20 - 30	2.10
143.795.20T.130	PSC63 x STA20T - 130	130	70	28	42	PSC63 x STA1	STA1 - PTER20 - 70	2.37
143.795.20T.160	PSC63 x STA20T - 160	160	100	28	42	PSC63 x STA1	STA1 - PTER20 - 100	2.53
143.795.25T.110	PSC63 x STA25T - 110	110	30	35	58	PSC63 x STA2	STA2 - PTER25 - 30	2.76
143.795.25T.150	PSC63 x STA25T - 150	150	70	35	58	PSC63 x STA2	STA2 - PTER25 - 70	3.03
143.795.25T.180	PSC63 x STA25T - 180	180	100	35	58	PSC63 x STA2	STA2 - PTER25 - 100	3.19
144.795.08T.095	PSC80 x STA8T - 95	95	30	12	42	PSC80 x STA1	STA1 - PTER8 - 30	3.09
144.795.08T.135	PSC80 x STA8T - 135	135	70	12	42	PSC80 x STA1	STA1 - PTER8 - 70	3.15
144.795.08T.165	PSC80 x STA8T - 165	165	100	12	42	PSC80 x STA1	STA1 - PTER8 - 100	3.20
144.795.11T.095	PSC80 x STA11T - 95	95	30	16	42	PSC80 x STA1	STA1 - PTER11 - 30	3.54
144.795.11T.135	PSC80 x STA11T - 135	135	70	16	42	PSC80 x STA1	STA1 - PTER11 - 70	3.60
144.795.11T.165	PSC80 x STA11T - 165	165	100	16	42	PSC80 x STA1	STA1 - PTER11 - 100	3.64
144.795.16T.095	PSC80 x STA16T - 95	95	30	22	42	PSC80 x STA1	STA1 - PTER16 - 30	3.55
144.795.16T.135	PSC80 x STA16T - 135	135	70	22	42	PSC80 x STA1	STA1 - PTER16 - 70	3.61
144.795.16T.165	PSC80 x STA16T - 165	165	100	22	42	PSC80 x STA1	STA1 - PTER16 - 100	3.65
144.795.20T.095	PSC80 x STA20T - 95	95	30	28	42	PSC80 x STA1	STA1 - PTER20 - 30	3.52
144.795.20T.135	PSC80 x STA20T - 135	135	70	28	42	PSC80 x STA1	STA1 - PTER20 - 70	3.79
144.795.20T.165	PSC80 x STA20T - 165	165	100	28	42	PSC80 x STA1	STA1 - PTER20 - 100	3.95
144.795.25T.115	PSC80 x STA25T - 115	115	30	35	58	PSC80 x STA2	STA2 - PTER25 - 30	3.66
144.795.25T.155	PSC80 x STA25T - 155	155	70	35	58	PSC80 x STA2	STA2 - PTER25 - 70	3.93
144.795.25T.185	PSC80 x STA25T - 185	185	100	35	58	PSC80 x STA2	STA2 - PTER25 - 100	4.09

PSC/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/PSC-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5142-796-016-110	PSC50xSTA16U-110	110	30	30	42	PSC50 x STA1	STA1 - UT16 - 30	1.58
5142-796-016-150	PSC50xSTA16U-150	150	70	30	42	PSC50 x STA1	STA1 - UT16 - 70	1.73
5142-796-016-180	PSC50xSTA16U-180	180	100	30	42	PSC50 x STA1	STA1 - UT16 - 100	1.93
5143-796-016-090	PSC63xSTA16U-90	90	30	30	42	PSC63 x STA1	STA1 - UT16 - 30	1.70
5143-796-016-130	PSC63xSTA16U-130	130	70	30	42	PSC63 x STA1	STA1 - UT16 - 70	1.85
5143-796-016-160	PSC63xSTA16U-160	160	100	30	42	PSC63 x STA1	STA1 - UT16 - 100	2.05
5143-796-020-110	PSC63xSTA20U-110	110	30	35	58	PSC63 x STA2	STA2 - UT20 - 30	2.51
5143-796-020-150	PSC63xSTA20U-150	150	70	35	58	PSC63 x STA2	STA2 - UT20 - 70	2.71
5143-796-020-180	PSC63xSTA20U-180	180	100	35	58	PSC63 x STA2	STA2 - UT20 - 100	2.84
5143-796-025-115	PSC63xSTA25U-115	115	35	42	58	PSC63 x STA2	STA2 - UT25 - 35	2.51
5143-796-025-165	PSC63xSTA25U-165	165	85	42	58	PSC63 x STA2	STA2 - UT25 - 85	2.86
5143-796-025-195	PSC63xSTA25U-195	195	115	42	58	PSC63 x STA2	STA2 - UT25 - 115	3.11
5143-796-032-130	PSC63xSTA32U-130	130	50	48	58	PSC63 x STA2	STA2 - UT32 - 50	2.56
5143-796-032-165	PSC63xSTA32U-165	165	85	48	58	PSC63 x STA2	STA2 - UT32 - 85	2.81
5143-796-032-195	PSC63xSTA32U-195	195	115	48	58	PSC63 x STA2	STA2 - UT32 - 115	3.01
5144-796-016-095	PSC80xSTA16U-95	95	30	30	42	PSC80 x STA1	STA1 - UT16 - 30	3.12
5144-796-016-135	PSC80xSTA16U-135	135	70	30	42	PSC80 x STA1	STA1 - UT16 - 70	3.27
5144-796-016-165	PSC80xSTA16U-165	165	100	30	42	PSC80 x STA1	STA1 - UT16 - 100	3.47
5144-796-020-115	PSC80xSTA20U-115	115	30	35	58	PSC80 x STA2	STA2 - UT20 - 30	3.41
5144-796-020-155	PSC80xSTA20U-155	155	70	35	58	PSC80 x STA2	STA2 - UT20 - 70	3.61
5144-796-020-185	PSC80xSTA20U-185	185	100	35	58	PSC80 x STA2	STA2 - UT20 - 100	3.74
5144-796-025-120	PSC80xSTA25U-120	120	35	42	58	PSC80 x STA2	STA2 - UT25 - 35	3.41
5144-796-025-170	PSC80xSTA25U-170	170	85	42	58	PSC80 x STA2	STA2 - UT25 - 85	3.76
5144-796-025-200	PSC80xSTA25U-200	200	115	42	58	PSC80 x STA2	STA2 - UT25 - 115	4.01
5144-796-032-135	PSC80xSTA32U-135	135	50	48	58	PSC80 x STA2	STA2 - UT32 - 50	3.46
5144-796-032-170	PSC80xSTA32U-170	170	85	48	58	PSC80 x STA2	STA2 - UT32 - 85	3.71
5144-796-032-200	PSC80xSTA32U-200	200	115	48	58	PSC80 x STA2	STA2 - UT32 - 115	3.91

PSC/STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/PSC-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5142-S22-011-150	PSC50xSTA11E-150	150	70	19	42	PSC50 x STA1	STA1 - ER11A - 70	1.79
5142-S22-016-105	PSC50xSTA16E-105	105	25	28	42	PSC50 x STA1	STA1 - ER16A - 25	1.53
5142-S22-016-150	PSC50xSTA16E-150	150	70	28	42	PSC50 x STA1	STA1 - ER16A - 70	1.73
5142-S22-016-230	PSC50xSTA16E-230	230	150	28	42	PSC50 x STA1	STA1 - ER16A - 150	2.06
5142-S22-020-114	PSC50xSTA20E-114	114	34	34	42	PSC50 x STA1	STA1 - ER20A - 34	1.57
5142-S22-020-150	PSC50xSTA20E-150	150	70	34	42	PSC50 x STA1	STA1 - ER20A - 70	1.73
5143-S22-011-130	PSC63xSTA11E-130	130	70	19	42	PSC63 x STA1	STA1 - ER11A - 70	1.91
5143-S22-016-085	PSC63xSTA16E-85	85	25	28	42	PSC63 x STA1	STA1 - ER16A - 25	1.65
5143-S22-016-130	PSC63xSTA16E-130	130	70	28	42	PSC63 x STA1	STA1 - ER16A - 70	1.85
5143-S22-016-210	PSC63xSTA16E-210	210	150	28	42	PSC63 x STA1	STA1 - ER16A - 150	2.18
5143-S22-020-094	PSC63xSTA20E-94	94	34	34	42	PSC63 x STA1	STA1 - ER20A - 34	1.69
5143-S22-020-130	PSC63xSTA20E-130	130	70	34	42	PSC63 x STA1	STA1 - ER20A - 70	1.85
5143-S22-032-120	PSC63xSTA32E-120	120	40	50	58	PSC63 x STA2	STA2 - ER32 - 40	2.65
5143-S22-032-150	PSC63xSTA32E-150	150	70	50	58	PSC63 x STA2	STA2 - ER32 - 70	2.88
5144-S22-011-135	PSC80xSTA11E-135	135	70	19	42	PSC80 x STA1	STA1 - ER11A - 70	3.33
5144-S22-016-090	PSC80xSTA16E-90	90	25	28	42	PSC80 x STA1	STA1 - ER16A - 25	3.07
5144-S22-016-135	PSC80xSTA16E-135	135	70	28	42	PSC80 x STA1	STA1 - ER16A - 70	3.27
5144-S22-016-215	PSC80xSTA16E-215	215	150	28	42	PSC80 x STA1	STA1 - ER16A - 150	3.60
5144-S22-020-099	PSC80xSTA20E-99	99	34	34	42	PSC80 x STA1	STA1 - ER20A - 34	3.11
5144-S22-020-135	PSC80xSTA20E-135	135	70	34	42	PSC80 x STA1	STA1 - ER20A - 70	3.27
5144-S22-032-125	PSC80xSTA32E-125	125	40	50	58	PSC80 x STA2	STA2 - ER32 - 40	3.55
5144-S22-032-155	PSC80xSTA32E-155	155	70	50	58	PSC80 x STA2	STA2 - ER32 - 70	3.78

直柄STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/C-STA(PTER)_figure.jpg

MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
C20.795.08T.075	C20xSTA8T-75	75	30	55	20	12	42	C20 x STA1	STA1 - PTER8 - 30	0.50
C20.795.08T.115	C20xSTA8T-115	115	70	55	20	12	42	C20 x STA1	STA1 - PTER8 - 70	0.56
C20.795.08T.145	C20xSTA8T-145	145	100	55	20	12	42	C20 x STA1	STA1 - PTER8 - 100	0.61
C20.795.011T.075	C20xSTA11T-75	75	30	55	20	16	42	C20 x STA1	STA1 - PTER11 - 30	0.95
C20.795.011T.115	C20xSTA11T-115	115	70	55	20	16	42	C20 x STA1	STA1 - PTER11 - 70	1.01
C20.795.011T.145	C20xSTA11T-145	145	100	55	20	16	42	C20 x STA1	STA1 - PTER11 - 100	1.05
C20.795.016T.075	C20xSTA16T-75	75	30	55	20	22	42	C20 x STA1	STA1 - PTER16 - 30	0.96
C20.795.016T.115	C20xSTA16T-115	115	70	55	20	22	42	C20 x STA1	STA1 - PTER16 - 70	1.02
C20.795.016T.145	C20xSTA16T-145	145	100	55	20	22	42	C20 x STA1	STA1 - PTER16 - 100	1.06
C20.795.020T.075	C20xSTA20T-75	75	30	55	20	28	42	C20 x STA1	STA1 - PTER20 - 30	0.93
C20.795.020T.115	C20xSTA20T-115	115	70	55	20	28	42	C20 x STA1	STA1 - PTER20 - 70	1.20
C20.795.020T.145	C20xSTA20T-145	145	100	55	20	28	42	C20 x STA1	STA1 - PTER20 - 100	1.36
C25.795.08T.070	C25xSTA8T-70	70	30	60	25	12	42	C25 x STA1	STA1 - PTER8 - 30	0.54
C25.795.08T.110	C25xSTA8T-110	110	70	60	25	12	42	C25 x STA1	STA1 - PTER8 - 70	0.58
C25.795.08T.140	C25xSTA8T-140	140	100	60	25	12	42	C25 x STA1	STA1 - PTER8 - 100	0.63
C25.795.011T.070	C25xSTA11T-70	70	30	60	25	16	42	C25 x STA1	STA1 - PTER11 - 30	0.99
C25.795.011T.110	C25xSTA11T-110	110	70	60	25	16	42	C25 x STA1	STA1 - PTER11 - 70	1.04
C25.795.011T.140	C25xSTA11T-140	140	100	60	25	16	42	C25 x STA1	STA1 - PTER11 - 100	1.08
C25.795.016T.070	C25xSTA16T-70	70	30	60	25	22	42	C25 x STA1	STA1 - PTER16 - 30	1.00
C25.795.016T.110	C25xSTA16T-110	110	70	60	25	22	42	C25 x STA1	STA1 - PTER16 - 70	1.06
C25.795.016T.140	C25xSTA16T-140	140	100	60	25	22	42	C25 x STA1	STA1 - PTER16 - 100	1.10
C25.795.020T.070	C25xSTA20T-70	70	30	60	25	28	42	C25 x STA1	STA1 - PTER20 - 30	0.97
C25.795.020T.110	C25xSTA20T-110	110	70	60	25	28	42	C25 x STA1	STA1 - PTER20 - 70	1.24
C25.795.020T.140	C25xSTA20T-140	140	100	60	25	28	42	C25 x STA1	STA1 - PTER20 - 100	1.40
C32.795.08T.065	C32xSTA8T-65	65	30	65	32	12	42	C32 x STA1	STA1 - PTER8 - 30	0.65
C32.795.08T.105	C32xSTA8T-105	105	70	65	32	12	42	C32 x STA1	STA1 - PTER8 - 70	0.71
C32.795.08T.135	C32xSTA8T-135	135	100	65	32	12	42	C32 x STA1	STA1 - PTER8 - 100	0.76
C32.795.11T.065	C32xSTA11T-65	65	30	65	32	16	42	C32 x STA1	STA1 - PTER11 - 30	1.10
C32.795.11T.105	C32xSTA11T-105	105	70	65	32	16	42	C32 x STA1	STA1 - PTER11 - 70	1.16
C32.795.11T.135	C32xSTA11T-135	135	100	65	32	16	42	C32 x STA1	STA1 - PTER11 - 100	1.20
C32.795.16T.065	C32xSTA16T-65	65	30	65	32	22	42	C32 x STA1	STA1 - PTER16 - 30	1.11
C32.795.16T.105	C32xSTA16T-105	105	70	65	32	22	42	C32 x STA1	STA1 - PTER16 - 70	1.17
C32.795.16T.135	C32xSTA16T-135	135	100	65	32	22	42	C32 x STA1	STA1 - PTER16 - 100	1.21
C32.795.20T.065	C32xSTA20T-65	65	30	65	32	28	42	C32 x STA1	STA1 - PTER20 - 30	1.08
C32.795.20T.105	C32xSTA20T-105	105	70	65	32	28	42	C32 x STA1	STA1 - PTER20 - 70	1.35
C32.795.20T.135	C32xSTA20T-135	135	100	65	32	28	42	C32 x STA1	STA1 - PTER20 - 100	1.51
C32.795.25T.090	C32xSTA25T-90	90	30	65	32	35	58	C32 x STA2	STA2 - PTER25 - 30	1.40
C32.795.25T.130	C32xSTA25T-130	130	70	65	32	35	58	C32 x STA2	STA2 - PTER25 - 70	1.72
C32.795.25T.160	C32xSTA25T-160	160	100	65	32	35	58	C32 x STA2	STA2 - PTER25 - 100	1.88
C40.795.08T.065	C40xSTA8T-65	65	30	75	40	12	42	C40 x STA1	STA1 - PTER8 - 30	0.97
C40.795.08T.105	C40xSTA8T-105	105	70	75	40	12	42	C40 x STA1	STA1 - PTER8 - 70	1.47
C40.795.08T.135	C40xSTA8T-135	135	100	75	40	12	42	C40 x STA1	STA1 - PTER8 - 100	1.52
C40.795.11T.065	C40xSTA11T-65	65	30	75	40	16	42	C40 x STA1	STA1 - PTER11 - 30	1.42
C40.795.11T.105	C40xSTA11T-105	105	70	75	40	16	42	C40 x STA1	STA1 - PTER11 - 70	1.48
C40.795.11T.135	C40xSTA11T-135	135	100	75	40	16	42	C40 x STA1	STA1 - PTER11 - 100	1.53
C40.795.16T.065	C40xSTA16T-65	65	30	75	40	22	42	C40 x STA1	STA1 - PTER16 - 30	1.43
C40.795.16T.105	C40xSTA16T-105	105	70	75	40	22	42	C40 x STA1	STA1 - PTER16 - 70	1.49
C40.795.16T.135	C40xSTA16T-135	135	100	75	40	22	42	C40 x STA1	STA1 - PTER16 - 100	1.53
C40.795.20T.065	C40xSTA20T-65	65	30	75	40	28	42	C40 x STA1	STA1 - PTER20 - 30	1.40
C40.795.20T.105	C40xSTA20T-105	105	70	75	40	28	42	C40 x STA1	STA1 - PTER20 - 70	1.67
C40.795.20T.135	C40xSTA20T-135	135	100	75	40	28	42	C40 x STA1	STA1 - PTER20 - 100	1.83
C40.795.25T.085	C40xSTA25T-85	85	30	75	40	35	58	C40 x STA2	STA2 - PTER25 - 30	1.75
C40.795.25T.125	C40xSTA25T-125	125	70	75	40	35	58	C40 x STA2	STA2 - PTER25 - 70	2.02
C40.795.25T.155	C40xSTA25T-155	155	100	75	40	35	58	C40 x STA2	STA2 - PTER25 - 100	2.18

直柄STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/C-STA(UT)_figure.jpg

MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5271-796-02016-075	C20xSTA16U-75	75	30	55	20	30	42	C20 x STA1	STA1 - UT16 - 30	0.53
5271-796-02016-115	C20xSTA16U-115	115	70	55	20	30	42	C20 x STA1	STA1 - UT16 - 70	0.68
5271-796-02016-145	C20xSTA16U-145	145	100	55	20	30	42	C20 x STA1	STA1 - UT16 - 100	0.88
5271-796-02516-070	C25xSTA16U-70	70	30	60	25	30	42	C25 x STA1	STA1 - UT16 - 30	0.57
5271-796-02516-110	C25xSTA16U-110	110	70	60	25	30	42	C25 x STA1	STA1 - UT16 - 70	0.72
5271-796-02516-140	C25xSTA16U-140	140	100	60	25	30	42	C25 x STA1	STA1 - UT16 - 100	0.92
5271-796-03216-065	C32xSTA16U-65	65	30	65	32	30	42	C32 x STA1	STA1 - UT16 - 30	0.68
5271-796-03216-105	C32xSTA16U-105	105	70	65	32	30	42	C32 x STA1	STA1 - UT16 - 70	0.83
5271-796-03216-135	C32xSTA16U-135	135	100	65	32	30	42	C32 x STA1	STA1 - UT16 - 100	1.03
5271-796-03220-090	C32xSTA20U-90	90	30	65	32	35	58	C32 x STA2	STA2 - UT20 - 30	1.20
5271-796-03220-130	C32xSTA20U-130	130	70	65	32	35	58	C32 x STA2	STA2 - UT20 - 70	1.40
5271-796-03220-160	C32xSTA20U-160	160	100	65	32	35	58	C32 x STA2	STA2 - UT20 - 100	1.53
5271-796-03225-095	C32xSTA25U-95	95	35	65	32	42	58	C32 x STA2	STA2 - UT25 - 35	1.20
5271-796-03225-145	C32xSTA25U-145	145	85	65	32	42	58	C32 x STA2	STA2 - UT25 - 85	1.55
5271-796-03225-175	C32xSTA25U-175	175	115	65	32	42	58	C32 x STA2	STA2 - UT25 - 115	1.80
5271-796-03232-110	C32xSTA32U-110	110	50	65	32	48	58	C32 x STA2	STA2 - UT32 - 50	1.25
5271-796-03232-145	C32xSTA32U-145	145	85	65	32	48	58	C32 x STA2	STA2 - UT32 - 85	1.50
5271-796-03232-175	C32xSTA32U-175	175	115	65	32	48	58	C32 x STA2	STA2 - UT32 - 115	1.70
5271-796-04016-065	C40xSTA16U-65	65	30	75	40	30	42	C40 x STA1	STA1 - UT16 - 30	1.00
5271-796-04016-105	C40xSTA16U-105	105	70	75	40	30	42	C40 x STA1	STA1 - UT16 - 70	1.15
5271-796-04016-135	C40xSTA16U-135	135	100	75	40	30	42	C40 x STA1	STA1 - UT16 - 100	1.35
5271-796-04020-085	C40xSTA20U-85	85	30	75	40	35	58	C40 x STA2	STA2 - UT20 - 30	1.50
5271-796-04020-125	C40xSTA20U-125	125	70	75	40	35	58	C40 x STA2	STA2 - UT20 - 70	1.70
5271-796-04020-155	C40xSTA20U-155	155	100	75	40	35	58	C40 x STA2	STA2 - UT20 - 100	1.83
5271-796-04025-090	C40xSTA25U-90	90	35	75	40	42	58	C40 x STA2	STA2 - UT25 - 35	1.50
5271-796-04025-140	C40xSTA25U-140	140	85	75	40	42	58	C40 x STA2	STA2 - UT25 - 85	1.85
5271-796-04025-170	C40xSTA25U-170	170	115	75	40	42	58	C40 x STA2	STA2 - UT25 - 115	2.10
5271-796-04032-105	C40xSTA32U-105	105	50	75	40	48	58	C40 x STA2	STA2 - UT32 - 50	1.55
5271-796-04032-140	C40xSTA32U-140	140	85	75	40	48	58	C40 x STA2	STA2 - UT32 - 85	1.80
5271-796-04032-170	C40xSTA32U-170	170	115	75	40	48	58	C40 x STA2	STA2 - UT32 - 115	2.00

直柄STA同步補償攻牙刀桿

proimages/Products/Tool_holders/Tapping_chuck/STA/C-STA(ER)_figure.jpg

MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	COMBINATION		WEIGHT (KGS)
MODEL NO.	TYPE	l1	l2	l3	C	d1	d2	BODY	TAP ADAPTER	WEIGHT (KGS)
5271-S22-02011-115	C20xSTA11E-115	115	70	55	20	19	42	C20 x STA1	STA1 - ER11A - 70	0.74
5271-S22-02016-070	C20xSTA16E-70	70	25	55	20	28	42	C20 x STA1	STA1 - ER16A - 25	0.48
5271-S22-02016-115	C20xSTA16E-115	115	70	55	20	28	42	C20 x STA1	STA1 - ER16A - 70	0.68
5271-S22-02016-195	C20xSTA16E-195	195	150	55	20	28	42	C20 x STA1	STA1 - ER16A - 150	1.01
5271-S22-02020-079	C20xSTA20E-079	79	34	55	20	34	42	C20 x STA1	STA1 - ER20A - 34	0.52
5271-S22-02020-115	C20xSTA20E-115	115	70	55	20	34	42	C20 x STA1	STA1 - ER20A - 70	0.68
5271-S22-02511-110	C25xSTA11E-110	110	70	60	25	19	42	C25 x STA1	STA1 - ER11A - 70	0.78
5271-S22-02516-065	C25xSTA16E-65	65	25	60	25	28	42	C25 x STA1	STA1 - ER16A - 25	0.52
5271-S22-02516-110	C25xSTA16E-110	110	70	60	25	28	42	C25 x STA1	STA1 - ER16A - 70	0.72
5271-S22-02516-190	C25xSTA16E-190	190	150	60	25	28	42	C25 x STA1	STA1 - ER16A - 150	1.05
5271-S22-02520-074	C25xSTA20E-74	74	34	60	25	34	42	C25 x STA1	STA1 - ER20A - 34	0.52
5271-S22-02520-110	C25xSTA20E-110	110	70	60	25	34	42	C25 x STA1	STA1 - ER20A - 70	0.72
5271-S22-03211-105	C32xSTA11E-105	105	70	65	32	19	42	C32 x STA1	STA1 - ER11A - 70	0.89
5271-S22-03216-060	C32xSTA16E-60	60	25	65	32	28	42	C32 x STA1	STA1 - ER16A - 25	0.63
5271-S22-03216-105	C32xSTA16E-105	105	70	65	32	28	42	C32 x STA1	STA1 - ER16A - 70	0.83
5271-S22-03216-185	C32xSTA16E-185	185	150	65	32	28	42	C32 x STA1	STA1 - ER16A - 150	1.16
5271-S22-03220-069	C32xSTA20E-69	69	34	65	32	34	42	C32 x STA1	STA1 - ER20A - 34	0.67
5271-S22-03220-105	C32xSTA20E-105	105	70	65	32	34	42	C32 x STA1	STA1 - ER20A - 70	0.83
5271-S22-03232-100	C32xSTA32E-100	100	40	65	32	50	58	C32 x STA2	STA2 - ER32 - 40	1.34
5271-S22-03232-130	C32xSTA32E-130	130	70	65	32	50	58	C32 x STA2	STA2 - ER32 - 70	1.57
5271-S22-04011-105	C40xSTA11E-105	105	70	75	40	19	42	C40 x STA1	STA1 - ER11A - 70	1.21
5271-S22-04016-060	C40xSTA16E-60	60	25	75	40	28	42	C40 x STA1	STA1 - ER16A - 25	0.95
5271-S22-04016-105	C40xSTA16E-105	105	70	75	40	28	42	C40 x STA1	STA1 - ER16A - 70	1.15
5271-S22-04016-185	C40xSTA16E-185	185	150	75	40	28	42	C40 x STA1	STA1 - ER16A - 150	1.48
5271-S22-04020-069	C40xSTA20E-69	69	34	75	40	34	42	C40 x STA1	STA1 - ER20A - 34	0.99
5271-S22-04020-105	C40xSTA20E-105	105	70	75	40	34	42	C40 x STA1	STA1 - ER20A - 70	1.15
5271-S22-04032-095	C40xSTA32E-95	95	40	75	40	50	58	C40 x STA2	STA2 - ER32 - 40	1.64
5271-S22-04032-125	C40xSTA32E-125	125	70	75	40	50	58	C40 x STA2	STA2 - ER32 - 70	1.87

STA同步補償攻牙刀桿本體

proimages/Products/Tool_holders/Tapping_chuck/STA/STA_BODY_figure.jpg

MODEL NO.	TYPE	l1	d1	STA NO.	WEIGHT (KGS)
5010-795-001-060	BT30xSTA1-60	60	42	1	0.56
5011-795-001-070	BT40xSTA1-70	70	42	1	1.18
5011-795-002-085	BT40xSTA2-85	85	58	2	1.48
5012-795-001-080	BT50xSTA1-80	80	42	1	3.68
5012-795-002-095	BT50xSTA2-95	95	58	2	3.98
5031-795-001-070	CAT40xSTA1-70	70	42	1	1.12
5031-795-002-090	CAT40xSTA2-90	90	58	2	1.45
5032-795-001-070	CAT50xSTA1-70	70	42	1	3.12
5032-795-002-095	CAT50xSTA2-95	95	58	2	3.53
5051-795-001-060	DAT40xSTA1-60	60	42	1	1.01
5051-795-002-090	DAT40xSTA2-90	90	58	2	1.50
5052-795-001-060	DAT50xSTA1-60	60	42	1	2.73
5052-795-002-080	DAT50xSTA2-80	80	58	2	3.11
5071-795-001-070	HSK40AxSTA1-70	70	42	1	1.10
5072-795-001-070	HSK50AxSTA1-70	70	42	1	1.31
5073-795-001-080	HSK63AxSTA1-80	80	42	1	1.60
5074-795-001-080	HSK80AxSTA1-80	80	42	1	1.98
5074-795-002-095	HSK80AxSTA2-95	95	58	2	2.80
5075-795-001-080	HSK100AxSTA1-80	80	42	1	2.78
5075-795-002-095	HSK100AxSTA2-95	95	58	2	3.60
5142-795-001-080	PSC50xSTA1-80	80	42	1	1.43
5143-795-001-060	PSC63xSTA1-60	60	42	1	1.55
5143-795-002-080	PSC63xSTA2-80	80	58	2	2.21
5144-795-001-065	PSC80xSTA1-65	65	42	1	2.97
5144-795-002-085	PSC80xSTA2-85	85	58	2	3.11
5025-795-001-060	SBT30xSTA1-60	60	42	1	0.56
5026-795-001-070	SBT40xSTA1-70	70	42	1	1.18
5026-795-002-085	SBT40xSTA2-85	85	58	2	1.48
5027-795-001-080	SBT50xSTA1-80	80	42	1	3.68
5027-795-002-095	SBT50xSTA2-95	95	58	2	3.98
5043-795-001-070	SCAT40xSTA1-70	70	42	1	1.12
5043-795-002-090	SCAT40xSTA2-90	90	58	2	1.45
5044-795-001-070	SCAT50xSTA1-70	70	42	1	3.12
5044-795-002-095	SCAT50xSTA2-95	95	58	2	3.53
5066-795-001-060	SDAT40xSTA1-60	60	42	1	1.01
5066-795-002-090	SDAT40xSTA2-90	90	58	2	1.50
5067-795-001-060	SDAT50xSTA1-60	60	42	1	2.73
5067-795-002-080	SDAT50xSTA2-80	80	58	2	3.11

直柄STA同步補償攻牙刀桿本體

proimages/Products/Tool_holders/Tapping_chuck/STA/C-STA_BODY_figure.jpg

MODEL NO.	TYPE	L	C	D	STA NO.	WEIGHT (KGS)
5271-795-02001-055	C20xSTA1-55	55	20	42	1	0.38
5271-795-02501-060	C25xSTA1-60	60	25	42	1	0.42
5271-795-03201-065	C32xSTA1-65	65	32	42	1	0.52
5271-795-03202-065	C32xSTA2-65	65	32	58	2	0.90
5271-795-04001-075	C40xSTA1-75	75	40	42	1	0.82
5271-795-04002-075	C40xSTA2-75	75	40	58	2	1.13

STA同步補償攻牙刀桿心軸

proimages/Products/Tool_holders/Tapping_chuck/STA/TAP_ADAPTER_(PTER)_figure.jpg

MODEL NO.	TYPE	L	d1	d2	CAPACITY	WEIGHT (KGS)
795.528.08.030	STA1 - PTER8 - 30	30	12	12	M3 ~ M5	0.12
795.528.08.070	STA1 - PTER8 - 70	70	12	12	M3 ~ M5	0.18
795.528.08.100	STA1 - PTER8 - 100	100	12	12	M3 ~ M5	0.23
795.528.11.030	STA1 - PTER11 - 30	30	16	16	M3 ~ M6	0.57
795.528.11.070	STA1 - PTER11 - 70	70	16	16	M3 ~ M6	0.63
795.528.11.100	STA1 - PTER11 - 100	100	16	16	M3 ~ M6	0.67
795.528.16.030	STA1 - PTER16 - 30	30	22	22	M3 ~ M12	0.58
795.528.16.070	STA1 - PTER16 - 70	70	22	22	M3 ~ M12	0.64
795.528.16.100	STA1 - PTER16 - 100	100	22	22	M3 ~ M12	0.68
795.528.20.030	STA1 - PTER20 - 30	30	28	28	M3 ~ M16	0.55
795.528.20.070	STA1 - PTER20 - 70	70	28	28	M3 ~ M16	0.82
795.528.20.100	STA1 - PTER20 - 100	100	28	28	M3 ~ M16	0.98
795.528.25.030	STA2 - PTER25 - 30	30	35	35	M6 ~ M18	0.55
795.528.25.070	STA2 - PTER25 - 70	70	35	35	M6 ~ M18	0.82
795.528.25.100	STA2 - PTER25 - 100	100	35	35	M6 ~ M18	0.98

STA同步補償攻牙刀桿心軸

proimages/Products/Tool_holders/Tapping_chuck/STA/TAP_ADAPTER_(UT)_figure.jpg

MODEL NO.	TYPE	L	d1	d2	CAPACITY	WEIGHT (KGS)
5296-23-016-03-05	STA1-UT16-30	30	30	30	M3 ~ M12	0.15
5296-23-016-03-06	STA1-UT16-70	70	30	30	M3 ~ M12	0.30
5296-23-016-03-07	STA1-UT16-100	100	30	30	M3 ~ M12	0.50
5296-23-020-03-05	STA2-UT20-30	30	35	-	M3 ~ M16	0.30
5296-23-020-03-06	STA2-UT20-70	70	35	36	M3 ~ M16	0.50
5296-23-020-03-07	STA2-UT20-100	100	35	36	M3 ~ M16	0.63
5296-23-025-03-03	STA2-UT25-35	35	42	42	M6 ~ M18	0.30
5296-23-025-03-04	STA2-UT25-85	85	42	42	M6 ~ M18	0.65
5296-23-025-03-05	STA2-UT25-115	115	42	42	M6 ~ M18	0.90
5296-23-032-03-01	STA2-UT32-50	50	48	48	M10 ~ M24	0.35
5296-23-032-03-02	STA2-UT32-85	85	48	48	M10 ~ M24	0.60
5296-23-032-03-03	STA2-UT32-115	115	48	48	M10 ~ M24	0.80

STA同步補償攻牙刀桿心軸

proimages/Products/Tool_holders/Tapping_chuck/STA/TAP_ADAPTER_(ER)_figure.jpg

MODEL NO.	TYPE	L	d1	d2	CAPACITY	WEIGHT (KGS)
5296-23-011-03-03	STA1-ER11A-70	70	19	19	M3 ~ M6	0.36
5296-23-016-03-01	STA1-ER16A-25	25	28	20	M3 ~ M12	0.10
5296-23-016-03-02	STA1-ER16A-70	70	28	22	M3 ~ M12	0.30
5296-23-016-03-08	STA1-ER16A-150	150	28	28	M3 ~ M12	0.63
5296-23-020-03-01	STA1-ER20A-34	34	34	25	M3 ~ M16	0.14
5296-23-020-03-02	STA1-ER20A-70	70	34	25	M3 ~ M16	0.30
5296-23-032-03-00	STA2-ER32-40	40	50	40	M10 ~ M24	0.44
5296-23-032-03-04	STA2-ER32-70	70	50	40	M10 ~ M24	0.67

series

proimages/Products/Tool_holders/Tapping_chuck/STA/STA-技術資訊.jpg

series

STA同步補償攻牙刀桿攻牙性能測試

STA同步補償攻牙器

STA同步補償攻牙刀桿

產品描述
