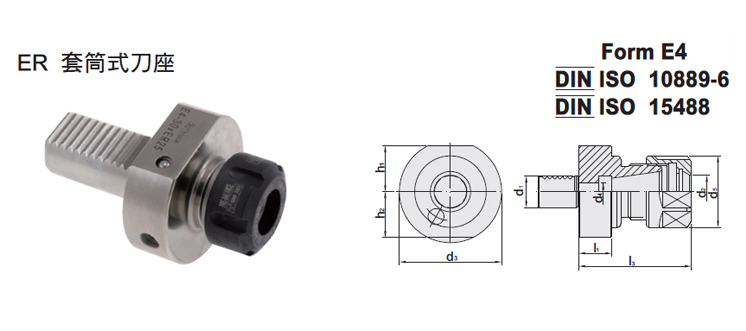

Product Name : Collet Chuck Holder For ER Collets
Product Introduction
  • It can match with ER Collets (DIN-15488 standard) and can clamp all kinds of straight shank tools.
  • Rigidity can be raised by using ER Power Good Clamping Nut.
  • Matching with Wind Resistance Nut can raise clamping power, stability and precision.



MODEL NO.TYPEd1d2 ERd3d4 mind5h1h2l1l3
150.E4.30.25 30 x ER25 - 25 68 16.5 42 28 30 22 57
150.E4.30.32 30 x ER32 - 32 68 16.5 50 28 30 22 62
150.E4.30.40 30 x ER40 - 40 68 16.5 63 28 30 22 70
150.E4.40.25 40 x ER25 40 25 83 20.5 42 32.5 - 22 57
150.E4.40.32 40 x ER32 40 32 83 20.5 50 32.5 - 22 62
150.E4.40.40 40 x ER40 40 40 83 20.5 63 32.5 - 22 75
150.E4.50.40 50 x ER40 - 40 98 20.5 63 35 - 30 75
