SK3高速機專用夾頭

規格表

series

CAT/SK3高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/CAT-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5031-763-006-089	CAT40xSK306-3.5"	6.187	3.5	1.438	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	1.05
5031-763-006-102	CAT40xSK306-4"	6.687	4	1.938	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	1.65
5031-763-010-089	CAT40xSK310-3.5"	6.187	3.5	1.627	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	1.05
5031-763-010-102	CAT40xSK310-4"	6.687	4	2.127	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	1.65
5031-763-013-089	CAT40xSK313-3.5"	6.187	3.5	2.004	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.05
5031-763-013-102	CAT40xSK313-4"	6.687	4	2.504	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.65
5031-763-016-089	CAT40xSK316-3.5"	6.187	3.5	2.034	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	1.35
5031-763-016-102	CAT40xSK316-4"	6.687	4	2.534	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	2.1
5031-763-020-090	CAT40xSK320-3.5"	6.187	3.5	2.04	1.89	1.91	M22x1.5P	0.125 ~ 0.75	1.6
5031-763-020-102	CAT40xSK320-4"	6.687	4	2.54	1.89	1.91	M22x1.5P	0.125 ~ 0.75	2
5031-763-025-090	CAT40xSK325-3.5"	6.187	3.5	2.12	2.17	2.17	M28x2.0P	0.125 ~ 1	1.7
5031-763-025-102	CAT40xSK325-4"	6.687	4	2.62	2.17	2.17	M28x2.0P	0.125 ~ 1	1.8
5032-763-006-089	CAT50xSK306-3.5"	7.5	3.5	1.728	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	3.6
5032-763-006-102	CAT50xSK306-4"	8	4	2.228	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	4
5032-763-010-102	CAT50xSK310-4"	8	4	2.562	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	3.8
5032-763-010-114	CAT50xSK310-4.5"	8.5	4.5	2.115	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	4
5032-763-013-102	CAT50xSK313-4"	8	4	2.425	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	3.8
5032-763-013-114	CAT50xSK313-4.5"	8.5	4.5	2.925	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	4
5032-763-016-102	CAT50xSK316-4"	8	4	1.871	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	4
5032-763-016-114	CAT50xSK316-4.5"	8.5	4.5	2.371	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	4.15
5032-763-020-102	CAT50xSK320-4"	8	4	2.51	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	4.3
5032-763-020-114	CAT50xSK320-4.5"	8.5	4.5	3.01	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	4.6
5032-763-025-102	CAT50xSK325-4"	8	4	2.17	2.17	2.17	M28 x 2.0P	0.125 ~ 1	4.5
5032-763-025-114	CAT50xSK325-4.5"	8.5	4.5	2.67	2.17	2.17	M28 x 2.0P	0.125 ~ 1	4.8

DAT/SK3高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/DAT-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5050-763-006-060	DAT30xSK306-60	107.8	60	38.9	19.5	19.5	M8 x 1.25P	1 ~ 6	0.9
5050-763-006-080	DAT30xSK306-80	127.8	80	58.9	19.5	19.5	M8 x 1.25P	1 ~ 6	1
5050-763-010-060	DAT30xSK310-60	107.8	60	38.9	27.5	27.5	M12 x 1.75P	2 ~ 10	0.9
5050-763-010-080	DAT30xSK310-80	127.8	80	58.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1
5050-763-013-060	DAT30xSK313-60	107.8	60	38.9	33	33	M12 x 1.75P	2 ~ 13	1.1
5050-763-013-080	DAT30xSK313-80	127.8	80	58.9	33	33	M12 x 1.75P	2 ~ 13	1
5050-763-016-060	DAT30xSK316-60	107.8	60	38.9	40	40	M18 x 1.5P	2 ~ 16	1.2
5050-763-016-080	DAT30xSK316-80	127.8	80	58.9	40	40	M18 x 1.5P	2 ~ 16	1.3
5050-763-020-060	DAT30xSK320-60	107.8	60	25	48	48.5	-	3 ~ 20	0.6
5050-763-020-090	DAT30xSK320-90	137.8	90	55	48	48.5	M22 x 1.5P	3 ~ 20	1
5051-763-006-080	DAT40xSK306-80	148.4	80	42.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.1
5051-763-006-100	DAT40xSK306-100	168.4	100	62.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.3
5051-763-006-120	DAT40xSK306-120	188.4	120	82.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.4
5051-763-010-080	DAT40xSK310-80	148.4	80	50.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.1
5051-763-010-100	DAT40xSK310-100	168.4	100	70.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.3
5051-763-010-120	DAT40xSK310-120	188.4	120	90.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.4
5051-763-013-080	DAT40xSK313-80	148.4	80	55.9	33	33	M12 x 1.75P	2 ~ 13	1.1
5051-763-013-100	DAT40xSK313-100	168.4	100	75.9	33	33	M12 x 1.75P	2 ~ 13	1.3
5051-763-013-120	DAT40xSK313-120	188.4	120	95.9	33	33	M12 x 1.75P	2 ~ 13	1.4
5051-763-016-080	DAT40xSK316-80	148.4	80	55.9	40	40	M18 x 1.5P	2 ~ 16	1.2
5051-763-016-100	DAT40xSK316-100	168.4	100	75.9	40	40	M18 x 1.5P	2 ~ 16	1.4
5051-763-016-120	DAT40xSK316-120	188.4	120	95.9	40	40	M18 x 1.5P	2 ~ 16	1.5
5051-763-020-090	DAT40xSK320-90	158.4	90	70	48	48.5	M22 x 1.5P	3 ~ 20	1.5
5051-763-020-120	DAT40xSK320-120	188.4	120	100	48	48.5	M22 x 1.5P	3 ~ 20	1.9
5051-763-025-090	DAT40xSK325-90	158.4	90	70	55	55	M28 x 2.0P	3 ~ 25.4	1.6
5051-763-025-120	DAT40xSK325-120	188.4	120	100	55	55	M28 x 2.0P	3 ~ 25.4	2.1
5052-763-006-080	DAT50xSK306-80	181.75	80	40.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4
5052-763-006-100	DAT50xSK306-100	201.75	100	60.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4.1
5052-763-006-120	DAT50xSK306-120	221.75	120	80.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4.2
5052-763-010-080	DAT50xSK310-80	181.75	80	50.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.1
5052-763-010-100	DAT50xSK310-100	201.75	100	70.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.2
5052-763-010-120	DAT50xSK310-120	221.75	120	90.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.3
5052-763-013-080	DAT50xSK313-80	181.75	80	50.9	33	33	M12 x 1.75P	2 ~ 13	4.2
5052-763-013-100	DAT50xSK313-100	201.75	100	70.9	33	33	M12 x 1.75P	2 ~ 13	4.3
5052-763-013-120	DAT50xSK313-120	221.75	120	90.9	33	33	M12 x 1.75P	2 ~ 13	4.4
5052-763-016-080	DAT50xSK316-80	181.75	80	50.9	40	40	M18 x 1.5P	2 ~ 16	4.3
5052-763-016-100	DAT50xSK316-100	201.75	100	70.9	40	40	M18 x 1.5P	2 ~ 16	4.4
5052-763-016-120	DAT50xSK316-120	221.75	120	90.9	40	40	M18 x 1.5P	2 ~ 16	4.5
5052-763-020-105	DAT50xSK320-105	206.75	105	80	48	48.5	M22 x 1.5P	3 ~ 20	4.1
5052-763-020-135	DAT50xSK320-135	236.75	135	110	48	48.5	M22 x 1.5P	3 ~ 20	4.6
5052-763-025-105	DAT50xSK325-105	206.75	105	80	55	55	M28 x 2.0P	3 ~ 25.4	4.2
5052-763-025-150	DAT50xSK325-150	251.75	150	125	55	55	M28 x 2.0P	3 ~ 25.4	4.9

SBT/SK3法蘭加厚型高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/SBT-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5025-763-006-060	SBT30xSK306-60	108.4	60	33	19.5	19.5	M8 x 1.25P	1 ~ 6	0.90
5025-763-006-080	SBT30xSK306-80	128.4	80	53	19.5	19.5	M8 x 1.25P	1 ~ 6	1.00
5025-763-010-060	SBT30xSK310-60	108.4	60	35	27.5	27.5	M12 x 1.75P	2 ~ 10	0.90
5025-763-010-080	SBT30xSK310-80	128.4	80	55	27.5	27.5	M12 x 1.75P	2 ~ 10	1.00
5025-763-013-060	SBT30xSK313-60	108.4	60	35	33	33	M12 x 1.75P	2 ~ 13	1.10
5025-763-013-080	SBT30xSK313-80	128.4	80	55	33	33	M12 x 1.75P	2 ~ 13	1.00
5025-763-016-060	SBT30xSK316-60	108.4	60	38	40	40	M18 x 1.5P	2 ~ 16	1.20
5025-763-016-080	SBT30xSK316-80	128.4	80	57	40	40	M18 x 1.5P	2 ~ 16	1.30
5025-763-020-060	SBT30xSK320-60	108.4	60	38	48	-	-	3 ~ 20	0.60
5025-763-020-090	SBT30xSK320-90	138.4	90	68	48	48.5	M22x1.5P	3 ~ 20	1.00
5026-763-006-080	SBT40xSK306-80	145.4	80	43	19.5	19.5	M8 x 1.25P	1 ~ 6	1.10
5026-763-006-100	SBT40xSK306-100	165.4	100	63	19.5	19.5	M8 x 1.25P	1 ~ 6	1.30
5026-763-006-120	SBT40xSK306-120	185.4	120	83	19.5	19.5	M8 x 1.25P	1 ~ 6	1.40
5026-763-010-080	SBT40xSK310-80	145.4	80	43	27.5	27.5	M12 x 1.75P	2 ~ 10	1.10
5026-763-010-100	SBT40xSK310-100	165.4	100	63	27.5	27.5	M12 x 1.75P	2 ~ 10	1.30
5026-763-010-120	SBT40xSK310-120	185.4	120	83	27.5	27.5	M12 x 1.75P	2 ~ 10	1.40
5026-763-013-080	SBT40xSK313-80	145.4	80	50	33	33	M12 x 1.75P	2 ~ 13	1.10
5026-763-013-100	SBT40xSK313-100	165.4	100	70	33	33	M12 x 1.75P	2 ~ 13	1.30
5026-763-013-120	SBT40xSK313-120	185.4	120	90	33	33	M12 x 1.75P	2 ~ 13	1.40
5026-763-016-080	SBT40xSK316-80	145.4	80	48	40	40	M18 x 1.5P	2 ~ 16	1.20
5026-763-016-100	SBT40xSK316-100	165.4	100	68	40	40	M18 x 1.5P	2 ~ 16	1.40
5026-763-016-120	SBT40xSK316-120	185.4	120	88	40	40	M18 x 1.5P	2 ~ 16	1.50
5026-763-020-090	SBT40xSK320-90	155.4	90	60	48	48.5	M22 x 1.5P	3 ~ 20	1.50
5026-763-020-120	SBT40xSK320-120	185.4	120	90	48	48.5	M22 x 1.5P	3 ~ 20	1.90
5026-763-025-090	SBT40xSK325-90	155.4	90	61	55	55	M28 x 2.0P	3 ~ 25.4	1.60
5026-763-025-120	SBT40xSK325-120	185.4	120	91	55	55	M28 x 2.0P	3 ~ 25.4	2.10
5027-763-006-080	SBT50xSK306-80	181.8	80	34	19.5	19.5	M8 x 1.25P	1 ~ 6	4.00
5027-763-006-100	SBT50xSK306-100	201.8	100	54	19.5	19.5	M8 x 1.25P	1 ~ 6	4.10
5027-763-006-120	SBT50xSK306-120	221.8	120	61	19.5	19.5	M8 x 1.25P	1 ~ 6	4.20
5027-763-010-080	SBT50xSK310-80	181.8	80	39	27.5	27.5	M12 x 1.75P	2 ~ 10	4.10
5027-763-010-100	SBT50xSK310-100	201.8	100	57	27.5	27.5	M12 x 1.75P	2 ~ 10	4.20
5027-763-010-120	SBT50xSK310-120	221.8	120	79	27.5	27.5	M12 x 1.75P	2 ~ 10	4.30
5027-763-013-080	SBT50xSK313-80	181.8	80	39	33	33	M12 x 1.75P	2 ~ 13	4.20
5027-763-013-100	SBT50xSK313-100	201.8	100	52	33	33	M12 x 1.75P	2 ~ 13	4.30
5027-763-013-120	SBT50xSK313-120	221.8	120	79	33	33	M12 x 1.75P	2 ~ 13	4.40
5027-763-016-080	SBT50xSK316-80	181.8	80	40	40	40	M18 x 1.5P	2 ~ 16	4.30
5027-763-016-100	SBT50xSK316-100	201.8	100	57	40	40	M18 x 1.5P	2 ~ 16	4.40
5027-763-016-120	SBT50xSK316-120	221.8	120	72	40	40	M18 x 1.5P	2 ~ 16	4.50
5027-763-020-105	SBT50xSK320-105	206.8	105	62	48	48.5	M22 x 1.5P	3 ~ 20	4.10
5027-763-020-135	SBT50xSK320-135	236.8	135	92	48	48.5	M22 x 1.5P	3 ~ 20	4.60
5027-763-025-105	SBT50xSK325-105	206.8	105	62	55	55	M28 x 2.0P	3 ~ 25.4	4.20
5027-763-025-150	SBT50xSK325-150	251.8	150	107	55	55	M28 x 2.0P	3 ~ 25.4	4.90

SCAT/SK3法蘭加厚型高速機專用夾頭

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5043-763-006-089	SCAT40xSK306-3.5"	6.187	3.5	1.438	0.768	0.768	M8 x 1.25P	0.0625 ~ 0.1875	1.05
5043-763-006-102	SCAT40xSK306-4"	6.687	4	1.938	0.768	0.768	M8 x 1.25P	0.0625 ~ 0.1875	1.65
5043-763-010-089	SCAT40xSK310-3.5"	6.187	3.5	1.627	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	1.05
5043-763-010-102	SCAT40xSK310-4"	6.687	4	2.127	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	1.65
5043-763-013-089	SCAT40xSK313-3.5"	6.187	3.5	2.004	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.05
5043-763-013-102	SCAT40xSK313-4"	6.687	4	2.504	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.65
5043-763-016-089	SCAT40xSK316-3.5"	6.187	3.5	2.034	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	1.35
5043-763-016-102	SCAT40xSK316-4"	6.687	4	2.534	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	2.10
5043-763-020-090	SCAT40xSK320-3.5"	6.187	3.5	2.04	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	1.60
5043-763-020-102	SCAT40xSK320-4"	6.687	4	2.54	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	2.00
5043-763-025-090	SCAT40xSK325-3.5"	6.187	3.5	2.12	2.17	2.17	M28 x 2.0P	0.125 ~ 1	1.70
5043-763-025-102	SCAT40xSK325-4"	6.687	4	2.62	2.17	2.17	M28 x 2.0P	0.125 ~ 1	1.80
5044-763-006-089	SCAT50xSK306-3.5"	7.5	3.5	1.728	0.768	0.768	M8 x 1.25P	0.0625 ~ 0.1875	3.60
5044-763-006-102	SCAT50xSK306-4"	8	4	2.228	0.768	0.768	M8 x 1.25P	0.0625 ~ 0.1875	4.00
5044-763-010-102	SCAT50xSK310-4"	8	4	2.562	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	3.80
5044-763-010-114	SCAT50xSK310-4.5"	8.5	4.5	2.115	1.083	1.083	M12 x 1.75P	0.125 ~ 0.375	4.00
5044-763-013-102	SCAT50xSK313-4"	8	4	2.425	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	3.80
5044-763-013-114	SCAT50xSK313-4.5"	8.5	4.5	2.925	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	4.00
5044-763-016-102	SCAT50xSK316-4"	8	4	1.871	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	4.00
5044-763-016-114	SCAT50xSK316-4.5"	8.5	4.5	2.371	1.575	1.575	M18 x 1.5P	0.1250 ~ 0.625	4.15
5044-763-020-102	SCAT50xSK320-4"	8	4	2.51	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	4.30
5044-763-020-114	SCAT50xSK320-4.5"	8.5	4.5	3.01	1.89	1.91	M22 x 1.5P	0.125 ~ 0.75	4.60
5044-763-025-102	SCAT50xSK325-4"	8	4	2.17	2.17	2.17	M28 x 2.0P	0.125 ~ 1	4.50
5044-763-025-114	SCAT50xSK325-4.5"	8.5	4.5	2.67	2.17	2.17	M28 x 2.0P	0.125 ~ 1	4.80

SDAT/SK3法蘭加厚型高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/SDAT-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5065-763-020-060	SDAT30xSK320-60	107.8	60	25	48	48.5	-	3 ~ 20	0.60
5065-763-020-090	SDAT30xSK320-90	137.8	90	55	48	48.5	M22x1.5P	3 ~ 20	1.00
5066-763-006-080	SDAT40xSK306-80	148.4	80	42.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.10
5066-763-006-100	SDAT40xSK306-100	168.4	100	62.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.30
5066-763-006-120	SDAT40xSK306-120	188.4	120	82.75	19.5	19.5	M8 x 1.25P	1 ~ 6	1.40
5066-763-010-080	SDAT40xSK310-80	148.4	80	50.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.10
5066-763-010-100	SDAT40xSK310-100	168.4	100	70.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.30
5066-763-010-120	SDAT40xSK310-120	188.4	120	90.9	27.5	27.5	M12 x 1.75P	2 ~ 10	1.40
5066-763-013-080	SDAT40xSK313-80	148.4	80	55.9	33	33	M12 x 1.75P	2 ~ 13	1.10
5066-763-013-100	SDAT40xSK313-100	168.4	100	75.9	33	33	M12 x 1.75P	2 ~ 13	1.30
5066-763-013-120	SDAT40xSK313-120	188.4	120	95.9	33	33	M12 x 1.75P	2 ~ 13	1.40
5066-763-016-080	SDAT40xSK316-80	148.4	80	55.9	40	40	M18 x 1.5P	2 ~ 16	1.20
5066-763-016-100	SDAT40xSK316-100	168.4	100	75.9	40	40	M18 x 1.5P	2 ~ 16	1.40
5066-763-016-120	SDAT40xSK316-120	188.4	120	95.9	40	40	M18 x 1.5P	2 ~ 16	1.50
5066-763-020-090	SDAT40xSK320-90	158.4	90	70	48	48.5	M22 x 1.5P	3 ~ 20	1.50
5066-763-020-120	SDAT40xSK320-120	188.4	120	100	48	48.5	M22 x 1.5P	3 ~ 20	1.90
5066-763-025-090	SDAT40xSK325-90	158.4	90	70	55	55	M28 x 2.0P	3 ~ 25.4	1.60
5066-763-025-120	SDAT40xSK325-120	188.4	120	100	55	55	M28 x 2.0P	3 ~ 25.4	2.10
5067-763-006-080	SDAT50xSK306-80	181.75	80	40.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4.00
5067-763-006-100	SDAT50xSK306-100	201.75	100	60.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4.10
5067-763-006-120	SDAT50xSK306-120	221.75	120	80.75	19.5	19.5	M8 x 1.25P	1 ~ 6	4.20
5067-763-010-080	SDAT50xSK310-80	181.75	80	50.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.10
5067-763-010-100	SDAT50xSK310-100	201.75	100	70.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.20
5067-763-010-120	SDAT50xSK310-120	221.75	120	90.9	27.5	27.5	M12 x 1.75P	2 ~ 10	4.30
5067-763-013-080	SDAT50xSK313-80	181.75	80	50.9	33	33	M12 x 1.75P	2 ~ 13	4.20
5067-763-013-100	SDAT50xSK313-100	201.75	100	70.9	33	33	M12 x 1.75P	2 ~ 13	4.30
5067-763-013-120	SDAT50xSK313-120	221.75	120	90.9	33	33	M12 x 1.75P	2 ~ 13	4.40
5067-763-016-080	SDAT50xSK316-80	181.75	80	50.9	40	40	M18 x 1.5P	2 ~ 16	4.30
5067-763-016-100	SDAT50xSK316-100	201.75	100	70.9	40	40	M18 x 1.5P	2 ~ 16	4.40
5067-763-016-120	SDAT50xSK316-120	221.75	120	90.9	40	40	M18 x 1.5P	2 ~ 16	4.50
5067-763-020-105	SDAT50xSK320-105	206.75	105	80	48	48.5	M22 x 1.5P	3 ~ 20	4.10
5067-763-020-135	SDAT50xSK320-135	236.75	135	110	48	48.5	M22 x 1.5P	3 ~ 20	4.60
5067-763-025-105	SDAT50xSK325-105	206.75	105	80	55	55	M28 x 2.0P	3 ~ 25.4	4.20
5067-763-025-150	SDAT50xSK325-150	251.75	150	125	55	55	M28 x 2.0P	3 ~ 25.4	4.90

HSK-A/SK3高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/HSK-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5070-763-006-045	HSK32AxSK306-45	61	45	24	19.5	19.5	-	1~6	0.50
5070-763-006-060	HSK32AxSK306-60	76	60	37	19.5	19.5	M8x1.25P	1~6	0.70
5070-763-010-060	HSK32AxSK310-60	76	60	40	27.5	26	-	2~10	0.70
5072-763-020-090	HSK50AxSK320-90	115	90	64	48	48.5	-	3~20	1.00
5072-763-020-120	HSK50AxSK320-120	145	120	94	48	48.5	M22x1.5P	3~20	1.30
5073-763-006-090	HSK63AxSK306-90	122	90	61	19.5	19.5	M8x1.25P	1~6	1.20
5073-763-010-090	HSK63AxSK310-90	122	90	54	27.5	27.5	M12x1.75P	2~10	1.20
5073-763-010-120	HSK63AxSK310-120	152	120	84	27.5	27.5	M12x1.75P	2~10	1.40
5073-763-013-070	HSK63AxSK313-70	102	70	39	33	33	-	2~13	1.00
5073-763-013-105	HSK63AxSK313-105	137	105	76	33	33	M12x1.75P	2~13	1.10
5073-763-013-120	HSK63AxSK313-120	152	120	91	33	33	M12x1.75P	2~13	1.30
5073-763-016-090	HSK63AxSK316-90	122	90	61	40	40	-	2~16	1.20
5073-763-016-120	HSK63AxSK316-120	152	120	91	40	40	M18x1.5P	2~16	1.30
5073-763-020-090	HSK63AxSK320-90	122	90	62.5	48	48.5	-	3~20	1.30
5073-763-020-120	HSK63AxSK320-120	152	120	92.5	48	48.5	M22x1.5P	3~20	1.60
5073-763-025-090	HSK63AxSK325-90	122	90	63.5	55	55	-	3~25.4	1.40
5073-763-025-120	HSK63AxSK325-120	152	120	93.5	55	55	M28x2.0P	3~25.4	1.80
5075-763-006-100	HSK100AxSK306-100	150	100	61	19.5	19.5	M8x1.25P	1~6	1.50
5075-763-010-100	HSK100AxSK310-100	150	100	61	27.5	27.5	M12x1.75P	2~10	1.60
5075-763-013-105	HSK100AxSK313-105	155	105	66	33	33	M12x1.75P	2~13	1.70
5075-763-013-120	HSK100AxSK313-120	170	120	81	33	33	M12x1.75P	2~13	1.80
5075-763-013-150	HSK100AxSK313-150	200	150	111	33	33	M12x1.75P	2~13	1.50
5075-763-016-105	HSK100AxSK316-105	155	105	66	40	40	M18x1.5P	2~16	1.70
5052-763-020-105	HSK100AxSK320-105	206.75	105	66	48	48.5	-	3~20	4.00
5052-763-020-135	HSK100AxSK320-135	236.75	135	96	48	48.5	M22x1.5P	3~20	3.10
5052-763-025-105	HSK100AxSK325-105	206.75	105	66	55	55	-	3~25.4	3.00
5052-763-025-150	HSK100AxSK325-150	251.75	150	111	55	55	M28x2.0P	3~25.4	3.60

HSK-E/SK3高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/HSK-SK3_(E_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5097-763-006-040	HSK25ExSK306-40	53	40	29	19.5	19.5	-	1~6	0.50
5097-763-006-060	HSK25ExSK306-60	73	60	49	19.5	19.5	M8x1.25P	1~6	0.70
5098-763-006-045	HSK32ExSK306-45	61	45	24	19.5	19.5	-	1~6	0.50
5098-763-006-060	HSK32ExSK306-60	76	60	38	19.5	19.5	M8x1.25P	1~6	0.70
5099-763-006-045	HSK40ExSK306-45	65	45	24	19.5	19.5	-	1~6	0.70
5099-763-006-060	HSK40ExSK306-60	80	60	38	19.5	19.5	M8x1.25P	1~6	0.80
5099-763-006-075	HSK40ExSK306-75	95	75	53	19.5	19.5	M8x1.25P	1~6	0.90
5099-763-010-060	HSK40ExSK310-60	80	60	38	27.5	27.5	-	2~10	0.90
5099-763-010-075	HSK40ExSK310-75	95	75	53	27.5	27.5	M12x1.75P	2~10	1.00
5099-763-013-060	HSK40ExSK313-60	80	60	39	33	33	-	2~13	0.90
5099-763-013-075	HSK40ExSK313-75	95	75	54	33	33	-	2~13	1.00
5099-763-016-075	HSK40ExSK316-75	95	75	40	40	40	-	2~16	1.00
5100-763-006-060	HSK50ExSK306-60	85	60	32	19.5	19.5	-	1~6	1.00
5100-763-006-075	HSK50ExSK306-75	100	75	44	19.5	19.5	M8x1.25P	1~6	1.20
5100-763-006-090	HSK50ExSK306-90	115	90	59	19.5	19.5	M8x1.25P	1~6	1.40
5100-763-010-060	HSK50ExSK310-60	85	60	33	27.5	27.5	-	2~10	0.90
5100-763-010-075	HSK50ExSK310-75	100	75	44	27.5	27.5	M12x1.75P	2~10	1.00
5100-763-010-090	HSK50ExSK310-90	115	90	59	27.5	27.5	M12x1.75P	2~10	1.20
5100-763-013-065	HSK50ExSK313-65	90	65	36	33	33	-	2~13	0.90
5100-763-013-075	HSK50ExSK313-75	100	75	46	33	33	M12x1.75P	2~13	1.00
5100-763-013-090	HSK50ExSK313-90	115	90	61	33	33	M12x1.75P	2~13	1.20
5100-763-016-075	HSK50ExSK316-75	100	75	48	40	40	-	2~16	1.00
5100-763-016-090	HSK50ExSK316-90	115	90	63	40	40	M18x1.5P	2~16	1.20

PSC/SK3高速機專用夾頭

proimages/Products/Tool_holders/Collet_chuck/SK3/PSC-SK3_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5141-763-006-075	PSC40xSK306-75	99	75	48	19.5	19.5	M8 x 1.25P	1 ~ 6	0.20
5141-763-010-075	PSC40xSK310-75	99	75	28	27.5	27.5	M12 x 1.75P	2 ~ 10	0.20
5141-763-013-075	PSC40xSK313-75	99	75	54	33	33	M12 x 1.75P	2 ~ 13	0.30
5142-763-006-060	PSC50xSK306-60	90	60	34	19.5	19.5	M8 x 1.25P	1 ~ 6	0.50
5142-763-006-075	PSC50xSK306-75	105	75	49	19.5	19.5	M8 x 1.25P	1 ~ 6	0.60
5142-763-006-090	PSC50xSK306-90	120	90	62	19.5	19.5	M8 x 1.25P	1 ~ 6	0.70
5142-763-010-075	PSC50xSK310-75	105	75	49	27.5	27.5	M12 x 1.75P	2 ~ 10	0.70
5142-763-010-090	PSC50xSK310-90	120	90	64	27.5	27.5	M12 x 1.75P	2 ~ 10	0.80
5142-763-013-075	PSC50xSK313-75	105	75	49	33	33	M12 x 1.75P	2 ~ 13	0.70
5142-763-013-090	PSC50xSK313-90	120	90	64	33	33	M12 x 1.75P	2 ~ 13	0.90
5142-763-016-075	PSC50xSK316-75	105	75	53	40	40	M18 x 1.5P	2 ~ 16	0.90
5142-763-016-090	PSC50xSK316-90	120	90	69	40	40	M18 x 1.5P	2 ~ 16	1.10
5143-763-006-060	PSC63xSK306-60	98	60	30	19.5	19.5	M8 x 1.25P	1 ~ 6	0.80
5143-763-006-075	PSC63xSK306-75	113	75	43	19.5	19.5	M8 x 1.25P	1 ~ 6	0.90
5143-763-006-090	PSC63xSK306-90	128	90	58	19.5	19.5	M8 x 1.25P	1 ~ 6	1.00
5143-763-010-075	PSC63xSK310-75	98	75	43	27.5	27.5	M12 x 1.75P	2 ~ 10	0.90
5143-763-010-090	PSC63xSK310-90	128	90	58	27.5	27.5	M12 x 1.75P	2 ~ 10	1.10
5143-763-013-075	PSC63xSK313-75	98	75	45	33	33	M12 x 1.75P	2 ~ 13	1.00
5143-763-013-090	PSC63xSK313-90	128	90	60	33	33	M12 x 1.75P	2 ~ 13	1.20
5143-763-016-075	PSC63xSK316-75	98	75	47	40	40	M18 x 1.5P	2 ~ 16	1.10
5143-763-016-090	PSC63xSK316-90	128	90	60	40	40	M18 x 1.5P	2 ~ 16	1.30
5143-763-020-090	PSC63xSK320-90	118.6	90	55.6	48	48.5	-	3 ~ 20	1.40
5143-763-020-105	PSC63xSK320-105	133.6	105	70.6	48	48.5	M22x1.5P	3 ~ 20	1.60
5143-763-020-135	PSC63xSK320-135	163.6	135	100.6	48	48.5	M22x1.5P	3 ~ 20	2.00
5143-763-025-090	PSC63xSK325-90	117.7	90	55.7	55	55	-	3 ~ 25.4	1.60
5143-763-025-135	PSC63xSK325-135	162.7	135	100.7	55	55	M28x2.0P	3 ~ 25.4	2.20
5144-763-006-060	PSC80xSK306-60	108	60	27	19.5	19.5	M8 x 1.25P	1 ~ 6	1.80
5144-763-006-075	PSC80xSK306-75	123	75	42	19.5	19.5	M8 x 1.25P	1 ~ 6	1.90
5144-763-006-090	PSC80xSK306-90	138	90	57	19.5	19.5	M8 x 1.25P	1 ~ 6	2.00
5144-763-010-075	PSC80xSK310-75	123	75	42	27.5	27.5	M12 x 1.75P	2 ~ 10	2.10
5144-763-010-090	PSC80xSK310-90	138	90	57	27.5	27.5	M12 x 1.75P	2 ~ 10	2.20
5144-763-013-075	PSC80xSK313-75	123	75	42	33	33	M12 x 1.75P	2 ~ 13	2.10
5144-763-013-090	PSC80xSK313-90	138	90	57	33	33	M12 x 1.75P	2 ~ 13	2.30
5144-763-016-075	PSC80xSK316-75	123	75	42	40	40	M18 x 1.5P	2 ~ 16	2.20
5144-763-016-090	PSC80xSK316-90	138	90	57	40	40	M18 x 1.5P	2 ~ 16	2.40
5144-763-020-090	PSC80xSK320-90	128.6	90	47.6	48	48.5	-	3 ~ 20	2.30
5144-763-020-105	PSC80xSK320-105	143.6	105	62.6	48	48.5	M22x1.5P	3 ~ 20	2.50
5144-763-020-135	PSC80xSK320-135	173.6	135	92.6	48	48.5	M22x1.5P	3 ~ 20	2.80
5144-763-025-090	PSC80xSK325-90	127.7	90	46.7	55	55	-	3 ~ 25.4	2.40
5144-763-025-135	PSC80xSK325-135	172.7	135	91.7	55	55	M28x2.0P	3 ~ 25.4	3.10

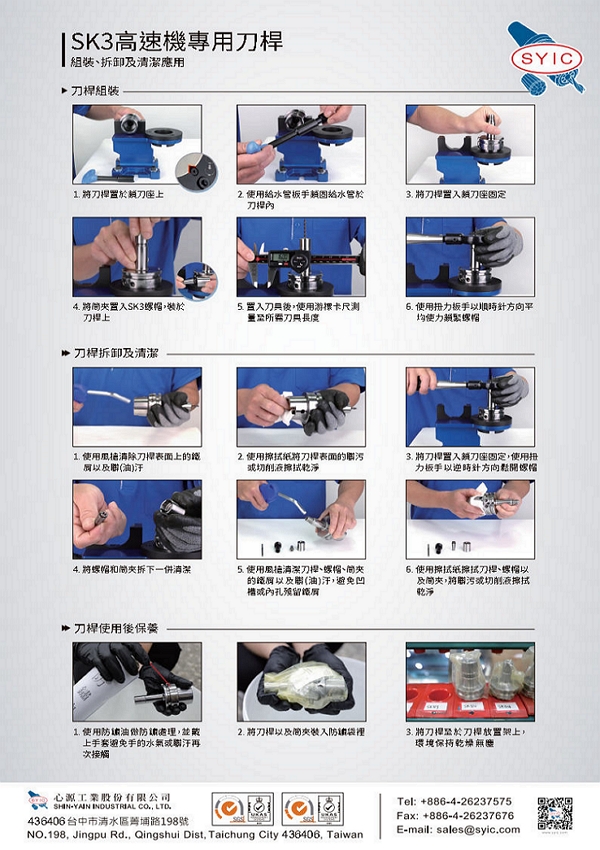

SK3高速機專用夾頭

產品描述
