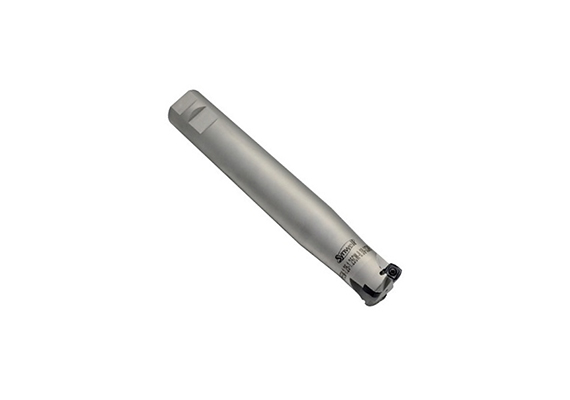

HFEM Indexable High-Feed End Mill

HFEM Indexable High-Feed End Mill
Product Name : HFEM Indexable High-Feed End Mill
Product Description


  • End mill body material made from hot work steel and surface treated with electroless nickel coating prolong the use life.
  • For high-feed roughing and semi-finishing in steel, cast iron, and hardened materials.
  • Coolant-thru design.

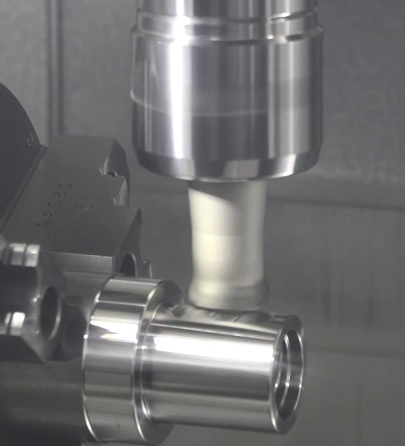

proimages/Products/Cutting_tools/End_mill_cutter/HFEM/HFEM_feature_picture.jpg
series:

INDEXABLE HIGH-FEED END MILLS

proimages/Products/Cutting_tools/End_mill_cutter/HFEM/HFEM_figure.jpg
  METRIC
MODEL NO.TYPEDdLL1TEETHap
max.		INSERT
5154-297-2525-120 HFEM-25-25CW-120-3SN9 25 25 120 60 3 1.00 SNKX09T3
5154-297-2525-200 HFEM-25-25CW-200-3SN9 25 25 200 100 3 1.00 SNKX09T3
5154-297-3232-120 HFEM-32-32CW-120-4SN9 32 32 120 60 4 1.00 SNKX09T3
5154-297-3232-200 HFEM-32-32CW-200-3SN9 32 32 200 100 3 1.00 SNKX09T3
INCHES
5154-297-A64A64-500 HFEM-1.00-1.00CW-5.00-3SN9 1.00 1.00 5.00 2.36 3 0.04 SNKX09T3
5154-297-A64A64-800 HFEM-1.00-1.00CW-8.00-3SN9 1.00 1.00 8.00 3.94 3 0.04 SNKX09T3
5154-297-A72A72-500 HFEM-1.25-1.25CW-5.00-4SN9 1.25 1.25 5.00 2.36 4 0.04 SNKX09T3
5154-297-A72A72-800 HFEM-1.25-1.25CW-8.00-3SN9 1.25 1.25 8.00 3.94 3 0.04 SNKX09T3

ACCESSORIES:
INSERT INSERT SCREW WRENCH
SNKX09T3 M3.5-9.3-4.8-60 T10
