EBL後拉式立銑刀夾頭

series

BT/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/BT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5010-277-006-070	BT30xEBL6-70	118.4	70	40.6	19.05	23	M6 x 1.0P	12	9	3 ~ 6	0.5
5010-277-006-100	BT30xEBL6-100	148.4	100	72.2	19.05	26	M6 x 1.0P	12	9	3 ~ 6	0.61
5011-277-006-070	BT40xEBL6-70	135.4	70	29.9	19.05	21.9	M6 x 1.0P	12	9	3 ~ 6	1.2
5011-277-006-100	BT40xEBL6-100	165.4	100	61.4	19.05	25	M6 x 1.0P	12	9	3 ~ 6	1.22
5011-277-006-125	BT40xEBL6-125	190.4	125	87.7	19.05	27.6	M6 x 1.0P	12	9	3 ~ 6	1.4
5011-277-006-200	BT40xEBL6-200	265.4	200	163.7	19.05	35	M6 x 1.0P	12	9	3 ~ 6	1.77
5011-277-008-070	BT40xEBL8-70	135.4	70	28.2	22.225	24.9	M8 x 1.25P	29	21	3 ~ 8	1.14
5011-277-008-100	BT40xEBL8-100	165.4	100	59.8	22.225	28	M8 x 1.25P	29	21	3 ~ 8	1.26
5011-277-008-125	BT40xEBL8-125	190.4	125	85.09	22.225	30.6	M8 x 1.25P	29	21	3 ~ 8	1.4
5011-277-008-200	BT40xEBL8-200	265.4	200	160.7	22.225	37.9	M8 x 1.25P	29	21	3 ~ 8	1.91
5012-277-006-070	BT50xEBL6-70	171.8	70	18.3	19.05	20.8	M6 x 1.0P	12	9	3 ~ 6	3.68
5012-277-006-100	BT50xEBL6-100	201.8	100	49.9	19.05	23.9	M6 x 1.0P	12	9	3 ~ 6	3.77
5012-277-006-125	BT50xEBL6-125	226.8	125	69.8	19.05	25.9	M6 x 1.0P	12	9	3 ~ 6	3.95
5012-277-006-200	BT50xEBL6-200	301.8	200	151.7	19.05	33.8	M6 x 1.0P	12	9	3 ~ 6	4.22
5012-277-008-070	BT50xEBL8-70	171.8	70	16.6	22.225	23.8	M8 x 1.25P	29	21	3 ~ 8	3.71
5012-277-008-100	BT50xEBL8-100	201.8	100	48.2	22.225	26.9	M8 x 1.25P	29	21	3 ~ 8	3.83
5012-277-008-125	BT50xEBL8-125	226.8	125	66.8	22.225	28.7	M8 x 1.25P	29	21	3 ~ 8	3.95
5012-277-008-200	BT50xEBL8-200	301.8	200	148.7	22.225	36.7	M8 x 1.25P	29	21	3 ~ 8	4.34

CAT/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/CAT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5031-277-006-076	CAT40xEBL6-3"	5.687	3	1.43	0.75	0.89	M6 x 1.0P	12	9	0.125 ~ 0.25	1.1
5031-277-006-102	CAT40xEBL6-4"	6.687	4	2.43	0.75	0.98	M6 x 1.0P	12	9	0.125 ~ 0.25	1.19
5031-277-006-152	CAT40xEBL6-6"	8.687	6	4.43	0.75	1.18	M6 x 1.0P	12	9	0.125 ~ 0.25	1.42
5031-277-008-076	CAT40xEBL8-3"	5.687	3	1.43	0.875	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.08
5031-277-008-102	CAT40xEBL8-4"	6.687	4	2.43	0.875	1.11	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.23
5031-277-008-152	CAT40xEBL8-6"	8.687	6	4.5	0.875	1.31	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.46
5032-277-006-076	CAT50xEBL6-3"	7	3	1.24	0.75	0.87	M6 x 1.0P	12	9	0.125 ~ 0.25	3.19
5032-277-006-102	CAT50xEBL6-4"	8	4	2.24	0.75	0.9	M6 x 1.0P	12	9	0.125 ~ 0.25	3.21
5032-277-006-152	CAT50xEBL6-6"	10	6	4.24	0.75	1.16	M6 x 1.0P	12	9	0.125 ~ 0.25	3.49
5032-277-008-076	CAT50xEBL8-3"	7	3	1.24	0.875	0.96	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.16
5032-277-008-102	CAT50xEBL8-4"	8	4	2.24	0.875	1.092	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.23
5032-277-008-152	CAT50xEBL8-6"	10	6	4.24	0.875	1.29	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.49

DAT/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/DAT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5050-277-006-070	DAT30xEBL6-70	117.8	70	41.6	19.05	23.1	M6 x 1.0P	12	9	3 ~ 6	0.51
5050-277-006-100	DAT30xEBL6-100	147.8	100	73.1	19.05	26.2	M6 x 1.0P	12	9	3 ~ 6	0.6
5051-277-006-070	DAT40xEBL6-70	138.4	70	38.2	19.05	22.7	M6 x 1.0P	12	9	3 ~ 6	0.99
5051-277-006-100	DAT40xEBL6-100	168.4	100	69.7	19.05	25.8	M6 x 1.0P	12	9	3 ~ 6	1.09
5051-277-008-070	DAT40xEBL8-70	138.4	70	36.5	22.225	25.8	M8 x 1.25P	29	21	3 ~ 8	1.01
5051-277-008-100	DAT40xEBL8-100	168.4	100	68.1	22.225	28.8	M8 x 1.25P	29	21	3 ~ 8	1.13
5052-277-006-070	DAT50xEBL6-70	171.75	70	38.2	19.05	22.7	M6 x 1.0P	12	9	3 ~ 6	2.77
5052-277-006-100	DAT50xEBL6-100	201.75	100	69.7	19.05	25.8	M6 x 1.0P	12	9	3 ~ 6	2.8
5052-277-008-070	DAT50xEBL8-70	171.75	70	36.5	22.225	25.8	M8 x 1.25P	29	21	3 ~ 8	2.79
5052-277-008-100	DAT50xEBL8-100	201.75	100	68.1	22.225	28.8	M8 x 1.25P	29	21	3 ~ 8	2.85

SBT/EBL法蘭加厚型後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/SBT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5025-277-006-070	SBT30xEBL6-70	118.4	70	40.6	19.05	23	M6 x 1.0P	12	9	3 ~ 6	0.51
5025-277-006-100	SBT30xEBL6-100	148.4	100	72.2	19.05	26	M6 x 1.0P	12	9	3 ~ 6	0.62
5026-277-006-070	SBT40xEBL6-70	135.4	70	29.9	19.05	21.9	M6 x 1.0P	12	9	3 ~ 6	1.10
5026-277-006-100	SBT40xEBL6-100	165.4	100	61.4	19.05	25	M6 x 1.0P	12	9	3 ~ 6	1.20
5026-277-008-070	SBT40xEBL8-70	135.4	70	28.2	22.225	24.9	M8 x 1.25P	29	21	3 ~ 8	1.12
5026-277-008-100	SBT40xEBL8-100	165.4	100	51.5	22.225	27.6	M8 x 1.25P	29	21	3 ~ 8	1.24
5027-277-006-070	SBT50xEBL6-70	171.8	70	18.3	19.05	20.8	M6 x 1.0P	12	9	3 ~ 6	3.68
5027-277-006-100	SBT50xEBL6-100	201.8	100	49.9	19.05	23.9	M6 x 1.0P	12	9	3 ~ 6	3.77
5027-277-008-070	SBT50xEBL8-70	171.8	70	16.6	22.225	23.8	M8 x 1.25P	29	21	3 ~ 8	3.74
5027-277-008-100	SBT50xEBL8-100	201.8	100	48.2	22.225	26.9	M8 x 1.25P	29	21	3 ~ 8	3.84

SCAT/EBL法蘭加厚型後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/SCAT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5043-277-006-076	SCAT40xEBL6-3"	5.687	3	1.43	0.75	0.89	M6 x 1.0P	12	9	0.125 ~ 0.25	1.21
5043-277-006-102	SCAT40xEBL6-4"	6.687	4	2.43	0.75	0.98	M6 x 1.0P	12	9	0.125 ~ 0.25	1.21
5043-277-006-152	SCAT40xEBL6-6"	8.687	6	4.43	0.75	1.18	M6 x 1.0P	12	9	0.125 ~ 0.25	1.48
5043-277-008-076	SCAT40xEBL8-3"	5.687	3	1.43	0.875	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.08
5043-277-008-102	SCAT40xEBL8-4"	6.687	4	2.43	0.875	1.11	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.25
5043-277-008-152	SCAT40xEBL8-6"	8.687	6	4.5	0.875	1.31	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.50
5044-277-006-076	SCAT50xEBL6-3"	7	3	1.24	0.75	0.87	M6 x 1.0P	12	9	0.125 ~ 0.25	3.19
5044-277-006-102	SCAT50xEBL6-4"	8	4	2.24	0.75	0.96	M6 x 1.0P	12	9	0.125 ~ 0.25	3.31
5044-277-006-152	SCAT50xEBL6-6"	10	6	4.24	0.75	1.16	M6 x 1.0P	12	9	0.125 ~ 0.25	3.53
5044-277-008-076	SCAT50xEBL8-3"	7	3	1.24	0.875	0.96	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.26
5044-277-008-102	SCAT50xEBL8-4"	8	4	2.24	0.875	1.092	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.33
5044-277-008-152	SCAT50xEBL8-6"	10	6	4.24	0.875	1.29	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.53

SDAT/EBL法蘭加厚型後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/SDAT-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5066-277-006-070	SDAT40xEBL6-70	138.4	70	38.2	19.05	22.7	M6 x 1.0P	12	9	3 ~ 6	1.01
5066-277-006-100	SDAT40xEBL6-100	168.4	100	69.7	19.05	25.8	M6 x 1.0P	12	9	3 ~ 6	1.12
5066-277-008-070	SDAT40xEBL8-70	138.4	70	36.5	22.225	25.8	M8 x 1.25P	29	21	3 ~ 8	1.03
5066-277-008-100	SDAT40xEBL8-100	168.4	100	68.1	22.225	28.8	M8 x 1.25P	29	21	3 ~ 8	1.17
5067-277-006-070	SDAT50xEBL6-70	171.75	70	38.2	19.05	22.7	M6 x 1.0P	12	9	3 ~ 6	2.80
5067-277-006-100	SDAT50xEBL6-100	201.75	100	69.7	19.05	25.8	M6 x 1.0P	12	9	3 ~ 6	2.83
5067-277-008-070	SDAT50xEBL8-70	171.75	70	36.5	22.225	25.8	M8 x 1.25P	29	21	3 ~ 8	2.83
5067-277-008-100	SDAT50xEBL8-100	201.75	100	68.1	22.225	28.8	M8 x 1.25P	29	21	3 ~ 8	2.88

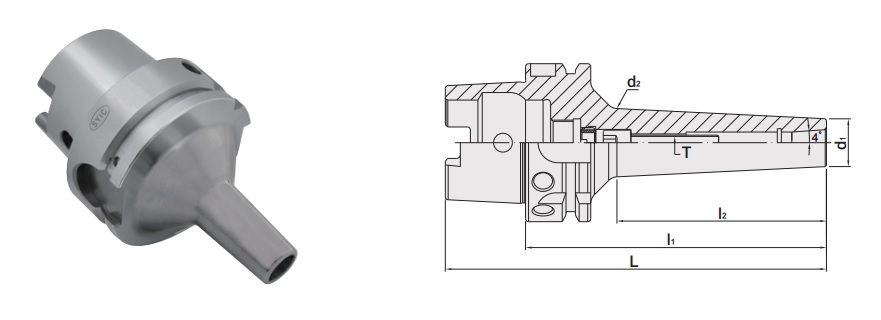

HSK-A/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/HSK-EBL_(A_type)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5072-277-006-125	HSK50AxEBL6-125	150	125	94.2	19.05	28.2	M6 x 1.0P	12	9	3 ~ 6	0.79
5072-277-006-150	HSK50AxEBL6-150	175	150	119.2	19.05	30.7	M6 x 1.0P	12	9	3 ~ 6	0.91
5073-277-006-125	HSK63AxEBL6-125	157	125	88.8	19.05	27.7	M6 x 1.0P	12	9	3 ~ 6	1.06
5073-277-006-150	HSK63AxEBL6-150	182	150	115	19.05	30.3	M6 x 1.0P	12	9	3 ~ 6	1.19
5073-277-008-125	HSK63AxEBL8-125	157	125	90.4	22.225	31	M8 x 1.25P	29	21	3 ~ 8	1.12
5073-277-008-150	HSK63AxEBL8-150	182	150	116.7	22.225	33.6	M8 x 1.25P	29	21	3 ~ 8	1.26
5075-277-006-125	HSK100AxEBL6-125	175	125	85.6	19.05	27.4	M6 x 1.0P	12	9	3 ~ 6	2.34
5075-277-006-150	HSK100AxEBL6-150	200	150	111.9	19.05	30	M6 x 1.0P	12	9	3 ~ 6	2.49
5075-277-008-125	HSK100AxEBL8-125	175	125	87.3	22.225	30.7	M8 x 1.25P	29	21	3 ~ 8	2.41
5075-277-008-150	HSK100AxEBL8-150	200	150	113.6	22.225	33.3	M8 x 1.25P	29	21	3 ~ 8	2.55

PSC/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/PSC-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5141-277-006-100	PSC40xEBL6-100	124	100	75.2	19.05	26.4	M6 x 1.0P	12	9	3 ~ 6	0.58
5142-277-006-100	PSC50xEBL6-100	130	100	68.5	19.05	25.7	M6 x 1.0P	12	9	3 ~ 6	0.79
5142-277-008-100	PSC50xEBL8-100	130	100	74.1	22.225	29.4	M8 x 1.25P	29	21	3 ~ 8	0.79
5143-277-006-100	PSC63xEBL6-100	138	100	66.4	19.05	25.5	M6 x 1.0P	12	9	3 ~ 6	1.10
5143-277-008-100	PSC63xEBL8-100	138	100	64.8	22.225	28.5	M8 x 1.25P	29	21	3 ~ 8	1.15
5143-277-008-125	PSC63xEBL8-125	163	125	91	22.225	31.1	M8 x 1.25P	29	21	3 ~ 8	1.25
5143-277-008-150	PSC63xEBL8-150	188	150	116.8	22.225	33.7	M8 x 1.25P	29	21	3 ~ 8	1.37
5144-277-006-100	PSC80xEBL6-100	148	100	66.4	19.05	25.5	M6 x 1.0P	12	9	3 ~ 6	2.19
5144-277-008-100	PSC80xEBL8-100	148	100	64.8	22.225	28.5	M8 x 1.25P	29	21	3 ~ 8	3.56

ISO/EBL後拉式刀桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/ISO-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5113-277-006-070	ISO30xEBL6-70	117.8	70	41.2	19.05	23.1	M6 x 1.0P	12	9	3 ~ 6	0.52

直柄EBL小徑延長桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/C-EBL_figure.jpg

MODEL NO.	TYPE	L	l1	d2	T	C	SIZE RANGE	WEIGHT (KGS)
5272-277-01206-120	C12xEBL6-120	120	-	12	M6	12	3 ~ 6	0.12
5272-277-01206-150	C12xEBL6-150	150	-	12	M6	12	3 ~ 6	0.15
5272-277-01606-120	C16xEBL6-120	120	50	13	M6	16	3 ~ 6	0.13
5272-277-01606-150	C16xEBL6-150	150	50	13	M6	16	3 ~ 6	0.17
5272-277-01606-200	C16xEBL6-200	200	100	13	M6	16	3 ~ 6	0.24
5272-277-02006-120	C20xEBL6-120	120	50	13	M6	20	3 ~ 6	0.21
5272-277-02006-150	C20xEBL6-150	150	50	13	M6	20	3 ~ 6	0.28
5272-277-02006-200	C20xEBL6-200	200	100	13	M6	20	3 ~ 6	0.38
5272-277-02008-120	C20xEBL8-120	120	-	20	M8	20	3 ~ 8	0.18
5272-277-02008-150	C20xEBL8-150	150	-	20	M8	20	3 ~ 8	0.25
5272-277-02008-200	C20xEBL8-200	200	-	20	M8	20	3 ~ 8	0.35
5272-277-02506-120	C25xEBL6-120	120	50	13	M6	25	3 ~ 6	0.33
5272-277-02506-150	C25xEBL6-150	150	50	13	M6	25	3 ~ 6	0.44
5272-277-02506-200	C25xEBL6-200	200	100	13	M6	25	3 ~ 6	0.62
5272-277-02508-120	C25xEBL8-120	120	50	19	M8	25	3 ~ 8	0.32
5272-277-02508-150	C25xEBL8-150	150	50	19	M8	25	3 ~ 8	0.42
5272-277-02508-200	C25xEBL8-200	200	100	19	M8	25	3 ~ 8	0.59
英制
5272-277-A3206-127	C1/2"xEBL6-5"	5	-	0.5	M6	0.5	1/8 ~ 1/4	0.14
5272-277-A3206-152	C1/2"xEBL6-6"	6	-	0.5	M6	0.5	1/8 ~ 1/4	0.16
5272-277-A4006-127	C5/8"xEBL6-5"	5	1.969	0.512	M6	0.625	1/8 ~ 1/4	0.13
5272-277-A4006-152	C5/8"xEBL6-6"	6	1.969	0.512	M6	0.625	1/8 ~ 1/4	0.17
5272-277-A4006-203	C5/8"xEBL6-8"	8	3.937	0.512	M6	0.625	1/8 ~ 1/4	0.24
5272-277-A4806-127	C3/4"xEBL6-5"	5	1.969	0.512	M6	0.75	1/8 ~ 1/4	0.19
5272-277-A4806-152	C3/4"xEBL6-6"	6	1.969	0.512	M6	0.75	1/8 ~ 1/4	0.25
5272-277-A4806-203	C3/4"xEBL6-8"	8	3.937	0.512	M6	0.75	1/8 ~ 1/4	0.35
5272-277-A4808-127	C3/4"xEBL8-5"	5	1.969	0.75	M8	0.75	1/8 ~ 5/16	0.13
5272-277-A4808-152	C3/4"xEBL8-6"	6	1.969	0.75	M8	0.75	1/8 ~ 5/16	0.17
5272-277-A4808-203	C3/4"xEBL8-8"	8	3.937	0.75	M8	0.75	1/8 ~ 5/16	0.24
5272-277-A6406-127	C1"xEBL6-5"	5	1.969	0.512	M6	1	1/8 ~ 1/4	0.19
5272-277-A6406-152	C1"xEBL6-6"	6	1.969	0.512	M6	1	1/8 ~ 1/4	0.25
5272-277-A6406-203	C1"xEBL6-8"	8	3.937	0.512	M6	1	1/8 ~ 1/4	0.35
5272-277-A6408-127	C1"xEBL8-5"	5	1.969	0.748	M8	1	1/8 ~ 5/16	0.16
5272-277-A6408-152	C1"xEBL8-6"	6	1.969	0.748	M8	1	1/8 ~ 5/16	0.22
5272-277-A6408-203	C1"xEBL8-8"	8	3.937	0.748	M8	1	1/8 ~ 5/16	0.31

series

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/EBL/EBL技術資訊.jpg

series

EBL後拉式刀桿鎖固應用

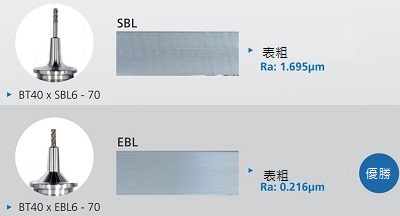

EBL延長筒夾型刀桿及標準型SBL刀桿比較

EBL後拉式立銑刀夾頭

產品描述
