PRO-E筒夾式刀桿

series

SBT/PRO-E法蘭加厚型精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/SBT-PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5025-529-016-070	SBT30xPRO-E16-70	118.4	70	43	30	30	M10 x 1.5P	1 ~ 10	0.58
5025-529-016-100	SBT30xPRO-E16-100	148.4	100	73	30	30	M10 x 1.5P	1 ~ 10	0.73
5025-529-016-125	SBT30xPRO-E16-125	173.4	125	98	30	30	M10 x 1.5P	1 ~ 10	0.85
5025-529-016-150	SBT30xPRO-E16-150	198.4	150	123	30	30	M10 x 1.5P	1 ~ 10	0.97
5025-529-020-070	SBT30xPRO-E20-70	118.4	70	44	35	35	M12 x 1.75P	1 ~ 13	0.65
5025-529-020-100	SBT30xPRO-E20-100	148.4	100	74	35	35	M12 x 1.75P	1 ~ 13	0.85
5025-529-020-125	SBT30xPRO-E20-125	173.4	125	99	35	35	M12 x 1.75P	1 ~ 13	1.02
5025-529-020-150	SBT30xPRO-E20-150	198.4	150	124	35	35	M12 x 1.75P	1 ~ 13	1.19
5025-529-025-070	SBT30xPRO-E25-70	118.4	70	47.5	42	42	M16 x 2.0P	1 ~ 16	0.73
5025-529-025-100	SBT30xPRO-E25-100	148.4	100	77.5	42	42	M16 x 2.0P	1 ~ 16	1.03
5025-529-025-125	SBT30xPRO-E25-125	173.4	125	102.5	42	42	M16 x 2.0P	1 ~ 16	1.28
5025-529-025-150	SBT30xPRO-E25-150	198.4	150	127.5	42	42	M16 x 2.0P	1 ~ 16	1.53
5025-529-032-070	SBT30xPRO-E32-70	118.4	70	47.5	50	50	M16 x 2.0P	2 ~ 20	0.79
5025-529-032-100	SBT30xPRO-E32-100	148.4	100	77.5	50	50	M16 x 2.0P	2 ~ 20	1.22
5025-529-032-125	SBT30xPRO-E32-125	173.4	125	102.5	50	50	M16 x 2.0P	2 ~ 20	1.58
5025-529-032-150	SBT30xPRO-E32-150	198.4	150	127.5	50	50	M16 x 2.0P	2 ~ 20	1.95
5026-529-016-070	SBT40xPRO-E16-70	135.4	70	38	30	30	M10 x 1.5P	1 ~ 10	1.14
5026-529-016-100	SBT40xPRO-E16-100	165.4	100	63	30	30	M10 x 1.5P	1 ~ 10	1.28
5026-529-016-125	SBT40xPRO-E16-125	190.4	125	88	30	30	M10 x 1.5P	1 ~ 10	1.38
5026-529-016-150	SBT40xPRO-E16-150	215.4	150	113	30	30	M10 x 1.5P	1 ~ 10	1.49
5026-529-016-200	SBT40xPRO-E16-200	265.4	200	163	30	30	M10 x 1.5P	1 ~ 10	1.70
5026-529-016-250	SBT40xPRO-E16-250	315.4	250	213	30	30	M10 x 1.5P	1 ~ 10	1.90
5026-529-020-070	SBT40xPRO-E20-70	135.4	70	35	35	35	M12 x 1.75P	1 ~ 13	1.19
5026-529-020-100	SBT40xPRO-E20-100	165.4	100	65	35	35	M12 x 1.75P	1 ~ 13	1.38
5026-529-020-125	SBT40xPRO-E20-125	190.4	125	90	35	35	M12 x 1.75P	1 ~ 13	1.54
5026-529-020-150	SBT40xPRO-E20-150	215.4	150	115	35	35	M12 x 1.75P	1 ~ 13	1.69
5026-529-020-200	SBT40xPRO-E20-200	265.4	200	165	35	35	M12 x 1.75P	1 ~ 13	2.00
5026-529-020-250	SBT40xPRO-E20-250	315.4	250	215	35	35	M12 x 1.75P	1 ~13	2.30
5026-529-025-070	SBT40xPRO-E25-70	135.4	70	40	42	42	M16 x 2.0P	1 ~ 16	1.26
5026-529-025-100	SBT40xPRO-E25-100	165.4	100	70	42	42	M16 x 2.0P	1 ~ 16	1.54
5026-529-025-125	SBT40xPRO-E25-125	190.4	125	95	42	42	M16 x 2.0P	1 ~ 16	1.78
5026-529-025-150	SBT40xPRO-E25-150	215.4	150	120	42	42	M16 x 2.0P	1 ~ 16	2.02
5026-529-025-200	SBT40xPRO-E25-200	265.4	200	170	42	42	M16 x 2.0P	1 ~ 16	2.49
5026-529-025-250	SBT40xPRO-E25-250	315.4	250	220	42	42	M16 x 2.0P	1 ~ 16	2.94
5026-529-032-070	SBT40xPRO-E32-70	135.4	70	40	50	50	M16 x 2.0P	2 ~ 20	1.31
5026-529-032-100	SBT40xPRO-E32-100	165.4	100	70	50	50	M16 x 2.0P	2 ~ 20	1.73
5026-529-032-125	SBT40xPRO-E32-125	190.4	125	95	50	50	M16 x 2.0P	2 ~ 20	2.08
5026-529-032-150	SBT40xPRO-E32-150	215.4	150	120	50	50	M16 x 2.0P	2 ~ 20	2.43
5026-529-032-200	SBT40xPRO-E32-200	265.4	200	170	50	50	M16 x 2.0P	2 ~ 20	3.13
5026-529-032-250	SBT40xPRO-E32-250	315.4	250	220	50	50	M16 x 2.0P	2 ~ 20	3.81
5027-529-016-070	SBT50xPRO-E16-70	171.8	70	30	30	30	M10 x 1.5P	1~10	3.68
5027-529-016-100	SBT50xPRO-E16-100	201.8	100	52	30	30	M10 x 1.5P	1~10	3.78
5027-529-016-125	SBT50xPRO-E16-125	226.8	125	77	30	30	M10 x 1.5P	1~10	3.92
5027-529-016-150	SBT50xPRO-E16-150	251.8	150	102	30	30	M10 x 1.5P	1~10	4.03
5027-529-016-200	SBT50xPRO-E16-200	301.8	200	147	30	30	M10 x 1.5P	1~10	4.27
5027-529-020-070	SBT50xPRO-E20-70	171.8	70	31	35	35	M12 x 1.75P	1~13	3.70
5027-529-020-100	SBT50xPRO-E20-100	201.8	100	52	35	35	M12 x 1.75P	1~13	3.86
5027-529-020-125	SBT50xPRO-E20-125	226.8	125	77	35	35	M12 x 1.75P	1~13	4.06
5027-529-020-150	SBT50xPRO-E20-150	251.8	150	102	35	35	M12 x 1.75P	1~13	4.22
5027-529-020-200	SBT50xPRO-E20-200	301.8	200	147	35	35	M12 x 1.75P	1~13	4.56
5027-529-025-070	SBT50xPRO-E25-70	171.8	70	31	42	42	M16 x 2.0P	1~16	3.74
5027-529-025-100	SBT50xPRO-E25-100	201.8	100	52	42	42	M16 x 2.0P	1~16	4.00
5027-529-025-125	SBT50xPRO-E25-125	226.8	125	77	42	42	M16 x 2.0P	1~16	4.20
5027-529-025-150	SBT50xPRO-E25-150	251.8	150	102	42	42	M16 x 2.0P	1~16	4.40
5027-529-025-200	SBT50xPRO-E25-200	301.8	200	152	42	42	M16 x 2.0P	1~16	4.80
5027-529-025-250	SBT50xPRO-E25-250	351.8	250	197	42	42	M16 x 2.0P	1~16	5.24
5027-529-032-070	SBT50xPRO-E32-70	171.8	70	31	50	50	M16 x 2.0P	2~20	3.77
5027-529-032-100	SBT50xPRO-E32-100	201.8	100	52	50	50	M16 x 2.0P	2~20	4.17
5027-529-032-125	SBT50xPRO-E32-125	226.8	125	77	50	50	M16 x 2.0P	2~20	4.48
5027-529-032-150	SBT50xPRO-E32-150	251.8	150	102	50	50	M16 x 2.0P	2~20	4.79
5027-529-032-200	SBT50xPRO-E32-200	301.8	200	152	50	50	M16 x 2.0P	2~20	5.42
5027-529-032-250	SBT50xPRO-E32-250	351.8	250	197	50	50	M16 x 2.0P	2~20	6.08
5027-529-032-300	SBT50xPRO-E32-300	401.8	300	247	50	50	M16 x 2.0P	2~20	6.70
5027-529-032-350	SBT50xPRO-E32-350	451.8	350	297	50	50	M16 x 2.0P	2~20	7.32

SCAT/PRO-E法蘭加厚型精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/SCAT-PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5043-529-016-070	SCAT40xPRO-E16-2.76"	5.447	2.76	1.259	1.181	1.181	M10 x 1.5P	0.0625~ 0.406	1.13
5043-529-016-102	SCAT40xPRO-E16-4"	6.687	4	2.175	1.181	1.181	M10 x 1.5P	0.0625~ 0.406	1.29
5043-529-016-127	SCAT40xPRO-E16-5"	7.687	5	3.175	1.181	1.181	M10 x 1.5P	0.0625~ 0.406	1.40
5043-529-016-152	SCAT40xPRO-E16-6"	8.687	6	4.175	1.181	1.181	M10 x 1.5P	0.0625~ 0.406	1.51
5043-529-016-203	SCAT40xPRO-E16-8"	10.687	8	6.175	1.181	1.181	M10 x 1.5P	0.0625~ 0.406	1.72
5043-529-020-070	SCAT40xPRO-E20-2.76"	5.447	2.76	1.299	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	1.17
5043-529-020-102	SCAT40xPRO-E20-4"	6.687	4	2.354	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	1.37
5043-529-020-127	SCAT40xPRO-E20-5"	7.687	5	3.354	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	1.53
5043-529-020-152	SCAT40xPRO-E20-6"	8.687	6	4.354	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	1.69
5043-529-020-203	SCAT40xPRO-E20-8"	10.687	8	6.354	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	2.01
5043-529-025-070	SCAT40xPRO-E25-2.76"	5.447	2.76	1.329	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	1.21
5043-529-025-102	SCAT40xPRO-E25-4"	6.687	4	2.573	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	1.51
5043-529-025-127	SCAT40xPRO-E25-5"	7.687	5	3.573	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	1.75
5043-529-025-152	SCAT40xPRO-E25-6"	8.687	6	4.573	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	2.00
5043-529-025-203	SCAT40xPRO-E25-8"	10.687	8	6.573	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	2.48
5043-529-032-070	SCAT40xPRO-E32-2.76"	5.447	2.76	1.378	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	1.22
5043-529-032-102	SCAT40xPRO-E32-4"	6.687	4	2.622	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	1.66
5043-529-032-127	SCAT40xPRO-E32-5"	7.687	5	3.622	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	2.01
5043-529-032-152	SCAT40xPRO-E32-6"	8.687	6	4.622	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	2.37
5043-529-032-203	SCAT40xPRO-E32-8"	10.687	8	6.622	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	3.08
5044-529-016-070	SCAT50xPRO-E16-2.75"	6.75	2.75	1.175	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.17
5044-529-016-102	SCAT50xPRO-E16-4"	8	4	2.228	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.27
5044-529-016-127	SCAT50xPRO-E16-5"	9	5	3.031	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.42
5044-529-016-152	SCAT50xPRO-E16-6"	10	6	4.031	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.53
5044-529-016-203	SCAT50xPRO-E16-8"	12	8	6.031	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.73
5044-529-016-254	SCAT50xPRO-E16-10"	14	10	8.031	1.181	1.181	M10 x 1.5P	0.0625 ~ 0.406	3.95
5044-529-020-070	SCAT50xPRO-E20-2.75"	6.75	2.75	1.175	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	3.20
5044-529-020-102	SCAT50xPRO-E20-4"	8	4	2.425	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	3.35
5044-529-020-127	SCAT50xPRO-E20-5"	9	5	3.228	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	3.52
5044-529-020-152	SCAT50xPRO-E20-6"	10	6	4.228	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	3.67
5044-529-020-203	SCAT50xPRO-E20-8"	12	8	6.228	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	3.96
5044-529-020-254	SCAT50xPRO-E20-10"	14	10	8.228	1.378	1.378	M12 x 1.75P	0.0625 ~ 0.5	4.26
5044-529-025-070	SCAT50xPRO-E25-2.75"	6.75	2.75	1.175	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	3.24
5044-529-025-102	SCAT50xPRO-E25-4"	8	4	2.228	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	3.52
5044-529-025-127	SCAT50xPRO-E25-5"	9	5	3.228	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	3.72
5044-529-025-152	SCAT50xPRO-E25-6"	10	6	4.228	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	3.92
5044-529-025-203	SCAT50xPRO-E25-8"	12	8	6.228	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	4.33
5044-529-025-254	SCAT50xPRO-E25-10"	14	10	8.228	1.653	1.653	M16 x 2.0P	0.093 ~ 0.625	4.74
5044-529-032-070	SCAT50xPRO-E32-2.75"	6.75	2.75	1.254	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	3.28
5044-529-032-102	SCAT50xPRO-E32-4"	8	4	2.425	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	3.68
5044-529-032-127	SCAT50xPRO-E32-5"	9	5	3.425	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	3.99
5044-529-032-152	SCAT50xPRO-E32-6"	10	6	4.425	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	4.31
5044-529-032-203	SCAT50xPRO-E32-8"	12	8	6.425	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	4.94
5044-529-032-254	SCAT50xPRO-E32-10"	14	10	8.425	1.969	1.969	M16 x 2.0P	0.0625 ~ 0.75	5.58

SDAT/PRO-E法蘭加厚型精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/SDAT-PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5066-529-016-070	SDAT40xPRO-E16-70	138.4	70	45.9	30	30	M10 x 1.5P	1 ~ 10	1.03
5066-529-016-100	SDAT40xPRO-E16-100	168.4	100	75.9	30	30	M10 x 1.5P	1 ~ 10	1.16
5066-529-016-125	SDAT40xPRO-E16-125	193.4	125	100.9	30	30	M10 x 1.5P	1 ~ 10	1.27
5066-529-016-150	SDAT40xPRO-E16-150	218.4	150	125.9	30	30	M10 x 1.5P	1 ~ 10	1.37
5066-529-016-200	SDAT40xPRO-E16-200	268.4	200	175.9	30	30	M10 x 1.5P	1 ~ 10	1.59
5066-529-020-070	SDAT40xPRO-E20-70	138.4	70	45.9	35	35	M12 x 1.75P	1 ~ 13	1.10
5066-529-020-100	SDAT40xPRO-E20-100	168.4	100	75.9	35	35	M12 x 1.75P	1 ~ 13	1.29
5066-529-020-125	SDAT40xPRO-E20-125	193.4	125	100.9	35	35	M12 x 1.75P	1 ~ 13	1.44
5066-529-020-150	SDAT40xPRO-E20-150	218.4	150	125.9	35	35	M12 x 1.75P	1 ~ 13	1.60
5066-529-020-200	SDAT40xPRO-E20-200	268.4	200	175.9	35	35	M12 x 1.75P	1 ~ 13	1.91
5066-529-025-070	SDAT40xPRO-E25-70	138.4	70	45.9	42	42	M16 x 2.0P	1 ~ 16	1.20
5066-529-025-100	SDAT40xPRO-E25-100	168.4	100	75.9	42	42	M16 x 2.0P	1 ~ 16	1.48
5066-529-025-125	SDAT40xPRO-E25-125	193.4	125	100.9	42	42	M16 x 2.0P	1 ~ 16	1.72
5066-529-025-150	SDAT40xPRO-E25-150	218.4	150	125.9	42	42	M16 x 2.0P	1 ~ 16	1.95
5066-529-025-200	SDAT40xPRO-E25-200	268.4	200	175.9	42	42	M16 x 2.0P	1 ~ 16	2.43
5066-529-032-070	SDAT40xPRO-E32-70	138.4	70	50.1	50	50	M16 x 2.0P	2 ~ 20	1.26
5066-529-032-100	SDAT40xPRO-E32-100	168.4	100	80.1	50	50	M16 x 2.0P	2 ~ 20	1.66
5066-529-032-125	SDAT40xPRO-E32-125	193.4	125	105.1	50	50	M16 x 2.0P	2 ~ 20	1.99
5066-529-032-150	SDAT40xPRO-E32-150	218.4	150	130.1	50	50	M16 x 2.0P	2 ~ 20	2.32
5066-529-032-200	SDAT40xPRO-E32-200	268.4	200	180.1	50	50	M16 x 2.0P	2 ~ 20	2.99
5067-529-016-070	SDAT50xPRO-E16-70	171.75	70	45.9	30	30	M10 x 1.5P	1 ~ 10	2.79
5067-529-016-100	SDAT50xPRO-E16-100	201.75	100	75.9	30	30	M10 x 1.5P	1 ~ 10	2.91
5067-529-016-125	SDAT50xPRO-E16-125	226.75	125	95.9	30	30	M10 x 1.5P	1 ~ 10	3.03
5067-529-016-150	SDAT50xPRO-E16-150	251.75	150	120.9	30	30	M10 x 1.5P	1 ~ 10	3.14
5067-529-016-200	SDAT50xPRO-E16-200	301.75	200	170.9	30	30	M10 x 1.5P	1 ~ 10	3.35
5067-529-016-250	SDAT50xPRO-E16-250	351.75	250	220.9	30	30	M10 x 1.5P	1 ~ 10	3.56
5067-529-020-070	SDAT50xPRO-E20-70	171.75	70	45.9	35	35	M12 x 1.75P	1 ~ 13	2.85
5067-529-020-100	SDAT50xPRO-E20-100	201.75	100	75.9	35	35	M12 x 1.75P	1 ~ 13	3.04
5067-529-020-125	SDAT50xPRO-E20-125	226.75	125	95.9	35	35	M12 x 1.75P	1 ~ 13	3.21
5067-529-020-150	SDAT50xPRO-E20-150	251.75	150	120.9	35	35	M12 x 1.75P	1 ~ 13	3.36
5067-529-020-200	SDAT50xPRO-E20-200	301.75	200	170.9	35	35	M12 x 1.75P	1 ~ 13	3.67
5067-529-020-250	SDAT50xPRO-E20-250	351.75	250	220.9	35	35	M12 x 1.75P	1 ~ 13	3.98
5067-529-025-070	SDAT50xPRO-E25-70	171.75	70	45.9	42	42	M16 x 2.0P	1 ~ 16	2.95
5067-529-025-100	SDAT50xPRO-E25-100	201.75	100	75.9	42	42	M16 x 2.0P	1 ~ 16	3.19
5067-529-025-125	SDAT50xPRO-E25-125	226.75	125	95.9	42	42	M16 x 2.0P	1 ~ 16	3.41
5067-529-025-150	SDAT50xPRO-E25-150	251.75	150	120.9	42	42	M16 x 2.0P	1 ~ 16	3.61
5067-529-025-200	SDAT50xPRO-E25-200	301.75	200	170.9	42	42	M16 x 2.0P	1 ~ 16	4.01
5067-529-025-250	SDAT50xPRO-E25-250	351.75	250	220.9	42	42	M16 x 2.0P	1 ~ 16	4.41
5067-529-032-070	SDAT50xPRO-E32-70	171.75	70	45.9	50	50	M16 x 2.0P	2 ~ 20	3.06
5067-529-032-100	SDAT50xPRO-E32-100	201.75	100	75.9	50	50	M16 x 2.0P	2 ~ 20	3.43
5067-529-032-125	SDAT50xPRO-E32-125	226.75	125	95.9	50	50	M16 x 2.0P	2 ~ 20	3.76
5067-529-032-150	SDAT50xPRO-E32-150	251.75	150	120.9	50	50	M16 x 2.0P	2 ~ 20	4.08
5067-529-032-200	SDAT50xPRO-E32-200	301.75	200	170.9	50	50	M16 x 2.0P	2 ~ 20	4.7
5067-529-032-250	SDAT50xPRO-E32-250	351.75	250	220.9	50	50	M16 x 2.0P	2 ~ 20	5.32

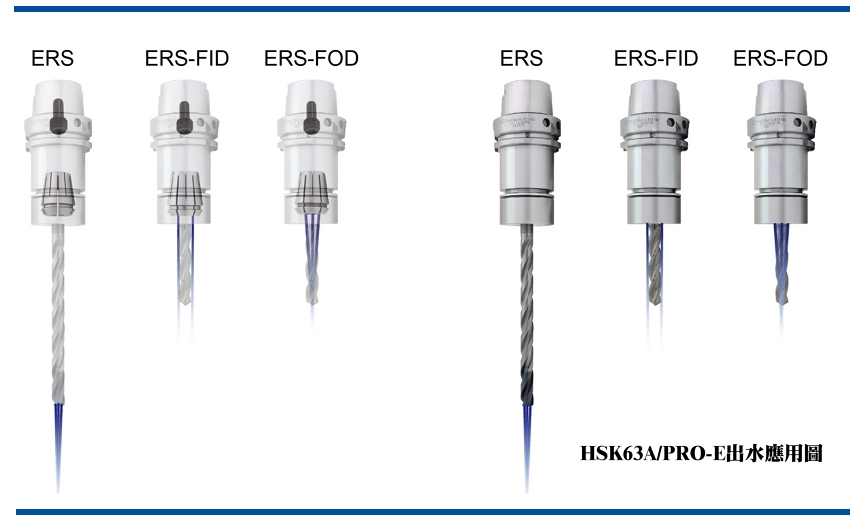

HSK-A/PRO-E精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/HSK-PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5071-529-016-070	HSK40AxPRO-E16-70	90	70	48	30	30	-	1~10	0.40
5071-529-016-100	HSK40AxPRO-E16-100	120	100	78	30	30	M10x1.5P	1~10	0.55
5071-529-020-070	HSK40AxPRO-E20-70	90	70	49	35	33.5	-	1~13	0.47
5071-529-020-100	HSK40AxPRO-E20-100	120	100	79	35	33.5	M12x1.75P	1~13	0.63
5071-529-025-070	HSK40AxPRO-E25-70	90	70	35	42	42	-	1~16	0.51
5071-529-025-100	HSK40AxPRO-E25-100	120	100	65	42	42	M16x2.0P	1~16	0.80
5071-529-032-070	HSK40AxPRO-E32-70	90	70	35	50	50	-	2~20	0.56
5071-529-032-100	HSK40AxPRO-E32-100	120	100	65	50	50	M16x2.0P	2~20	0.98
5072-529-016-070	HSK50AxPRO-E16-70	95	70	42	30	30	-	1~10	0.56
5072-529-016-100	HSK50AxPRO-E16-100	125	100	71	30	30	M10x1.5P	1~10	0.71
5072-529-016-125	HSK50AxPRO-E16-125	150	125	96	30	30	M10x1.5P	1~10	0.84
5072-529-016-150	HSK50AxPRO-E16-150	175	150	121	30	30	M10x1.5P	1~10	0.97
5072-529-020-070	HSK50AxPRO-E20-70	95	70	42	35	35	-	1~13	0.62
5072-529-020-100	HSK50AxPRO-E20-100	125	100	71	35	35	M12x1.75P	1~13	0.83
5072-529-020-125	HSK50AxPRO-E20-125	150	125	96	35	35	M12x1.75P	1~13	1.01
5072-529-020-150	HSK50AxPRO-E20-150	175	150	121	35	35	M12x1.75P	1~13	1.19
5072-529-025-070	HSK50AxPRO-E25-70	95	70	43.5	42	42	-	1~16	0.71
5072-529-025-100	HSK50AxPRO-E25-100	125	100	73.5	42	42	M16x2.0P	1~16	1.00
5072-529-025-125	HSK50AxPRO-E25-125	150	125	98.5	42	42	M16x2.0P	1~16	1.26
5072-529-025-150	HSK50AxPRO-E25-150	175	150	123.5	42	42	M16x2.0P	1~16	1.52
5072-529-032-080	HSK50AxPRO-E32-80	105	80	53	50	50	-	2~20	0.85
5072-529-032-100	HSK50AxPRO-E32-100	125	100	73	50	50	M16x2.0P	2~20	1.11
5072-529-032-125	HSK50AxPRO-E32-125	150	125	98	50	50	M16x2.0P	2~20	1.47
5072-529-032-150	HSK50AxPRO-E32-150	175	150	123	50	50	M16x2.0P	2~20	1.84
5073-529-016-070	HSK63AxPRO-E16-70	102	70	39	30	30	-	1~10	0.82
5073-529-016-100	HSK63AxPRO-E16-100	132	100	69	30	30	M10x1.5P	1~10	0.97
5073-529-016-125	HSK63AxPRO-E16-125	157	125	94	30	30	M10x1.5P	1~10	1.09
5073-529-016-150	HSK63AxPRO-E16-150	182	150	119	30	30	M10x1.5P	1~10	1.22
5073-529-016-200	HSK63AxPRO-E16-200	232	200	169	30	30	M10x1.5P	1~10	1.47
5073-529-020-070	HSK63AxPRO-E20-70	102	70	39	35	35	-	1~13	0.88
5073-529-020-100	HSK63AxPRO-E20-100	132	100	69	35	35	M12x1.75P	1~13	1.08
5073-529-020-125	HSK63AxPRO-E20-125	157	125	94	35	35	M12x1.75P	1~13	1.25
5073-529-020-150	HSK63AxPRO-E20-150	182	150	119	35	35	M12x1.75P	1~13	1.43
5073-529-020-200	HSK63AxPRO-E20-200	232	200	169	35	35	M12x1.75P	1~13	1.78
5073-529-025-070	HSK63AxPRO-E25-70	102	70	41	42	42	-	1~16	0.97
5073-529-025-100	HSK63AxPRO-E25-100	132	100	71	42	42	M16x2.0P	1~16	1.26
5073-529-025-125	HSK63AxPRO-E25-125	157	125	96	42	42	M16x2.0P	1~16	1.51
5073-529-025-150	HSK63AxPRO-E25-150	192	150	121	42	42	M16x2.0P	1~16	1.77
5073-529-025-200	HSK63AxPRO-E25-200	232	200	171	42	42	M16x2.0P	1~16	2.28
5073-529-032-080	HSK63AxPRO-E32-80	112	80	51	50	50	-	2~20	1.01
5073-529-032-100	HSK63AxPRO-E32-100	132	100	71	50	50	M16x2.0P	2~20	1.39
5073-529-032-125	HSK63AxPRO-E32-125	157	125	96	50	50	M16x2.0P	2~20	1.69
5073-529-032-150	HSK63AxPRO-E32-150	182	150	121	50	50	M16x2.0P	2~20	2.02
5073-529-032-200	HSK63AxPRO-E32-200	232	200	171	50	50	M16x2.0P	2~20	2.70
5074-529-016-070	HSK80AxPRO-E16-70	110	70	39	30	30	-	1~10	1.25
5074-529-016-100	HSK80AxPRO-E16-100	140	100	69	30	30	M10x1.5P	1~10	1.40
5074-529-016-125	HSK80AxPRO-E16-125	165	125	94	30	30	M10x1.5P	1~10	1.52
5074-529-016-150	HSK80AxPRO-E16-150	190	150	119	30	30	M10x1.5P	1~10	1.64
5074-529-016-200	HSK80AxPRO-E16-200	240	200	169	30	30	M10x1.5P	1~10	1.88
5074-529-020-070	HSK80AxPRO-E20-70	110	70	39	35	35	-	1~13	1.31
5074-529-020-100	HSK80AxPRO-E20-100	140	100	69	35	35	M12x1.75P	1~13	1.52
5074-529-020-125	HSK80AxPRO-E20-125	165	125	94	35	35	M12x1.75P	1~13	1.69
5074-529-020-150	HSK80AxPRO-E20-150	190	150	119	35	35	M12x1.75P	1~13	1.86
5074-529-020-200	HSK80AxPRO-E20-200	240	200	169	35	35	M12x1.75P	1~13	2.20
5074-529-025-070	HSK80AxPRO-E25-70	110	70	39	42	42	-	1~16	1.41
5074-529-025-100	HSK80AxPRO-E25-100	140	100	69	42	42	M16x2.0P	1~16	1.69
5074-529-025-125	HSK80AxPRO-E25-125	165	125	94	42	42	M16x2.0P	1~16	1.94
5074-529-025-150	HSK80AxPRO-E25-150	190	150	119	42	42	M16x2.0P	1~16	2.17
5074-529-025-200	HSK80AxPRO-E25-200	240	200	169	42	42	M16x2.0P	1~16	2.69
5074-529-032-080	HSK80AxPRO-E32-80	120	80	49	50	50	-	2~20	1.63
5074-529-032-100	HSK80AxPRO-E32-100	140	100	69	50	50	-	2~20	1.89
5074-529-032-125	HSK80AxPRO-E32-125	165	125	94	50	50	M16x2.0P	2~20	2.24
5074-529-032-150	HSK80AxPRO-E32-150	190	150	119	50	50	M16x2.0P	2~20	2.60
5074-529-032-200	HSK80AxPRO-E32-200	240	200	169	50	50	M16x2.0P	2~20	3.33
5075-529-016-100	HSK100AxPRO-E16-100	150	100	61	30	30	M10x1.5P	1~10	2.29
5075-529-016-125	HSK100AxPRO-E16-125	175	125	86	30	30	M10x1.5P	1~10	2.41
5075-529-016-150	HSK100AxPRO-E16-150	200	150	111	30	30	M10x1.5P	1~10	2.52
5075-529-016-200	HSK100AxPRO-E16-200	250	200	161	30	30	M10x1.5P	1~10	2.75
5075-529-020-100	HSK100AxPRO-E20-100	150	100	61	35	35	M12x1.75P	1~13	2.40
5075-529-020-125	HSK100AxPRO-E20-125	175	125	86	35	35	M12x1.75P	1~13	2.57
5075-529-020-150	HSK100AxPRO-E20-150	200	150	111	35	35	M12x1.75P	1~13	2.73
5075-529-020-200	HSK100AxPRO-E20-200	250	200	161	35	35	M12x1.75P	1~13	3.06
5075-529-025-100	HSK100AxPRO-E25-100	150	100	61	42	42	M16x2.0P	1~16	2.58
5075-529-025-125	HSK100AxPRO-E25-125	175	125	86	42	42	M16x2.0P	1~16	2.81
5075-529-025-150	HSK100AxPRO-E25-150	200	150	111	42	42	M16x2.0P	1~16	3.06
5075-529-025-200	HSK100AxPRO-E25-200	250	200	161	42	42	M16x2.0P	1~16	3.55
5075-529-032-100	HSK100AxPRO-E32-100	150	100	61	50	50	-	2~20	2.76
5075-529-032-125	HSK100AxPRO-E32-125	175	125	86	50	50	M16x2.0P	2~20	3.09
5075-529-032-150	HSK100AxPRO-E32-150	200	150	111	50	50	M16x2.0P	2~20	3.46
5075-529-032-200	HSK100AxPRO-E32-200	250	200	161	50	50	M16x2.0P	2~20	4.18
5076-529-016-100	HSK125AxPRO-E16-100	163	100	41	30	30	M10x1.5P	1~10	3.91
5076-529-016-125	HSK125AxPRO-E16-125	188	125	66	30	30	M10x1.5P	1~10	4.03
5076-529-016-150	HSK125AxPRO-E16-150	213	150	91	30	30	M10x1.5P	1~10	4.13
5076-529-016-200	HSK125AxPRO-E16-200	263	200	141	30	30	M10x1.5P	1~10	4.34
5076-529-020-100	HSK125AxPRO-E20-100	163	100	44	35	35	M12x1.75P	1~13	3.97
5076-529-020-125	HSK125AxPRO-E20-125	188	125	69	35	35	M12x1.75P	1~13	4.13
5076-529-020-150	HSK125AxPRO-E20-150	213	150	94	35	35	M12x1.75P	1~13	4.29
5076-529-020-200	HSK125AxPRO-E20-200	263	200	144	35	35	M12x1.75P	1~13	4.60
5076-529-025-100	HSK125AxPRO-E25-100	163	100	47	42	42	M16x2.0P	1~16	4.07
5076-529-025-125	HSK125AxPRO-E25-125	188	125	72	42	42	M16x2.0P	1~16	4.31
5076-529-025-150	HSK125AxPRO-E25-150	213	150	97	42	42	M16x2.0P	1~16	4.55
5076-529-025-200	HSK125AxPRO-E25-200	263	200	147	42	42	M16x2.0P	1~16	5.02
5076-529-032-100	HSK125AxPRO-E32-100	163	100	61	50	50	M16x2.0P	2~20	4.02
5076-529-032-125	HSK125AxPRO-E32-125	188	125	86	50	50	M16x2.0P	2~20	4.41
5076-529-032-150	HSK125AxPRO-E32-150	213	150	111	50	50	M16x2.0P	2~20	4.74
5076-529-032-200	HSK125AxPRO-E32-200	263	200	161	50	50	M16x2.0P	2~20	5.43
5073-586-011-150	HSK63AxPRO-E11M-150CUL	182	150	124	16	53	M6x1.0P	2~7	1.28
5073-586-011-200	HSK63AxPRO-E11M-200CUL	232	200	174	16	53	M6x1.0P	2~7	1.48

HSK-E/PRO-E精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/HSK-PRO-E_(E_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5097-529-016-060	HSK25ExPRO-E16-60	73	60	49	30	30	-	1~10	0.22
5098-529-016-065	HSK32ExPRO-E16-65	81	65	44	30	30	-	1~10	0.29
5099-529-016-060	HSK40ExPRO-E16-60	80	60	39	30	30	-	1~10	0.37
5099-529-020-070	HSK40ExPRO-E20-70	90	70	49	35	34	-	1~13	0.50
5099-529-020-100	HSK40ExPRO-E20-100	120	100	79	35	34	M12x1.75P	1~13	0.68
5099-529-020-125	HSK40ExPRO-E20-125	145	125	104	35	34	M12x1.75P	1~13	0.85
5099-529-025-070	HSK40ExPRO-E25-70	90	70	49.5	42	42	-	1~16	0.53
5099-529-025-100	HSK40ExPRO-E25-100	120	100	79.5	42	42	M16x2.0P	1~16	0.82
5099-529-025-125	HSK40ExPRO-E25-125	145	125	104.5	42	42	M16x2.0P	1~16	1.08
5099-529-025-150	HSK40ExPRO-E25-150	170	150	129.5	42	42	M16x2.0P	1~16	1.34
5099-529-032-070	HSK40ExPRO-E32-70	90	70	49.5	50	50	-	2~20	0.57
5099-529-032-100	HSK40ExPRO-E32-100	120	100	79.5	50	50	M16x2.0P	2~20	1.00
5100-584-011-055	HSK50ExPRO-E11M-55	80	55	26	16	16	-	2~7	0.44
5100-584-011-080	HSK50ExPRO-E11M-80	105	80	44	16	16	M6x1.0P	2~7	0.48
5100-529-016-070	HSK50ExPRO-E16-70	95	70	41	30	30	-	1~10	0.60
5100-529-016-100	HSK50ExPRO-E16-100	125	100	71	30	30	M10x1.5P	1~10	0.75
5100-529-020-070	HSK50ExPRO-E20-70	95	70	41	35	35	-	1~13	0.66
5100-529-020-100	HSK50ExPRO-E20-100	125	100	71	35	35	M12x1.75P	1~13	0.86
5100-529-020-125	HSK50ExPRO-E20-125	150	125	96	35	35	M12x1.75P	1~13	1.04
5100-529-020-150	HSK50ExPRO-E20-150	175	150	121	35	35	M12x1.75P	1~13	1.22
5100-529-025-070	HSK50ExPRO-E25-70	95	70	43.5	42	42	-	1~16	0.70
5100-529-025-100	HSK50ExPRO-E25-100	125	100	73.5	42	42	M16x2.0P	1~16	0.99
5100-529-032-070	HSK50ExPRO-E32-70	95	70	43.5	50	42	-	2~20	0.76
5100-529-032-100	HSK50ExPRO-E32-100	125	100	73	50	50	M16x2.0P	2~20	1.13
5100-529-032-125	HSK50ExPRO-E32-125	150	125	98	50	50	M16x2.0P	2~20	1.50
5100-529-032-150	HSK50ExPRO-E32-150	175	150	123	50	50	M16x2.0P	2~20	1.87

HSK-F/PRO-E精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/HSK-PRO-E_(F_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5103-529-016-070	HSK63FxPRO-E16-70	95	70	39	30	30	-	1~10	0.82
5103-529-016-100	HSK63FxPRO-E16-100	125	100	69	30	30	M10x1.5P	1~10	0.97
5103-529-016-125	HSK63FxPRO-E16-125	150	125	94	30	30	M10x1.5P	1~10	1.10
5103-529-020-070	HSK63FxPRO-E20-70	95	70	39	35	35	-	1~13	0.88
5103-529-020-100	HSK63FxPRO-E20-100	125	100	69	35	35	M12x1.75P	1~13	1.09
5103-529-020-125	HSK63FxPRO-E20-125	150	125	94	35	35	M12x1.75P	1~13	1.27
5103-529-020-150	HSK63FxPRO-E20-150	175	150	119	35	35	M12x1.75P	1~13	1.45
5103-529-025-070	HSK63FxPRO-E25-70	95	70	41	42	42	-	1~16	0.97
5103-529-025-100	HSK63FxPRO-E25-100	125	100	71	42	42	M16x2.0P	1~16	1.26
5103-529-025-125	HSK63FxPRO-E25-125	150	125	96	42	42	M16x2.0P	1~16	1.52
5103-529-032-070	HSK63FxPRO-E32-70	95	70	41	50	50	-	2~20	1.00
5103-529-032-100	HSK63FxPRO-E32-100	125	100	71	50	50	M16x2.0P	2~20	1.38
5103-529-032-125	HSK63FxPRO-E32-125	150	125	96	50	50	M16x2.0P	2~20	1.70
5103-529-032-150	HSK63FxPRO-E32-150	175	150	121	50	50	M16x2.0P	2~20	2.04

PSC/PRO-E精萃型筒夾式刀桿

proimages/Products/Tool_holders/Collet_chuck/PRO-E/PSC-PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5133-529-016-070	PSC40-IDxPRO-E16-70	94	70	47	30	30	M10 x 1.5P	1 ~ 10	0.47
5133-529-016-100	PSC40-IDxPRO-E16-100	124	100	77	30	30	M10 x 1.5P	1 ~ 10	0.60
5133-529-020-070	PSC40-IDxPRO-E20-70	94	70	47.5	35	35	M12 x 1.75P	1 ~ 13	0.54
5133-529-020-100	PSC40-IDxPRO-E20-100	124	100	77.5	35	35	M12 x 1.75P	1 ~ 13	0.73
5133-529-025-070	PSC40-IDxPRO-E25-70	94	70	49	42	42	M16 x 2.0P	1 ~ 16	0.64
5133-529-025-100	PSC40-IDxPRO-E25-100	124	100	79	42	42	M16 x 2.0P	1 ~ 16	0.93
5133-529-032-070	PSC40-IDxPRO-E32-70	94	70	46	50	50	M16 x 2.0P	2 ~ 20	0.73
5133-529-032-100	PSC40-IDxPRO-E32-100	124	100	76	50	50	M16 x 2.0P	2 ~ 20	1.12
5133-529-032-125	PSC40-IDxPRO-E32-125	149	125	101	50	50	M16 x 2.0P	2 ~ 20	1.48
5133-529-032-150	PSC40-IDxPRO-E32-150	174	150	126	50	50	M16 x 2.0P	2 ~ 20	1.83
5134-529-016-070	PSC50-IDxPRO-E16-70	100	70	45	30	30	-	1 ~ 10	0.63
5134-529-016-100	PSC50-IDxPRO-E16-100	130	100	75	30	30	M10 x 1.5P	1 ~ 10	0.78
5134-529-016-125	PSC50-IDxPRO-E16-125	155	125	100	30	30	M10 x 1.5P	1 ~ 10	0.88
5134-529-016-150	PSC50-IDxPRO-E16-150	180	150	125	30	30	M10 x 1.5P	1 ~ 10	0.99
5134-529-020-070	PSC50-IDxPRO-E20-70	100	70	47	35	35	-	1 ~ 13	0.70
5134-529-020-100	PSC50-IDxPRO-E20-100	130	100	77	35	35	M12 x 1.75P	1 ~ 13	0.90
5134-529-020-125	PSC50-IDxPRO-E20-125	155	125	102	35	35	M12 x 1.75P	1 ~ 13	1.05
5134-529-020-150	PSC50-IDxPRO-E20-150	180	150	127	35	35	M12 x 1.75P	1 ~ 13	1.21
5134-529-025-070	PSC50-IDxPRO-E25-70	100	70	49	42	42	-	1 ~ 16	0.80
5134-529-025-100	PSC50-IDxPRO-E25-100	130	100	79	42	42	M16 x 2.0P	1 ~ 16	1.09
5134-529-025-125	PSC50-IDxPRO-E25-125	155	125	104	42	42	M16 x 2.0P	1 ~ 16	1.32
5134-529-025-150	PSC50-IDxPRO-E25-150	180	150	129	42	42	M16 x 2.0P	1 ~ 16	1.56
5134-529-032-070	PSC50-IDxPRO-E32-70	100	70	50	50	50	-	2 ~ 20	0.90
5134-529-032-100	PSC50-IDxPRO-E32-100	130	100	80	50	50	M16 x 2.0P	2 ~ 20	1.32
5134-529-032-125	PSC50-IDxPRO-E32-125	155	125	105	50	50	M16 x 2.0P	2 ~ 20	1.66
5134-529-032-150	PSC50-IDxPRO-E32-150	180	150	130	50	50	M16 x 2.0P	2 ~ 20	2.00
5135-529-016-070	PSC63-IDxPRO-E16-70	108	70	43	30	30	-	1 ~ 10	0.94
5135-529-016-100	PSC63-IDxPRO-E16-100	138	100	73	30	30	M10 x 1.5P	1 ~ 10	1.09
5135-529-016-125	PSC63-IDxPRO-E16-125	163	125	98	30	30	M10 x 1.5P	1 ~ 10	1.18
5135-529-016-150	PSC63-IDxPRO-E16-150	188	150	123	30	30	M10 x 1.5P	1 ~ 10	1.26
5135-529-016-200	PSC63-IDxPRO-E16-200	238	200	173	30	30	M10 x 1.5P	1 ~ 10	1.44
5135-529-020-070	PSC63-IDxPRO-E20-70	108	70	43	35	35	-	1 ~ 13	1.00
5135-529-020-100	PSC63-IDxPRO-E20-100	138	100	70	35	35	M12 x 1.75P	1 ~ 13	1.21
5135-529-020-125	PSC63-IDxPRO-E20-125	163	125	95	35	35	M12 x 1.75P	1 ~ 13	1.35
5135-529-020-150	PSC63-IDxPRO-E20-150	188	150	120	35	35	M12 x 1.75P	1 ~ 13	1.49
5135-529-020-200	PSC63-IDxPRO-E20-200	238	200	170	35	35	M12 x 1.75P	1 ~ 13	1.76
5135-529-025-070	PSC63-IDxPRO-E25-70	108	70	45	42	42	-	1 ~ 16	1.11
5135-529-025-100	PSC63-IDxPRO-E25-100	138	100	75	42	42	M16 x 2.0P	1 ~ 16	1.39
5135-529-025-125	PSC63-IDxPRO-E25-125	163	125	100	42	42	M16 x 2.0P	1 ~ 16	1.60
5135-529-025-150	PSC63-IDxPRO-E25-150	188	150	125	42	42	M16 x 2.0P	1 ~ 16	1.82
5135-529-025-200	PSC63-IDxPRO-E25-200	238	200	175	42	42	M16 x 2.0P	1 ~ 16	2.26
5135-529-032-070	PSC63-IDxPRO-E32-70	108	70	45	50	50	-	2 ~ 20	1.21
5135-529-032-100	PSC63-IDxPRO-E32-100	138	100	75	50	50	M16 x 2.0P	2 ~ 20	1.61
5135-529-032-125	PSC63-IDxPRO-E32-125	163	125	100	50	50	M16 x 2.0P	2 ~ 20	1.94
5135-529-032-150	PSC63-IDxPRO-E32-150	188	150	125	50	50	M16 x 2.0P	2 ~ 20	2.27
5135-529-032-200	PSC63-IDxPRO-E32-200	238	200	175	50	50	M16 x 2.0P	2 ~ 20	2.93
5136-529-016-100	PSC80-IDxPRO-E16-100	148	100	65	30	30	M10 x 1.5P	1 ~ 10	2.00
5136-529-016-125	PSC80-IDxPRO-E16-125	173	125	90	30	30	M10 x 1.5P	1 ~ 10	2.13
5136-529-016-150	PSC80-IDxPRO-E16-150	198	150	110	30	30	M10 x 1.5P	1 ~ 10	2.27
5136-529-016-200	PSC80-IDxPRO-E16-200	248	200	160	30	30	M10 x 1.5P	1 ~ 10	2.52
5136-529-020-100	PSC80-IDxPRO-E20-100	148	100	65	35	35	M12 x 1.75P	1 ~13	2.10
5136-529-020-125	PSC80-IDxPRO-E20-125	173	125	90	35	35	M12 x 1.75P	1 ~ 13	2.28
5136-529-020-150	PSC80-IDxPRO-E20-150	198	150	110	35	35	M12 x 1.75P	1 ~ 13	2.46
5136-529-020-200	PSC80-IDxPRO-E20-200	248	200	160	35	35	M12 x 1.75P	1 ~ 13	2.80
5136-529-025-100	PSC80-IDxPRO-E25-100	148	100	65	42	42	M16 x 2.0P	1 ~ 16	2.26
5136-529-025-125	PSC80-IDxPRO-E25-125	173	125	90	42	42	M16 x 2.0P	1 ~ 16	2.50
5136-529-025-150	PSC80-IDxPRO-E25-150	198	150	110	42	42	M16 x 2.0P	1 ~ 16	2.76
5136-529-025-200	PSC80-IDxPRO-E25-200	248	200	160	42	42	M16 x 2.0P	1 ~ 16	3.23
5136-529-032-100	PSC80-IDxPRO-E32-100	148	100	65	50	50	M16 x 2.0P	2 ~ 20	2.46
5136-529-032-125	PSC80-IDxPRO-E32-125	173	125	90	50	50	M16 x 2.0P	2 ~ 20	2.79
5136-529-032-150	PSC80-IDxPRO-E32-150	198	150	115	50	50	M16 x 2.0P	2 ~ 20	3.14
5136-529-032-200	PSC80-IDxPRO-E32-200	248	200	165	50	50	M16 x 2.0P	2 ~ 20	3.84
5138-529-016-100	PSC100-IDxPRO-E16-100	160	100	44	30	30	M10 x 1.5P	1 ~ 10	3.98
5138-529-016-125	PSC100-IDxPRO-E16-125	185	125	69	30	30	M10 x 1.5P	1 ~ 10	4.11
5138-529-016-150	PSC100-IDxPRO-E16-150	210	150	94	30	30	M10 x 1.5P	1 ~ 10	4.23
5138-529-016-200	PSC100-IDxPRO-E16-200	260	200	144	30	30	M10 x 1.5P	1 ~ 10	4.48
5138-529-020-100	PSC100-IDxPRO-E20-100	160	100	49	35	35	M12 x 1.75P	1 ~ 13	3.94
5138-529-020-125	PSC100-IDxPRO-E20-125	185	125	74	35	35	M12 x 1.75P	1 ~ 13	4.13
5138-529-020-150	PSC100-IDxPRO-E20-150	210	150	99	35	35	M12 x 1.75P	1 ~ 13	4.30
5138-529-020-200	PSC100-IDxPRO-E20-200	260	200	149	35	35	M12 x 1.75P	1 ~ 13	4.63
5138-529-025-100	PSC100-IDxPRO-E25-100	160	100	49	42	42	M16 x 2.0P	1 ~ 16	4.08
5138-529-025-125	PSC100-IDxPRO-E25-125	185	125	74	42	42	M16 x 2.0P	1 ~ 16	4.32
5138-529-025-150	PSC100-IDxPRO-E25-150	210	150	99	42	42	M16 x 2.0P	1 ~ 16	4.55
5138-529-025-200	PSC100-IDxPRO-E25-200	260	200	149	42	42	M16 x 2.0P	1 ~ 16	5.03
5138-529-032-100	PSC100-IDxPRO-E32-100	160	100	49	50	50	M16 x 2.0P	2 ~ 20	4.23
5138-529-032-125	PSC100-IDxPRO-E32-125	185	125	74	50	50	M16 x 2.0P	2 ~ 20	4.58
5138-529-032-150	PSC100-IDxPRO-E32-150	210	150	99	50	50	M16 x 2.0P	2 ~ 20	4.93
5138-529-032-200	PSC100-IDxPRO-E32-200	260	200	149	50	50	M16 x 2.0P	2 ~ 20	5.63

series

proimages/New-Product/PRO-E_Collet_Chuck-zh-cover.jpg

series

HSK50A/PRO-E筒夾式刀桿量測及鎖固應用

SBT/PRO-E筒夾式刀桿量測及鎖固/出水應用

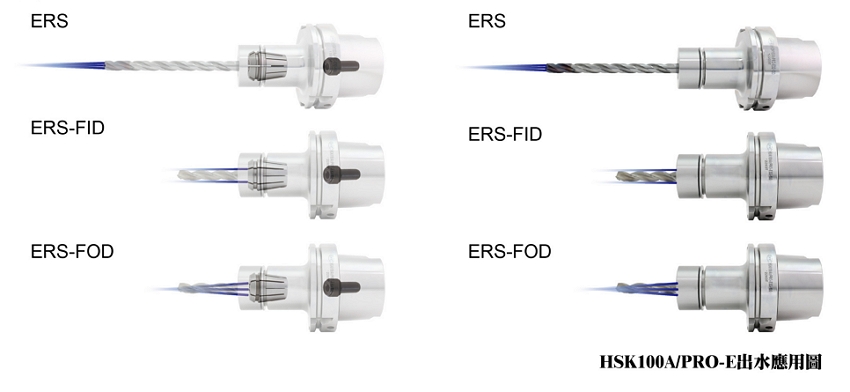

HSK100AxPRO-E筒夾式刀桿鎖固應用

刀桿操作應用-SBTxPRO-E

刀桿操作應用及使用後保養HSKxPRO-E

PRO-E筒夾式刀桿

PRO-E筒夾式刀桿及MLD直式筒夾銑床夾頭出水應用

使用真圓度機量測HSK/PRO-E筒夾式刀桿

刀桿切削應用及使用後保養HSKxPRO-E

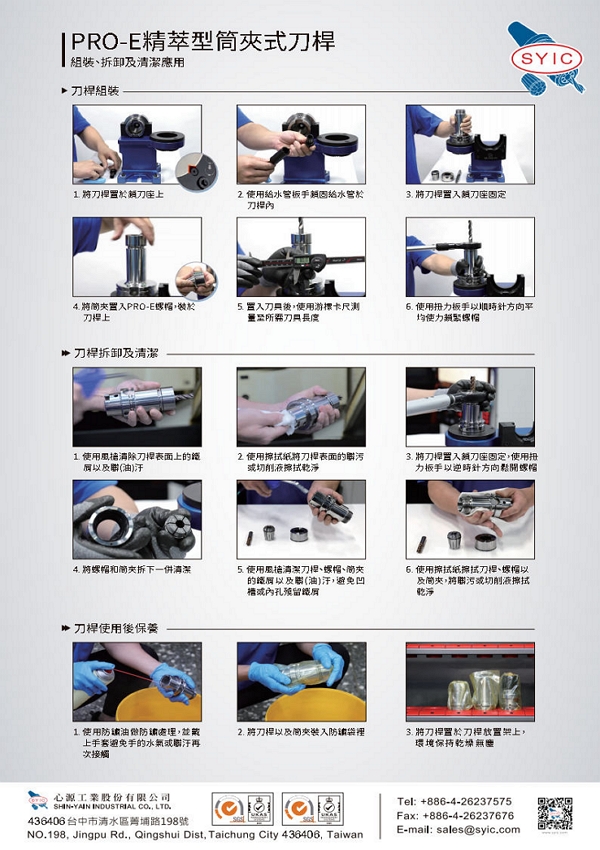

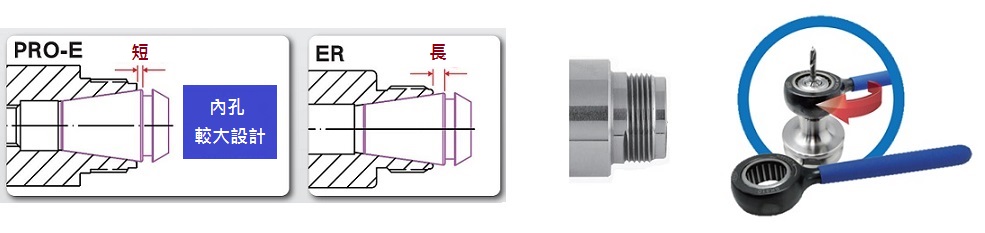

PRO-E精萃型筒夾式刀桿

產品描述
