PRO-E Excellent Collet Chucks
Product Name : PRO-E Excellent Collet Chuck
Product Description
proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/SCAT-icon..jpg proimages/taper_icon/SDAT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg

Revolutionary Upgrade Beyond ER Tool Holders

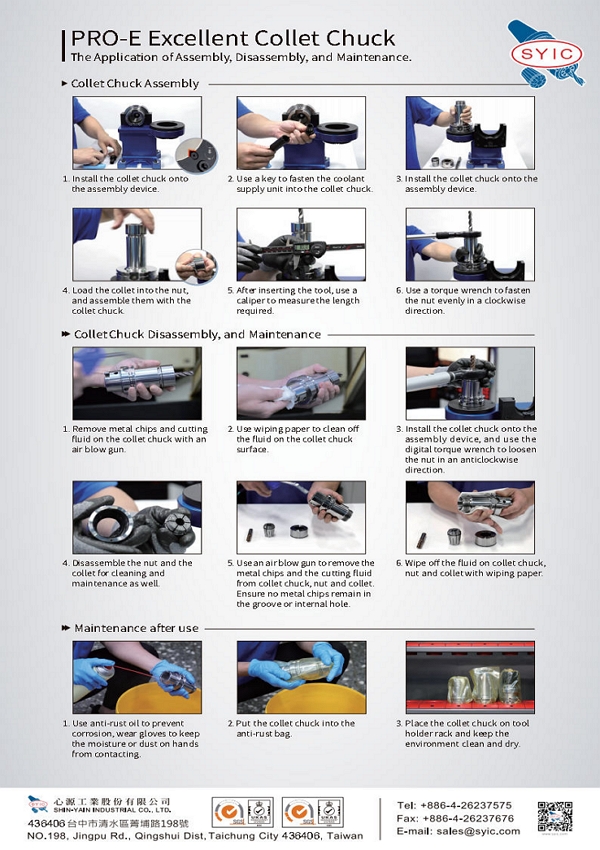

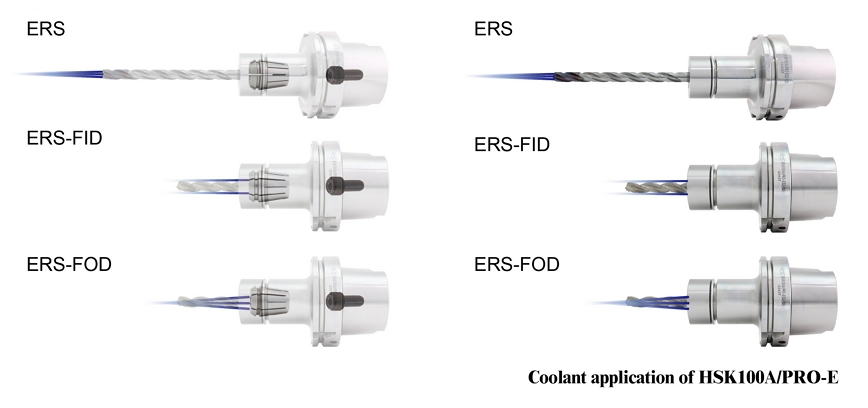

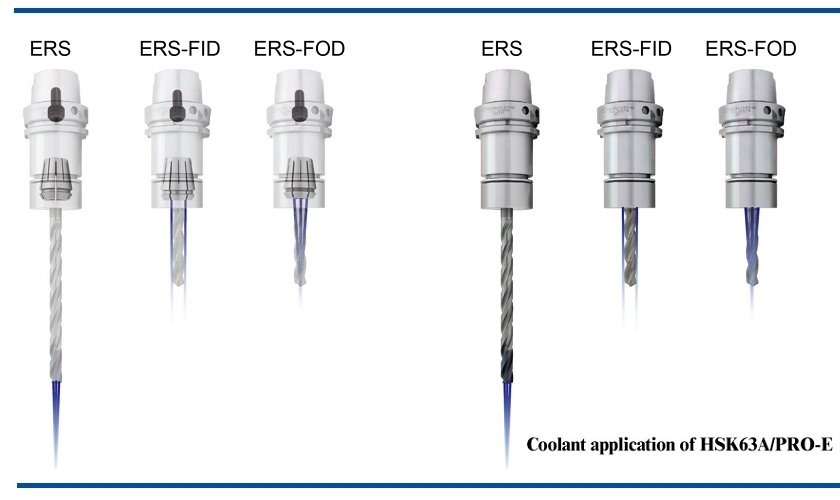

  • Used with ER collet (ISO 15488). The collet type recommended using with PRO-E Excellent Collet Chucks are ER-E High Precision Collet and ERS Metallic Series Collet with sealed type and coolant type (FOD&FID). It can effectively conquer your machining challenges!

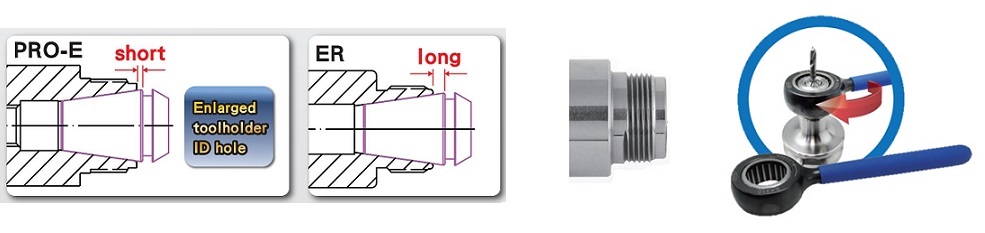

  • The design of enlarged holder ID hole optimizes the coverage of ER collet, shortens the tool overhanging length and improves runout accuracy and machining stability.
  • The PRO-E collet chuck and the clamping nut achieve great contact when fastened together due to the design of upper and lower straight sections, maximizing the strength, rigidity, and precision stability.

proimages/Products/Tool_holders/Collet_chuck/PRO-E/PRO-E_vs_ER-en...jpg

proimages/Products/Tool_holders/Collet_chuck/PRO-E/PRO-E_2...jpg

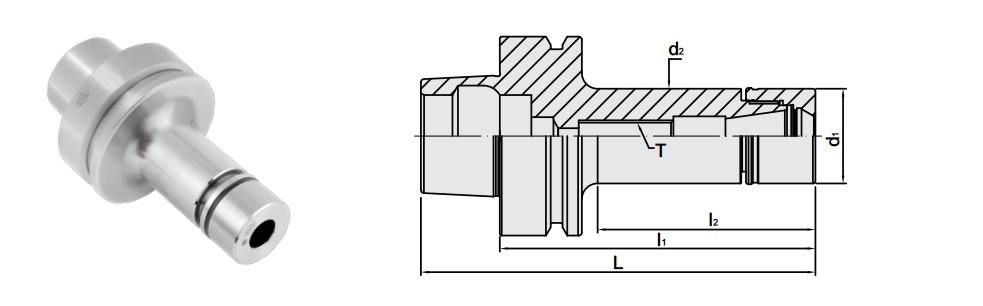

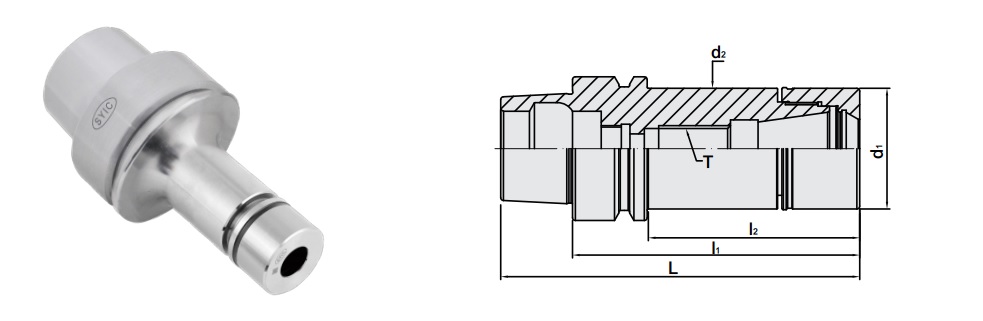

series:

DualDRIVE+ SBT/PRO-E EXCELLENT COLLET CHUCK
DualDRIVE+ SBT/PRO-E EXCELLENT COLLET CHUCK

MODEL NO.TYPELl1l2d1d2TSIZE
RANGE
WEIGHT
(KGS)
5025-529-016-070 SBT30xPRO-E16-70 118.4 70 43 30 30 M10 x 1.5P 1 ~ 10 0.58
5025-529-016-100 SBT30xPRO-E16-100 148.4 100 73 30 30 M10 x 1.5P 1 ~ 10 0.73
5025-529-016-125 SBT30xPRO-E16-125 173.4 125 98 30 30 M10 x 1.5P 1 ~ 10 0.85
5025-529-016-150 SBT30xPRO-E16-150 198.4 150 123 30 30 M10 x 1.5P 1 ~ 10 0.97
5025-529-020-070 SBT30xPRO-E20-70 118.4 70 44 35 35 M12 x 1.75P 1 ~ 13 0.65
5025-529-020-100 SBT30xPRO-E20-100 148.4 100 74 35 35 M12 x 1.75P 1 ~ 13 0.85
5025-529-020-125 SBT30xPRO-E20-125 173.4 125 99 35 35 M12 x 1.75P 1 ~ 13 1.02
5025-529-020-150 SBT30xPRO-E20-150 198.4 150 124 35 35 M12 x 1.75P 1 ~ 13 1.19
5025-529-025-070 SBT30xPRO-E25-70 118.4 70 47.5 42 42 M16 x 2.0P 1 ~ 16 0.73
5025-529-025-100 SBT30xPRO-E25-100 148.4 100 77.5 42 42 M16 x 2.0P 1 ~ 16 1.03
5025-529-025-125 SBT30xPRO-E25-125 173.4 125 102.5 42 42 M16 x 2.0P 1 ~ 16 1.28
5025-529-025-150 SBT30xPRO-E25-150 198.4 150 127.5 42 42 M16 x 2.0P 1 ~ 16 1.53
5025-529-032-070 SBT30xPRO-E32-70 118.4 70 47.5 50 50 M16 x 2.0P 2 ~ 20 0.79
5025-529-032-100 SBT30xPRO-E32-100 148.4 100 77.5 50 50 M16 x 2.0P 2 ~ 20 1.22
5025-529-032-125 SBT30xPRO-E32-125 173.4 125 102.5 50 50 M16 x 2.0P 2 ~ 20 1.58
5025-529-032-150 SBT30xPRO-E32-150 198.4 150 127.5 50 50 M16 x 2.0P 2 ~ 20 1.95
5026-529-016-070 SBT40xPRO-E16-70 135.4 70 38 30 30 M10 x 1.5P 1 ~ 10 1.14
5026-529-016-100 SBT40xPRO-E16-100 165.4 100 63 30 30 M10 x 1.5P 1 ~ 10 1.28
5026-529-016-125 SBT40xPRO-E16-125 190.4 125 88 30 30 M10 x 1.5P 1 ~ 10 1.38
5026-529-016-150 SBT40xPRO-E16-150 215.4 150 113 30 30 M10 x 1.5P 1 ~ 10 1.49
5026-529-016-200 SBT40xPRO-E16-200 265.4 200 163 30 30 M10 x 1.5P 1 ~ 10 1.70
5026-529-016-250 SBT40xPRO-E16-250 315.4 250 213 30 30 M10 x 1.5P 1 ~ 10 1.90
5026-529-020-070 SBT40xPRO-E20-70 135.4 70 35 35 35 M12 x 1.75P 1 ~ 13 1.19
5026-529-020-100 SBT40xPRO-E20-100 165.4 100 65 35 35 M12 x 1.75P 1 ~ 13 1.38
5026-529-020-125 SBT40xPRO-E20-125 190.4 125 90 35 35 M12 x 1.75P 1 ~ 13 1.54
5026-529-020-150 SBT40xPRO-E20-150 215.4 150 115 35 35 M12 x 1.75P 1 ~ 13 1.69
5026-529-020-200 SBT40xPRO-E20-200 265.4 200 165 35 35 M12 x 1.75P 1 ~ 13 2.00
5026-529-020-250 SBT40xPRO-E20-250 315.4 250 215 35 35 M12 x 1.75P 1 ~13 2.30
5026-529-025-070 SBT40xPRO-E25-70 135.4 70 40 42 42 M16 x 2.0P 1 ~ 16 1.26
5026-529-025-100 SBT40xPRO-E25-100 165.4 100 70 42 42 M16 x 2.0P 1 ~ 16 1.54
5026-529-025-125 SBT40xPRO-E25-125 190.4 125 95 42 42 M16 x 2.0P 1 ~ 16 1.78
5026-529-025-150 SBT40xPRO-E25-150 215.4 150 120 42 42 M16 x 2.0P 1 ~ 16 2.02
5026-529-025-200 SBT40xPRO-E25-200 265.4 200 170 42 42 M16 x 2.0P 1 ~ 16 2.49
5026-529-025-250 SBT40xPRO-E25-250 315.4 250 220 42 42 M16 x 2.0P 1 ~ 16 2.94
5026-529-032-070 SBT40xPRO-E32-70 135.4 70 40 50 50 M16 x 2.0P 2 ~ 20 1.31
5026-529-032-100 SBT40xPRO-E32-100 165.4 100 70 50 50 M16 x 2.0P 2 ~ 20 1.73
5026-529-032-125 SBT40xPRO-E32-125 190.4 125 95 50 50 M16 x 2.0P 2 ~ 20 2.08
5026-529-032-150 SBT40xPRO-E32-150 215.4 150 120 50 50 M16 x 2.0P 2 ~ 20 2.43
5026-529-032-200 SBT40xPRO-E32-200 265.4 200 170 50 50 M16 x 2.0P 2 ~ 20 3.13
5026-529-032-250 SBT40xPRO-E32-250 315.4 250 220 50 50 M16 x 2.0P 2 ~ 20 3.81
5027-529-016-070 SBT50xPRO-E16-70 171.8 70 30 30 30 M10 x 1.5P 1~10 3.68
5027-529-016-100 SBT50xPRO-E16-100 201.8 100 52 30 30 M10 x 1.5P 1~10 3.78
5027-529-016-125 SBT50xPRO-E16-125 226.8 125 77 30 30 M10 x 1.5P 1~10 3.92
5027-529-016-150 SBT50xPRO-E16-150 251.8 150 102 30 30 M10 x 1.5P 1~10 4.03
5027-529-016-200 SBT50xPRO-E16-200 301.8 200 147 30 30 M10 x 1.5P 1~10 4.27
5027-529-020-070 SBT50xPRO-E20-70 171.8 70 31 35 35 M12 x 1.75P 1~13 3.70
5027-529-020-100 SBT50xPRO-E20-100 201.8 100 52 35 35 M12 x 1.75P 1~13 3.86
5027-529-020-125 SBT50xPRO-E20-125 226.8 125 77 35 35 M12 x 1.75P 1~13 4.06
5027-529-020-150 SBT50xPRO-E20-150 251.8 150 102 35 35 M12 x 1.75P 1~13 4.22
5027-529-020-200 SBT50xPRO-E20-200 301.8 200 147 35 35 M12 x 1.75P 1~13 4.56
5027-529-025-070 SBT50xPRO-E25-70 171.8 70 31 42 42 M16 x 2.0P 1~16 3.74
5027-529-025-100 SBT50xPRO-E25-100 201.8 100 52 42 42 M16 x 2.0P 1~16 4.00
5027-529-025-125 SBT50xPRO-E25-125 226.8 125 77 42 42 M16 x 2.0P 1~16 4.20
5027-529-025-150 SBT50xPRO-E25-150 251.8 150 102 42 42 M16 x 2.0P 1~16 4.40
5027-529-025-200 SBT50xPRO-E25-200 301.8 200 152 42 42 M16 x 2.0P 1~16 4.80
5027-529-025-250 SBT50xPRO-E25-250 351.8 250 197 42 42 M16 x 2.0P 1~16 5.24
5027-529-032-070 SBT50xPRO-E32-70 171.8 70 31 50 50 M16 x 2.0P 2~20 3.77
5027-529-032-100 SBT50xPRO-E32-100 201.8 100 52 50 50 M16 x 2.0P 2~20 4.17
5027-529-032-125 SBT50xPRO-E32-125 226.8 125 77 50 50 M16 x 2.0P 2~20 4.48
5027-529-032-150 SBT50xPRO-E32-150 251.8 150 102 50 50 M16 x 2.0P 2~20 4.79
5027-529-032-200 SBT50xPRO-E32-200 301.8 200 152 50 50 M16 x 2.0P 2~20 5.42
5027-529-032-250 SBT50xPRO-E32-250 351.8 250 197 50 50 M16 x 2.0P 2~20 6.08
5027-529-032-300 SBT50xPRO-E32-300 401.8 300 247 50 50 M16 x 2.0P 2~20 6.70
5027-529-032-350 SBT50xPRO-E32-350 451.8 350 297 50 50 M16 x 2.0P 2~20 7.32
