ShrinkSTATION Heating Machine

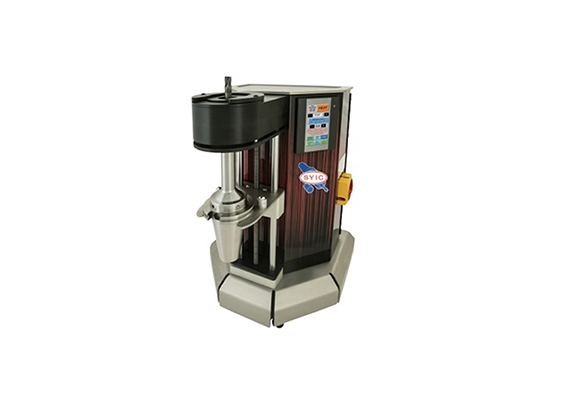

Product Name : ShrinkSTATION Heating Machine
Product Description
For both hot work steel and stainless steel tool holders.
Tools: Solid carbide Ø 3~32mm
Change tools in 15~25 Secs (shank dia. 3~20mm)
Automatic 90 PSI air cooling and tool holder movement.
Touch screen for easy operation.
Applicable for extended tools up to 500mm gauge length by transport adapter.
Workable for various shrink fit holders:#30, 40, 50 tapers, HSK40,50,63, and PSC40,50 and 63. HSK100 can be heated without using adapters.
Specification
video
series:
00400/00450
MODEL NO.
POWER
MAX.
POWER
FUSE
SIZE
(CM)
SUITABLE CUTTER
MATERIAL
DIAMETER
RANGE OF CUTTER
WEIGHT
(KGS)
408-001-001-000
3 phase, 480V~208V, 60Hz
13000W
16A
43x34x55
Solid carbide
Ø3~ Ø32mm
31.5
Accessories lncluded with Machine
DESCRIPTION
QTY.
induction stop ring (3-5mm)
1
induction stop ring (6-12mm)
1
induction stop ring (14-20mm)
1
induction stop ring (25-32mm)
1
toolholder adapter - 30 taper
1
toolholder adapter - 40 taper
1
toolholder adapter - 50 taper
1
toolholder adapter - HSK40 & PSC40
1
toolholder adapter - HSK50 & PSC50
1
toolholder adapter - HSK63
1
toolholder adapter - PSC63
1
transport adater for extended lengths
1
thermal insulated glove
1
series:
video
SYIC-00450 ShrinkSTATION Heating Machine
