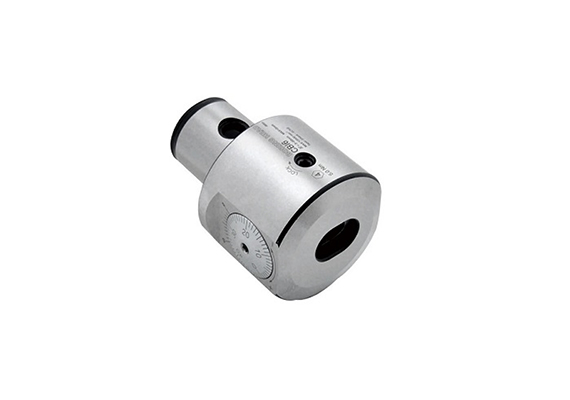

CBI Small Diameter Finish Boring Head

CBI Small Diameter Finish Boring Head
Product Name : CBI Small Diameter Finish Boring Head
Product Description

Boring range: ø3 ~ ø50mm

  • One division for adjustment is 10μm on diameter.
  • There are three different types, enabling small diameter boring from ø3mm to ø50mm. Boring range can be within ø3mm to ø14mm if small diameter tungsten carbide boring bars are used.
  • High precision internal lead screw with inner lubrication is free from the effect of chip, featuring high durability.
series:

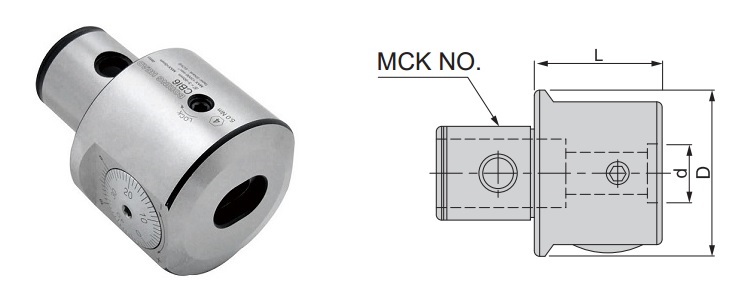

CBI SMALL DIAMETER FINISH BORING HEAD

proimages/Products/Boring_head/Finish_boring_head/CBI/CBI_figure.jpg
MODEL NO.TYPEMCK NO.LDdWEIGHT
(KGS)
405-013-004-000 CBI4 MCK4 32 39 10 0.40
405-013-005-000 CBI5 MCK5 40 50 12 0.80
405-013-006-000 CBI6 MCK6 50 64 16 1.27
