CUL Type SFC Shrink Fit Chucks
Product Name : SFC Shrink Fit Chuck(CUL Type)
Product Description
proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/SCAT-icon..jpg proimages/taper_icon/SDAT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg

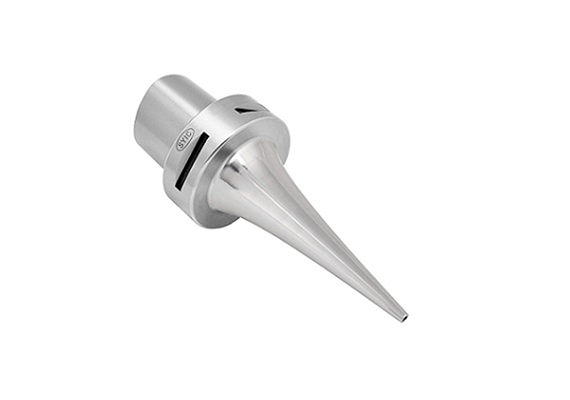

  • CUL type increases rigidity and avoids interference.
  • The most ideal tool holder design for 5 axis machining center.
  • The design of slim nose and short overhanging length of cutter extend tool use life.
  • The design of thick neck improves the rigidity during machining and product quality.
proimages/picture_of_product_feature/SFC-CUL_feature_picture1.jpg


proimages/picture_of_product_feature/SFC_CUL_feature_picture2.jpg
series:

DualDRIVE+ SBT/SFC SHRINK FIT CHUCK CUL TYPE

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/SBT-SFC-CUL_figure.jpg
MODEL NO.TYPELl1l2l3d1d2d3tWEIGHT
(KGS)
26.768.04.150 SBT40 x SFC4 - 150CUL 215.4 150 10 123 4 10 53 3 1.4
26.768.04.200 SBT40 x SFC4 - 200CUL 265.4 200 10 173 4 10 53 3 1.7
26.768.04.250 SBT40 x SFC4 - 250CUL 315.4 250 10 223 4 10 53 3 2.2
26.768.06.150 SBT40 x SFC6 - 150CUL 215.4 150 26 123 6 13 53 3.5 1.5
26.768.06.200 SBT40 x SFC6 - 200CUL 265.4 200 26 173 6 13 53 3.5 1.7
26.768.08.150 SBT40 x SFC8 - 150CUL 215.4 150 26 123 8 16 53 4 1.6
26.768.08.200 SBT40 x SFC8 - 200CUL 265.4 200 26 173 8 16 53 4 1.8
26.768.08.250 SBT40 x SFC8 - 250CUL 315.4 250 26 223 8 16 53 4 2.0
26.768.10.150 SBT40 x SFC10 - 150CUL 215.4 150 32 123 10 19 53 4.5 1.6
26.768.10.200 SBT40 x SFC10 - 200CUL 265.4 200 32 173 10 19 53 4.5 1.8
26.768.10.250 SBT40 x SFC10 - 250CUL 315.4 250 32 223 10 19 53 4.5 2.0
26.768.12.150 SBT40 x SFC12 - 150CUL 215.4 150 37 123 12 22 53 5 1.7
26.768.12.200 SBT40 x SFC12 - 200CUL 265.4 200 37 173 12 22 53 5 1.8
26.768.12.250 SBT40 x SFC12 - 250CUL 315.4 250 37 223 12 22 53 5 2.0
27.768.04.150 SBT50 x SFC4 - 150CUL 251.8 150 10 112 4 10 85 3 5.3
27.768.04.200 SBT50 x SFC4 - 200CUL 301.8 200 10 162 4 10 85 3 5.8
27.768.04.250 SBT50 x SFC4 - 250CUL 351.8 250 10 212 4 10 85 3 6.3
27.768.04.300 SBT50 x SFC4 - 300CUL 401.8 300 10 262 4 10 85 3 6.7
27.768.06.150 SBT50 x SFC6 - 150CUL 251.8 150 26 112 6 13 85 3.5 5.3
27.768.06.200 SBT50 x SFC6 - 200CUL 301.8 200 26 162 6 13 85 3.5 5.9
27.768.06.250 SBT50 x SFC6 - 250CUL 351.8 250 26 212 6 13 85 3.5 6.4
27.768.06.300 SBT50 x SFC6 - 300CUL 401.8 300 26 262 6 13 85 3.5 6.8
27.768.08.150 SBT50 x SFC8 - 150CUL 251.8 150 26 112 8 16 85 4 4.9
27.768.08.200 SBT50 x SFC8 - 200CUL 301.8 200 26 162 8 16 85 4 5.5
27.768.08.250 SBT50 x SFC8 - 250CUL 351.8 250 26 212 8 16 85 4 5.8
27.768.08.300 SBT50 x SFC8 - 300CUL 401.8 300 26 262 8 16 85 4 6.1
27.768.10.150 SBT50 x SFC10 - 150CUL 251.8 150 32 112 10 19 85 4.5 5.1
27.768.10.200 SBT50 x SFC10 - 200CUL 301.8 200 32 162 10 19 85 4.5 5.4
27.768.10.250 SBT50 x SFC10 - 250CUL 351.8 250 32 212 10 19 85 4.5 6.1
27.768.10.300 SBT50 x SFC10 - 300CUL 401.8 300 32 262 10 19 85 4.5 6.4
27.768.12.150 SBT50 x SFC12 - 150CUL 251.8 150 37 112 12 22 85 5 5.1
27.768.12.200 SBT50 x SFC12 - 200CUL 301.8 200 37 162 12 22 85 5 5.6
27.768.12.250 SBT50 x SFC12 - 250CUL 351.8 250 37 212 12 22 85 5 5.8
27.768.12.300 SBT50 x SFC12 - 300CUL 401.8 300 37 262 12 22 85 5 6.3
series:
series:
SFC-CUL Type High Rigidity Shrink Fit Chuck
