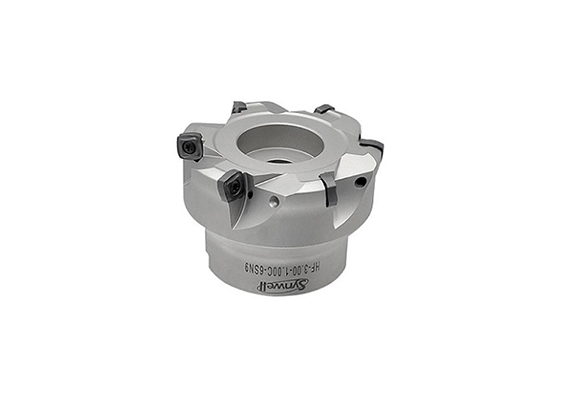

High Feed Face Mills

High Feed Face Mills
Product Name : High Feed Face Mills
Product Description

Ideal for plunge, profile and copy milling!

  • Great for roughing operations on pockets, 3D surfaces, moulds and dies.
  • Two types to choose from: with coolant holes and shrink fit type.
  • Use FMC face mill arbor or FMA/FMB face mill arbor with washer screws changed into the ones with coolant flutes.
  • Shrink fit type has a smaller pilot hole to combine with face mill arbors without gap, good rigidity.
proimages/Products/Cutting_tools/Face_milling/HF/High_Feed_machining.jpg       proimages/Products/Cutting_tools/Face_milling/HF/High_Feed_feature_picture.jpg
series:

HIGH FEED FACE MILLS

proimages/Products/Cutting_tools/Face_milling/HF/HF_figure.jpg
MODEL NO.TYPED1Dd1LAap
max.		TEETHINSERT
5154-264-022-04 HF-50-22C-4SN9 48 50 22 40 10.4 1 4 SNKX09T3
5154-264-023-05 HF-63-22C-5SN9 50 63 22 40 10.4 1 5 SNKX09T3
5154-264-034-06 HF-80-27C-6SN9 63 80 27 50 12.4 1 6 SNKX09T3
5154-264-045-07 HF-100-32C-7SN9 78 100 32 50 14.4 1 7 SNKX09T3
5154-264-056-08 HF-125-40C-8SN9 89 125 40 63 16.4 1 8 SNKX09T3
5154-264-11L-04 HF-2.00-.750C-4SN9 1.69 2.00 0.75 1.75 0.31 0.04 4 SNKX09T3
5154-264-11M-05 HF-2.50-.750C-5SN9 1.69 2.50 0.75 1.75 0.31 0.04 5 SNKX09T3
5154-264-12N-06 HF-3.00-1.00C-6SN9 2.17 3.00 1.00 2.00 0.37 0.04 6 SNKX09T3
5154-264-13P-07 HF-4.00-1.25C-7SN9 2.76 4.00 1.25 2.00 0.50 0.04 7 SNKX09T3

ACCESSORIES:
INSERTINSERT SCREWWRENCH
SNKX09T3 M3.5-9.3-4.8-60 T10
series:
proimages/Products/Cutting_tools/Face_milling/HF/HF-TI.jpg
