HSK-T Turning Tool

Specification
Technical information

series:

MCLN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MCLN-figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	Insert	WEIGHT (KGS)
573T-475-12R-065	HSK-T63-MCLNR-45065-12	97	65	45	31	CN..1204	1.26
573T-475-12L-065	HSK-T63-MCLNL-45065-12	97	65	45	31	CN..1204	1.26

proimages/Products/Tool_holders/Turning_application(HSK-T)/MCLN_accessory.jpg

MDJN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MDJN-figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	Insert	WEIGHT (KGS)
573T-476-15R-075	HSK-T63-MDJNR-45075-15	107	75	45	31	DN..1504	1.38
573T-476-15L-075	HSK-T63-MDJNL-45075-15	107	75	45	31	DN..1504	1.38

proimages/Products/Tool_holders/Turning_application(HSK-T)/MDJN-accessory.jpg

MTJN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MTJN-figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	Insert	WEIGHT (KGS)
573T-477-16R-065	HSK-T63-MTJNR-45065-16	97	65	45	31	TN..1604	1.27
573T-477-16L-065	HSK-T63-MTJNL-45065-16	97	65	45	31	TN..1604	1.27

proimages/Products/Tool_holders/Turning_application(HSK-T)/MTJN-accessory.jpg

MWLN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MWLN_figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	Insert	WEIGHT (KGS)
573T-478-08R-065	HSK-T63-MWLNR-45065-08	97	65	45	31	WN..0804	1.22
573T-478-08L-065	HSK-T63-MWLNL-45065-08	97	65	45	31	WN..0804	1.22

proimages/Products/Tool_holders/Turning_application(HSK-T)/MWLN_accessory.jpg

MVLN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MVLN-figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	Insert	WEIGHT (KGS)
573T-479-16R-075	HSK-T63-MVLNR-45075-16	107	75	45	31	VN..1604	1.30
573T-479-16L-075	HSK-T63-MVLNL-45075-16	107	75	45	31	VN..1604	1.30

proimages/Products/Tool_holders/Turning_application(HSK-T)/MVLN-accessory.jpg

MCMN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MCMN-figure.jpg

MODEL NO.	TYPE	L	l1	Insert	WEIGHT (KGS)
573T-480-12N-100	HSK-T63-MCMNN-00100-12	132	100	CN..1204	1.68
573T-480-12N-140	HSK-T63-MCMNN-00140-12	172	140	CN..1204	1.68

proimages/Products/Tool_holders/Turning_application(HSK-T)/MCMN_accessory.jpg

MDNN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MDNN-figure.jpg

MODEL NO.	TYPE	L	l1	D	Insert	WEIGHT (KGS)
573T-481-15N-100	HSK-T63-MDNNN-00100-15	132	100	63	DN..1504	1.55
573T-481-15N-140	HSK-T63-MDNNN-00140-15	172	140	63	DN..1504	1.55

proimages/Products/Tool_holders/Turning_application(HSK-T)/MDNN_accessory.jpg

MTEN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MTEN-figure.jpg

MODEL NO.	TYPE	L	l1	D	Insert	WEIGHT (KGS)
573T-483-16N-100	HSK-T63-MTENN-00100-16	132	100	63	TN..1604	1.62
573T-483-16N-140	HSK-T63-MTENN-00140-16	172	140	63	TN..1604	1.62

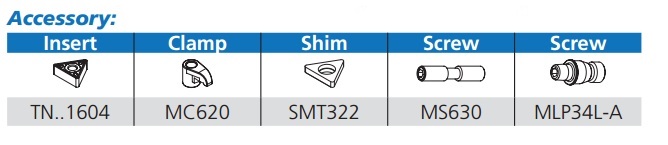

proimages/Products/Tool_holders/Turning_application(HSK-T)/MTEN_accessory.jpg

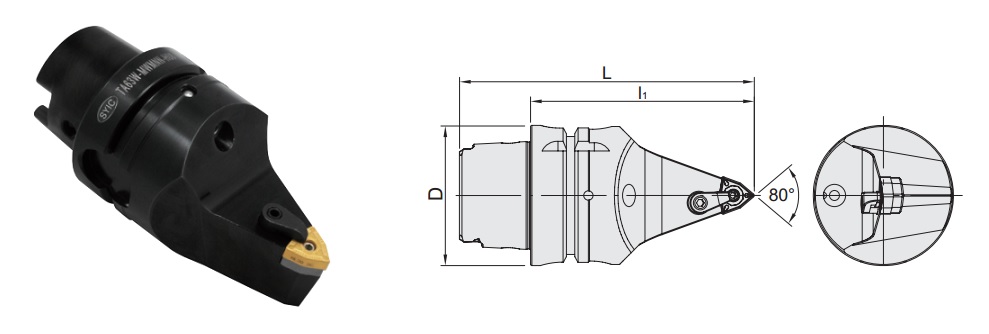

MWMN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MWMN-figure.jpg

MODEL NO.	TYPE	L	l1	D	Insert	WEIGHT (KGS)
573T-486-08N-100	HSK-T63-MWMNN-00100-08	132	100	63	WN..0804	1.48
573T-486-08N-140	HSK-T63-MWMNN-00140-08	172	140	63	WN..0804	1.48

proimages/Products/Tool_holders/Turning_application(HSK-T)/MWMN_accessory.jpg

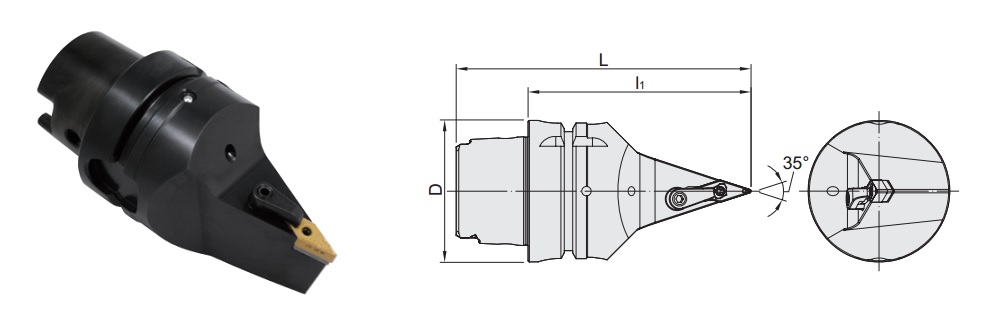

MVVN EXTERNAL TURNING TOOL
proimages/Products/Tool_holders/Turning_application(HSK-T)/MVVN-figure.jpg

MODEL NO.	TYPE	L	l1	D	Insert	WEIGHT (KGS)
573T-484-16N-100	HSK-T63-MVVNN-00100-16	132	100	63	VN..1604	1.40
573T-484-16N-140	HSK-T63-MVVNN-00140-16	172	140	63	VN..1604	1.40

proimages/Products/Tool_holders/Turning_application(HSK-T)/MVVN-accessory.jpg

MCLN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MCLN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	d1	d2	INSERT	WEIGHT (KGS)
573T-445-12R-065	HSK-T63-MCLNR-45065-12-UHP	97	65	45	31	CN..1204	1.26
573T-445-12L-065	HSK-T63-MCLNL-45065-12-UHP	97	65	45	31	CN..1204	1.26

proimages/Products/Tool_holders/Turning_application(HSK-T)/MCLN-UHP_accessory.jpg

MDJN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MDJN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	d1	d2	INSERT	WEIGHT (KGS)
573T-446-15R-075	HSK-T63-MDJNR-45075-15-UHP	107	75	45	31	DN..1504	1.38
573T-446-15L-075	HSK-T63-MDJNL-45075-15-UHP	107	75	45	31	DN..1504	1.38

proimages/Products/Tool_holders/Turning_application(HSK-T)/MDJN-UHP_accessory.jpg

MTJN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MTJN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	d1	d2	INSERT	WEIGHT (KGS)
573T-447-16R-065	HSK-T63-MTJNR-45065-16-UHP	97	65	45	31	TN..1604	1.27
573T-447-16L-065	HSK-T63-MTJNL-45065-16-UHP	97	65	45	31	TN..1604	1.27

proimages/Products/Tool_holders/Turning_application(HSK-T)/MTJN-UHP_accessory.jpg

MWLN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MWLN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	d1	d2	INSERT	WEIGHT (KGS)
573T-448-08R-065	HSK-T63-MWLNR-45065-08-UHP	97	65	45	31	WN..0804	1.22
573T-448-08L-065	HSK-T63-MWLNL-45065-08-UHP	97	65	45	31	WN..0804	1.22

proimages/Products/Tool_holders/Turning_application(HSK-T)/MWLN-UHP_accessory.jpg

MVLN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MVLN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	d1	d2	INSERT	WEIGHT (KGS)
573T-449-16R-075	HSK-T63-MVLNR-45075-16-UHP	107	75	45	31	VN..1604	1.30
573T-449-16L-075	HSK-T63-MVLNL-45075-16-UHP	107	75	45	31	VN..1604	1.30

proimages/Products/Tool_holders/Turning_application(HSK-T)/MVLN-UHP_accessory.jpg

MCMN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MCMN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	INSERT	WEIGHT (KGS)
573T-450-12N-100	HSK-T63-MCMNN-00100-12-UHP	132	100	CN..1204	1.68
573T-450-12N-140	HSK-T63-MCMNN-00140-12-UHP	172	140	CN..1204	1.68

proimages/Products/Tool_holders/Turning_application(HSK-T)/MCMN-UHP_accessory.jpg

MDNN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MDNN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	D	INSERT	WEIGHT (KGS)
573T-451-15N-100	HSK-T63-MDNNN-00100-15-UHP	132	100	63	DN..1504	1.55
573T-451-15N-140	HSK-T63-MDNNN-00140-15-UHP	172	140	63	DN..1504	1.55

proimages/Products/Tool_holders/Turning_application(HSK-T)/MDNN-UHP_accessory.jpg

MTEN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MTEN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	D	INSERT	WEIGHT (KGS)
573T-452-16N-100	HSK-T63-MTENN-00100-16-UHP	132	100	63	TN..1604	1.62
573T-452-16N-140	HSK-T63-MTENN-00140-16-UHP	172	140	63	TN..1604	1.62

proimages/Products/Tool_holders/Turning_application(HSK-T)/MTEN-UHP_accessory.jpg

MWMN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MWMN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	D	INSERT	WEIGHT (KGS)
573T-453-08N-100	HSK-T63-MWMNN-00100-08-UHP	132	100	63	WN..0804	1.48
573T-453-08N-140	HSK-T63-MWMNN-00140-08-UHP	172	140	63	WN..0804	1.48

proimages/Products/Tool_holders/Turning_application(HSK-T)/MWMN-UHP_accessory.jpg

MVVN EXTERNAL TURNING TOOL
Ultra High Pressure-UHP type
proimages/Products/Tool_holders/Turning_application(HSK-T)/MVVN-UHP_figure.jpg

MODELNO.	TYPE	L	l1	D	INSERT	WEIGHT (KGS)
573T-454-16N-100	HSK-T63-MVVNN-00100-16-UHP	132	100	63	VN..1604	1.40
573T-454-16N-140	HSK-T63-MVVNN-00140-16-UHP	172	140	63	VN..1604	1.40

proimages/Products/Tool_holders/Turning_application(HSK-T)/MVVN-UHP_accessory.jpg

SIDE LOCK HOLDER
FOR INTERNAL TURNING BAR
proimages/Products/Tool_holders/Turning_application(HSK-T)/SLT/SLT-figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	WEIGHT (KGS)
573T-797-008-070	HSK-T63xSLT8-70	102	70	10	10	6	32	8	28	M6	0.93
573T-797-010-080	HSK-T63xSLT10-80	112	80	12	12	8	40	10	35	M8	1.10
573T-797-012-090	HSK-T63xSLT12-90	122	90	16	16	8	45	12	42	M8	1.36
573T-797-016-100	HSK-T63xSLT16-100	132	100	21	21	10	60	16	48	M10	1.60
573T-797-020-120	HSK-T63xSLT20-120	152	120	20	20	12	60	20	52	M10	2.03
573T-797-025-140	HSK-T63xSLT25-140	172	140	23	23	14	67	25	56	M12	2.52
573T-797-032-160	HSK-T63xSLT32-160	192	160	26	26	16	74	32	64	M12	3.34

proimages/Products/Tool_holders/Turning_application(HSK-T)/SLT/SLT-screw.jpg

SIDE LOCK HOLDER
FOR HIGH SPEED DRILL
proimages/Products/Tool_holders/Turning_application(HSK-T)/SLD/SLD-figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
573T-798-008-065	HSK-T63xSLD8-65	97	65	18	10	34	8	28	M8	0.84
573T-798-010-070	HSK-T63xSLD10-70	102	70	20	12	39	10	35	M8	0.97
573T-798-012-070	HSK-T63xSLD12-70	102	70	20	12	39	12	42	M8	1.10
573T-798-016-075	HSK-T63xSLD16-75	107	75	20	15	44	16	48	M10	1.26
573T-798-020-075	HSK-T63xSLD20-75	107	75	20	15	44	20	52	M10	1.34
573T-798-025-085	HSK-T63xSLD25-85	117	85	23	17	52	25	62	M12	1.79
573T-798-032-090	HSK-T63xSLD32-90	122	90	27	17	56	32	62	M12	1.74
573T-798-040-100	HSK-T63xSLD40-100	132	100	28	22	62	40	68	M16	2.00

EXTERNAL TURNING TOOL HOLDER

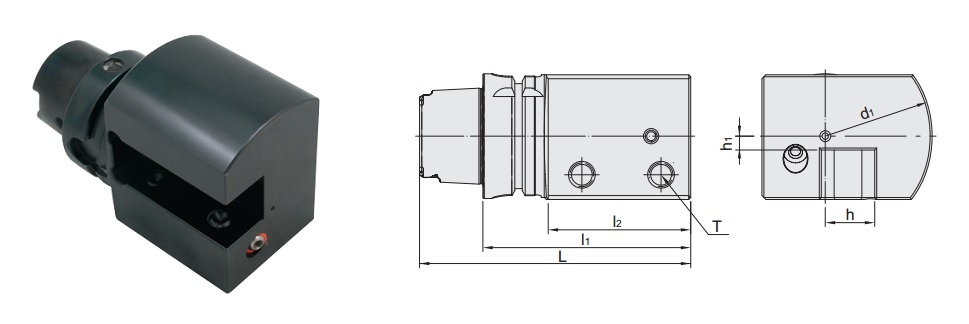

proimages/Products/Tool_holders/Turning_application(HSK-T)/External_turning_tool_holder/S-figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	h	h1	T	WEIGHT (KGS)
573T-776-25R-105	HSK-T63xS25R-105	137	105	70	54	25	6	M12x1.75P	3.40
573T-776-25L-105	HSK-T63xS25L-105	137	105	70	54	25	6	M12x1.75P	3.40

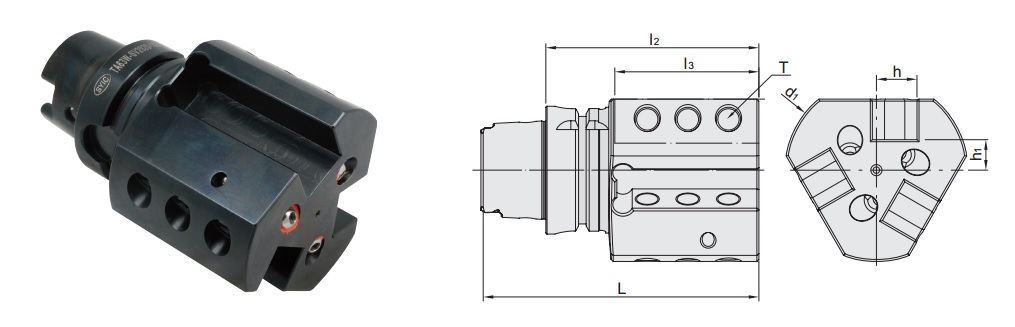

proimages/Products/Tool_holders/Turning_application(HSK-T)/External_turning_tool_holder/SV-figure.jpg

MODEL NO.	TYPE	L	l2	l3	d1	h	h1	T	WEIGHT (KGS)
573T-S47-20R-105	HSK-T63xSV20R-105	137	105	70	90	20	15	M12x1.75P	2.72
573T-S47-20L-105	HSK-T63xSV20L-105	137	105	70	90	20	15	M12x1.75P	2.72

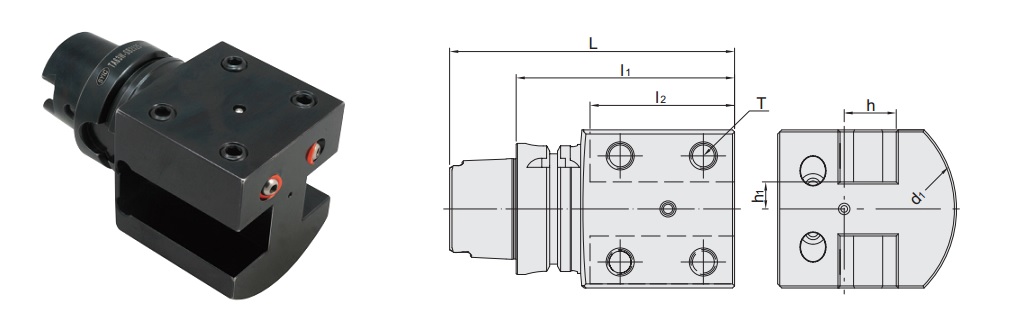

proimages/Products/Tool_holders/Turning_application(HSK-T)/External_turning_tool_holder/SB-figure.jpg

MODEL NO.	TYPE	L	l1	l2	h	h1	d1	T	WEIGHT (KGS)
573T-S45-25R-105	HSK-T63xSB25R-105	137	105	70	25	13	54	M12x1.75P	2.98

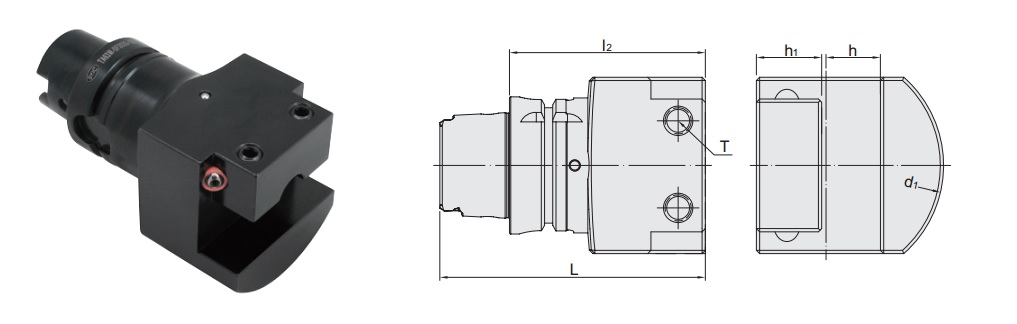

proimages/Products/Tool_holders/Turning_application(HSK-T)/External_turning_tool_holder/SF-figure.jpg

MODEL NO.	TYPE	L	l2	h	h1	d1	T	WEIGHT (KGS)
573T-S46-025-090	HSK-T63xSF25-90	122	90	25	30	54	M12 x 1.75P	3.05
573T-S46-025-120	HSK-T63xSF25-120	152	120	25	30	54	M12 x 1.75P	3.99
575T-S46-032-090	HSK-T100xSF32-90	140	90	32	28	142	M12 x 1.75P	4.90

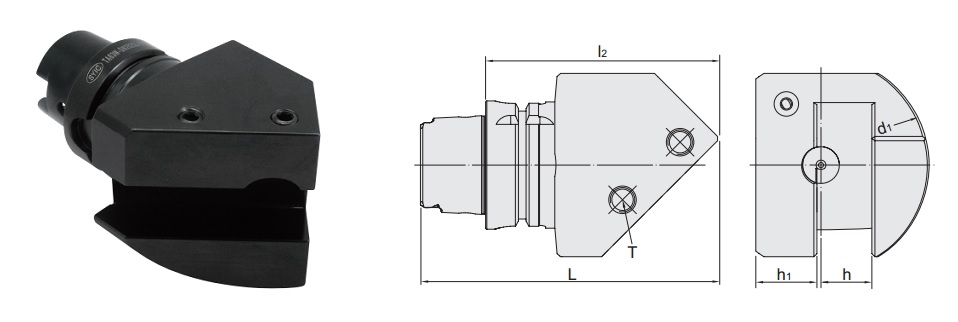

proimages/Products/Tool_holders/Turning_application(HSK-T)/External_turning_tool_holder/SN-figure.jpg

MODEL NO.	TYPE	L	l2	d1	h	h1	T	WEIGHT (KGS)
573T-766-25R-115	HSK-T63xSN25R-115	147	115	53	25	30	M12 x 1.75P	3.4
573T-766-25L-115	HSK-T63xSN25L-115	147	115	53	25	30	M12 x 1.75P	3.4
