IFMC Square Shoulder Milling Cutter

IFMC Square Shoulder Milling Cutter

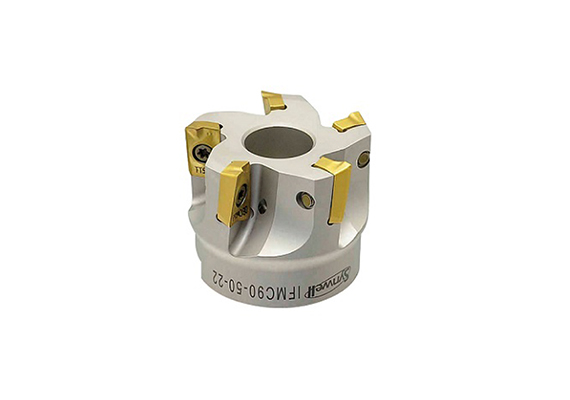

Product Name : IFMC Square Shoulder Milling Cutter
Product Description

Ideal for end milling, face milling and slotting!

  • Two types to choose from: with coolant holes and shrink fit type.
  • Use FMC face mill arbor or FMA/FMB face mill arbor with washer screws changed into the ones with coolant flutes.
  • Shrink fit type has a smaller pilot hole to combine with face mill arbors without gap, good rigidity.
  • Inserts: AP..1003 and AP..1604 need to be purchased separately.
  • Surface treatments of nickel plating provide good corrosion and wear resistance.
proimages/Products/Cutting_tools/Face_milling/IFMC/IFMC_feature_picture1.jpg     proimages/Products/Cutting_tools/Face_milling/IFMC/IFMC_feature_picture2.jpg


proimages/Products/Cutting_tools/Face_milling/IFMC/IFMC_machining.jpg
series:

IFMC SQUARE SHOULDER MILLING CUTTER

proimages/Products/Cutting_tools/Face_milling/IFMC/IFMC_figure.jpg

MODEL NO.TYPEDD1d1LAap
max.		TEETHINSERT
5154-240-022-07 IFMC90-50-22-AP10 50 40 22 40 10.4 10 7 AP..1003
5154-240-023-09 IFMC90-63-22-AP10 63 48 22 40 10.4 10 9 AP..1003
5154-240-034-11 IFMC90-80-27-AP10 80 62 27 50 12.4 10 11 AP..1003
5154-240-045-13 IFMC90-100-32-AP10 100 78 32 50 14.4 10 13 AP..1003
5154-240-056-16 IFMC90-125-40-AP10 125 89 40 63 16.4 10 16 AP..1003
5154-240-122-07 IFMC90-50-25.4-AP10 50 45 25.4 40 9.5 10 7 AP..1003
5154-240-123-09 IFMC90-63-25.4-AP10 63 50 25.4 40 9.5 10 9 AP..1003
5154-240-134-11 IFMC90-80-31.75-AP10 80 62 31.75 50 12.7 10 11 AP..1003
5154-240-135-13 IFMC90-100-31.75-AP10 100 78 31.75 50 12.7 10 13 AP..1003
5154-240-146-16 IFMC90-125-38.1-AP10 125 80 38.1 63 15.9 10 16 AP..1003
5154-242-022-05 IFMC90-50-22 50 45 22 40 10.4 16 5 AP..1604
5154-242-023-05 IFMC90-63-22 63 48 22 40 10.4 16 5 AP..1604
5154-242-034-06 IFMC90-80-27 80 62 27 50 12.4 16 6 AP..1604
5154-242-045-07 IFMC90-100-32 100 78 32 50 14.4 16 7 AP..1604
5154-242-056-08 IFMC90-125-40 125 89 40 63 16.4 16 8 AP..1604
5154-242-122-05 IFMC90-50-25.4 50 48.5 25.4 40 9.5 16 5 AP..1604
5154-242-123-05 IFMC90-63-25.4 63 50 25.4 40 9.5 16 5 AP..1604
5154-242-134-06 IFMC90-80-31.75 80 62 31.75 50 12.7 16 6 AP..1604
5154-242-135-07 IFMC90-100-31.75 100 78 31.75 50 12.7 16 7 AP..1604
5154-242-146-08 IFMC90-125-38.1 125 80 38.1 63 15.9 16 8 AP..1604

ACCESSORIES:
INSERTINSERT SCREWWRENCH
AP..1003 M2.5-6.45-3.7-60 T8
AP..1604 M4-10-5.7-60 T15
series:
proimages/Products/Cutting_tools/Face_milling/IFMC/IFMC-TI.jpg
