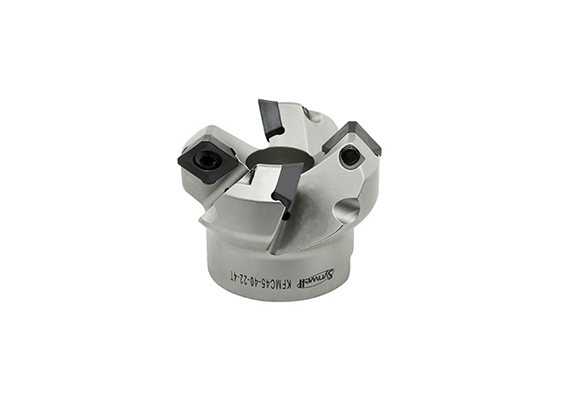

KFM 45° Face Milling Cutter
Product Name : KFM 45° Face Milling Cutter
Product Description

Ideal for end milling, face milling and chamfering!

  • Three types to choose from: with coolant holes, without coolant holes and shrink fit type.
  • For coolant through cutters, use FMC face mill arbor or FMA/FMB face mill arbor with washer screws changed into the ones with coolant flutes.
  • Shrink fit type has a smaller pilot hole to combine with face mill arbors by ShrinkFIT technology to achieve the most rigid and accurate connection.
  • Insert, SE..1204, is widely applied in Europe markets.
  • Surface treatments of nickel plating provide good corrosion and wear resistance.

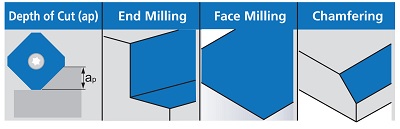

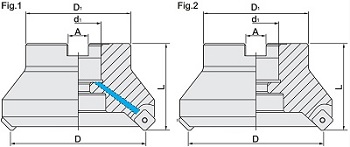

proimages/Products/Cutting_tools/Face_milling/KFM_45°/KFM_45°_feature_picture1.jpg   proimages/Products/Cutting_tools/Face_milling/KFM_45°/KFM_45°_feature_picture-2.jpg

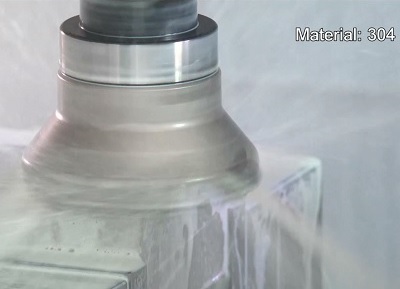

 proimages/Products/Cutting_tools/Face_milling/KFM_45°/KFM_45°_machining.JPG
series:

KFMC 45° FACE MILLING CUTTER

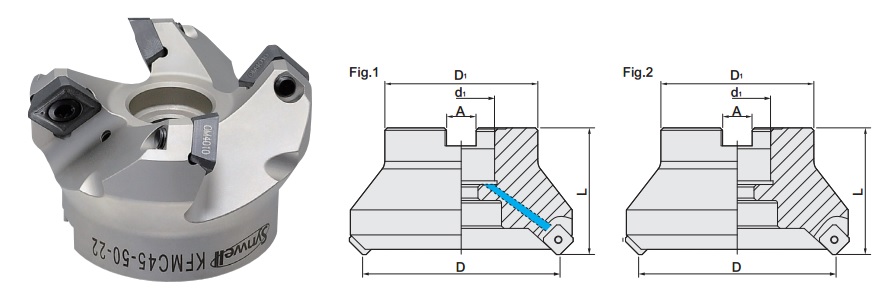

proimages/Products/Cutting_tools/Face_milling/KFM_45°/KFMC_45°_figure.jpg
MODEL NO.TYPEDD1d1LAap
max.
TEETHINSERTFig
5154-408-021-04 KFMC45-40-22 40 40 22 40 10.4 6 4 SE..1204 1
5154-408-022-04 KFMC45-50-22 50 48 22 40 10.4 6 4 SE..1204 1
5154-408-022-05 KFMC45-50-22-5T 50 48 22 40 10.4 6 5 SE..1204 1
5154-408-023-05 KFMC45-63-22 63 48 22 40 10.4 6 5 SE..1204 1
5154-408-034-06 KFMC45-80-27 80 48 27 50 12.4 6 6 SE..1204 1
5154-408-045-07 KFMC45-100-32 100 78 32 50 14.4 6 7 SE..1204 1
5154-408-056-08 KFMC45-125-40 125 89 40 63 16.4 6 8 SE..1204 1
5154-408-057-10 KFMC45-160-40 160 89 40 63 16.4 6 10 SE..1204 1
5154-408-124-06 KFMC45-80-25.4 80 50 25.4 50 9.5 6 6 SE..1204 1
5154-408-134-06 KFMC45-80-31.75 80 62 31.75 50 12.7 6 6 SE..1204 1
5154-408-135-07 KFMC45-100-31.75 100 78 31.75 50 12.7 6 7 SE..1204 1
5154-408-146-08 KFMC45-125-38.1 125 80 38.1 63 15.9 6 8 SE..1204 1
5154-402-177-10 KFM45-160-50.8 160 98 50.8 63 19.45 6 10 SE..1204 2
5154-402-168-12 KFM45-200-47.625 200 128.75 47.625 63 25.4 6 12 SE..1204 2

ACCESSORIES:
INSERTINSERT SCREWWRENCH
SE..1204 M5-11-7.0-55 T20
