PSC Rough Boring Head (one-piece type)

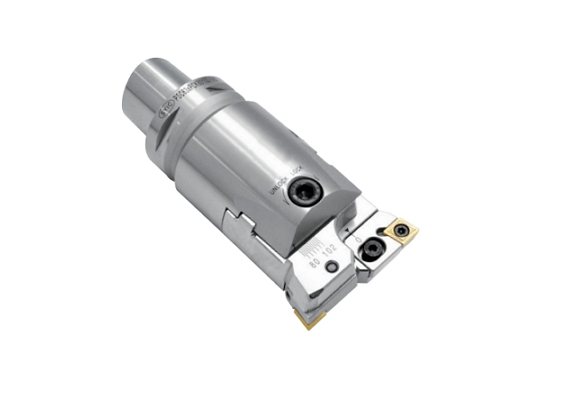

Product Name : PSC Rough Boring Head (one-piece type)
Product Description

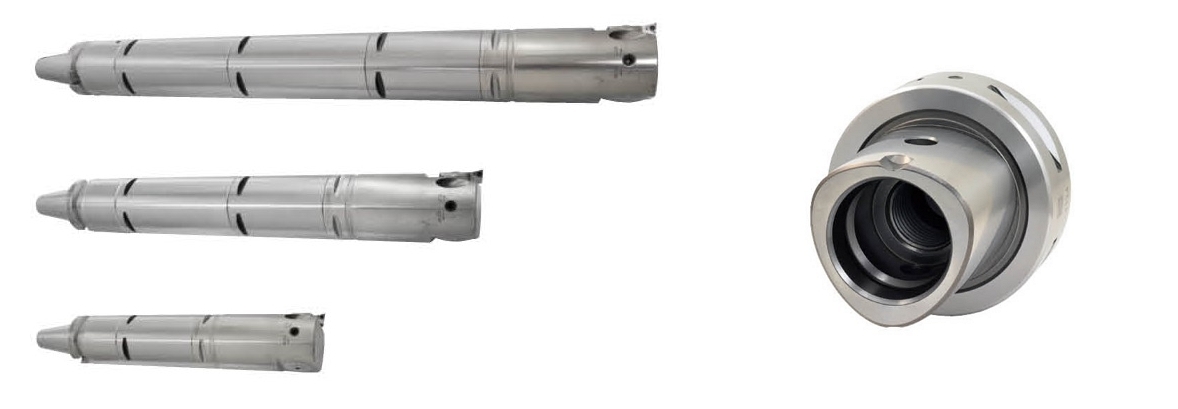

PSC one-piece boring head has high rigidity and is convenient to extend the length with PSC extensions.
Use polygonal taper as coupling structure, achieving high torque transmission and rigidity.

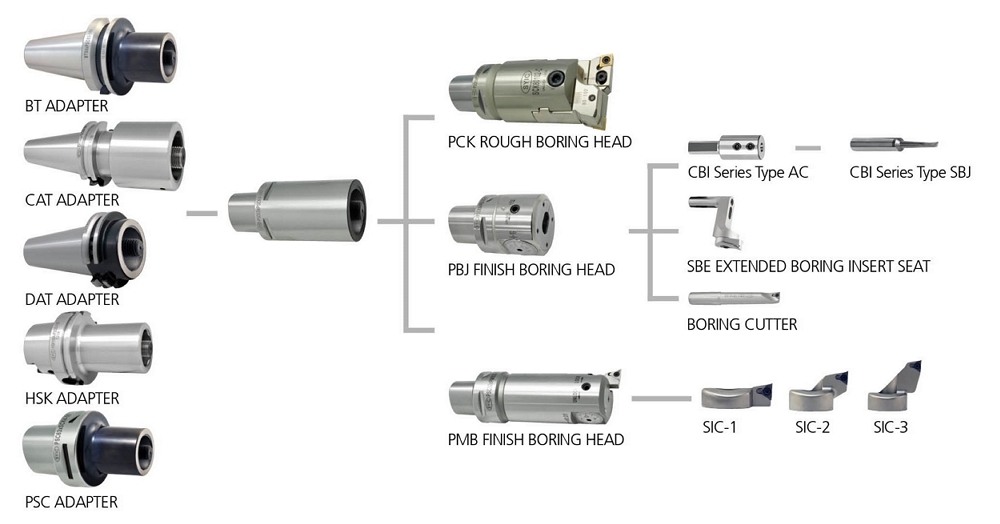

Modular design: applicable for different spindles with the converting of adapters and convenient to change different PSC one-piece boring heads.
Specification
Technical information
series:
PSC/PCK
PSC/PCK ROUGH BORING HEAD
(ONE-PIECE TYPE)

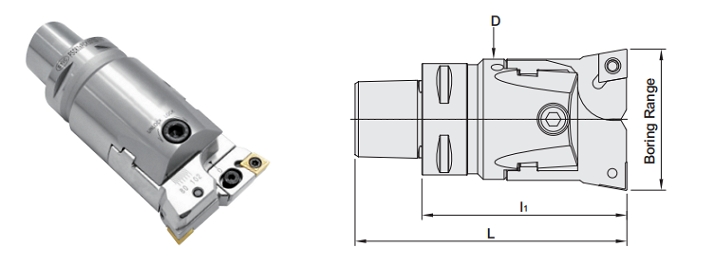

MODEL NO.
TYPE
BORING RANGE
L
l
1
D
INSERT
SCREW
WRENCH
WEIGHT
(KGS)
MIN.
MAX.
5140-543-039-080
PSC32xPCK3950-80
39
50
99
80
32
CC..09T3
M4 - 10 - 5.7 - 60
T15
0.49
5141-543-049-082
PSC40xPCK4965-82
49
65
106
82
42
CC..1204
M5 - 11 - 7.5 - 60
T20
0.49
5142-543-063-092
PSC50xPCK6382-92
63
82
122
92
54
CC..1204
M5 - 11 - 7.5 - 60
T20
0.7
5143-543-080-140
PSC63xPCK80102-140
80
102
178
140
68
CC..1204
M5 - 9.2 - 7.6 - 60
T20
3.6
