Tool Holder Locking Device
Two-Way Type- PSC Series
Product Name : Tool Holder Locking Device
Two-Way Type- PSC Series
Product Description
The body and tool pot are precisely machined, so it allows stable and firm mounting.
The horizontal tool pot has a patented heightened design, making tool assembling and dismounting more stable.
Nodular-cast-iron base has strengthened rigidity.
Superior performance for installing and uninstalling accessories in long-reach or heavy holders.

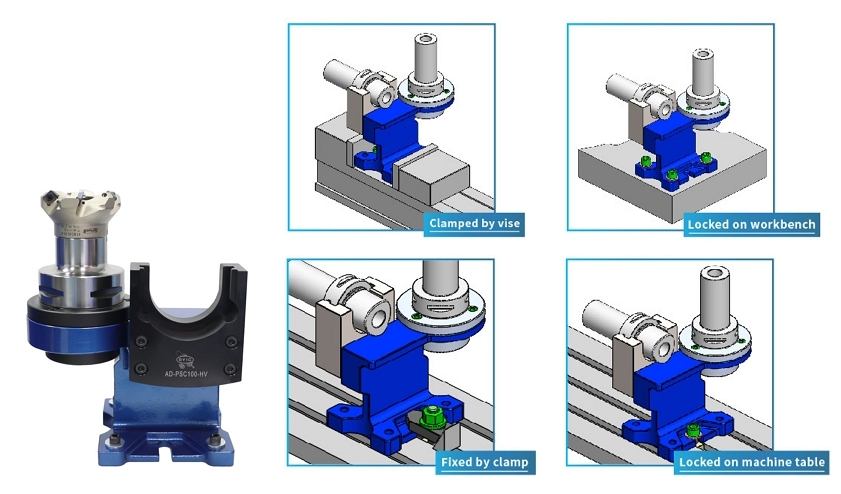

The design of bottom seat is patented, which can be fixed not only on the workbenches, but also in machines by vises or clamps.
Specification
video
series:
PSC
Two-Way Type- PSC Series

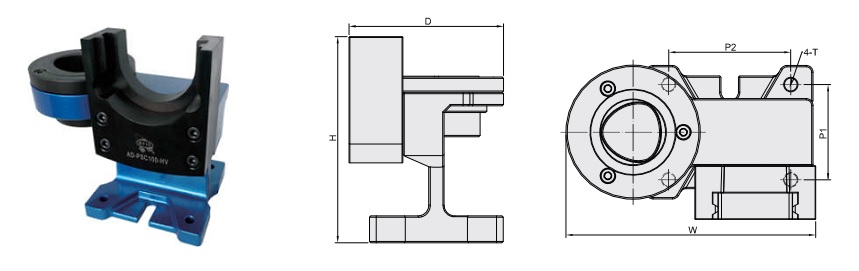

MODEL NO.
TYPE
COMPATIBLE TOOLING
D
H
W
P
1
P
2
T
WEIGHT
(KGS)
5300-020-140-02
AD-PSC32-HV
PSC32
105
134.5
186
71
91
M8
5.63
5300-020-141-02
AD-PSC40-HV
PSC40
110
140.5
186
71
91
M8
5.90
5300-020-142-02
AD-PSC50-HV
PSC50
110
144.5
186
71
91
M8
5.83
5300-020-143-02
AD-PSC63-HV
PSC63
115
153.5
186
71
91
M8
5.20
5300-020-144-02
AD-PSC80-HV
PSC80
139.5
201.5
242
112
116
M12
13.3
5300-020-146-02
AD-PSC100-HV
PSC100
146.5
227.5
242
112
116
M12
13.4
series:
影片
The Introduction and Application of Assembly Device- PSC Type
