PSC/SPD High Speed Drill (One-Piece Type)
Product Name : PSC/SPD High Speed Drill (One-Piece Type)
Product Description
proimages/taper_icon/PSC-icon..jpg
  • One-Piece design with PSC holder taper and SPD drill body improves machining rigidity and stability.
  • The design of extended chip flutes improves chip evacuation, using with square inserts of strong four cutting edges offers increased stability for drilling.

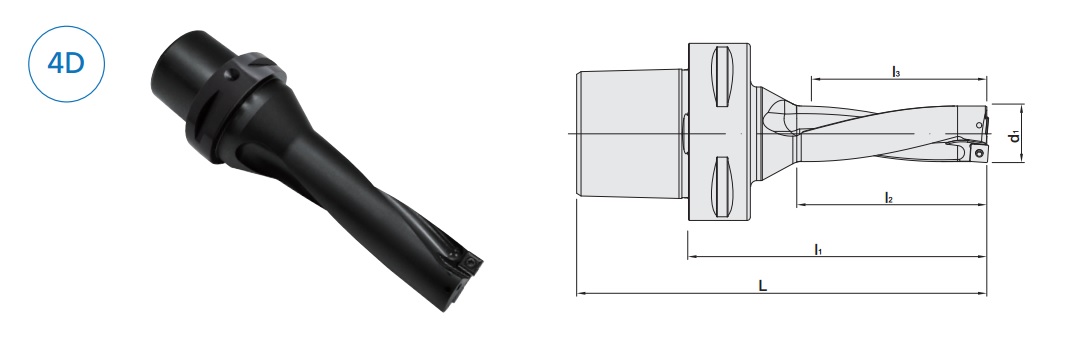

  • Available in 3xD and 4xD, drilling range is from 15 to 30mm in diameters.
  • Made of anti-vibration tool steels, high rigidity and longer tool life.
  • Inserts, SP.., need to be purchased separately.
proimages/Products/Cutting_tools/High_speed_drill/PSC-SPD/PSC-SPD_feature.jpg
series:

PSC/SPD HIGH SPEED DRILL ONE-PIECE TYPE

proimages/Products/Cutting_tools/High_speed_drill/PSC-SPD/PSC-SPD_3D_figure.jpg
MODEL NO.TYPELl1l2l3d1INSERTWEIGHT (KGS)
141.685.15.045 PSC40 x SPD15 - 3D - 45 82 70 50 45 15 SP..0502 0.30
141.685.16.048 PSC40 x SPD16 - 3D - 48 86 74 53 48 16 SP..0602 0.40
141.685.17.051 PSC40 x SPD17 - 3D - 51 89 77 56 51 17 SP..0602 0.42
141.685.18.054 PSC40 x SPD18 - 3D - 54 93 81 59 54 18 SP..0602 0.44
141.685.19.057 PSC40 x SPD19 - 3D - 57 96 84 62 57 19 SP..0602 0.45
141.685.20.060 PSC40 x SPD20 - 3D - 60 101 89 65 60 20 SP..0602 0.47
141.685.21.063 PSC40 x SPD21 - 3D - 63 104 92 68 63 21 SP..0602 0.48
141.685.22.066 PSC40 x SPD22 - 3D - 66 107 95 71 66 22 SP..07T3 0.48
141.685.23.069 PSC40 x SPD23 - 3D - 69 111 99 74 69 23 SP..07T3 0.66
141.685.24.072 PSC40 x SPD24 - 3D - 72 115 103 77 72 24 SP..07T3 0.67
141.685.25.075 PSC40 x SPD25 - 3D - 75 119 107 80 75 25 SP..07T3 0.72
141.685.26.078 PSC40 x SPD26 - 3D - 78 122 110 83 78 26 SP..07T3 0.73
141.685.27.081 PSC40 x SPD27 - 3D - 81 125 113 86 81 27 SP..07T3 0.75
141.685.28.084 PSC40 x SPD28 - 3D - 84 129 117 89 84 28 SP..0904 0.78
141.685.29.087 PSC40 x SPD29 - 3D - 87 132 120 92 87 29 SP..0904 0.81
141.685.30.090 PSC40 x SPD30 - 3D - 90 135 123 95 90 30 SP..0904 0.83
141.685.15.5.047 PSC40 x SPD15.5 - 3D - 47 96 84 52 47 15.5 SP..0602 0.28
141.685.16.5.050 PSC40 x SPD16.5 - 3D - 50 100 88 55 50 16.5 SP..0602 0.31
141.685.17.5.053 PSC40 x SPD17.5 - 3D - 53 104 92 58 53 17.5 SP..0602 0.42
141.685.18.5.056 PSC40 x SPD18.5 - 3D - 56 107 95 61 56 18.5 SP..0602 0.43
141.685.20.62.062 PSC40 x SPD20.62 - 3D - 62 115 103 67 62 20.62 SP..07T3 0.43
141.685.22.23.067 PSC40 x SPD22.23 - 3D - 67 120 108 72 67 22.23 SP..07T3 0.45
141.685.25.4.077 PSC40 x SPD25.4 - 3D - 77 133 121 82 77 25.4 SP..0904 0.48
141.685.28.59.086 PSC40 x SPD28.59 - 3D - 86 143 131 91 86 28.59 SP..0904 0.50

ACCESSORIES:
proimages/Products/Cutting_tools/High_speed_drill/PSC-SPD/PSC-SPD-ACCESSORIES_figure.png
series:
proimages/Products/Cutting_tools/High_speed_drill/PSC-SPD/PSC-SPD-TI.jpg
