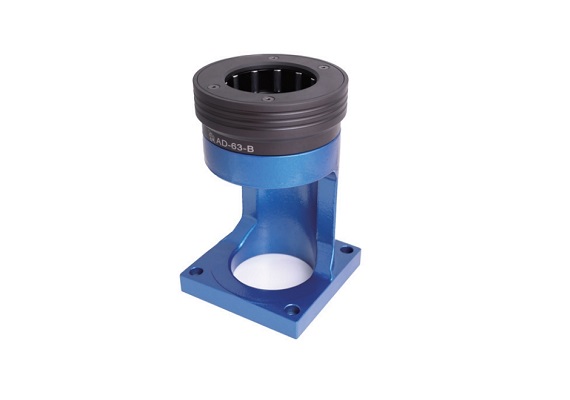

Product Name : Tool Holder Locking Device
Roller Bearing Type
Product Description

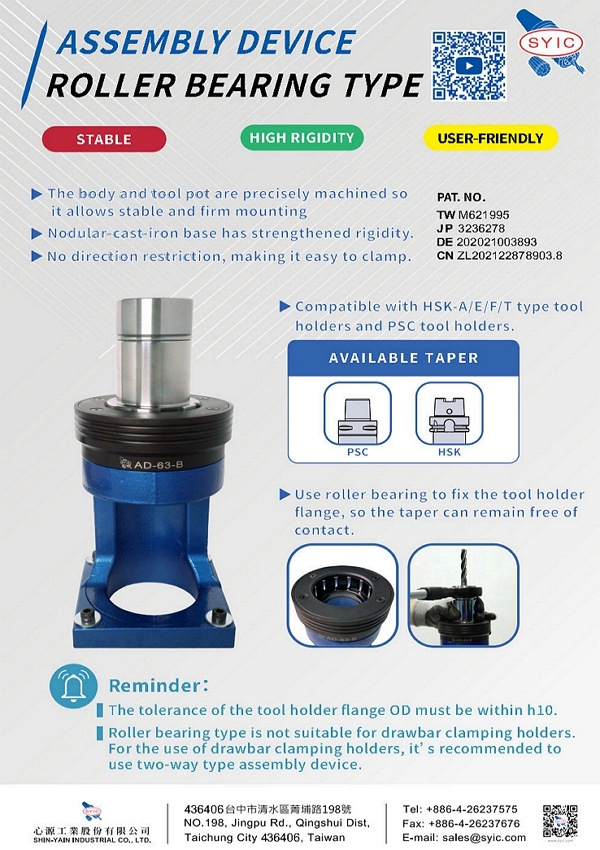

The body and tool pot are precisely machined, so it allows stable and firm mounting.
Nodular-cast-iron base has strengthened rigidity.
No direction restriction, making it easy to clamp.

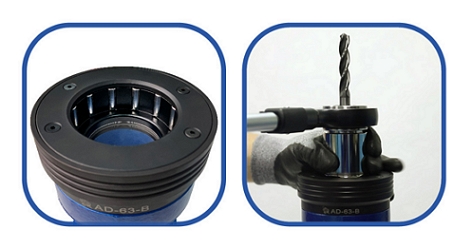

Use roller bearing to fix the tool holder flange, so the taper can remain free of contact.
Compatible with HSK-A/E/F/T type tool holders and PSC tool holders.
Specification
Technical information
video
series:
HSK/PSC
Roller Bearing Type
MODEL NO.
TYPE
COMPATIBLE TOOLING
D
H
W
P
T
WEIGHT
(KGS)
5300-023-025-02
AD-Ø25-B
HSK25A.E
100
164
110
90
M6
4.01
5300-023-032-02
AD-Ø32-B
HSK32A.E/PSC32
100
175
110
90
M6
4.61
5300-023-040-02
AD-Ø40-B
HSK40A.E.F/PSC40
100
175
110
90
M6
4.99
5300-023-050-02
AD-Ø50-B
HSK50A.E.F/PSC50
108
175
110
90
M6
5.62
5300-023-063-02
AD-Ø63-B
HSK63A.E.F/PSC63
108
175
110
90
M6
4.13
5300-023-080-02
AD-Ø80-B
HSK80A.F/PSC80
150
230
160
130
M8
11.3
5300-023-100-02
AD-Ø100-B
HSK100A/PSC100
150
230
160
130
M8
10.8
