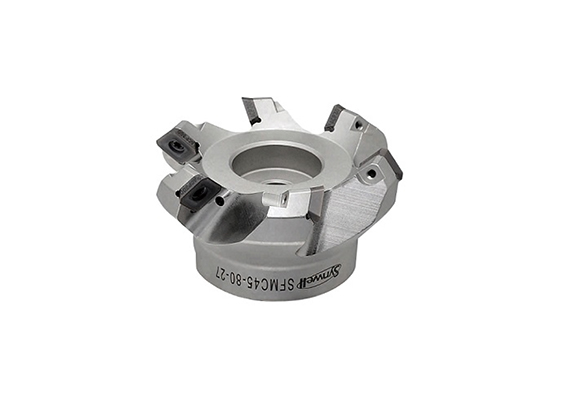

SFM 45° Face Milling Cutter

SFM 45° Face Milling Cutter
Product Name : SFM 45° Face Milling Cutter
Product Description

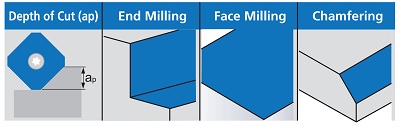

Ideal for end milling, face milling and chamfering!

  • Three types to choose from: with coolant holes, without coolant holes and shrink mill type.
  • For coolant through cutters, use FMC face mill arbor or FMA/FMB face mill arbor with washer screws changed into the ones with coolant flutes.
  • Shrink mill has a smaller pilot hole to combine with face mill arbors without gap, good rigidity.
  • Insert, SE..13T3, is widely applied in Asia markets.
  • Surface treatments of nickel plating provide good corrosion and wear resistance.

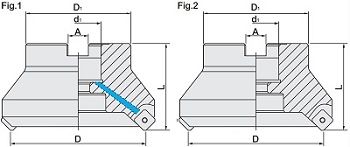

proimages/Products/Cutting_tools/Face_milling/SFM_45°/SFM_45°_feature_picture1.jpg     proimages/Products/Cutting_tools/Face_milling/SFM_45°/SFM_45°_feature_picture-2.jpg
series:

SFMC 45° FACE MILLING CUTTER

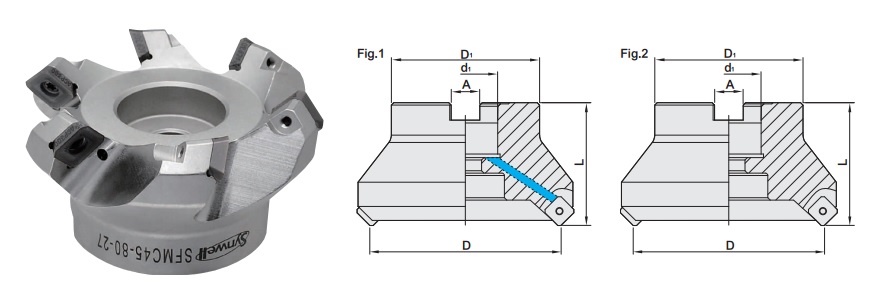

proimages/Products/Cutting_tools/Face_milling/SFM_45°/SFMC_45°_figure.jpg

MODEL NO.TYPEDD1d1LAap
max.		TEETHINSERTFig
5154-661-021-03 SFMC45-40-22 40 40 22 40 10.4 6 3 SE..13T3 1
5154-661-022-05 SFMC45-50-22 50 48 22 40 10.4 6 5 SE..13T3 1
5154-661-023-05 SFMC45-63-22 63 48 22 40 10.4 6 5 SE..13T3 1
5154-661-034-06 SFMC45-80-27 80 62 27 50 12.4 6 6 SE..13T3 1
5154-661-045-07 SFMC45-100-32 100 78 32 50 14.4 6 7 SE..13T3 1
5154-661-056-08 SFMC45-125-40 125 89 40 63 16.4 6 8 SE..13T3 1
5154-661-057-10 SFMC45-160-40 160 98 40 63 16.4 6 10 SE..13T3 1
5154-661-123-05 SFMC45-63-25.4 63 50 25.4 40 9.5 6 5 SE..13T3 1
5154-661-134-06 SFMC45-80-31.75 80 62 31.75 50 12.7 6 6 SE..13T3 1
5154-661-135-07 SFMC45-100-31.75 100 78 31.75 50 12.7 6 7 SE..13T3 1
5154-661-146-08 SFMC45-125-38.1 125 80 38.1 63 15.9 6 8 SE..13T3 1
5154-652-176-08 SFM45-125-50.8 125 80 50.8 63 19.45 6 8 SE..13T3 2
5154-652-168-12 SFM45-200-47.625 200 138 47.625 63 25.4 6 12 SE..13T3 2

ACCESSORIES:
INSERTINSERT SCREWWRENCH
SE..13T3 M3.5-10-5.5-60 T15
